Description:

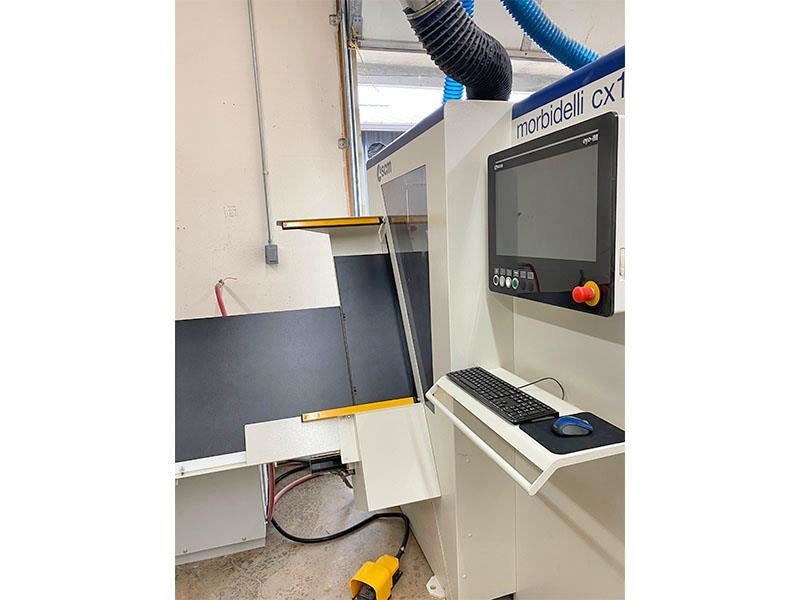

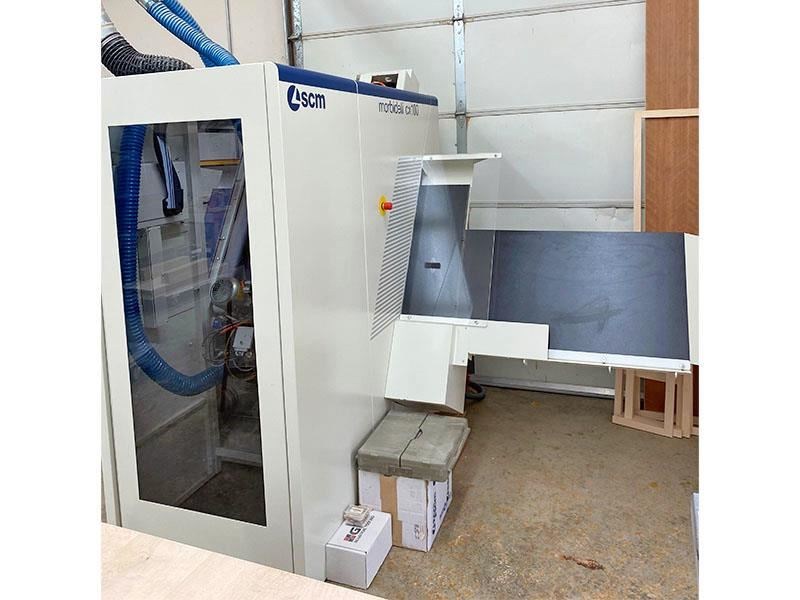

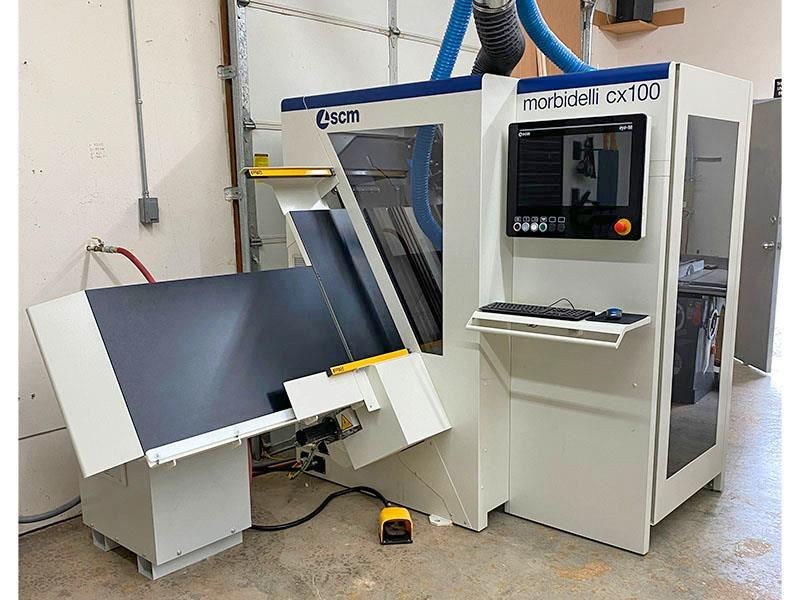

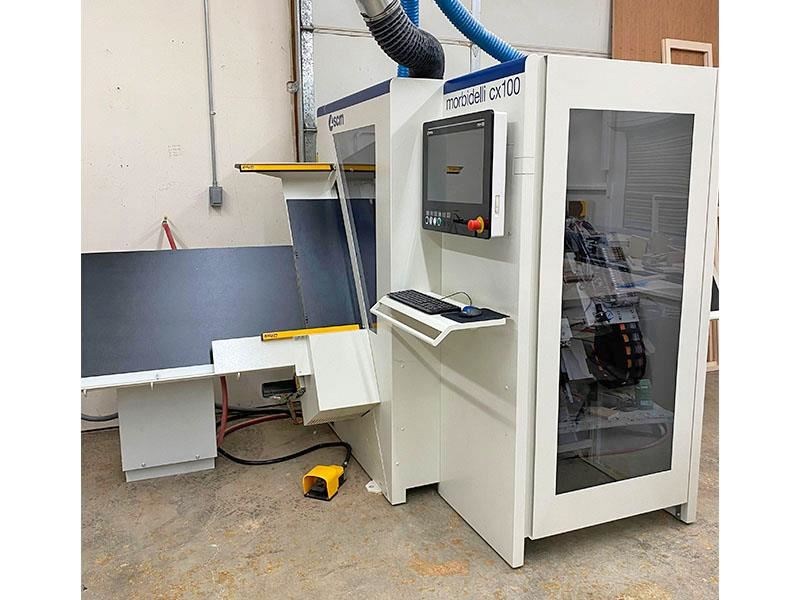

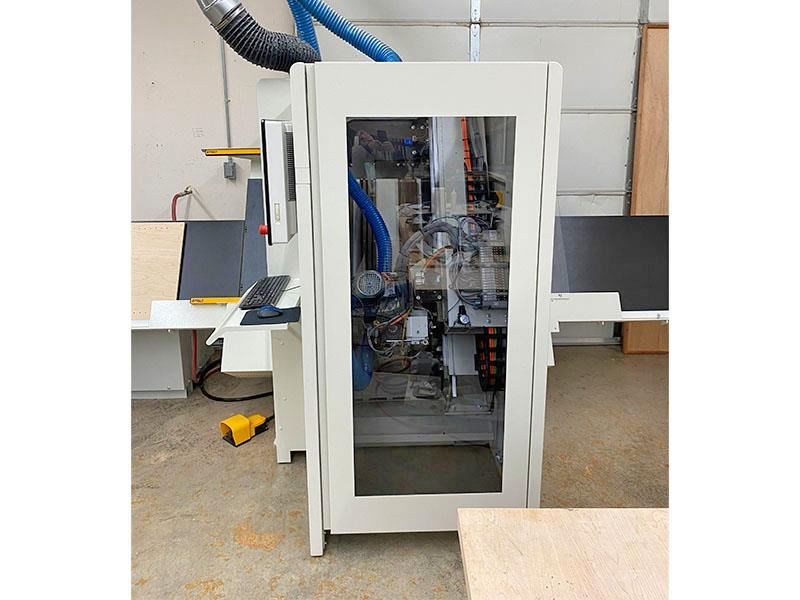

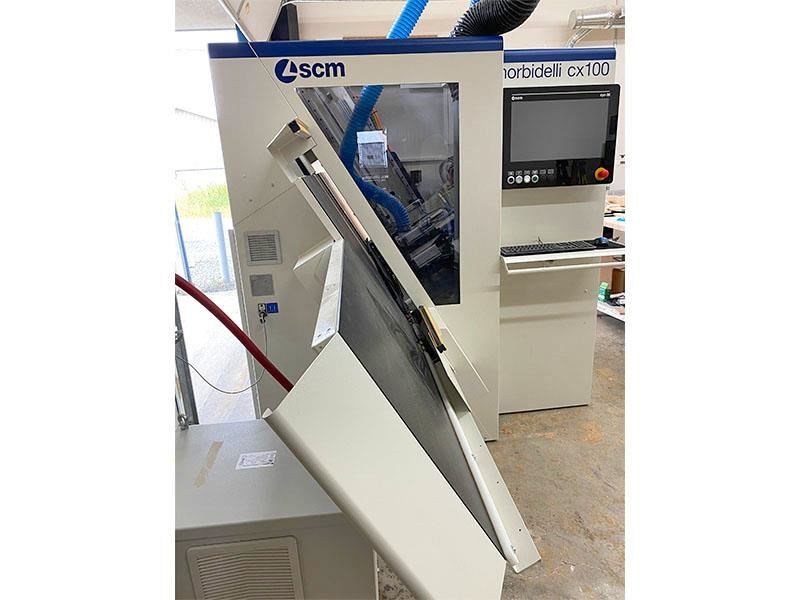

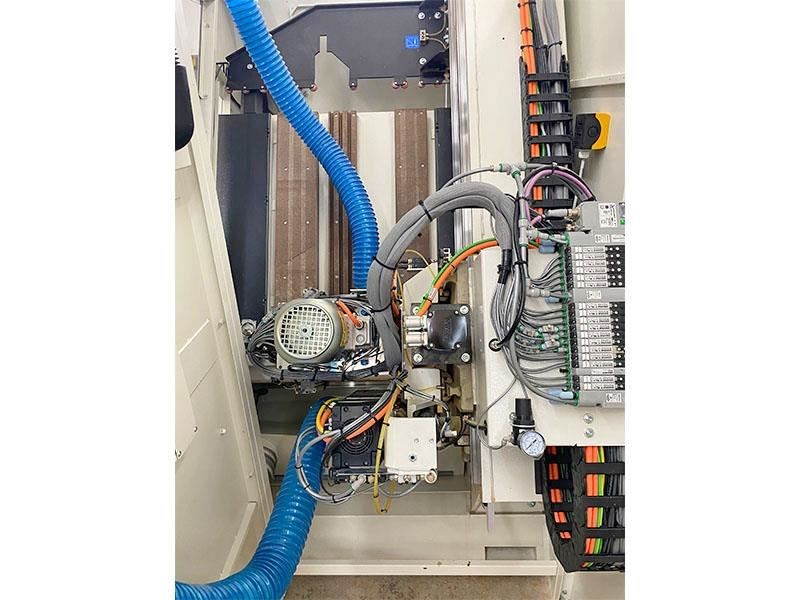

MORBIDELLI - CX 100: CNC Machining Center (Vertical) -- SpecificationsFlexible "Vertical" Machining Center that can produce up to (400) pieces per shift and ideal for batch productions and boring on (5) sides of the panel with maximum freedom in processing types of materials such as MDF, Chipboard, Lacquered Panels, and more! -- Working CapacityMax. part size for "X" axis is 120" (3,050 mm); "Y" axis is 51.1" (1,300 mm); max. part thickness: 3.7" (95 mm). (12) Vertical Spindles, (4) Horizontal Spindles in X-Direction, (2) Horizontal Spindles in Y-Direction.17" TFT Monitor; international keyboard; soft touch keypad & industrial mouse; RS-232 Serial ports; USB ports; (1) 1.44 MB floppy disk drive; (1) CD RW drive.Ethernet connection; real-time multitask processing; programs can be transferred via diskette or downloading by wire is possible. -- Complete with:Handheld Pendent control; (2) pneumatic part clamping devices; auto lubrication system; sound enclosure & safety devices. -- Actual Model is: MORBIDELLI CX 100
