Description:

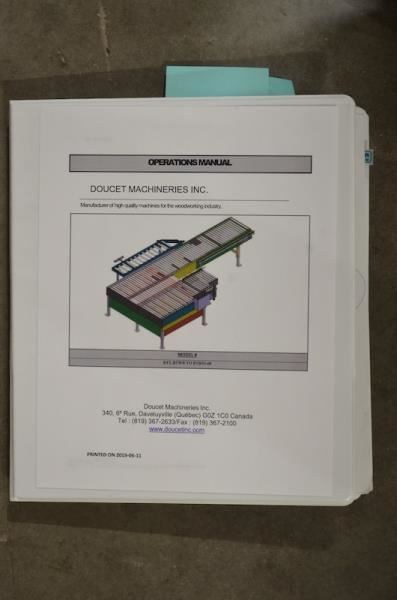

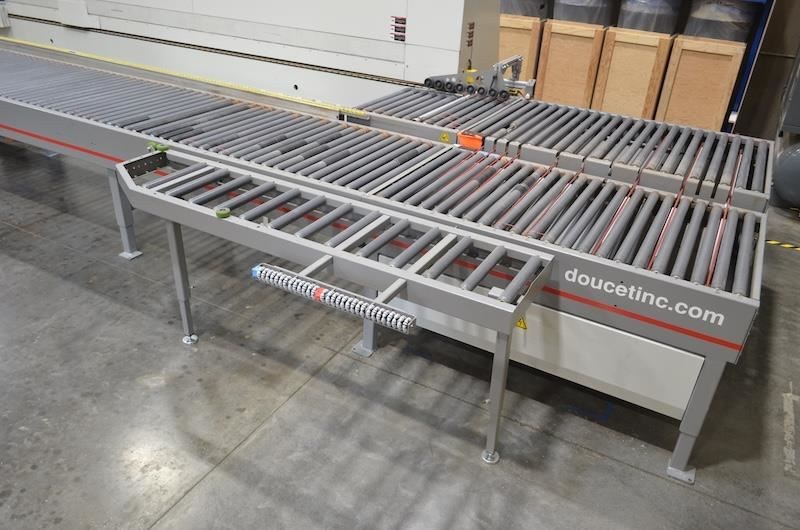

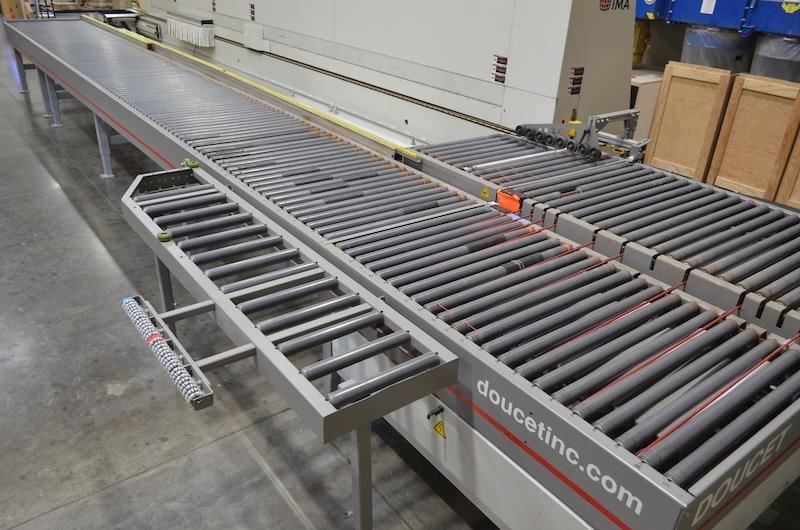

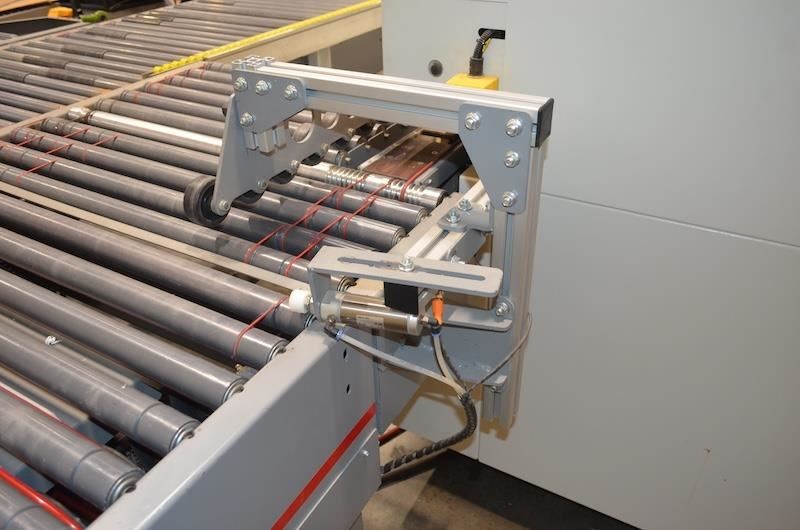

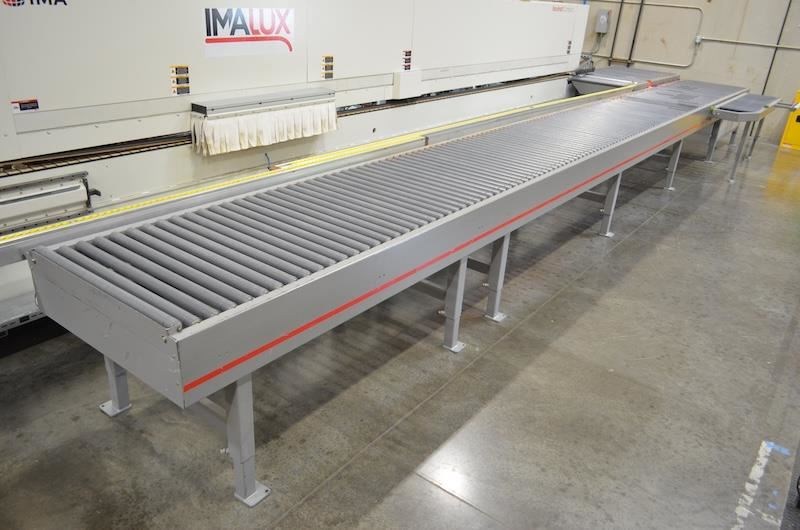

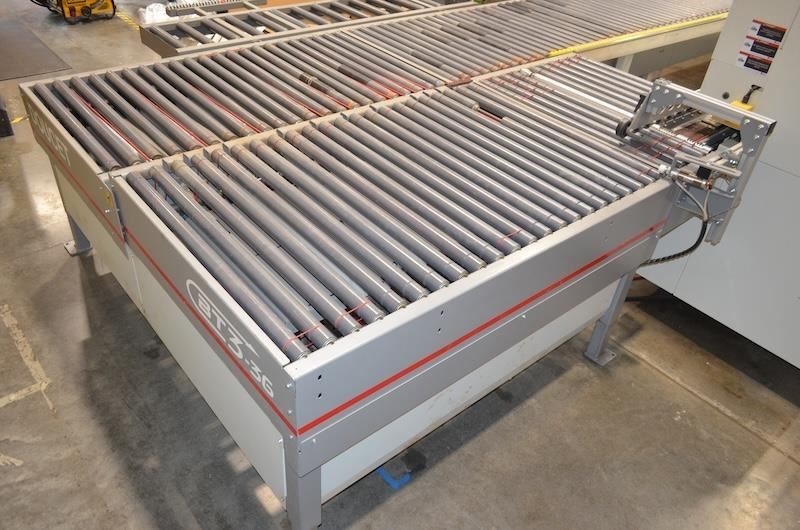

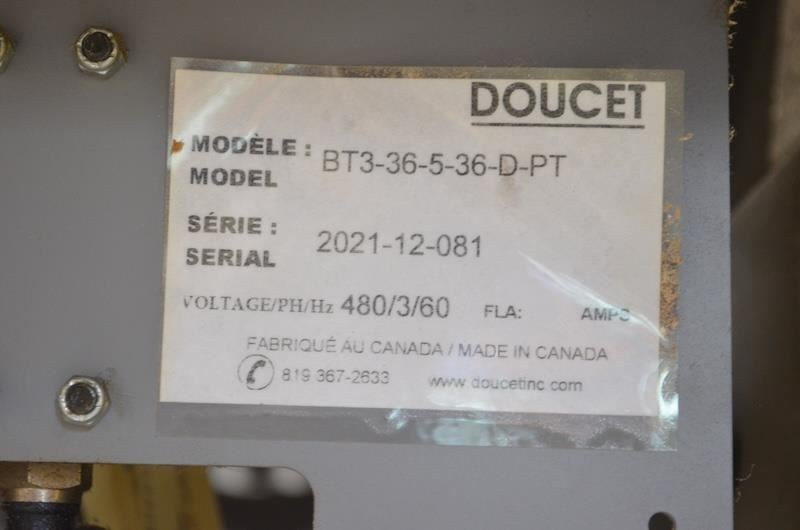

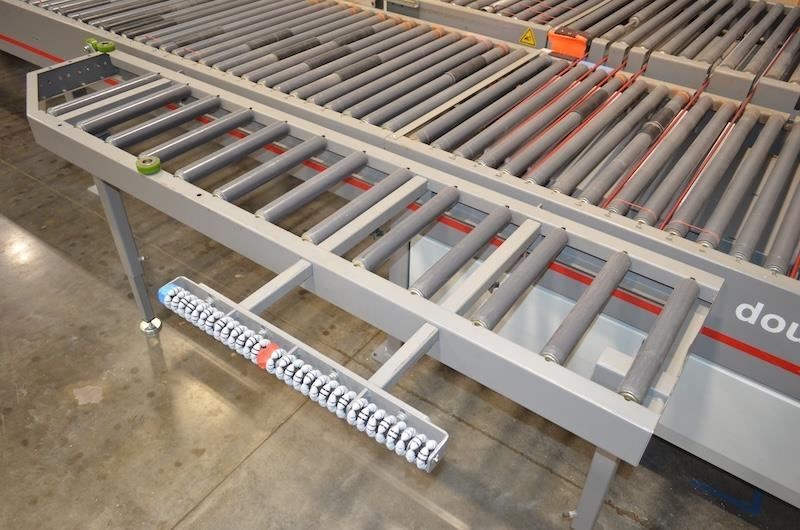

DOUCET BT3-36-5-36-D-PT Return Conveyor for EdgebandersSpecifications: -- Left-hand feed, with Right-hand return. -- Min. part size 4" x 12". -- Max. panel size (with operator assistance supporting then turning panels) 52" x 96".Equipped with: -- 33'’ L Motorized infeed roller conveyor section. -- 40"; W x 5’ L x 38"; H Receiving table, with Automatic/Manual height adjustment 2". -- (9) 3/8"; Dia. transfer belts. -- 36"; W x 5’ L x 36"; H Return table. -- 36"; W x 28’ L x 36"; H Return conveyor. -- All rollers 1-7/8"; Dia. covered line shaft on 3"; centers.Complete with: -- "PT 90" 15-1/2"; W x 6’ L 90° Panel Turner. -- Operations Manual.Overall Dimensions: -- 405" x 126" x 49" H.
