Description:

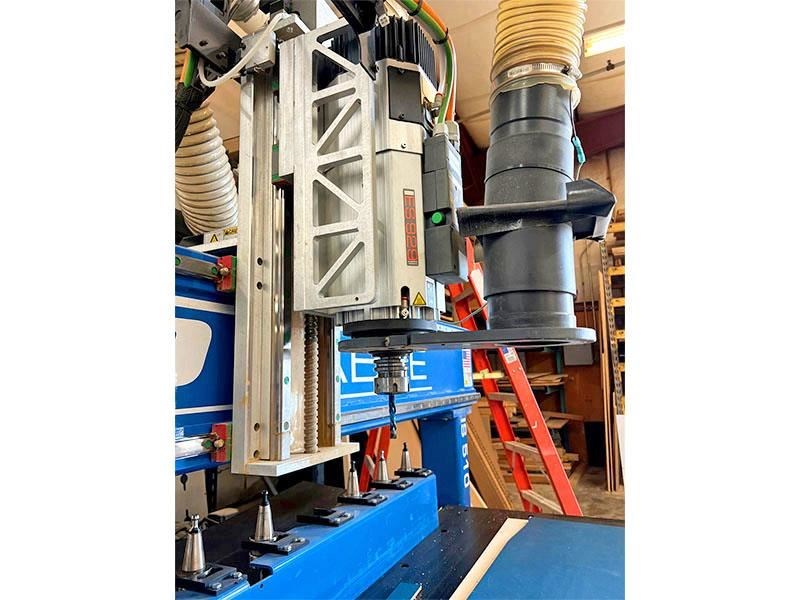

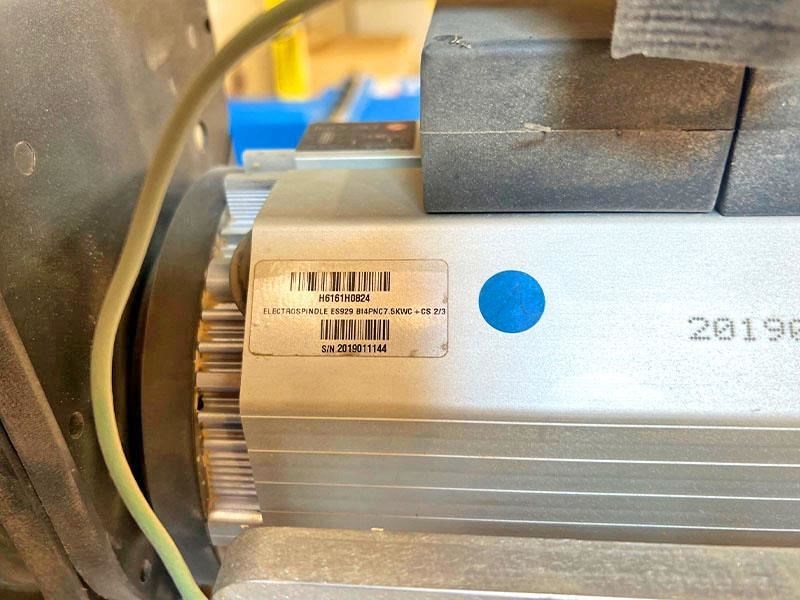

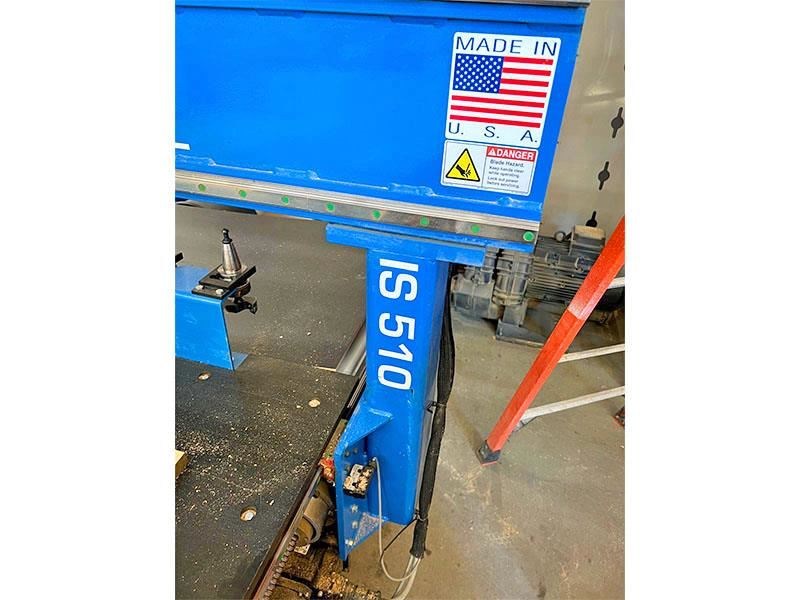

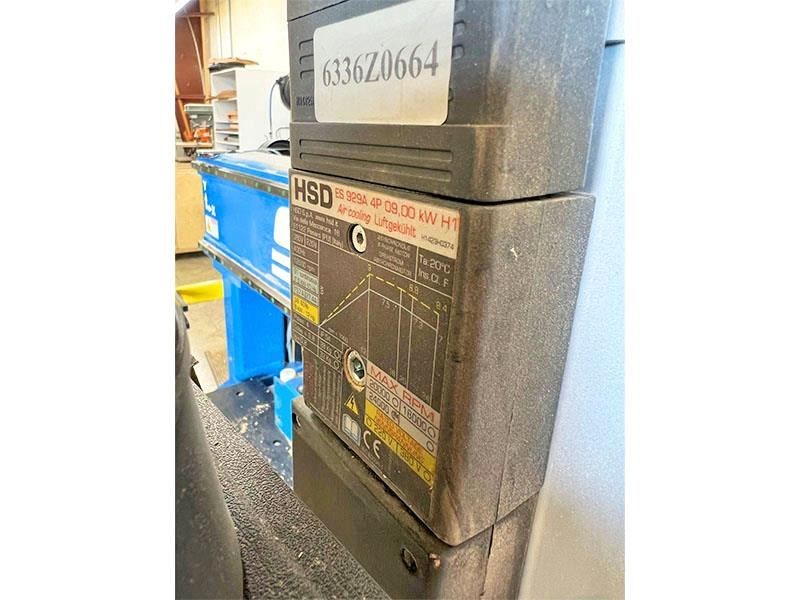

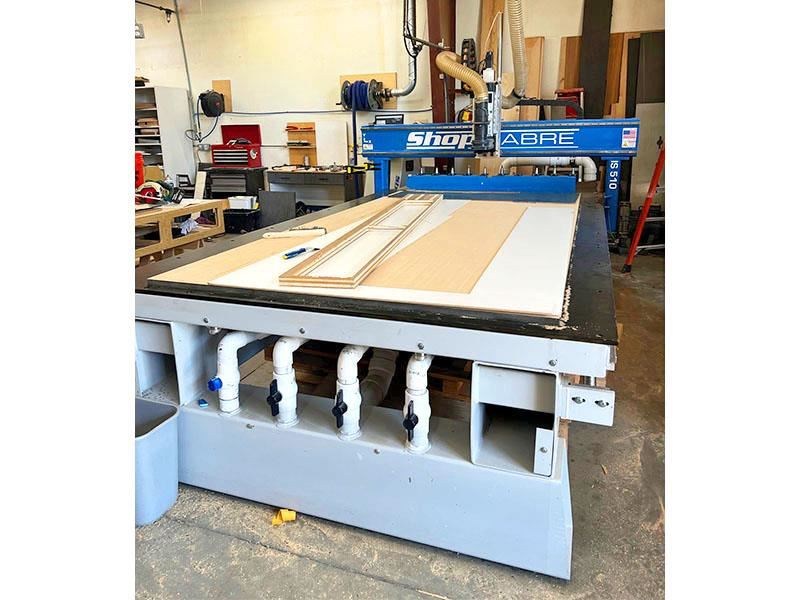

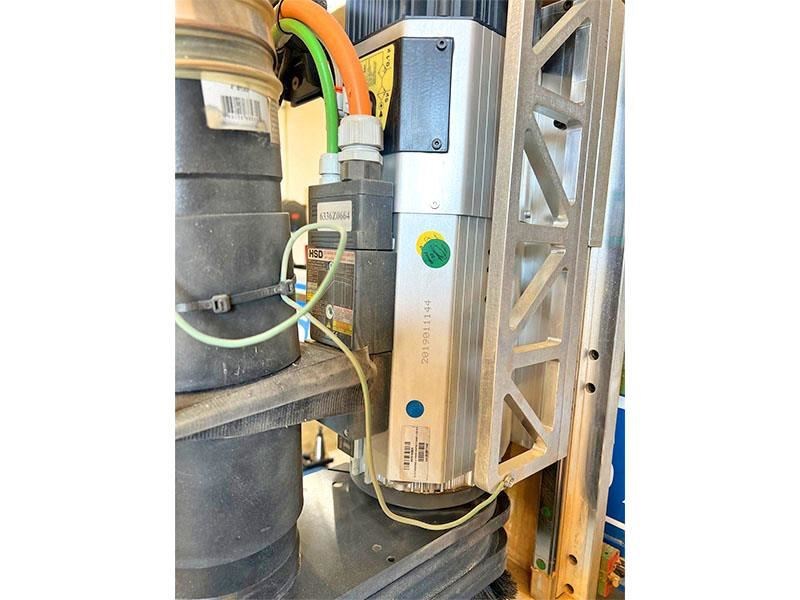

SHOP SABRE IS 510 CNC Router, 5 X 10 with ATC: -- Specifications:65" x 125" "510 IS" Stationary CNC Router table, moving gantry machine in a front-to-back configuration. -- Equipped with:(1) 8 kW (10 HP) HSD - 24,000 max. RPM Spindle with ATC (5) position wine rack style tool changer. Basic dust skirt and 4" outlet for connecting to Dust Collector. -- Extended Z-axis with 12" clearance under gantry and 16" stroke. -- Fully assembled steel tube frame, tube steel gantry and steel machine base. -- X- and Y- axis travel/positioning via industrial precision anti-backlash X-axis center mount ball screw Y-axis dual drive ball screw with industrial 25 MM precision linear guide rails & bearings. -- MITSUBISHI Brushless A/C Servo upgrade with amplifiers, increases machine speed to 2,100 IPM on X- and Y- axis & 1,000 IPM on Z-axis. -- Control:WINDOWS Based ShopSabre WINCNC industrial controller hardware & software operating system running "ShopSabre" computer system, full size desktop system with 320 GB of storage, 2 GB memory 19" Flat screen monitor, keyboard, mouse; capable of being programmed by any CAD/CAM software that can write in M & G-code. -- Complete with:Assorted took holders, tool measure switch, measures tooling height without changing Z-axis height; (1) 20 HP FPZ Vacuum System 13.6"HG @ 300 CFM. and 4-zone vacuum manifold.Machine Footprint (Including Gantry): 96" x 155" x 98"
