Description:

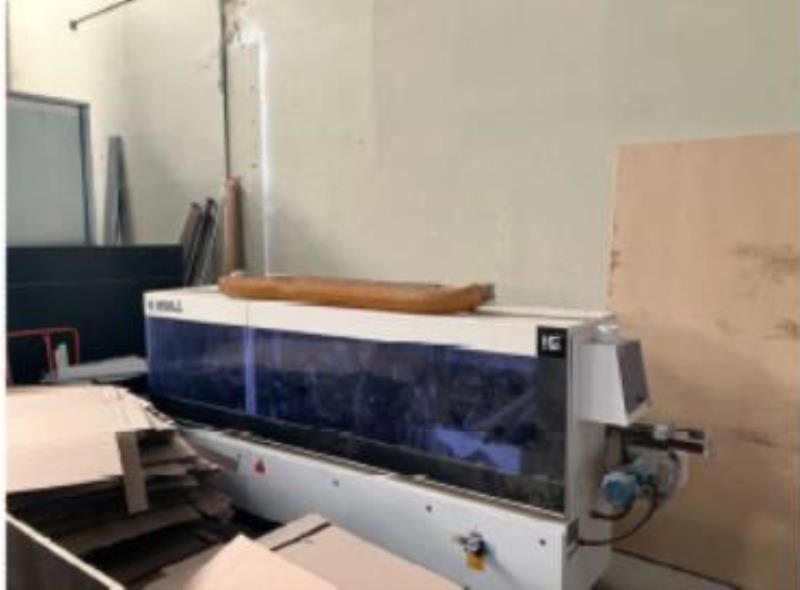

HOMAG S-200 (OPTIMAT KDF 130C): Edgebander (w/Premill & Corner Rounding) +"AIR TEC" EVA/PUR. -- Specifications0.3 - 3 mm (0.016 - 0.11") Edge; 8 -60 mm (0.312 - 2.375") panel thickness; 160 mm (6.375") min. panel length; 70 mm (2-3/4") min. panel width. -- Equipped with:Separating/cleaning agent spraying units. -- Premilling Station: (2) Motors @ 2.25 kW (3.0 HP) - 12.000 RPM; LH & RH rotation w/pneumatic jump control for chip-free and clean panel edges. -- 100 mm Dia. diamond cutterheads. -- Integrated heated glue roller. -- AirTec Reactivation unit for: Zero edge finish. -- Automatic Edge Magazine for: Strip & coil stock; up to3 mm PVC. -- "Heavy-Duty" Guillotine. -- EVA "Quick-Change" glue pot & roller application unit. -- Pressure Section. 1st Roller driven plus: (2) Idle rollers; timed pneumatic pressure controlled. -- Feed Speed: 8 MPM. (26 FPM). -- Operator InterfaceHOMAG "easyTouch" Operator Interface with: 7" Graphic color touch display & soft keypad; intuitive, user-oriented navigation. -- (20) Storable programs guarantee flexibility when processing a wide variety of edge materials and changing customer requirements. -- Clear overview of the help & assistant functions, including the glue pot temperature or troubleshooting in plain text. -- Workstations End Trimming: (2) Motors each @ 0.35 kW (1/2 HP) 12,000 RPM; automatic chamfer from control panel 0° - 15°. -- Flush/Bevel-Fine/Radius Trimming Unit. (2) Motors: Top/Bottom; 0.55 kW (3/4 HP) - 12,000 RPM; 0° - 25° auto-tilt positioning from control panel with combination flush/radius/chamfer cutterheads. -- Includes (3) positioning options: Profile 1, Profile 2, & Profile 3: Flush trimming. -- Corner Rounding Unit. (1) Motor 0.35 kW (1/2 HP) - 12,000 RPM with: Automatic adjustment from control panel for: 1-Mil, 2-mil & 3-mil thickness. -- For leading & trailing edges, vertical corner rounding of panels: Ether radius or chamfer cutters can be mounted; 3 mm max. edge thickness. -- Scraping, multi-profile (PVC) Top/Bottom with (2) profiles: (1) 1 mm, 2 mm, or 3 mm in place of (2) 2 mm positioning of vertical & horizontal copy wheels. PVC scrape collection box. -- Buffing Unit: Top/bottom (2) motors; 0.10 kW (0.125 HP) - 2,800 RPM. -- Complete withMotorized hold-down pressure beam; padded sound enclosure, isolation transformer for multiple input voltages, used tooling, and original factory documentation. -- Actual Model is: HOMAG EDGETEQ S-200 (OPTIMAT KDF 130 C)NOTE: Owner States "Our objective is to be completely transparent with potential buyers and clearly state that the equipment is being offeredas-is, currently dismantled and stored." Buyers seriously interested can arrange an inspection at our warehouse, in FL, as they sit, in storage.
