Description:

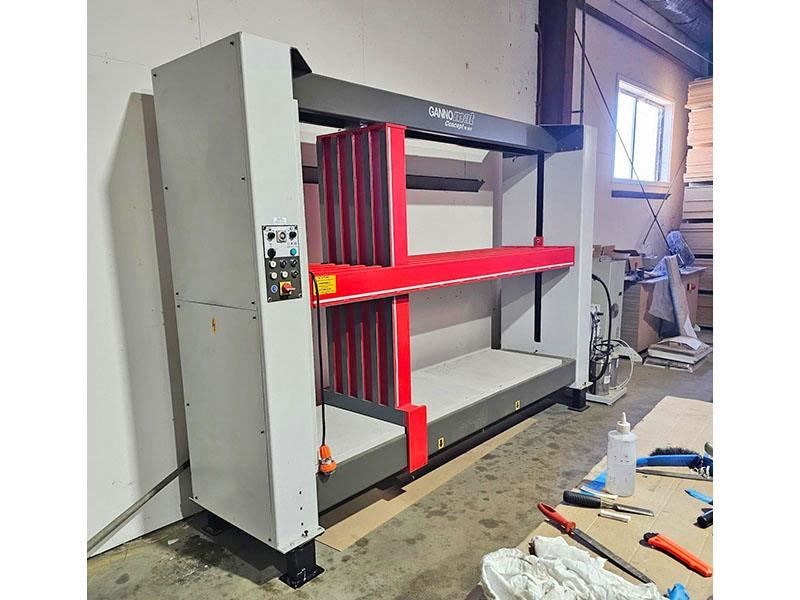

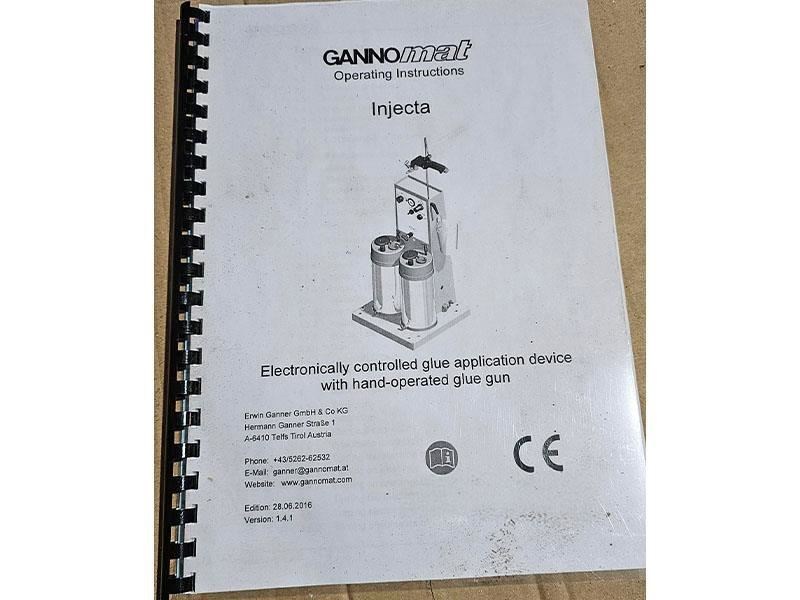

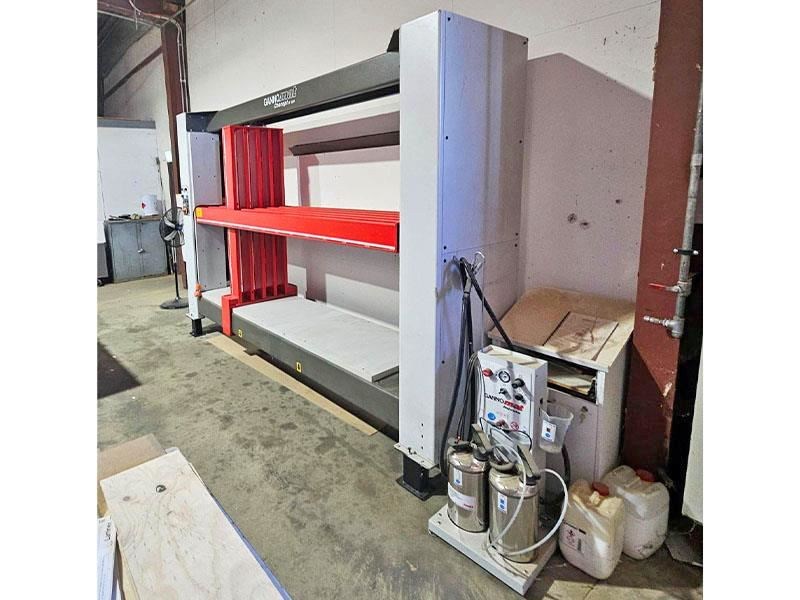

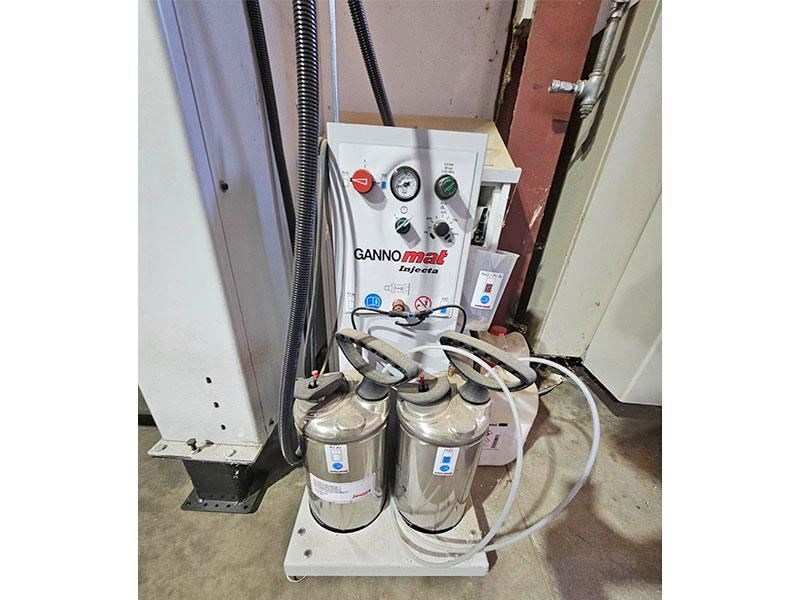

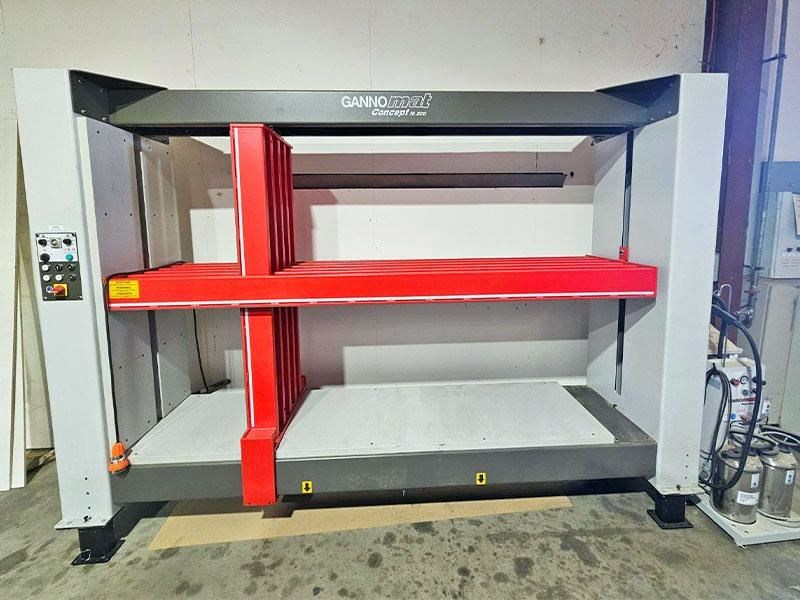

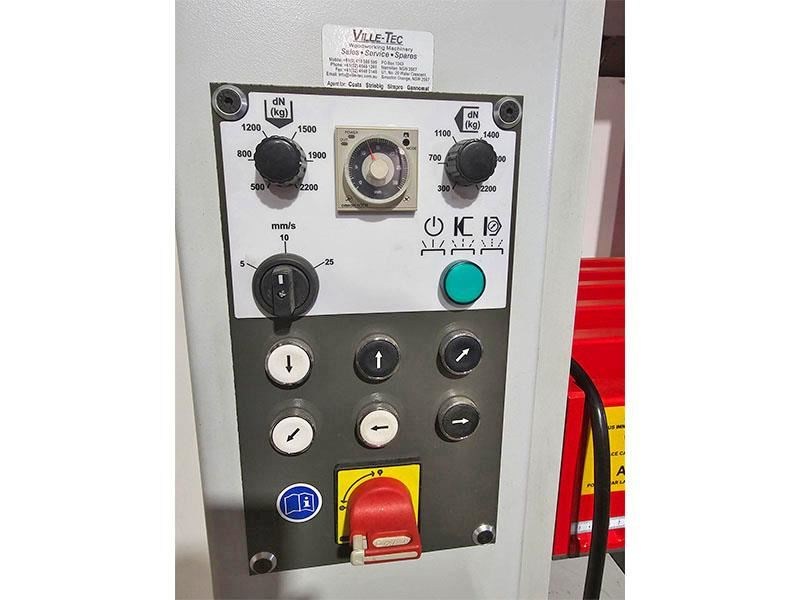

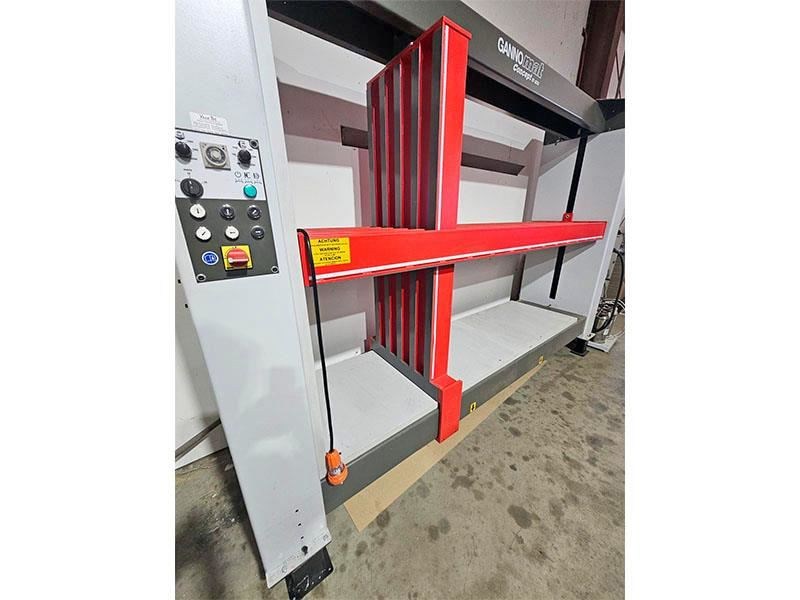

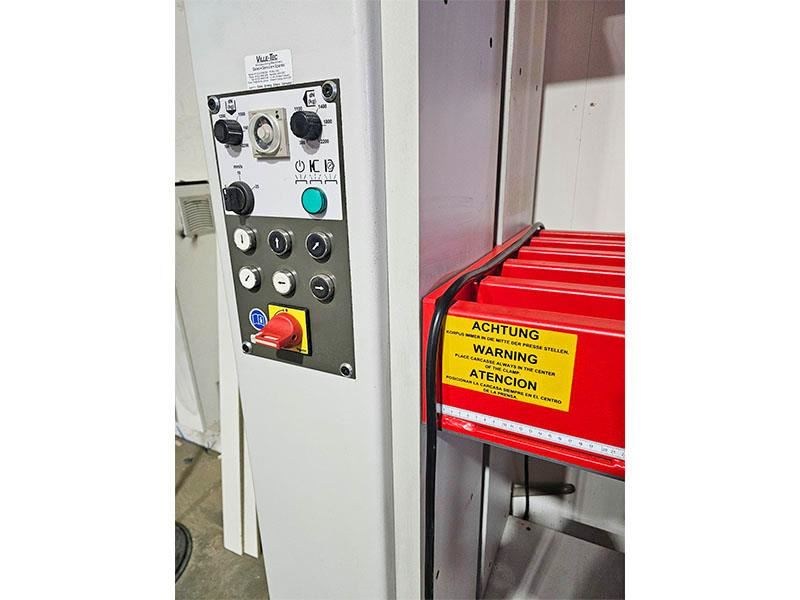

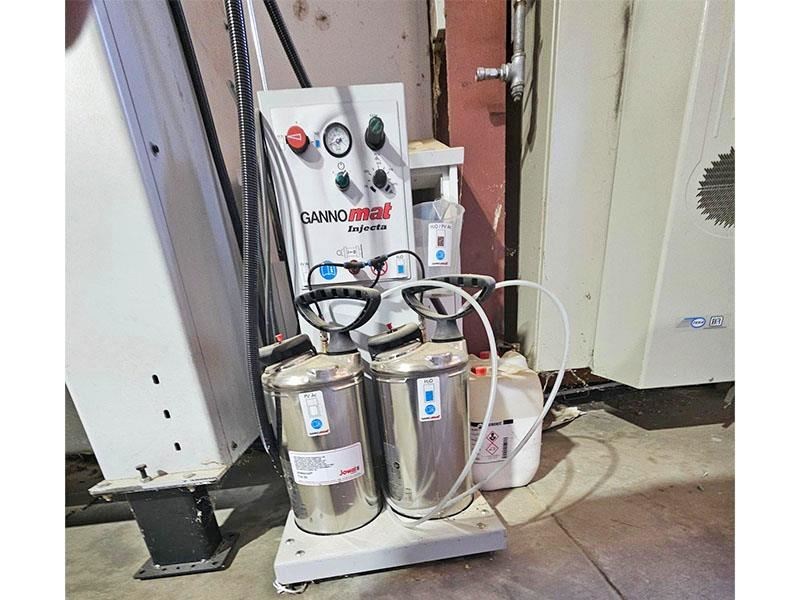

GANNOMAT CONCEPT 70 ECO CASE CLAMP CASE CLAMP (SEMI-AUTOMATIC) + GANNOMAT INJECTA Glue Gun/Application device: -- SpecificationsMultipurpose Case Clamp with: Interlocking vertical & horizontal pressure beams specially designed to save time & labor. -- Clamping pressure applied across the entire vertical & horizontal beams for clamping of case goods, drawers, etc. -- Working CapacityLength: Min. 6" (150 mm), max. 98.4" (2,500 mm); height: Min.: 6" (150 mm), height max.: 51" (1,300 mm); depth max.: 27-1/2" (700 mm). 2 Potentiometer for stepless adjustable pressing force; adjustable clamping cycle time with automatic opening.Minimum pressing force 300/500 kG; max. pressing force 2,200 kG.(4) Pressing velocities & adjustment rates: 5 /10 / 25 / 50 mm/Sec (with fine positioning/creep feed). -- Operator InterfaceElectronic controller with: Keypad for the following functions: Manual operation; (6) individual push buttons for (8) motion sequences; pressure regulation; workpiece count; clamping dwell time. -- Options include: Optional GANNOMAT INJECTA Glue Gun/Application device. -- Actual model is: GANNOMAT CONCEPT PLUS 70 ECO +
