Description:

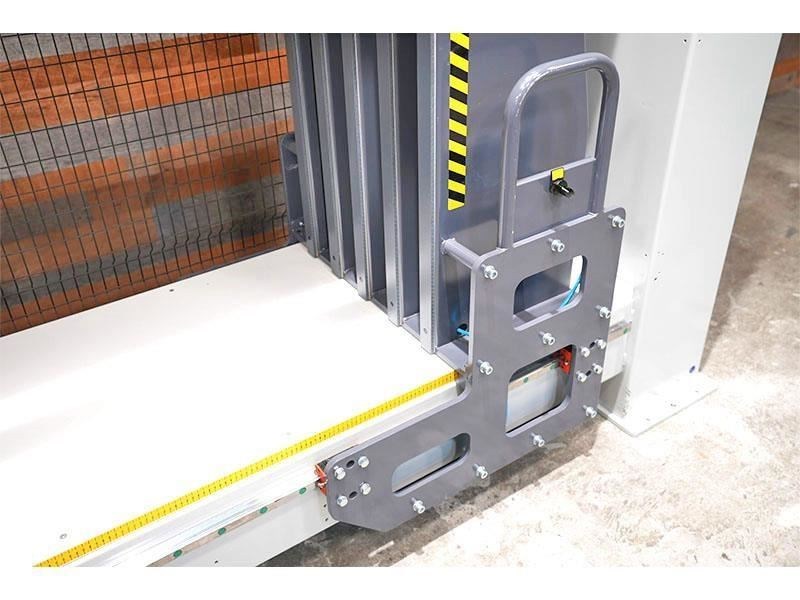

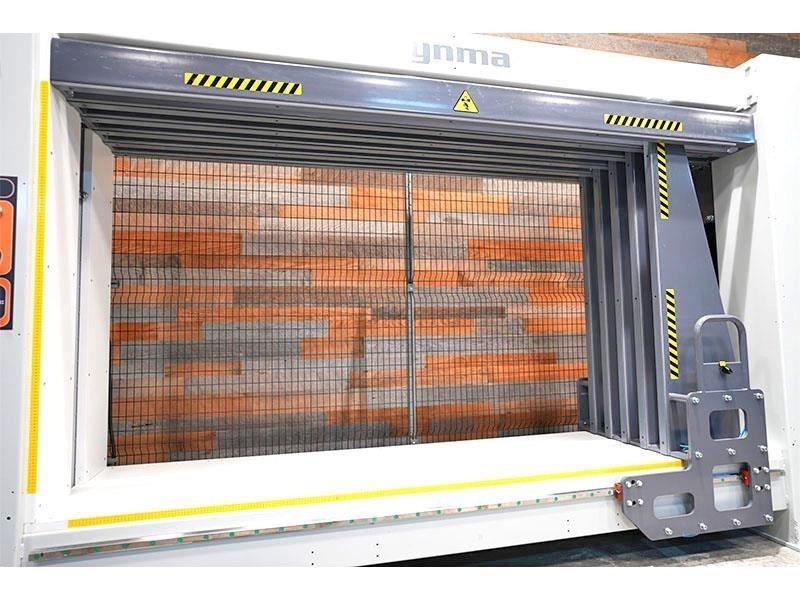

DYNMA AIRKOMP CASE CLAMP (SEMI-AUTOMATIC): -- The lamellar Case Clamp solves one of the big problems with Case Clamp assembly; it eliminates setup time. If you have ever struggled or are struggling with an old Clamp, you know how time consuming cabinet assembly can be.Before clamping each different cabinet size, several adjustments have to be made; this means loosening and tightening each individual clamping pressure point.Specifications: -- Length min. cap. is 13.1" (335 mm) & max. 97.2" (2,470 mm)"; Height min. cap. is 11.8" (300 mm) & max. 54.3" (1,380 mm); Depth min. 7.9" (200 mm) & max. cap. is 27.5". (700 mm). -- This multi-purpose Case Clamp with interlocking vertical & horizontal pressure beams is specially designed to save time and labor. -- Clamping pressure is applied across the entire vertical and horizontal beams for the clamping of case goods, drawers, etc.Pressing Elements: -- Vertical platform with (6) intercrossed steel pieces 6" x 1.97" (150 x 50 mm), Horizontal/Lateral column with (5) intercrossed steel pieces 6" x 1.97" (150 x 50 mm). -- Clamping beams move to position on precision trapezoidal threaded spindles and travel at 25 mm (1") per second. -- Timer automatically opens the Clamp at the end of the cycle. -- Max. pressing pressure 1,200 kg / 2,640 lbs (horizontal/lateral), 2,000 kg / 4,400 Lbs (vertical).Operation & Features: -- Operation by selector switches for the following functions: Clamping pressure, Beams up/down, left/right, diagonal, and clamping time. -- A sturdy, stress-free, welded steel frame guarantees square cabinet assembly; -- The motor load for clamping pressure is digitally regulated to minimize the wear associated with clamps having standard clutch braking. -- Actual model is DYNMA AIRCOMP
