Description:

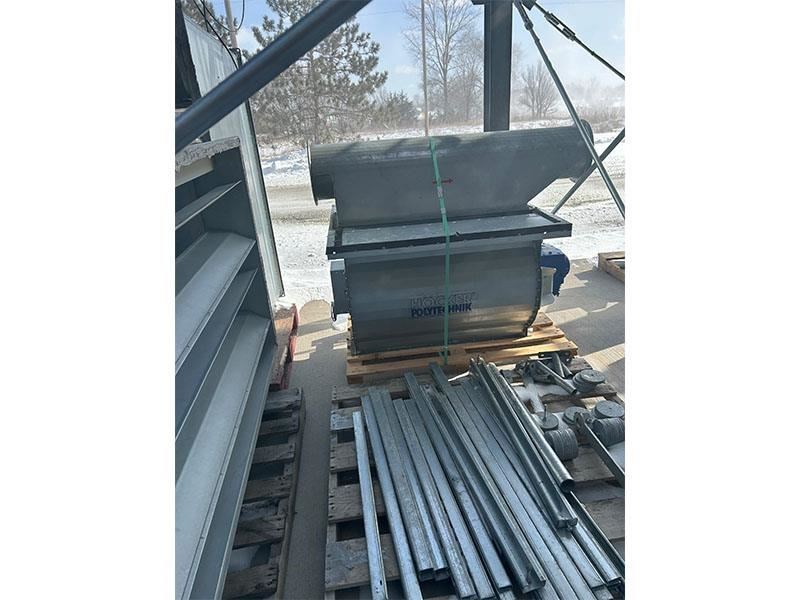

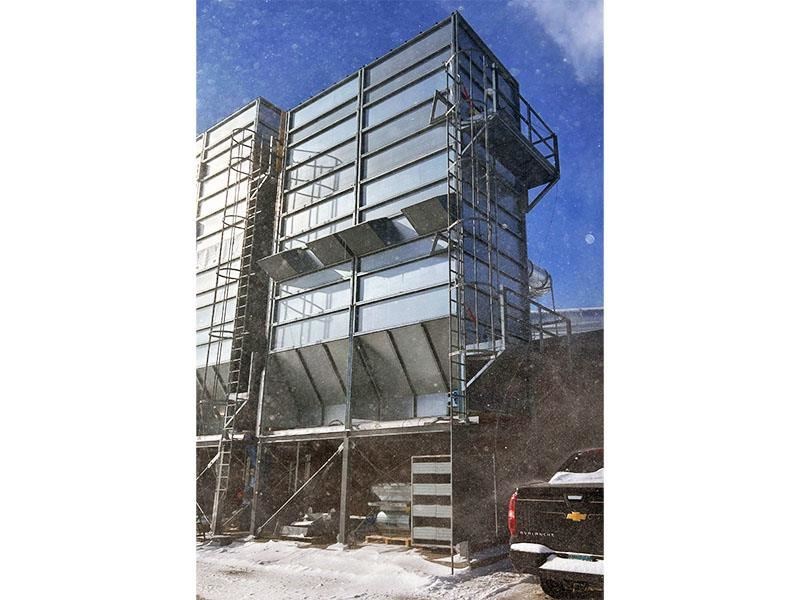

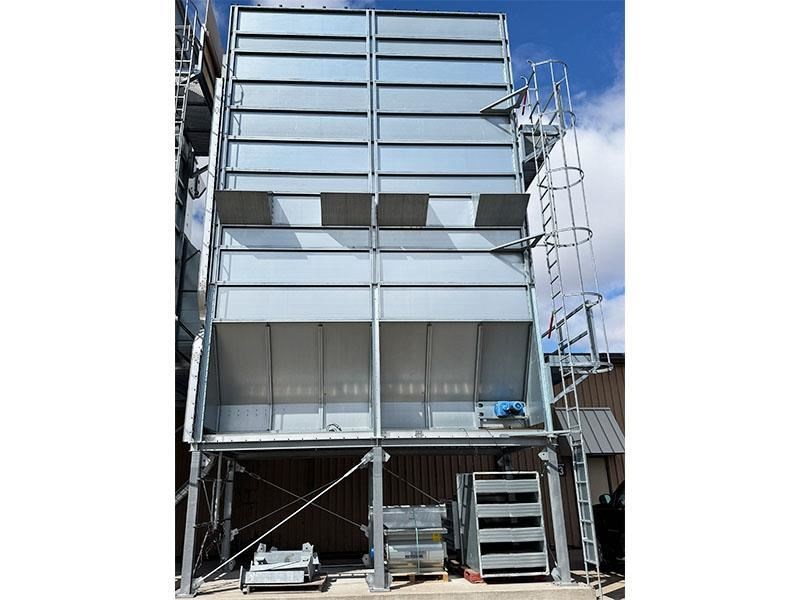

HOCKER POLYTECHNIK - MULTISTAR Series, ...Pulse Jet Baghouse 33,000 CFM (56,000 M³/Hr) based on 5.2 to 1 Air-to-cloth ratio (FPM - average air velocity thru filter media) with 6,345 square feet of filter area. -- Filtration: Filters are automatically cleaned by Pulse-Jet system based on supply of 1" dia. dried clean compressed air line from Plant. Cleaning automatically controlled via timed cycles or by the Delta-P, which is the differential pressure across the filter bags. -- Supplied with: (4) HOCKER DER - 040/45022 radial BI fan; each directly driven by 30 HP - TEFC 3,600 RPM High Efficiency motors; mounted on the clean air side. Rated for a total of 33,000 CFM at 16" SP (4,000 Pa). Fan inlets are 18" (450 mm) dia. each. Non-return flap camper on the outlet side. -- Includes Electrical panel with: PLC Controls; Explosion Relief Panels; Sprinkler heads in the clean air plenum; ATEX approved construction with 11-gauge electroplated galvanized steel shell with clean air outlet not returned to plant. -- Equipped with: (1) HP Rotary Air Lock. -- Control - SIEMENS - SIMATIC TPI200: PLC Controller housed in a floor-mounted central control panel with modem module for allowing HOCKER online access to assist in program changes, 12" TFT color, touchscreen display.All starters and contacts for included motors.Pictorial guided navigation and fault messages are displayed in text.Graphic images, curves, bar diagrams, parameter adjustment settings, and fault report.FI MF 22.0 kW SPS Ctrl.: Allows startup of several fans, one after the other. -- VFD drives on each motor with: Automatic motor tuning, automatic startup, min./max. speed limits, DC brakes, and operating hours meter. -- Includes: Access ladder to upper catwalk and exterior pipe. Heavy-Duty galvanized for outdoor operation. -- Professional dismantling and transportation available upon request.
