Description:

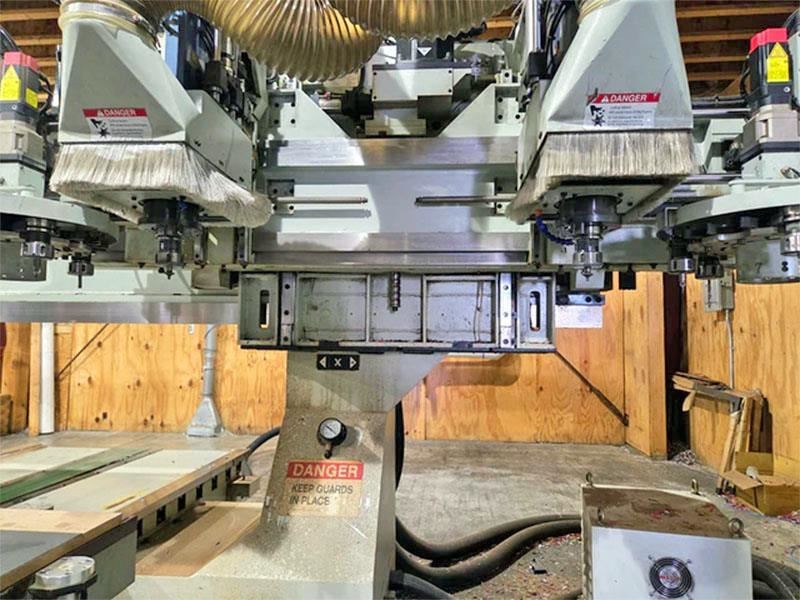

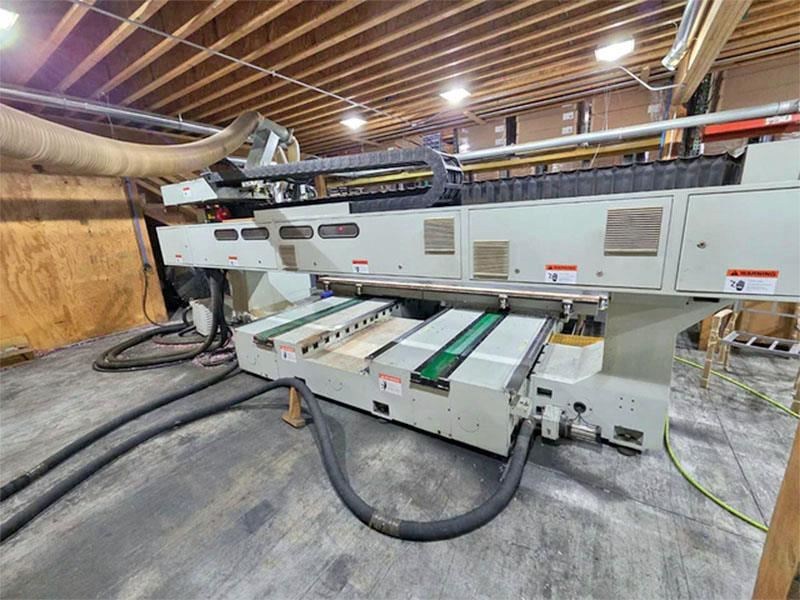

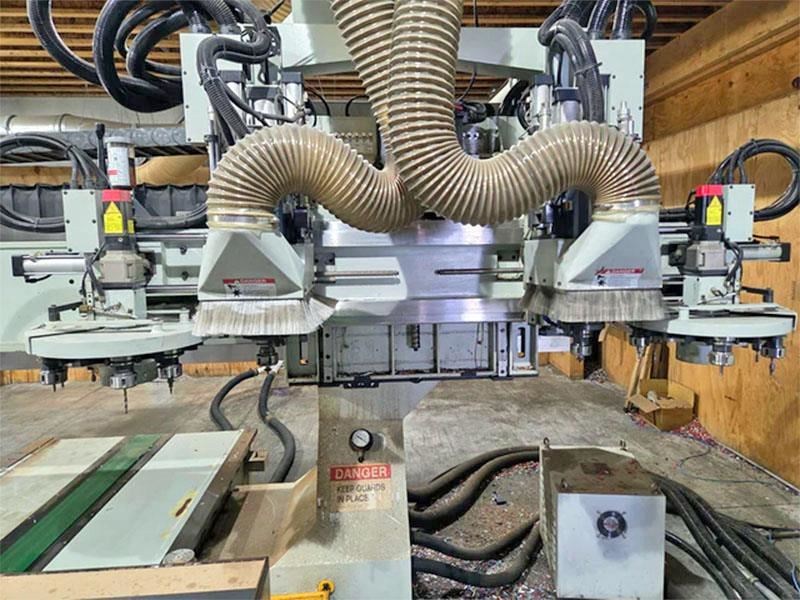

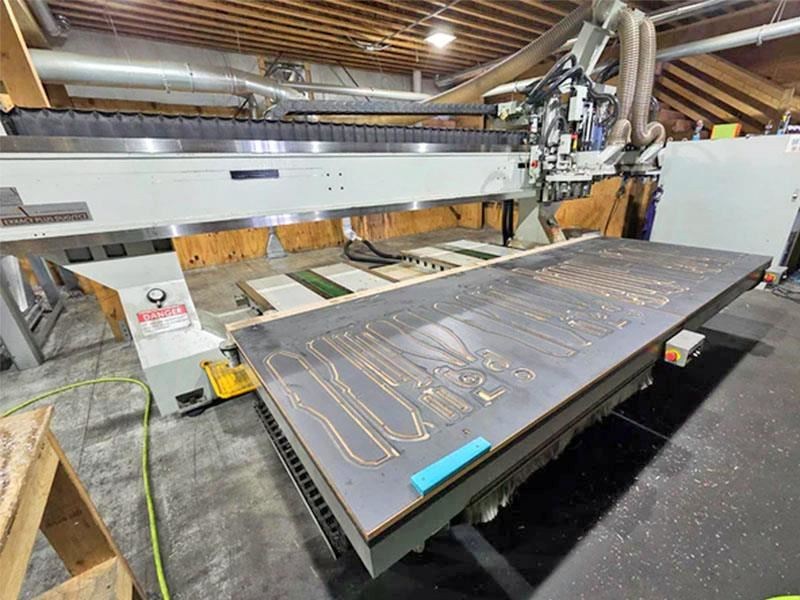

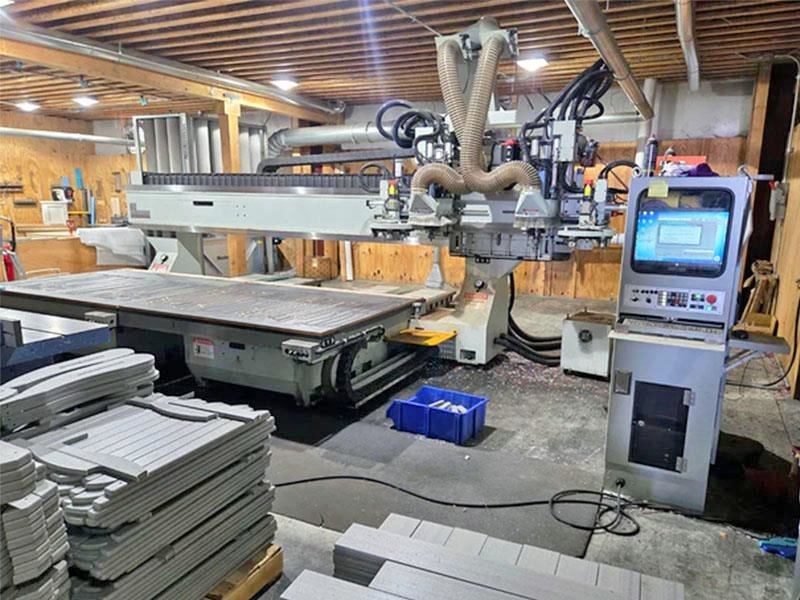

ANDI EXXACT DUO PLUS/TC2 (CNC Router W/ATC): -- SpecificationsTwin 6' x 5' (72" / 1,840 mm) x (62" / 1,600 mm) Moving tables in left to right configuration each with (1) vacuum zone; Tables can be locked together to create (1) 5' x 12' working table. -- Equipped with: (2) 18 HP HSK-63F ANDI Router Spindles. Programmable spindle speeds of 1,000 to 24,000 RPM. Each router spindle has a 10-position Servo driven automatic tool changer. -- Closed loop Servo drive system with precision ground ball screws for positioning. 262 FPM max. positioning speed rate on X- & Y-axis, Z-axis 14" (360 mm); extended gantry bridge for full 12' x 5' table coverage. All axes ride on extra-large TANK guideways. Extra Heavy Duty fixed gantry bridge. -- Andi-FANUC Series control system built into free-standing control console.Features: (3) Axes simultaneous control, 21.5" high resolution LCD monitor, RS-232 port, inch & metric operation, and feed rate & spindle speed override. -- Actual Model is ANDI EXXACT DUO PLUS/TC2NOTE: "NO" Vacuum Pump is included
