Description:

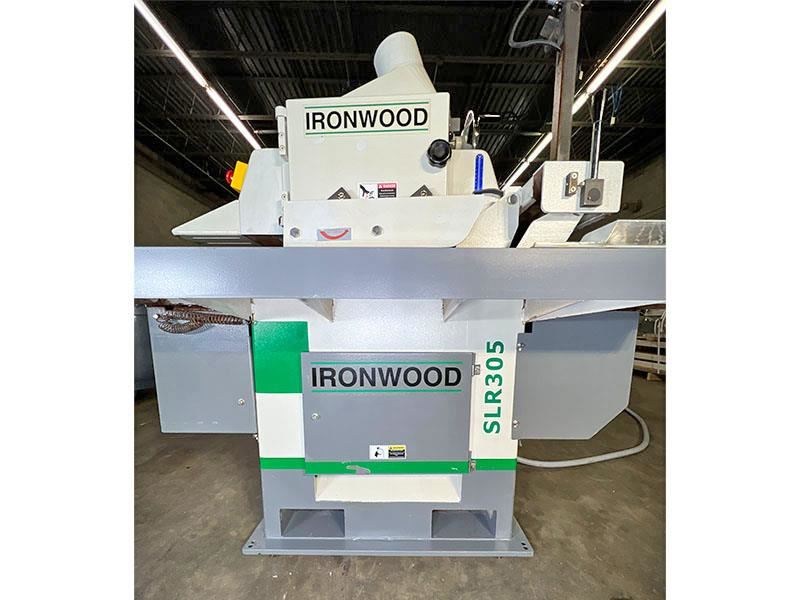

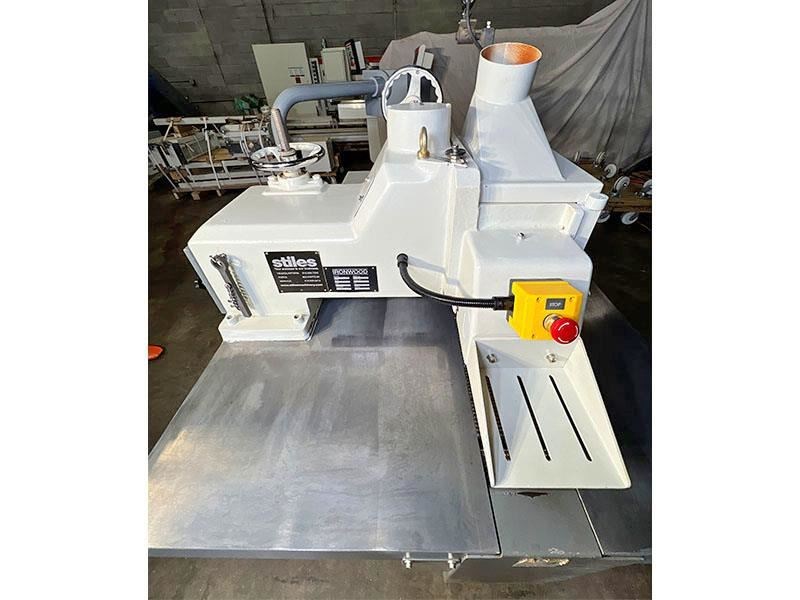

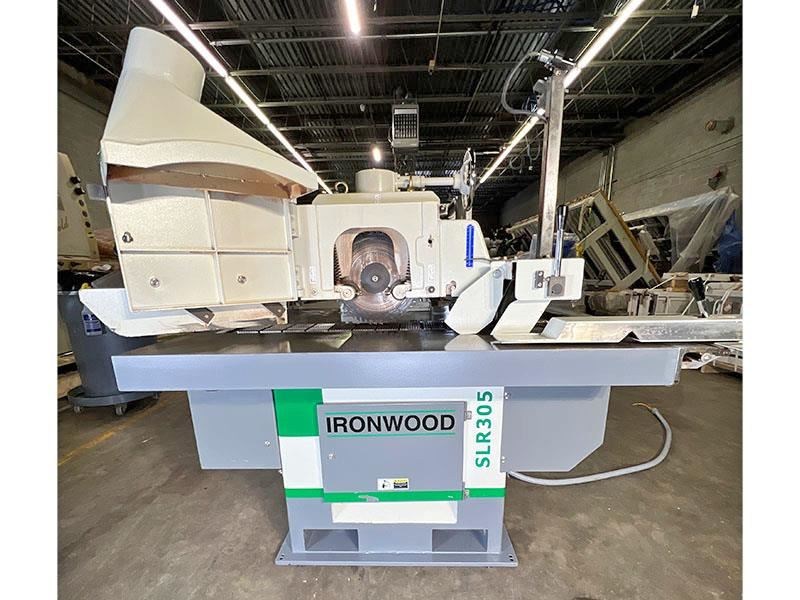

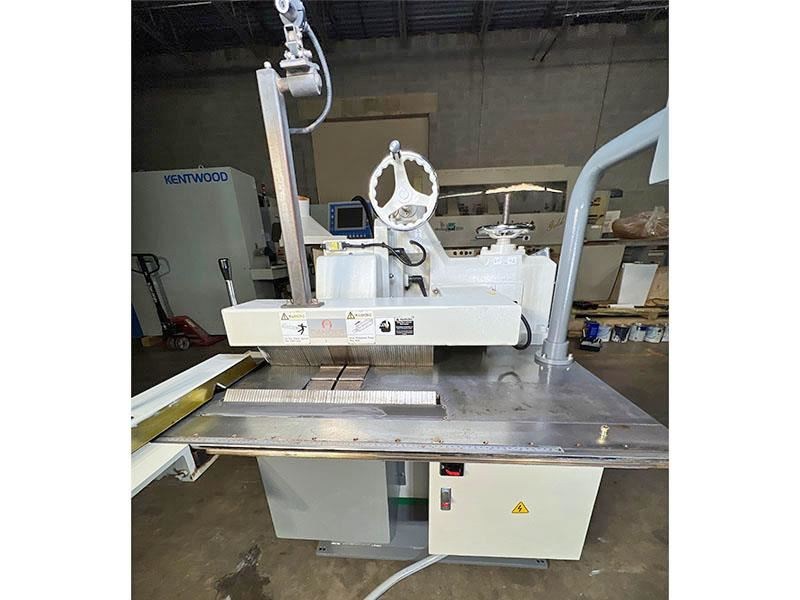

IRONWOOD SLR 305: straight line rip saw Specifications -- Width capacity of 18" and glue line tolerance up to 8 -- Variable auto-lubrication system providing consistent lubrication to the chain track and automatically adjusting to the chain feed speed -- Minimum Material Length÷ 203 mm (8 "; ) -- Material Thickness, Minimum- Maximum: 6.35mm (.25 "; ) to 85 mm (3.35 " ) -- Distance between Blade and Column÷ 457 mm (18 " )Equipped with & Features -- Number of Hold-down Rollers 8 -- Work Table Height 800 mm (31.5 "; ) -- Saw Arbor Motor 15 HP -- Saw Arbor Speed 4500 RPM -- Saw Blade Diameter 200-300 mm (8 “ -12 “ ) -- Saw Arbor Diameter 25.4 mm (1 "; ) -- Feed Speed 56 - 131 FPM -- Feed Motor 2 HP -- Laser device to ensure straight line ripping entire length of the material -- Maximum safety protection available with multiple rows of extended anti-kickback fingers and a side protection guard -- 8 accurately aligned pressure rollers extend from the cast iron machining head to provide absolute butting tolerances, low maintenance, and superior safety -- Solid steel cylindrical positioning rod and quick cam, cast iron fence provide accurate set-up, fast movement, and dust-free operations -- Table Area (W x L) 950 mm (37 "; ) x 1450 mm (57 "; ) -- Net Weight 2090 lbs -- Dust channel outlet (saw guard) 102 mm (4 " )
