Description:

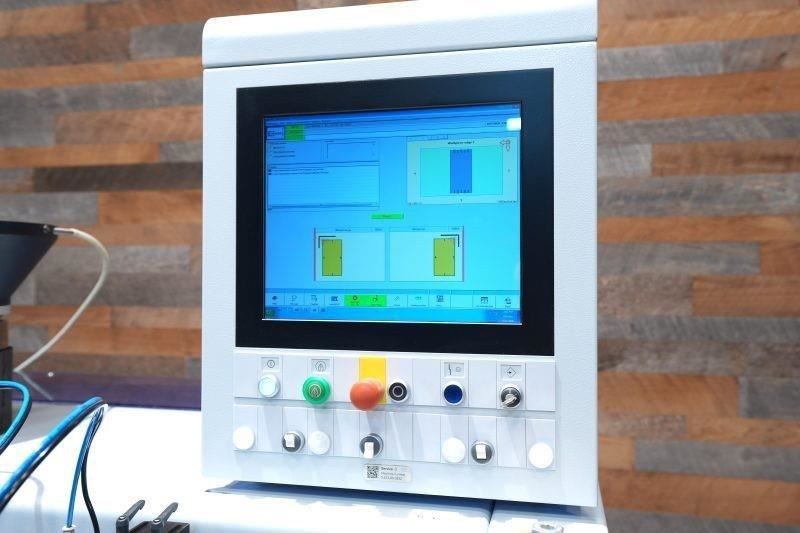

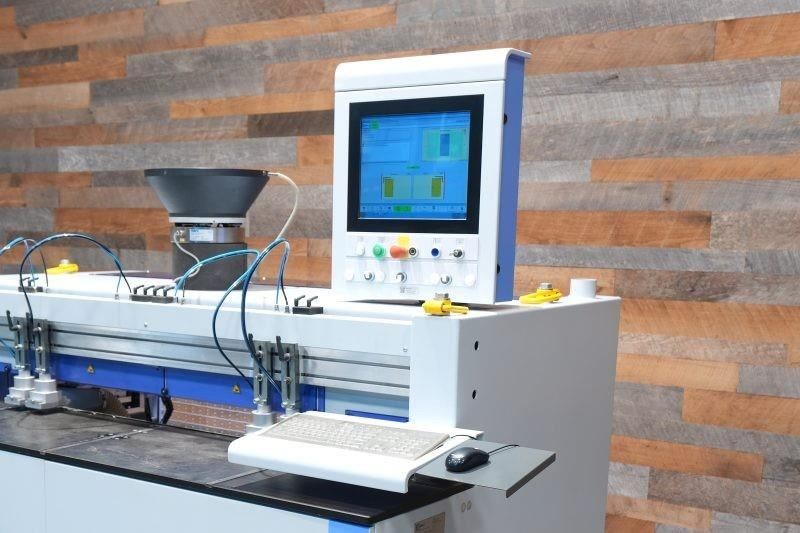

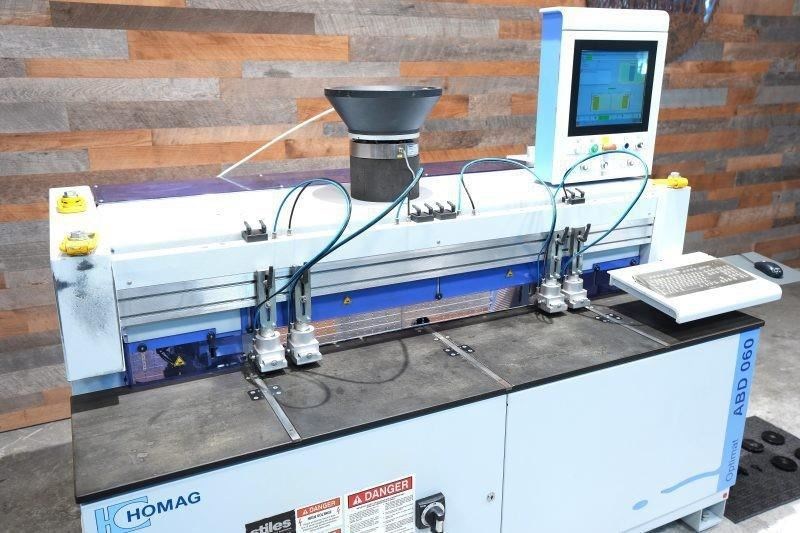

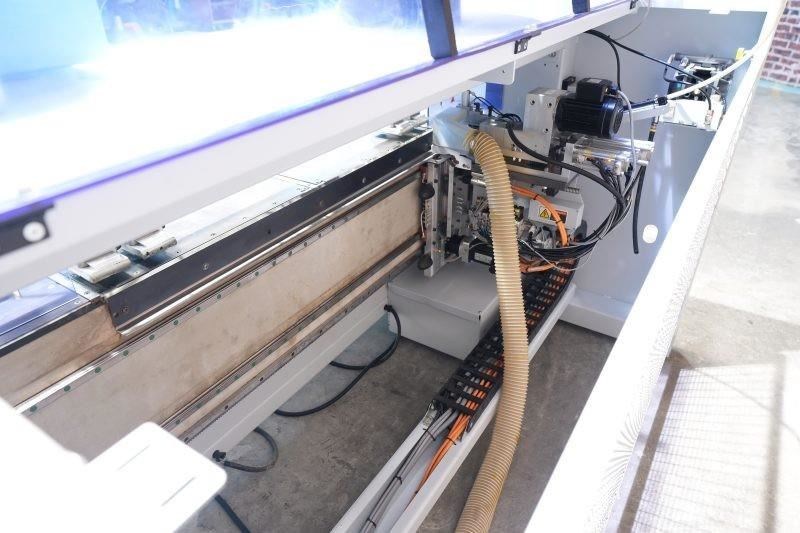

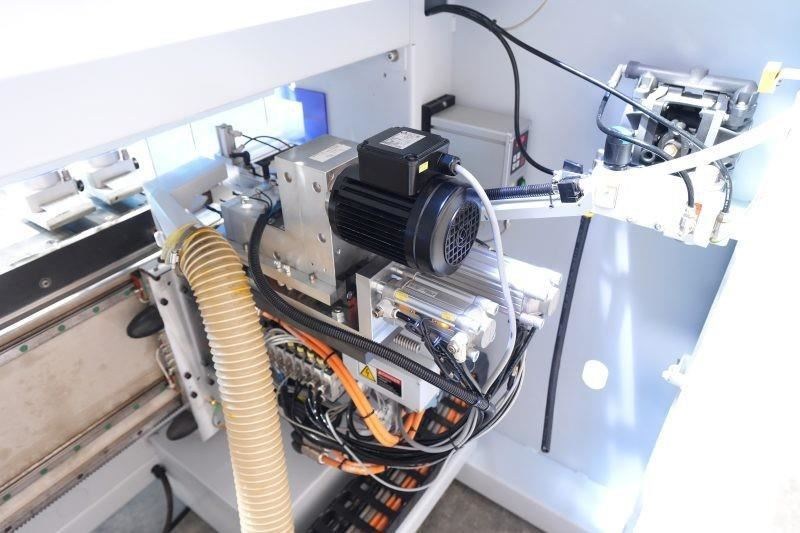

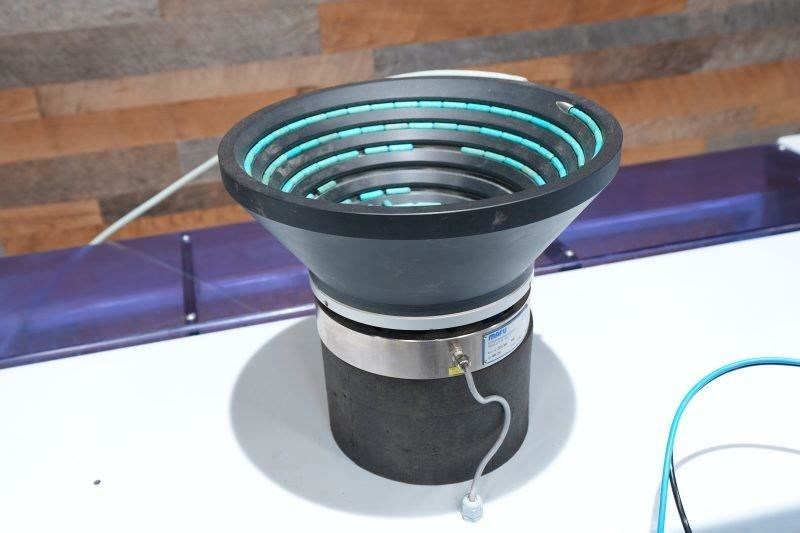

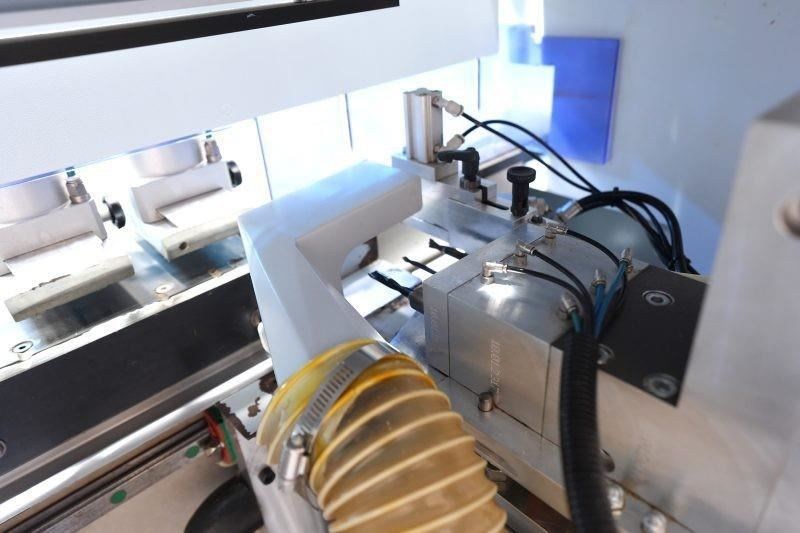

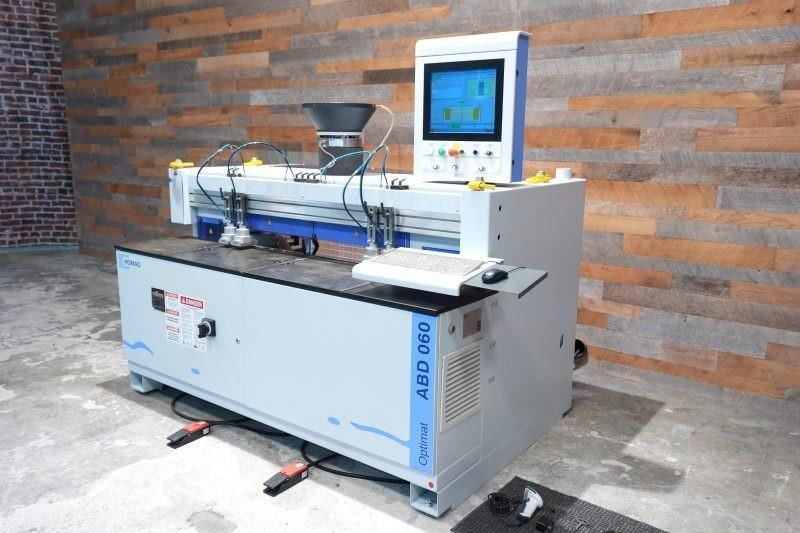

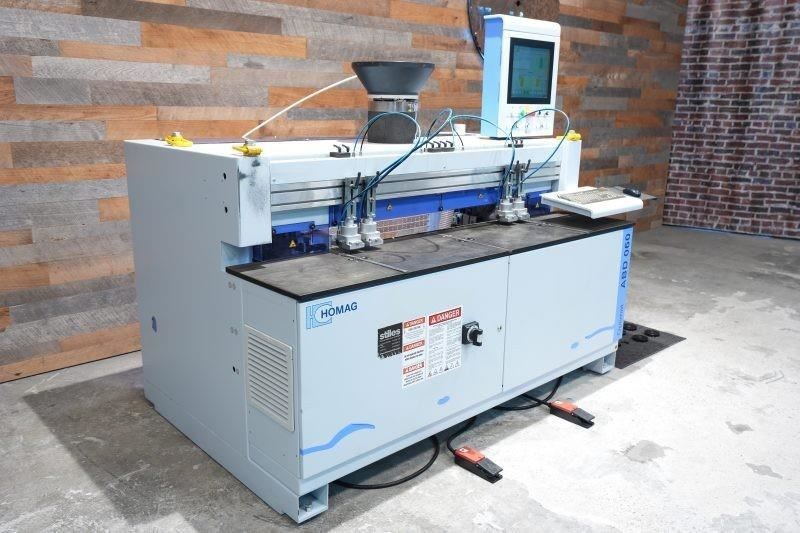

HOMAG ABD-060/12/NA - CNC Bore, Glue & Dowel Inserter: -- Specifications(1) Horizontal drilling head with: (3) Independent spindles on 32 mm centers; Servo control of: "X", "Y" & "Z" Axes; (1) glue & dowel injector with glue flow control; (1) vibrating hopper dowel feeder. -- Working CapacityMaterial size: 20 mm - 1,250 mm (3/4" - 49") long; 50 mm - 800 mm (1.97" - 31-1/2") wide; 10 mm - 60 mm (0.4" - 2.4") thick.Machine is currently set up for: 8 mm Dia.; 30 or 35 mm long dowels (additional dowel sizes are optional). -- Work Area(2) Separate working fields with: (4) Pneumatic top clamps can process up to (4) parts independently on the left hand, right hand or center stops.Work can be loaded in: (1) Field while being machined in the other to allow fast production of varying parts. -- Operator InterfacePC Front-End with HOMAG - Power Control PC 85T; WoodWOP 5.0 Operating System with: Graphic programming & error messaging.17" TFT Flat screen monitor; CD-RW drive; 1.44 MB floppy drive; standard keyboard & mouse; software allows program design with automatic mirror image by use of an active center stop: Located 600 mm (23.6") from zero. -- Complete with: All manuals, documentation & program disk provided with machine. -- Actual Model: HOMAG ABD-060/12/NA
