Description:

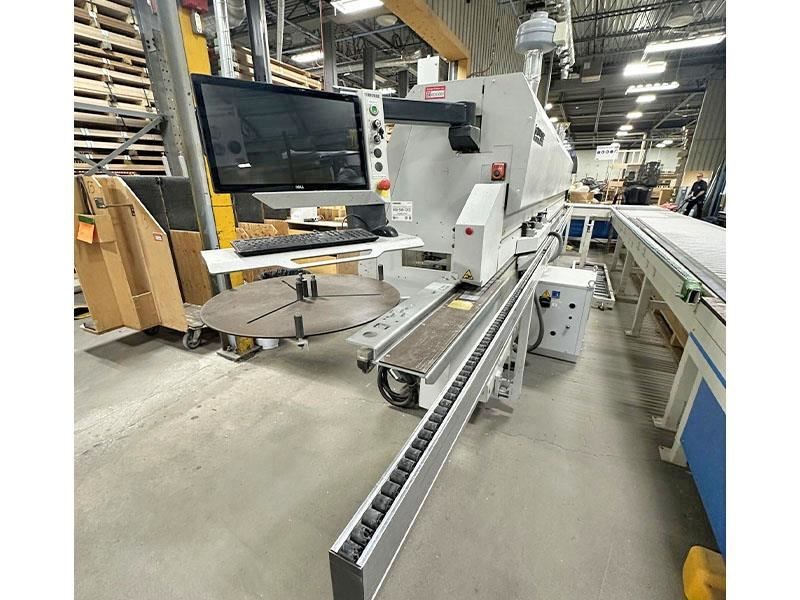

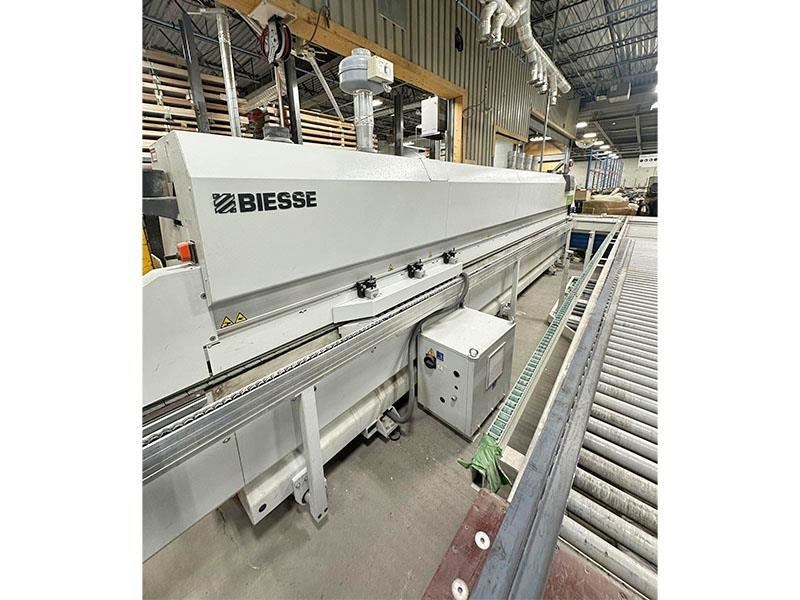

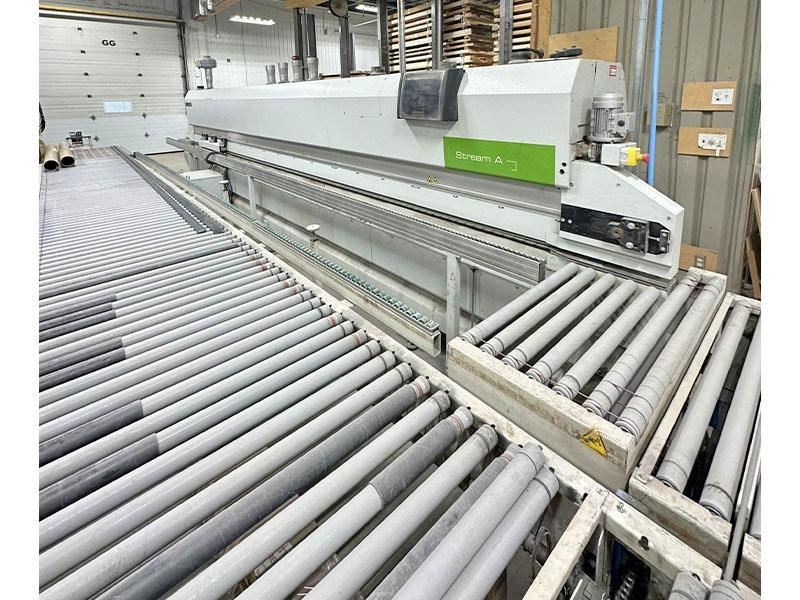

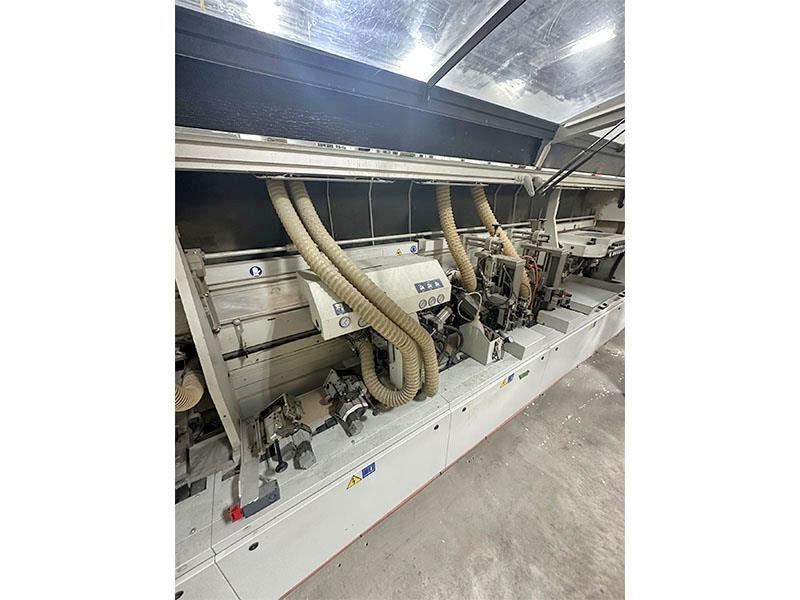

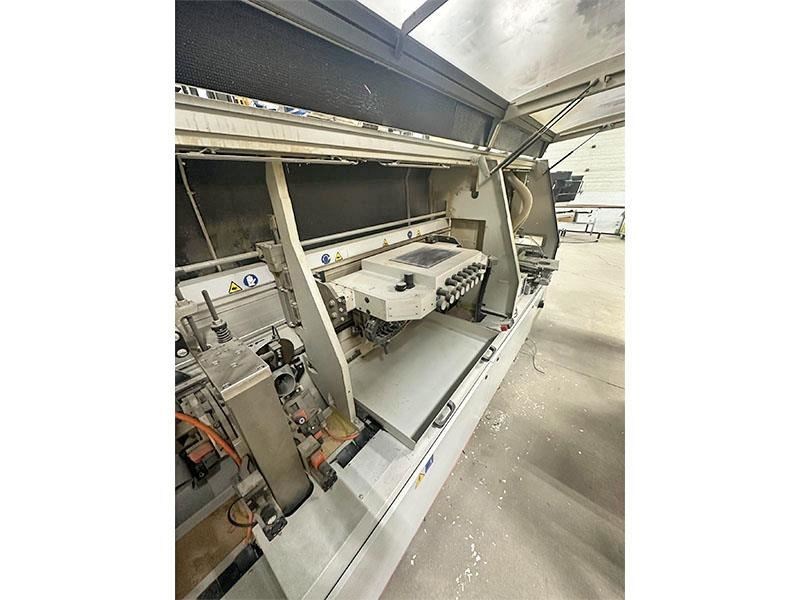

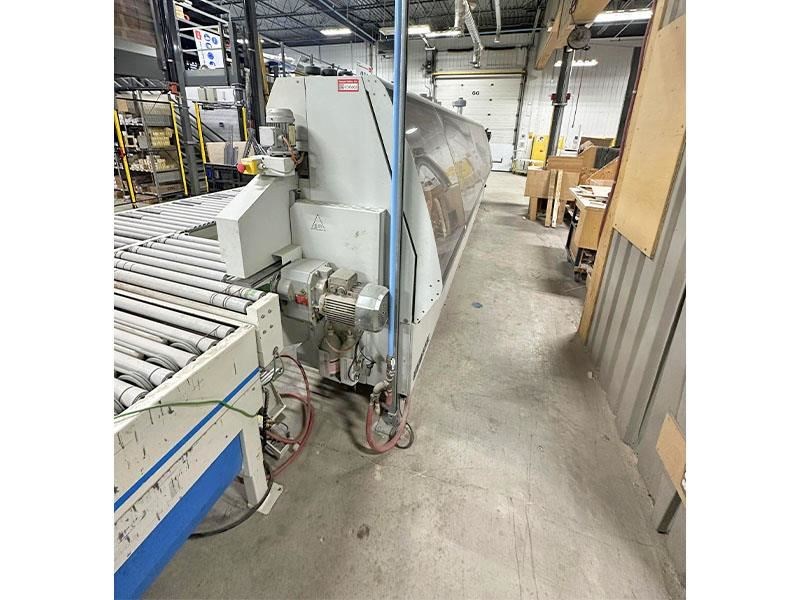

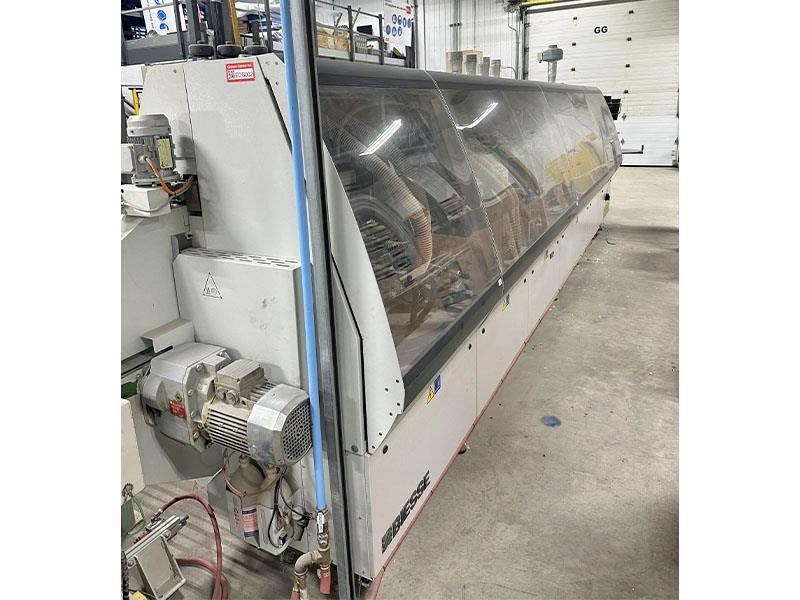

BIESSE - STREAM A 6.5: Edgebander w/Premill & Corner Rounding + NC Axis PackageFeatures -- "NC Axis Package". The machine adapts to the process being executed based on the edge's thickness and material.Machine management: 100% Touch with no need for external devices. - "Intelligent" language management.Easy program management and usability with rapid transition from one machining operation to the next. Specifications -- Edgebanding CapacityEdge thickness for strips: Min./max. 0.4 - 22 mm (0.02" - 0.87"); coiled material: 0.4 - 3 mm (0.02 - 0.12").Panel thickness: 10 - 60 mm (0.39 - 2.36"); Workpiece width: Min. of 85 mm (3.34"); workpiece length: Min. 140 mm (5.51").Feed speeds: 12 - 18 - 20 - 25 MPM (39 - 59 - 65 - 82 FPM).Machine Infeed Configuration -- Premilling Station: FL 502(2) 3.5 kW (4.7 HP) - 12,000 RPM Motors; LH & RH counterrotating spindles; NC (Servo) controlled with: Automatic intervention that guarantees a perfect base for gluing. -- Anti-Adhesive: VC 710Automatic Spray Unit with: Glue release agent preventing glue from adhering to workpiece's surfaces. -- Infrared Heating Lamp: PH 700Preheating workpiece edge to ensure best possible surface adhesion quality of edgebanding material. -- Edge Magazine(1) Coil/position magazine for processing coiled & strip edgebanding material in real time. -- Pressure SectionServo Controlled programmable pressure section with: (1) Large driven roller and (4) idle rollers.Gluing System w/Premelter -- EVA (Hot Melt) Quick premelting granulate with: Glue roller applicator to cover conventional edgebanding material. Workstations -- End Trimming: IT 90SFront & rear linear end trimmer with: Tilt function for high speeds; (2) 0.65 kW (0.87 HP) - 12,000 RPM motors. Machine axis movement on linear tracks allow the achievement of very high processing speeds.Copying & tracing system guarantees optimal finish quality, also on high gloss edges with film. -- Flush/Bevel Trimming Unit: RF 400Top & Bottom flush or bevel trims with: (2) "Quick Change" 2 kW (2.7 HP) - 12,000 RPM motors. -- Fine Trimming Unit: RF 12(2) 0.65 kW (0.8 HP) - 12,000 RPM Motors; (2) Servo motors for tool positioning (one for horizontal tool position; one for up/down tool position).Prepositioning of motors by pneumatic air cylinders while using a combination bevel/radius/flush insert knives.Absolute machining flexibility thanks to the full adjustment of the machine according to the required edge thickness. -- Corner Rounding Unit: AR 30(2) 0.65 kW (0.8 HP) - 12,000 RPM Motors for front/back corner and upper & lower edge profiling.The controlled axis on the Corner Rounding unit supports the management of infinite machining settings. -- Profile Scraping Unit: RB 02Top/Bottom 2-axis NC programmable knife positioning (i.e. 2 - 3 mm radius) for PVC edges. -- Glue Scraping Unit: RCC 701: Flat, top/bottom, digital positioning indicators, pneumatically controlled for in/out position. -- Buffing Station: SZ30: Top & Bottom buffing motors: 0.37
