Description:

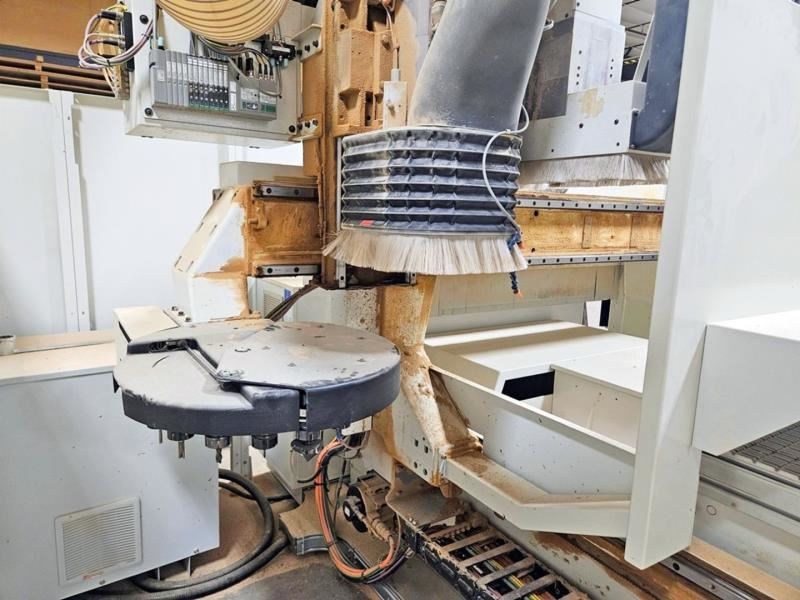

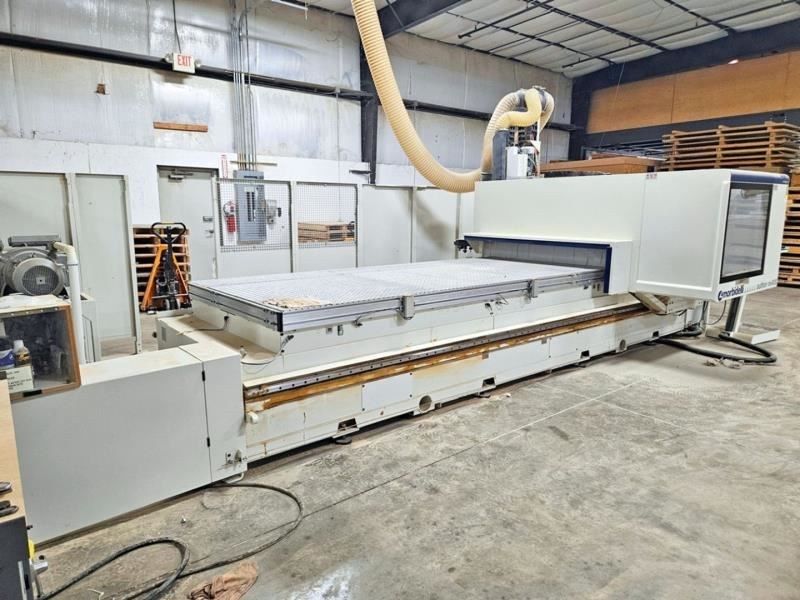

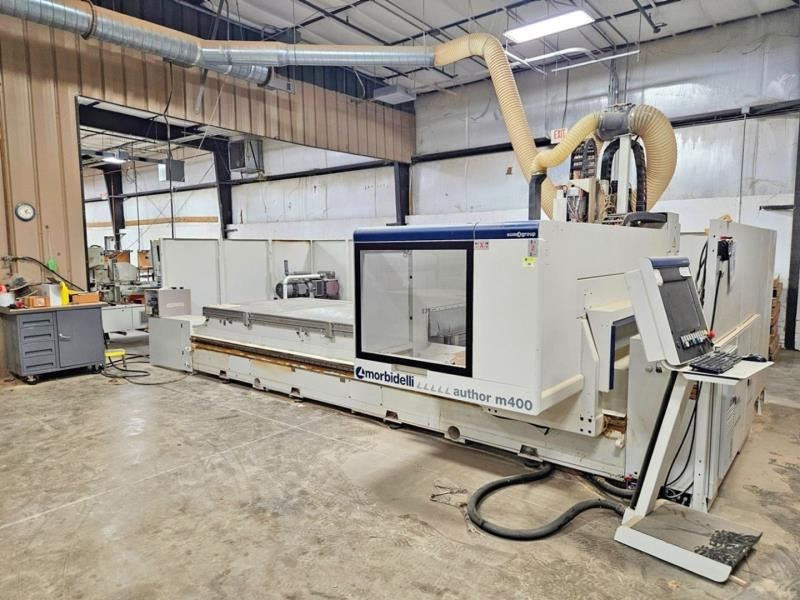

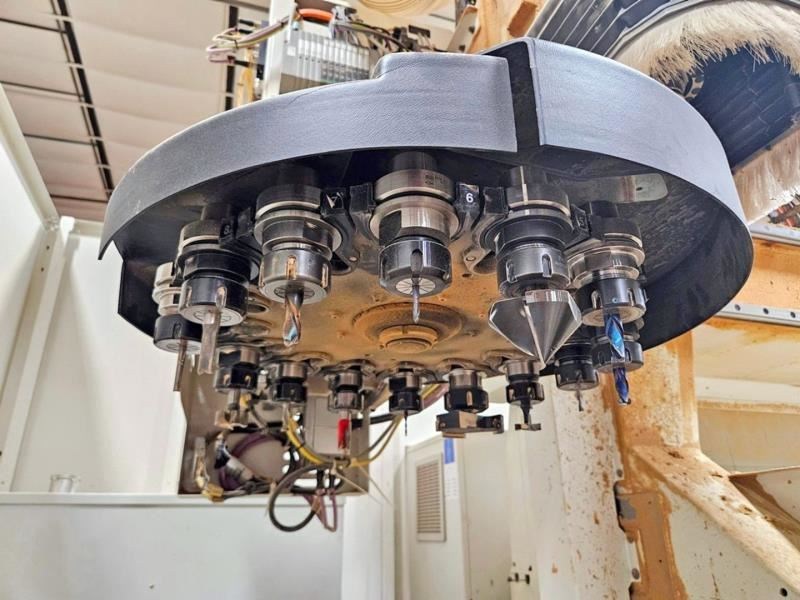

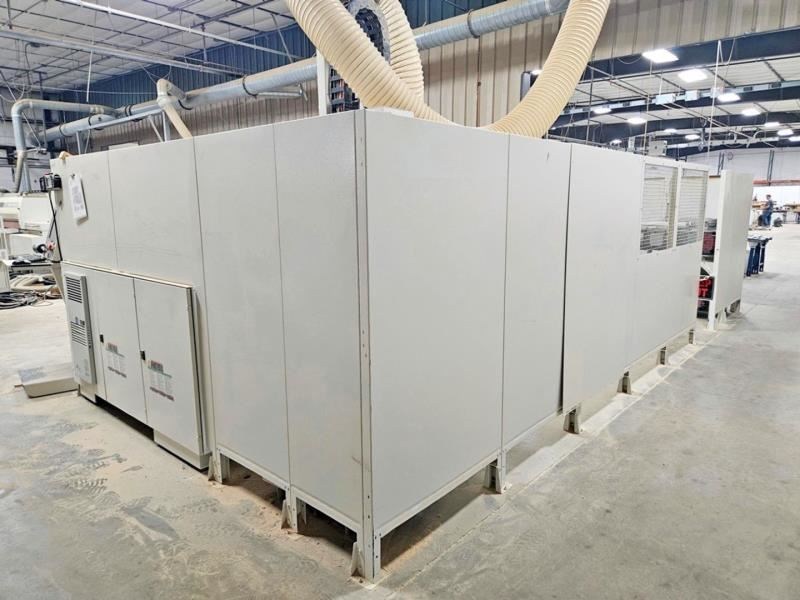

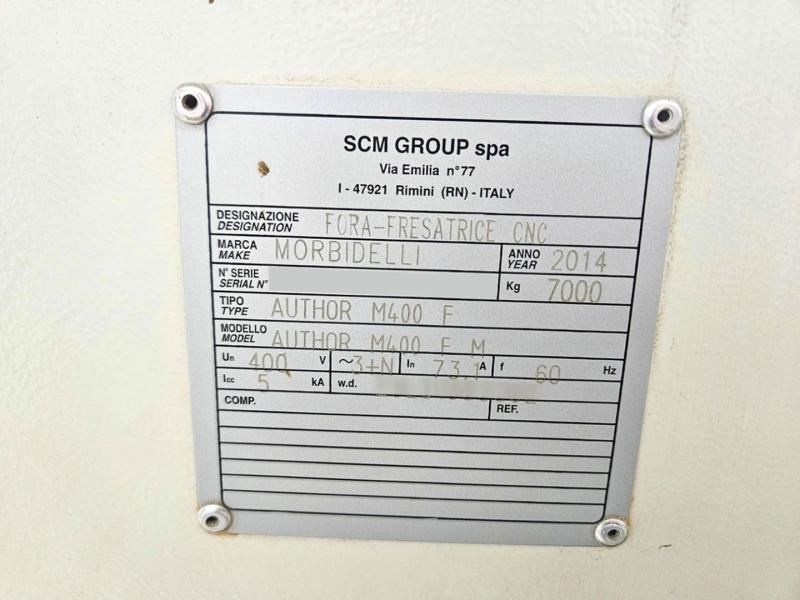

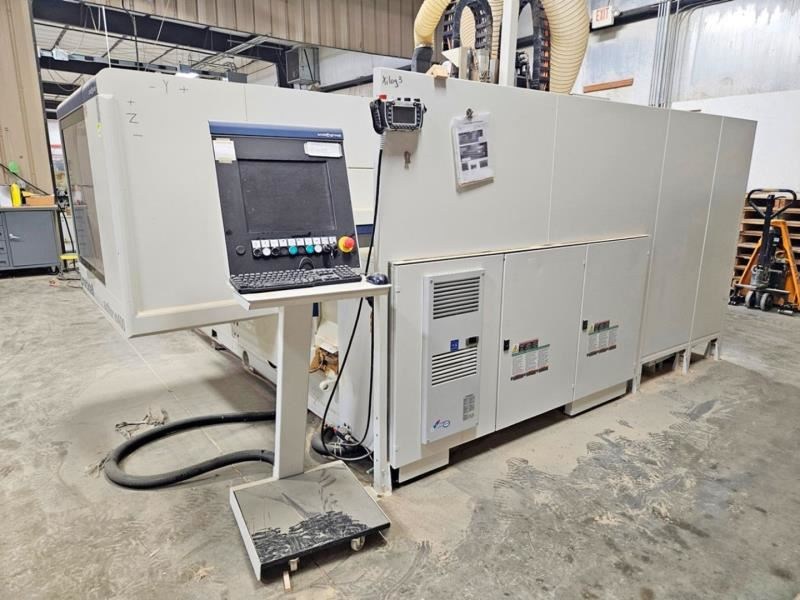

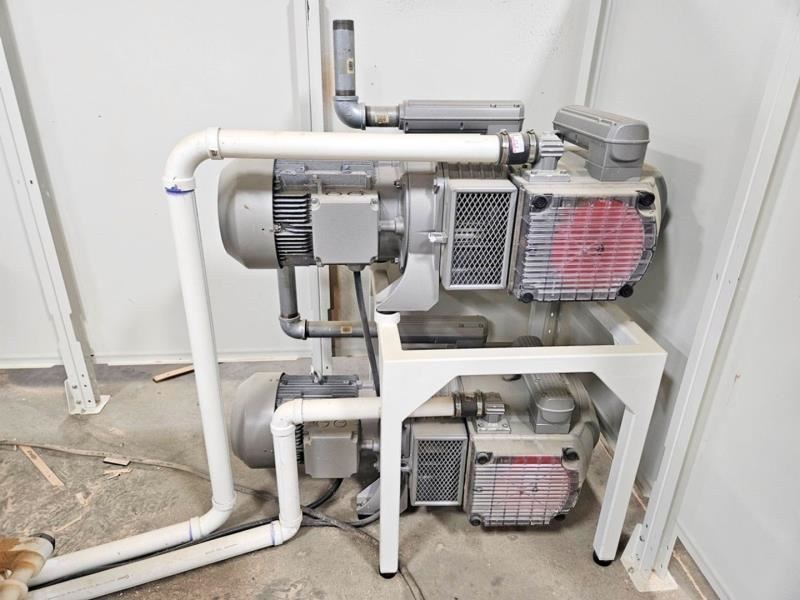

MORBIDELLI AUTHOR M400 FM FLAT TABLE MACHINE (W/ATC): -- Specifications:5' x 12' Stationary extruded aluminum "MATRIX" table for "Nested Base" manufacturing. -- Work Area:"X" Axis 143.7" (3,650 mm), "Y" axis 62.9" (1,600 mm), "Z" axis stroke 11" (280 mm), max material thickness is 6.69" (170 mm). -- Positioning Speeds:"X" & "Y" Axis 279 FPM (85 MPM), "Z" axis 98 FPM (30 MPM).Closed loop AC servo drive system with Precision Rack/Pinion in "X" axis & recirculating ground ball screw in the "Y" & "Z" axis.All axes ride on precision prism linear guideways. -- Work Table:5' x 12' Aluminum grid "MATRIX" vacuum table machined with a square grid pattern for fixturing parts, grid pattern allows use of vacuum pods or closed cell rope gasket material and use of spoil boards.(6) Independent, NC controlled working zone areas; external pop-up reference pins located on the sides & back of the table for positioning parts. -- Machining:(1) 16.5 HP (12 kW) "Power 2000" Electro spindle w/lifetime lubrication and HSK F63 adaptor, NC controlled spindle speeds from 900 - 18,000 RPM.(1) 16-position "Rapid-16 traveling ATC tool plate for "on the fly" ATC NC Touch-off Probe for automatic Tool Length setting. -- Operator & Machine Control,PC Front End with XILOG PLUS + Windows "7" operating system. 17" high resolution LCD flat screen; ergonomic keypad.USB Ports, serial ports RS-232 & RS-242 & Ethernet adaptor.Programs can be transferred via USB or downloading by wire is possible; all computer components are mounted on a mobile stand. -- "XILOG Plus" offers incredible list of functions from: (a) Auto-diagnostic to (z) zooming; controlled acceleration & deceleration; encoder feedback; dynamic tool correction via PLC due to active tool wear using space-and-time criteria. -- Additionally equipped with: Onboard mini-CAD with built-in programming for writing circles, ellipses, & angles with only a few keystrokes.Onboard cycle optimization; onboard calculator; mirror-imaging and repeat imaging; all electronics mounted in an air conditioned, dust-free environment control cabinet. -- Complete with:(2) 300 m³/Hr "BECKER" Vacuum pumps; Automatic central Lubrication; Central Optimized Dust Collection; Emergency stop rope, Perimeter Safety Fencing, Handheld pendant control. -- Actual model is MORBIDELLI AUTHOR M400 FM.
