Description:

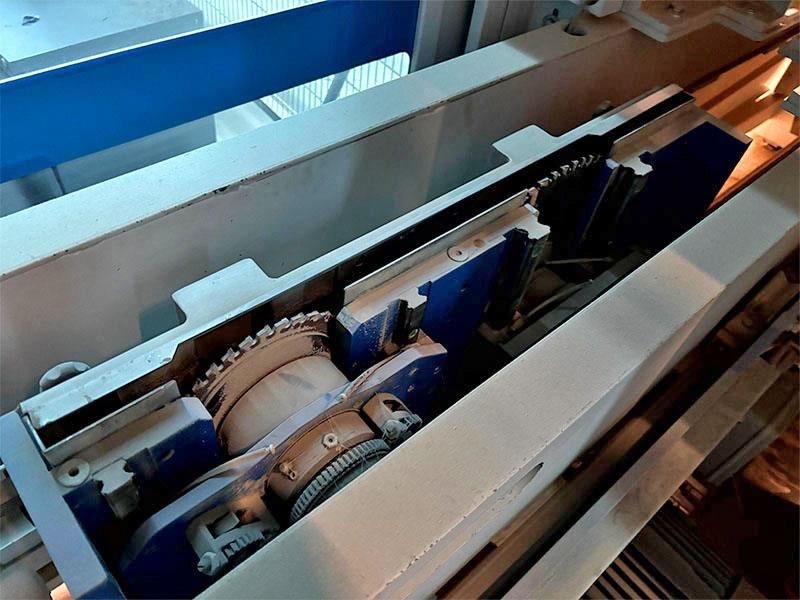

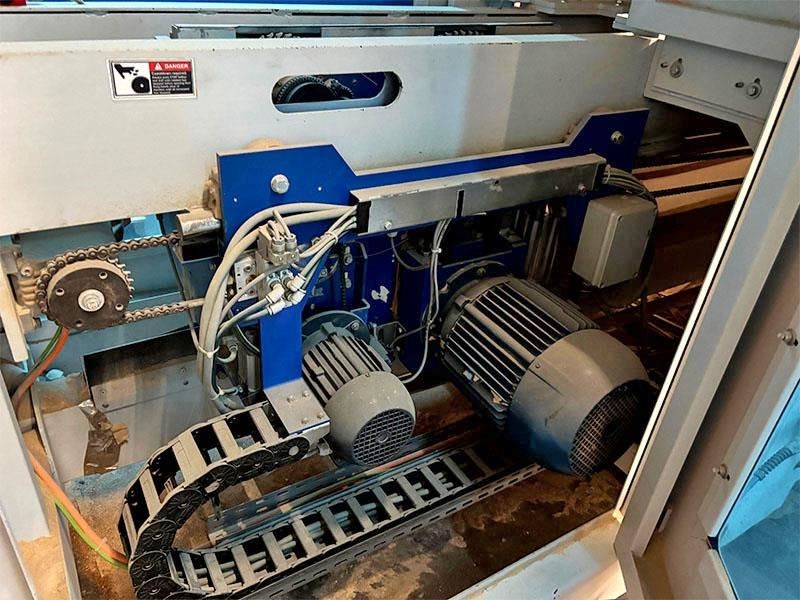

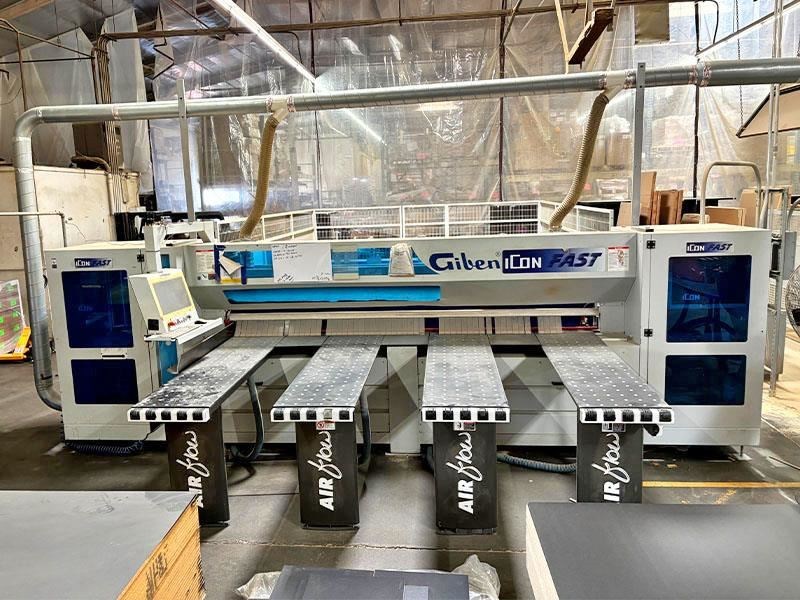

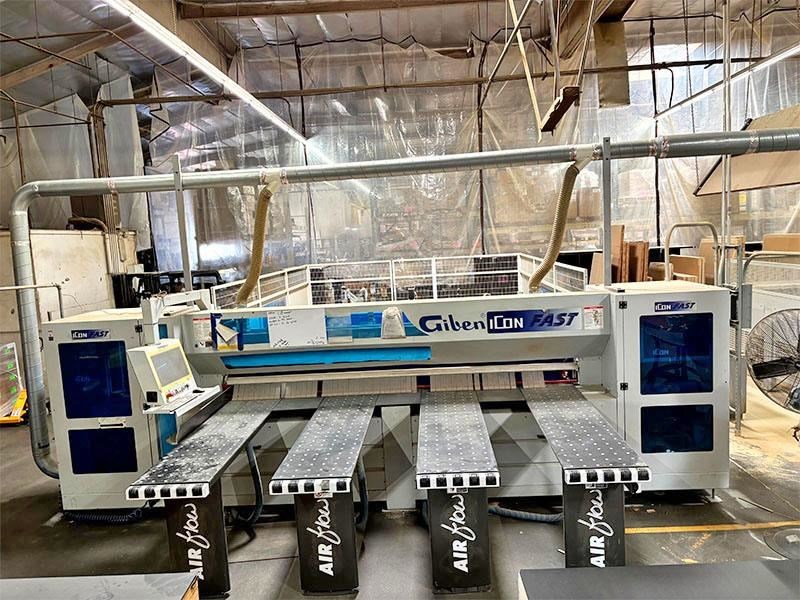

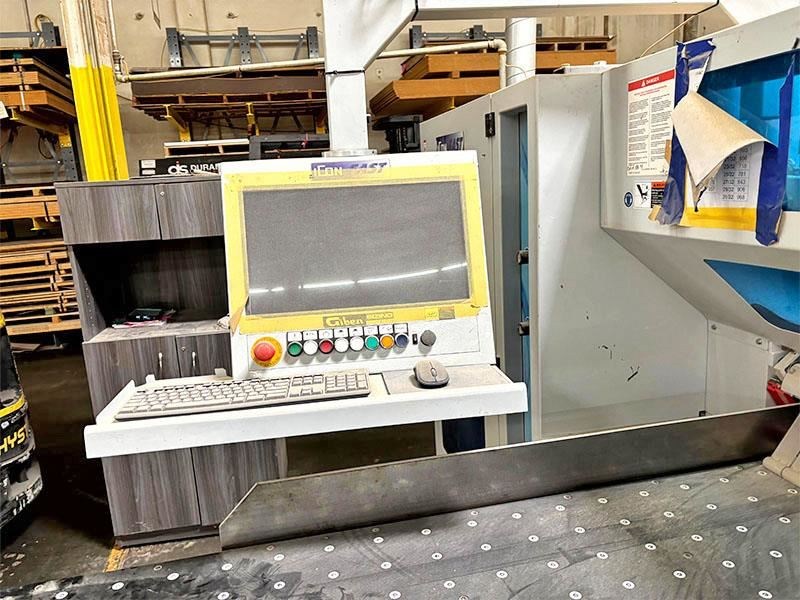

GIBEN ICON FAST 105 SP 3300 FRONT LOAD, AUTOMATIC PANEL SAW: -- Specifications: 129.9" (3,300 mm) Overall cutting length, 131.8" (3,350 mm) pusher stroke; 4.1" (105 mm) max. saw blade projection, 30 HP (22.3 KW) main saw motor, 2 HP (1.5 kW) scoring saw motor. -- Saw Carriage:Variable saw carriage speed from 0 - 492 FPM (0 - 150 MPM), return speed 492 FPM (150 MPM);Rack & pinion drive, driven by AC brushless Servo motors. -- Pusher Fence:Electronically controlled overhead program fence with (7) pneumatic gripper clamps, grippers open to 4.6" (117 mm).Forward pusher speed 3.2 - 262 FPM (1 - 80 MPM), return speed 62 FPM (80 MPM);Rack & pinion drive, driven by AC brushless Servo motors. -- Operator & Machine Control:PC front end with Giben "G-Vision" + "Windows" Multitasking operating system with easy programming of very complex cutting patterns.15" Flat screen monitor displays REAL-TIME graphics of cutting dimensions & patterns, program cutting list, manual cuts, diagnostic & on-line help.Data input by adjustable key pad pendant, standard industrial keyboard & mouse & CD-ROM drive; direct downloading from office PC is possible.Giben "G-Vision" guarantees fully automatic management of cutting patterns by optimizing all machine movements (pressure beam, saw carriage and side aligner pusher positioning, etc.).Giben "G-Vision" includes an onboard optimizer which can be accessed at any time directly at the machine.The numerical control adjusts the optimum saw blade projection for the stack of panels being cut and sets the most appropriate cutting speed, in relation to the stack itself, and when necessary to the width of trim cut too. -- Rear of machine:(9) Rear support rails with 80 mm dia roller modules; rear of machine enclosed for safety. -- Front of machine:(2) Independent automatic side/crosscut aligning device with 2.75" - 49.2" (70 - 1,250 mm) stroke.90" (2,300 mm) Long crosscut fence (front-to-back); (4) Front mounted air floatation tables 20" x 78" (510 x 2,000 mm). -- Complete with: "Quick Change" saw blade system; "REMOTE" electronic scoring adjustment. -- Actual Model is GIBEN ICON FAST 105 SP 3300
