Description:

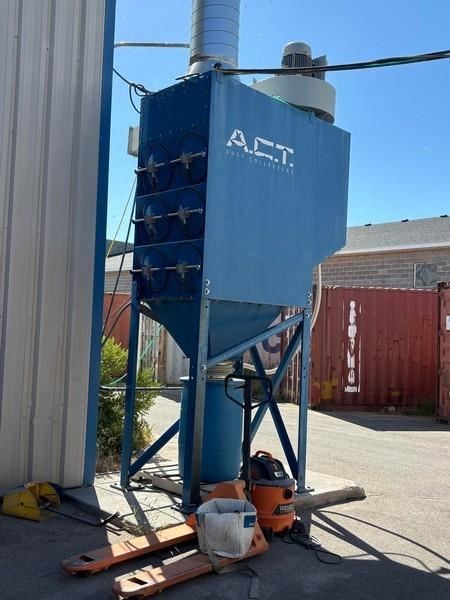

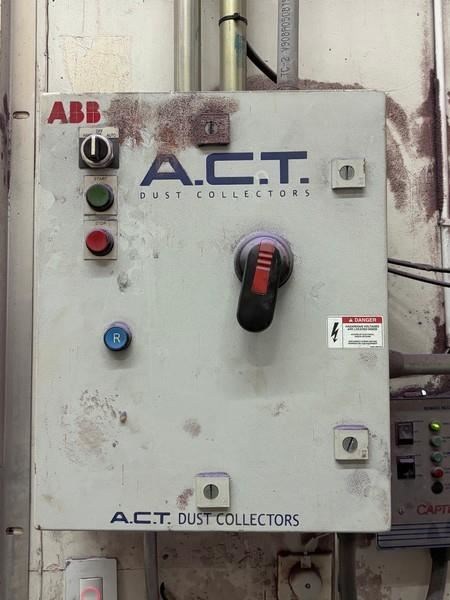

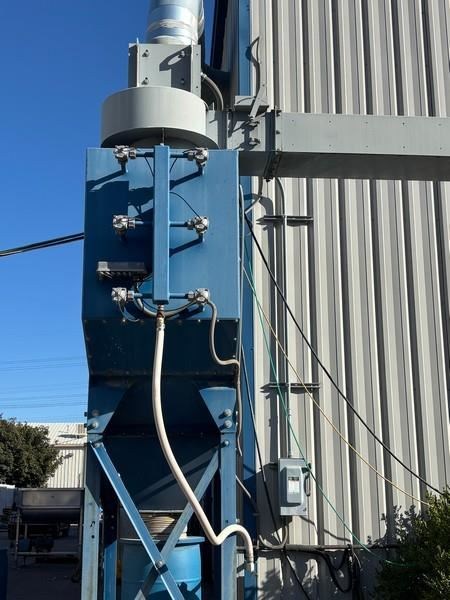

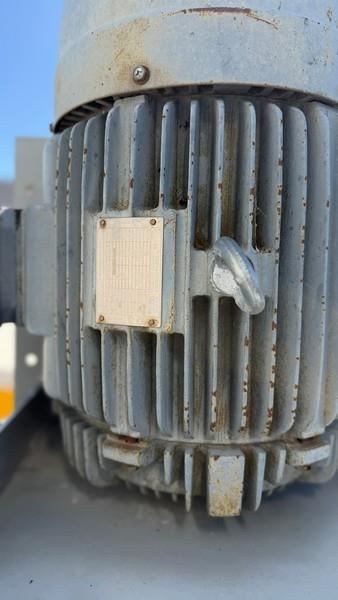

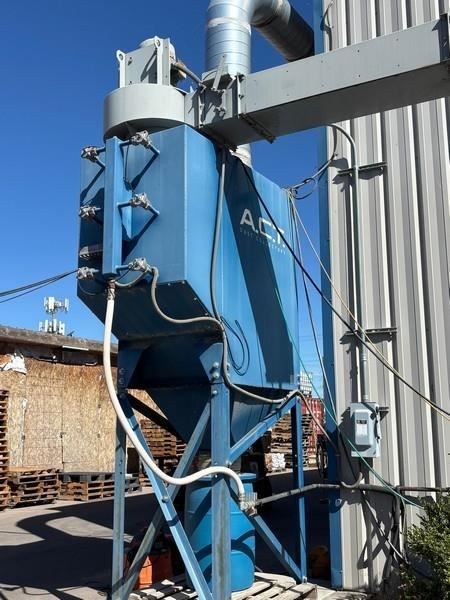

ACT 3-12 Cartridge Dust Collector Cartridge style downflow dust collector rated at 6,000 CFM @ 13". Heavy-duty with 7 and 10 gauge construction. Specifications: -- Blower, 15 HP rated at 6,000 CFM. @ 13" -- (12) Poly-Elite, spun-bond polyester media with 100 Sq. Ft. of media per filter filter (total 1,200 Sq. Ft.) that are 99.9% efficient. -- Reverse pulse filter cleaning system. -- 15HP All-in-one starter/disconnect/timer board/digital pressure gauge 460V 3ph -- DK-XP – explosion rated drum kit with quick-lock easy-access filter doors. -- 16" inletEquipped with: -- TCBI 15 HP Blower with direct drive, top mount. -- Automatic reverse jet cleaning via compressed air, (1) pulse valve per (2) cartridges for a total of (6) pulse valves. Goyen solenoids and diaphragm. -- Heavy Duty steel legs position unit approximately 4' above the ground made with 7 and 10-gauge construction.Used from 2015 to 2023, filters changed in 2019 Rigger will be needed to remove and load.
