Description:

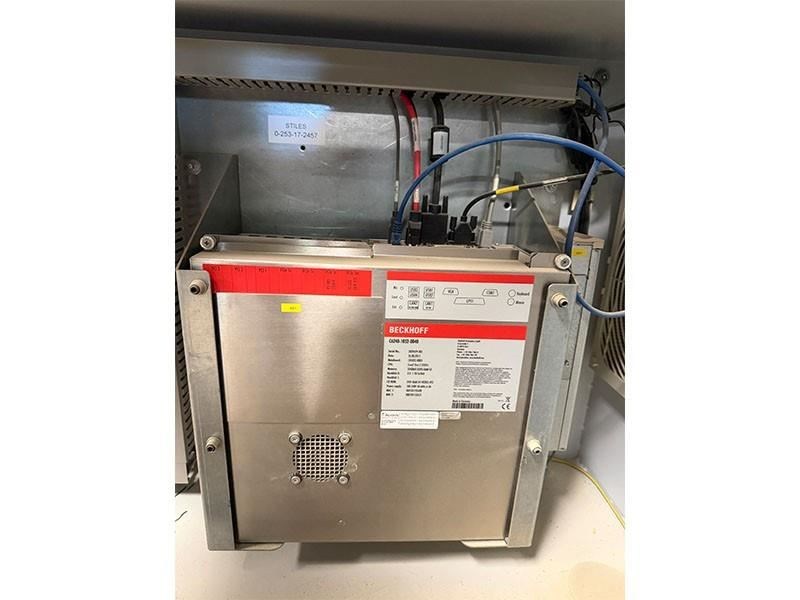

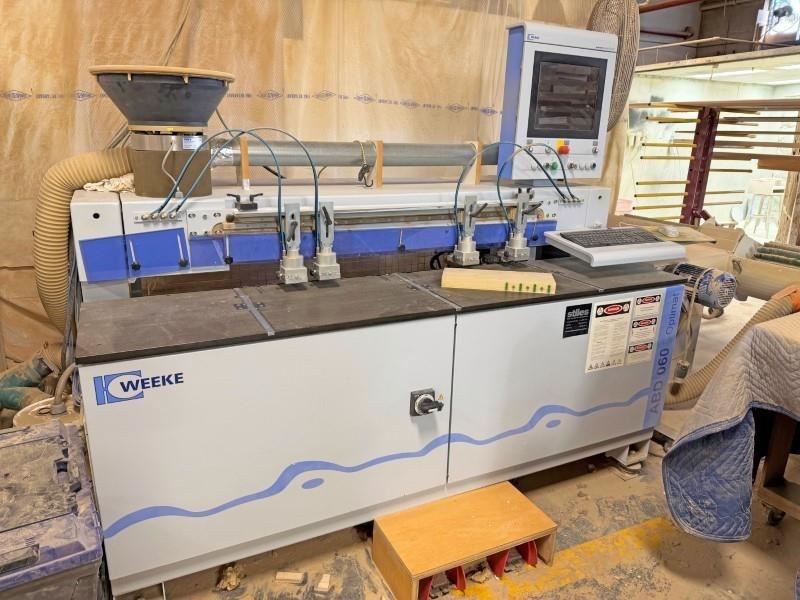

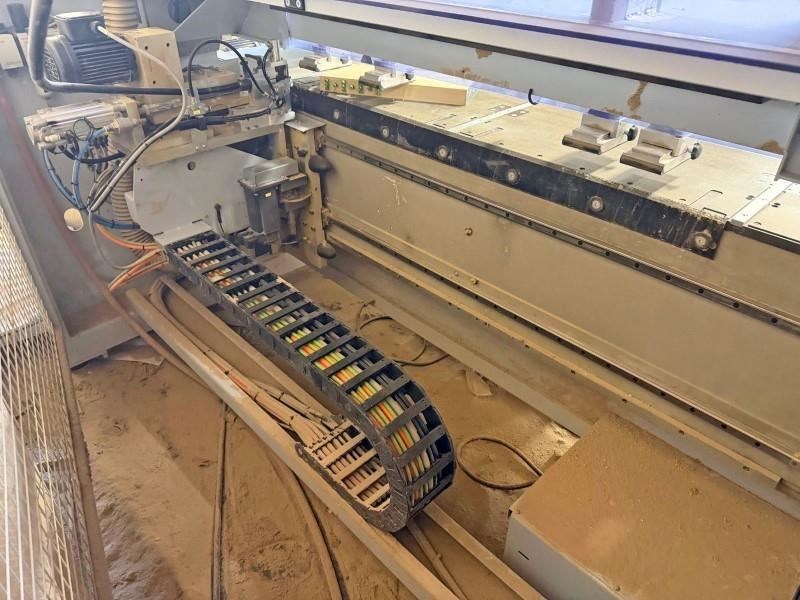

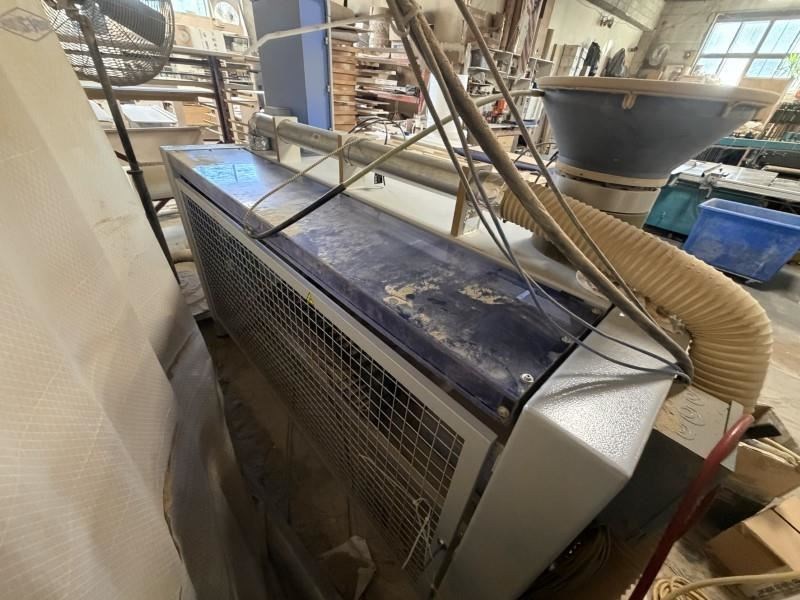

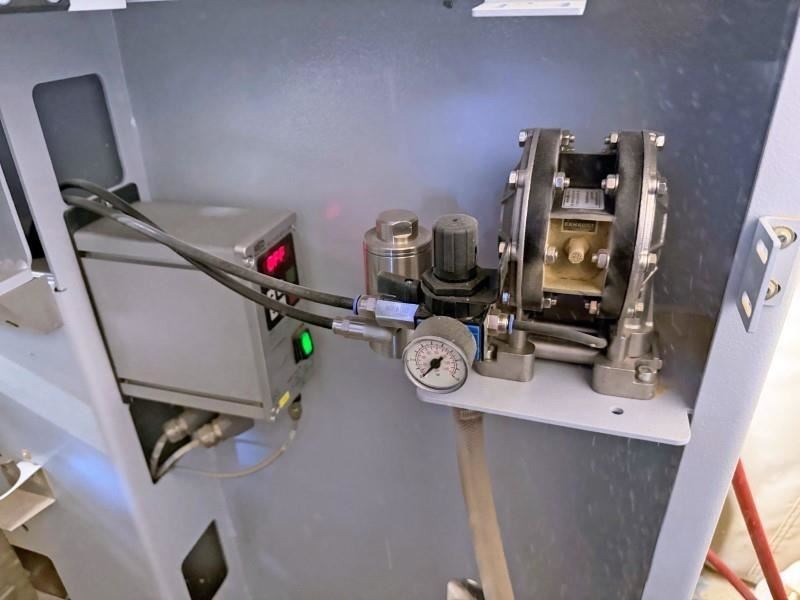

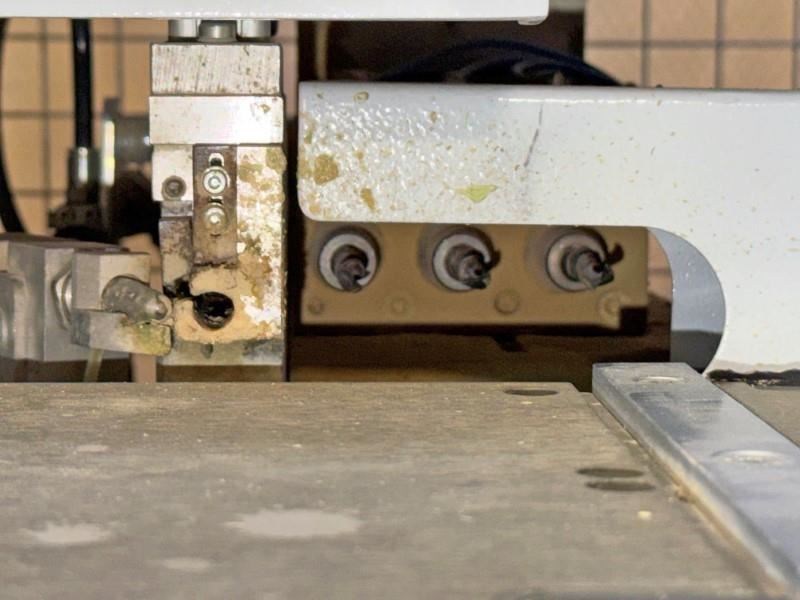

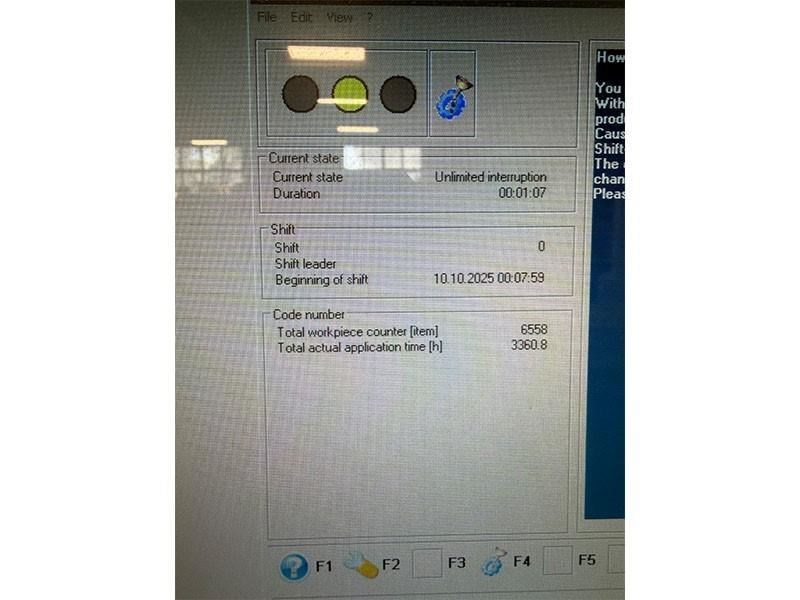

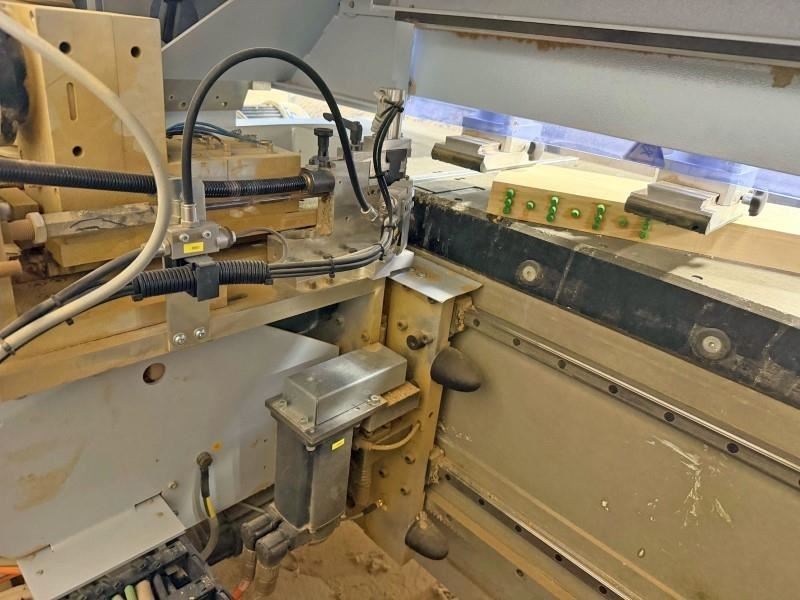

WEEKE ABD 060 CNC BORE, GLUE & DOWEL INSERTER: -- Specifications:(1) Horizontal drilling head with (3) Independent spindles on 32 mm centers, with servo control of "X", "Y" & "Z" Axis; (1) glue & dowel injector with glue flow control; (1) vibrating hopper dowel feeder. -- Working Capacity:Material size from 20 mm - 1,250 mm (.75" - 49") long, 50 mm - 800 mm (1.97" - 31.5") wide, 10 mm - 60 mm (0.4" - 2.4") thick.Machine is currently set up for 8 mm Dia., 30 or 35 mm long dowels (additional dowel sizes are optional). -- Work Area(2) Separate working fields with (4) pneumatic top clamps can process up to (4) parts independently on the left-hand, right-hand or center stops.Work can be loaded in (1) field while being machined in the other to allow fast production of varying parts. -- Operator Interface:PC Front-end with Homag Power Control PC 85T, WoodWOP 5.0 operating system with graphic programming & error messaging.17" TFT flat screen monitor, CD-RW drive, 1.44MB floppy drive, standard keyboard & mouse; Software allows program design with automatic mirror-image by use of an active center stop located 600 mm (23.6") from zero. -- Complete with: All manuals, documentation & program disk provided with machine. -- Actual Model is WEEKE ABD 060/12/NA.
