Description:

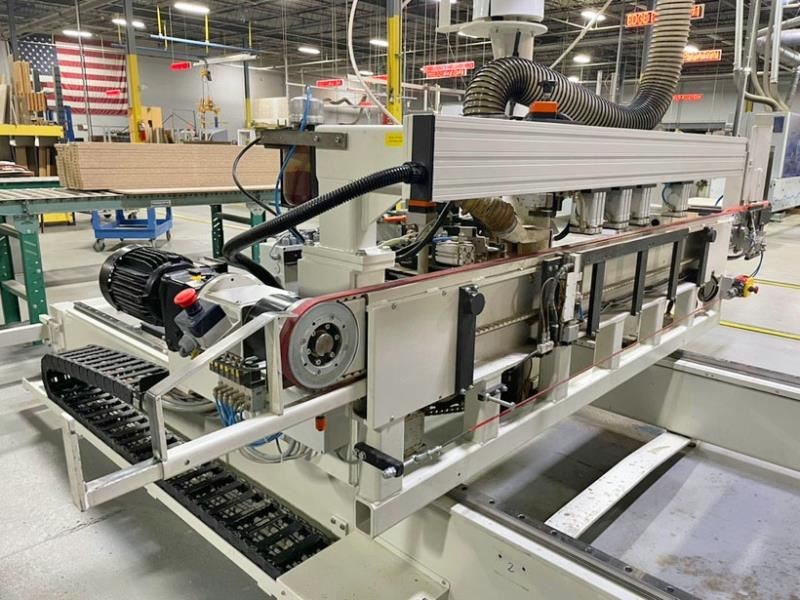

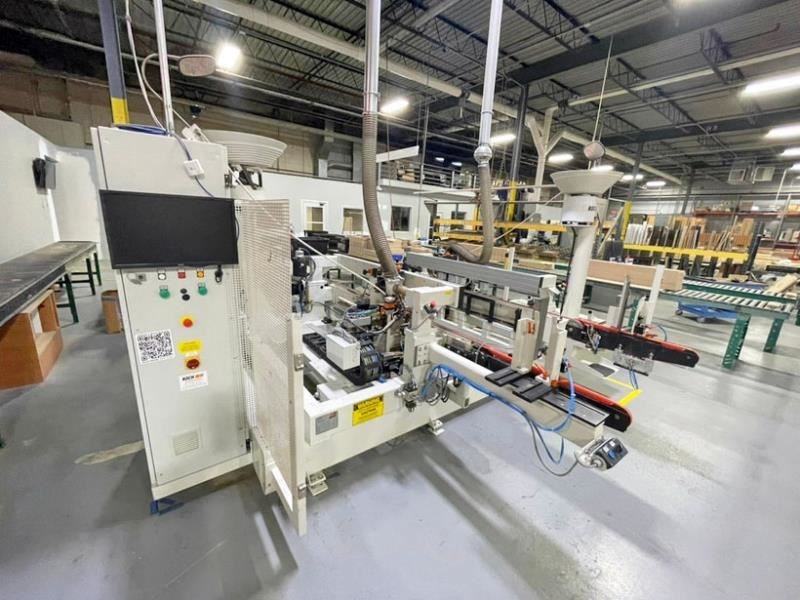

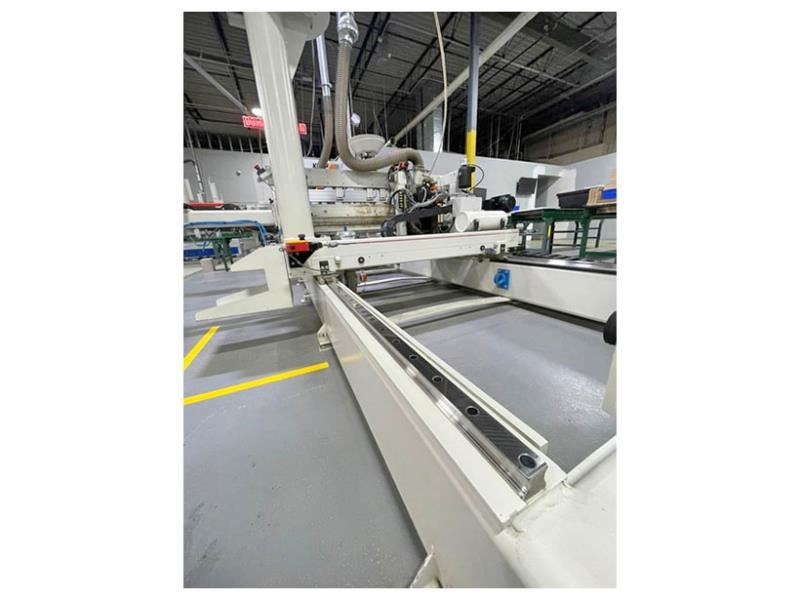

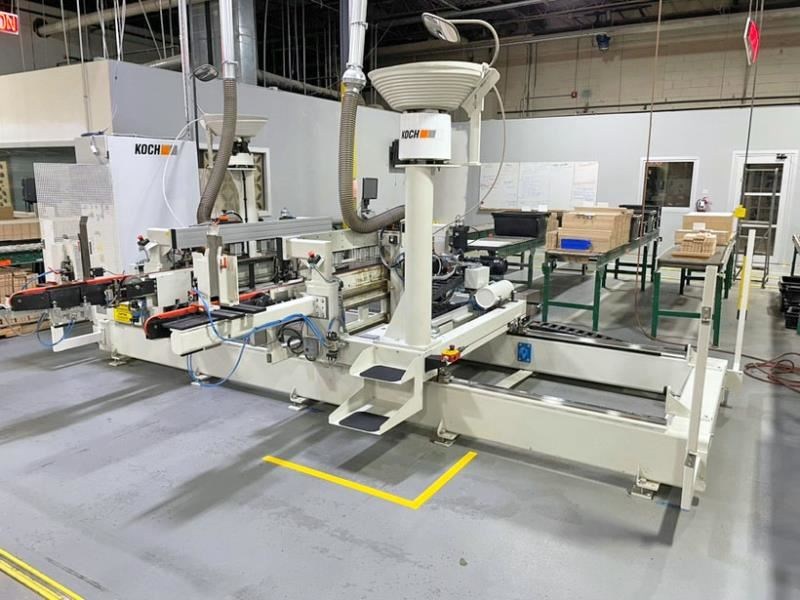

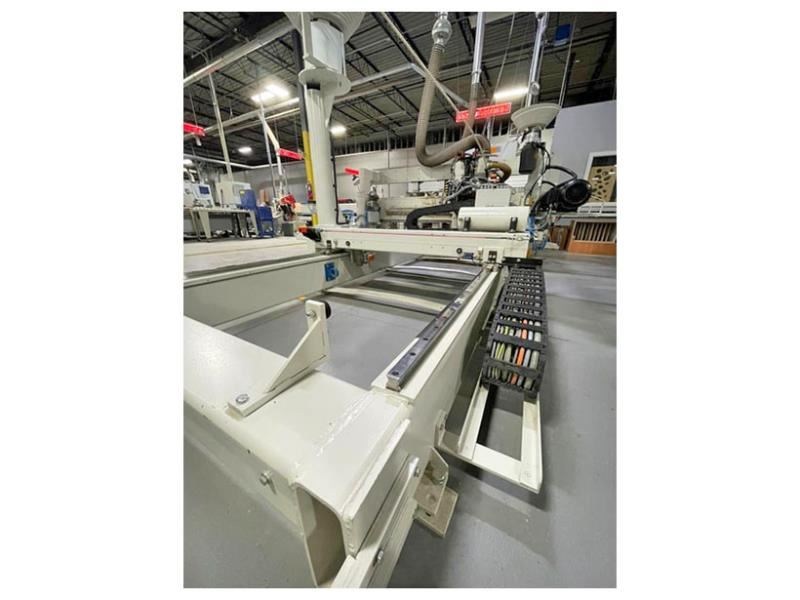

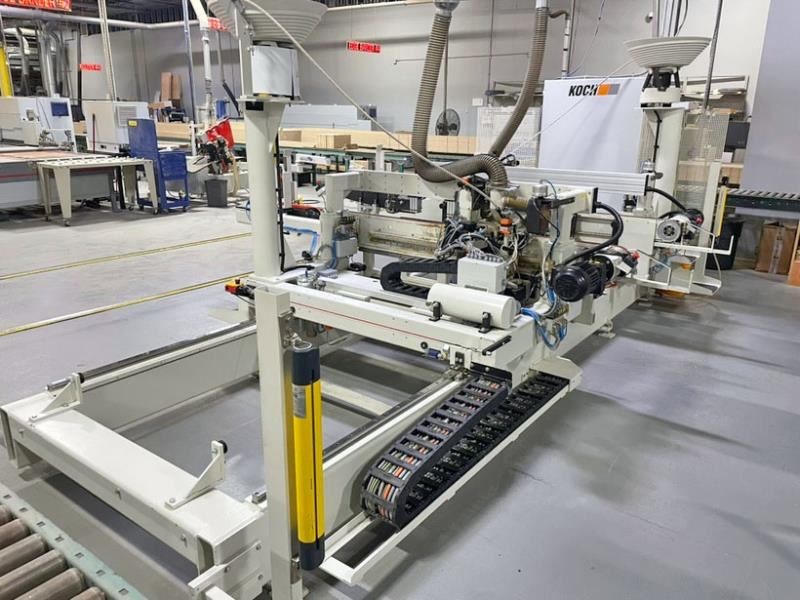

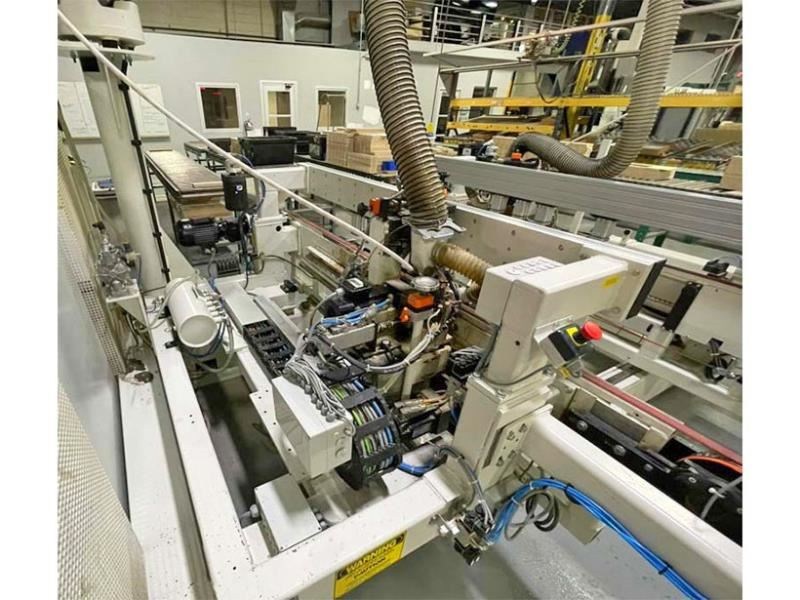

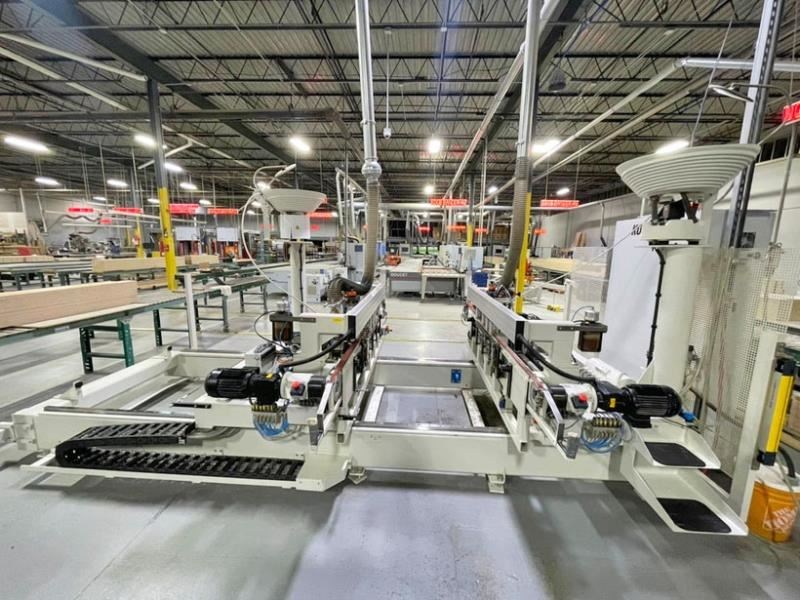

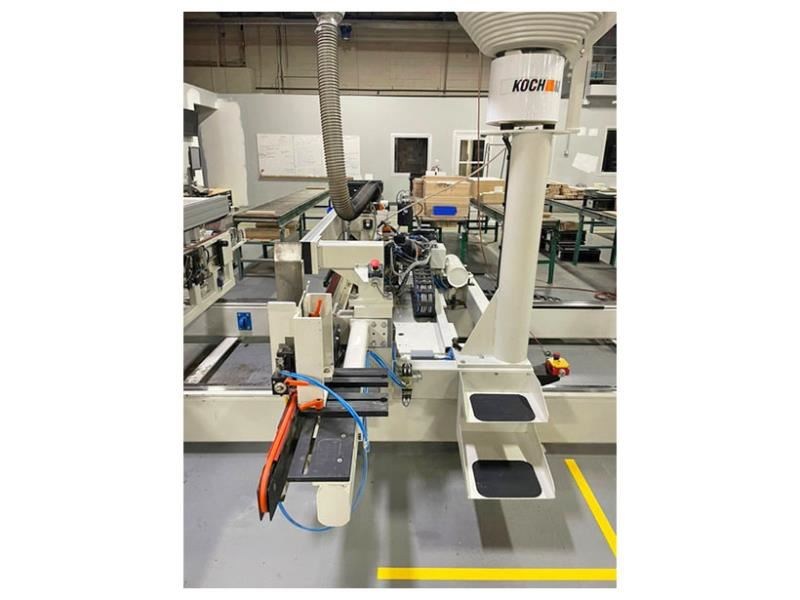

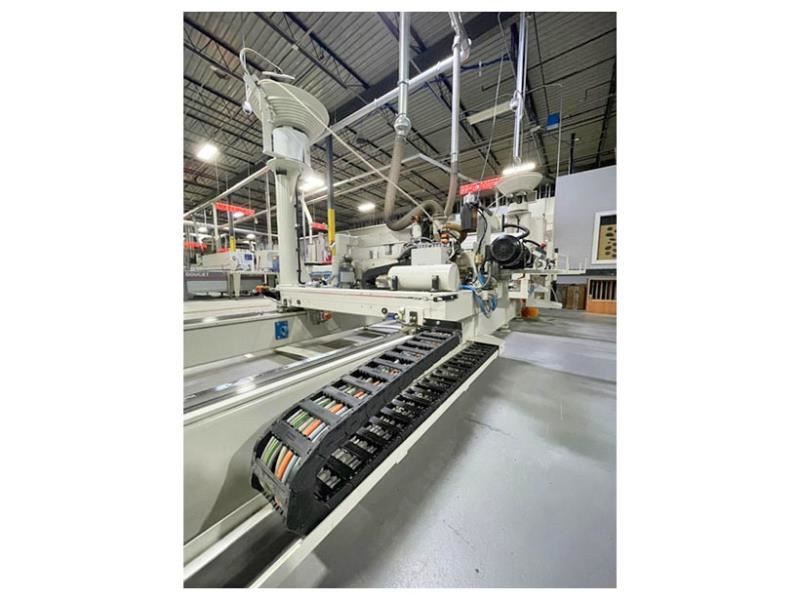

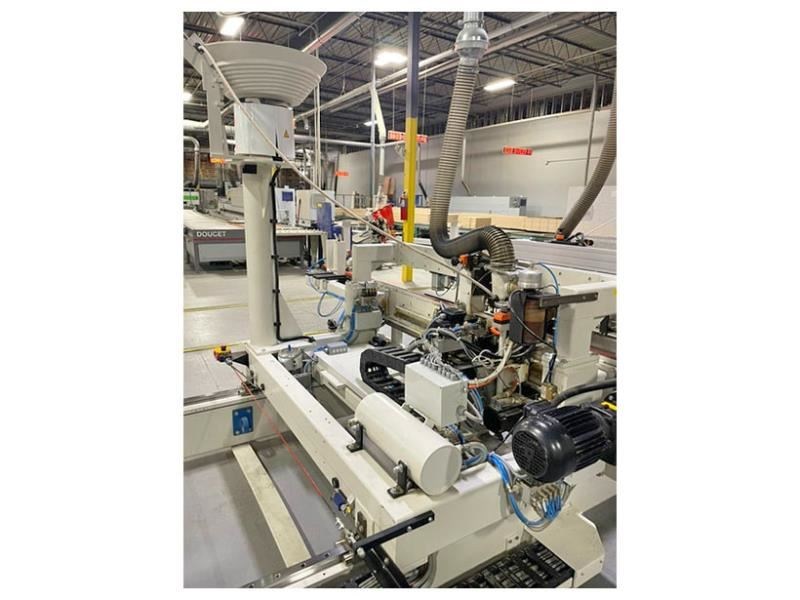

KOCH - SPRINT 200 Classic: Feed-Through Boring & Dowel Inserter -- SpecificationsSPRINT 200 CLASSIC, Double-end, automatic BGD machine for straight workpieces with: (2) PTP Bore, Glue & Dowel Units & Automatic Belt Feeding. -- Working DimensionsStock length: 10.8" - 98.4" (275 - 2,500 mm); stock width: 2-3/4" - 27-1/2" (70 - 700 mm); stock thickness: 0.59" - 1.18" (15 - 30 mm).NOTE: Specified dimensions do not allow all possible combinations. -- Horizontal Drilling StationsEach side traveling on "precision" linear guides; (1) horizontal drilling unit with: (1) 1.2 HP (0.9 kW) - 7,200 RPM motor. 1.1" (28 mm) Max. drilling depth; total length of drill bits: 2.76" (70 mm). -- Dowel InsertingDowel dia.: 8 mm; dowel length: 30 mm; dowel projection: 7 - 14 mm.(2) Vibrating hoppers with: (1) Outlet tube for feeding of dowels on each side; Dowel size: 8 mm dia., 30 mm in length, and 7 - 14 mm projection. -- Operating ProcessStationary machine side is on the left side (seen in transport direction) and not adjustable.Machine is equipped with: Stock feed belts; belts move the workpiece to the BGD station & clamp it into position for processing.Workpiece is transported out of the machine after processing is complete. The workpiece is transferred to the next machine or taken out manually. -- Complete with: Central lubrication for working units: Air pressure intensifier with 2:1 ratio for constant compressed air supply for glue valves. Hopper Infeed Device. Separate drive for outfeed belt. Tele-diagnostic service compatible. Perimeter Safety Devices. All Docs, Manuals, Tools, Spare Parts associated with this machine. -- Actual Model: KOCH SPRINT 200 CLASSIC
