Description:

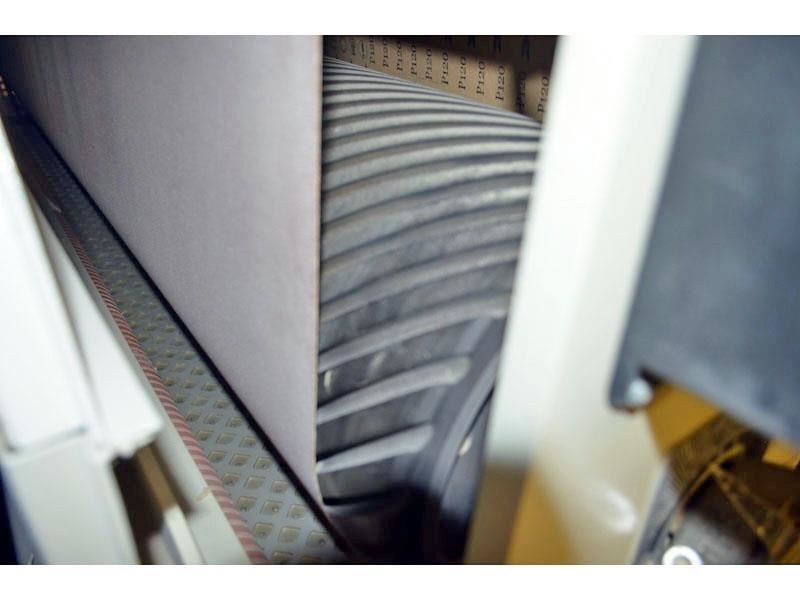

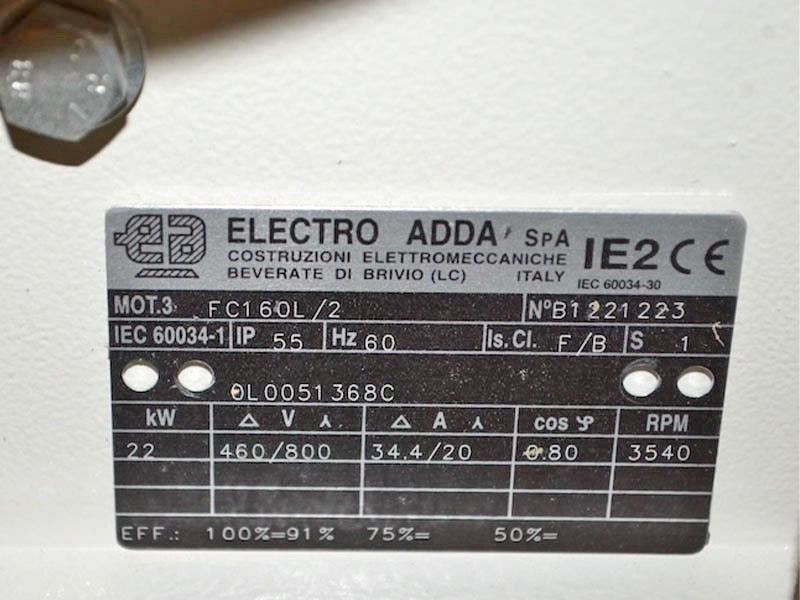

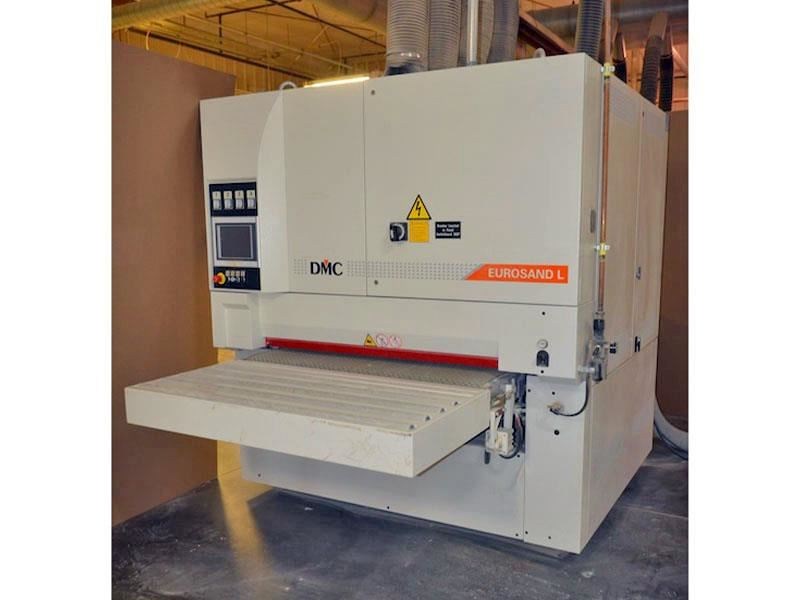

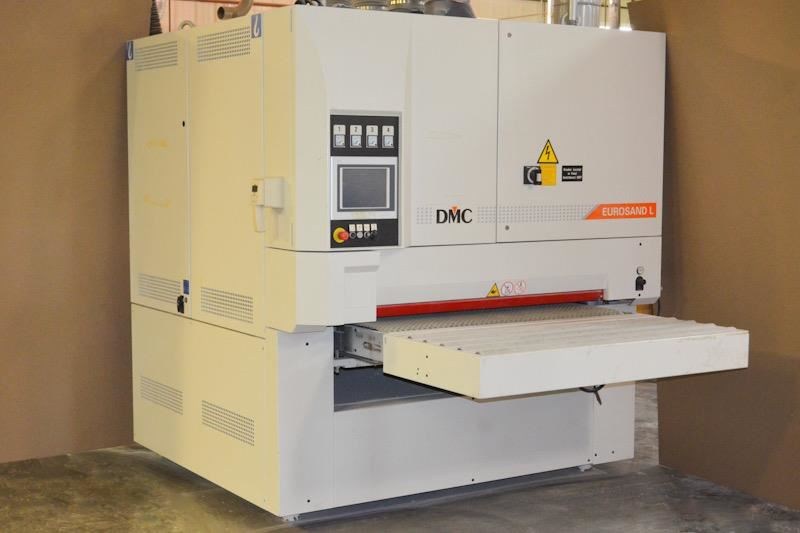

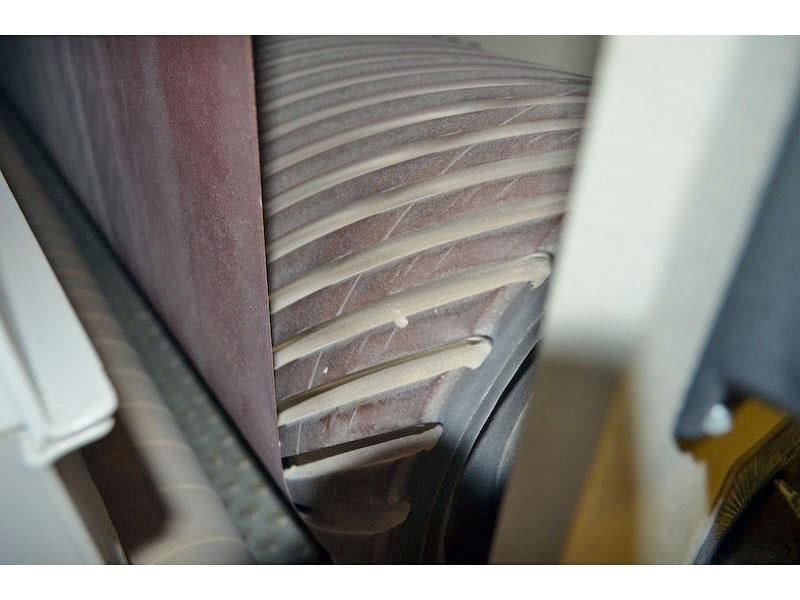

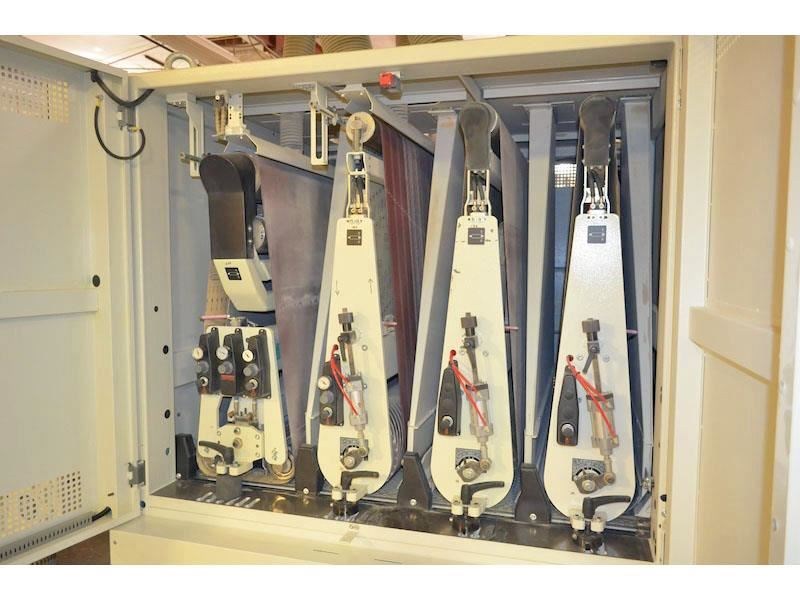

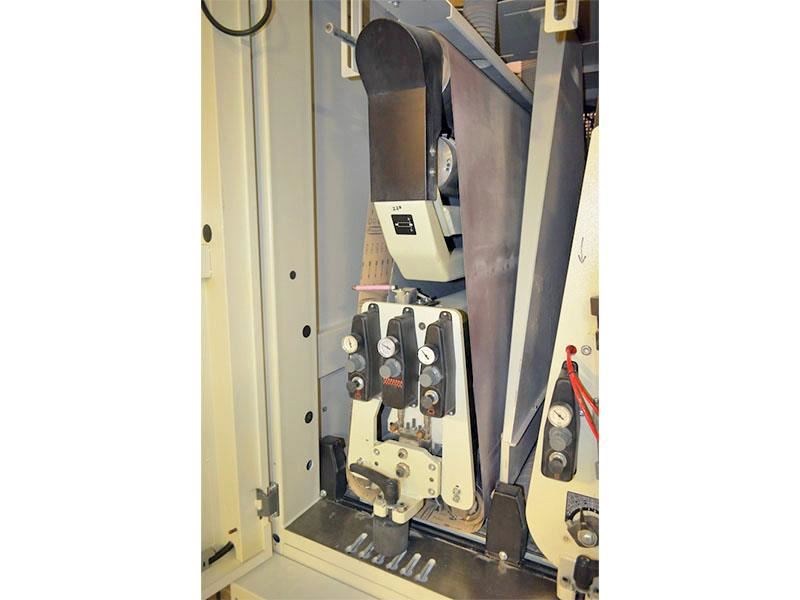

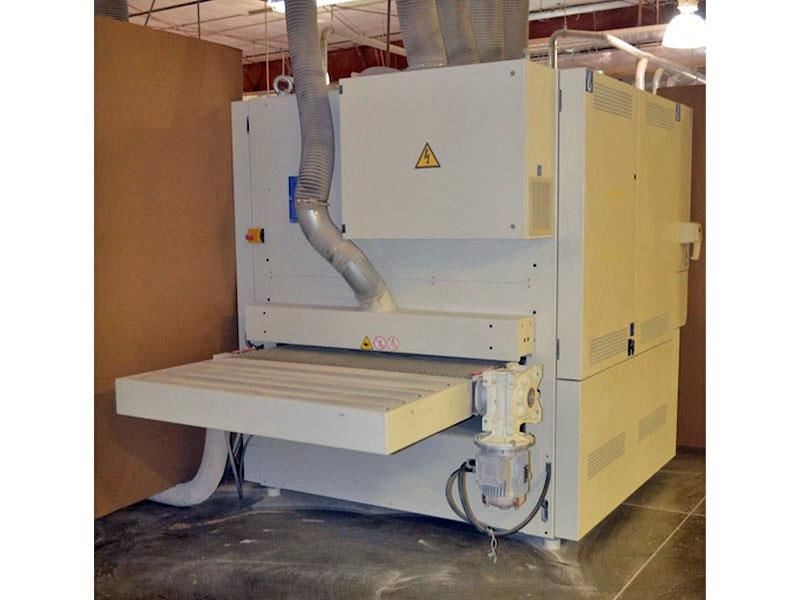

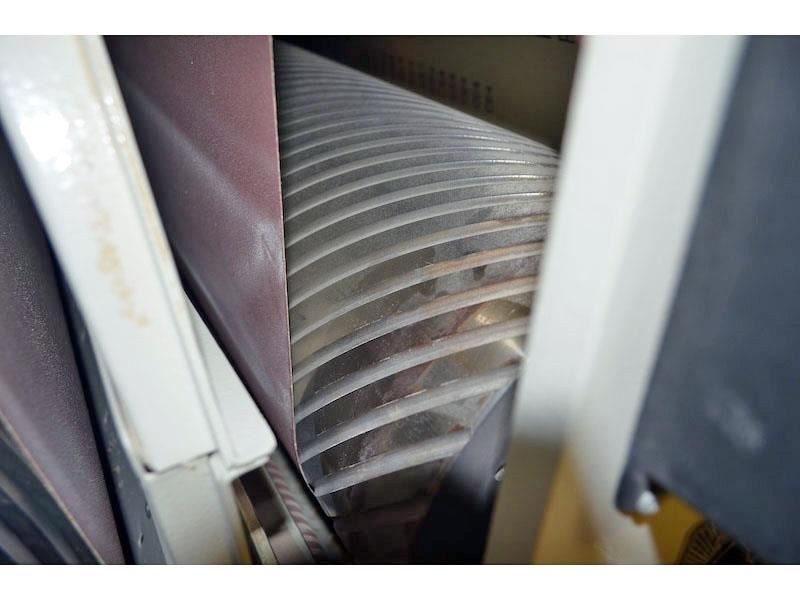

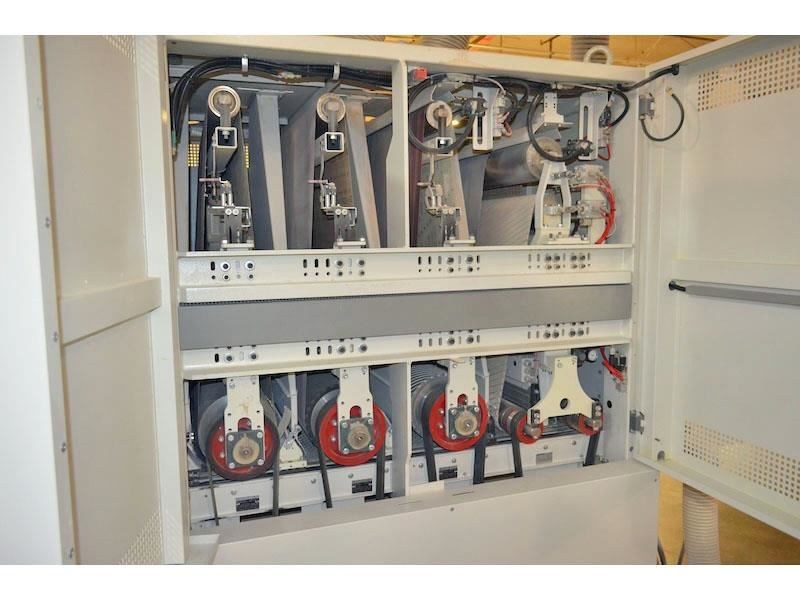

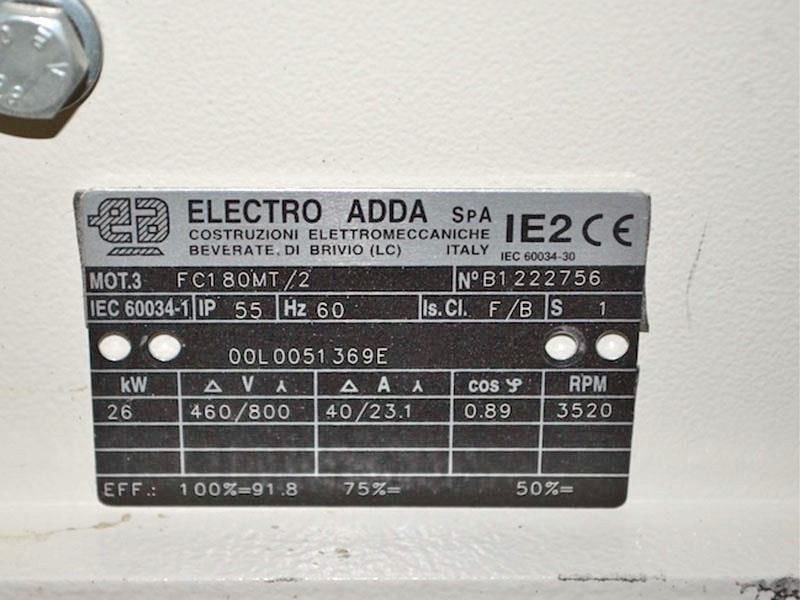

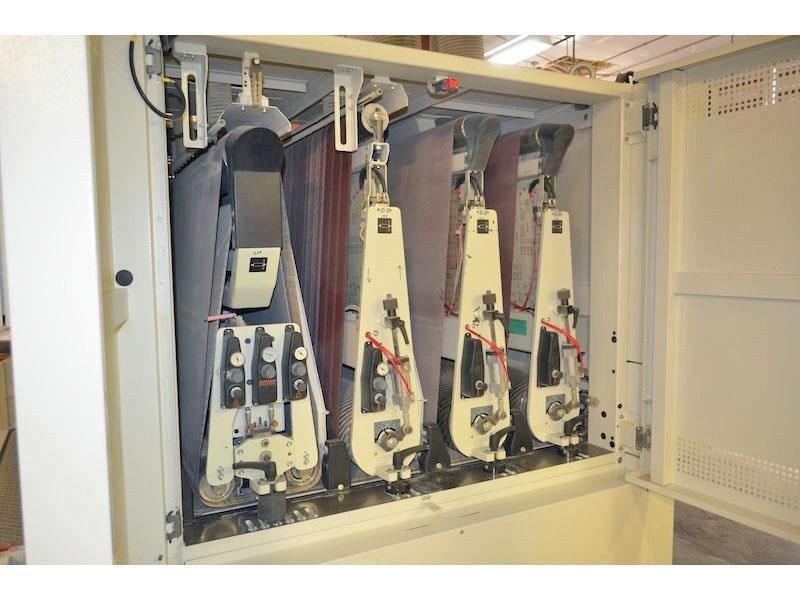

D M C EUROSAND L ERL 1350 M4 ...53" Wide Belt Sander with (4) Sanding Heads: 1,350 mm (53") Max. working width, equipped with (3) Contact Rolls, and (1) "Superfinishing" Segmented Platen Head.Head Configuration: -- 1st Head: Steel Contact Roller, spirally grooved, 250 mm (9.8") diameter; 26 kW (35 HP) motor. Pneumatically operated grit compensation. -- 2nd Head: Rubber Contact Roller, spirally grooved, approx. 85° Shore hardness, 250 mm ( 9.8") diameter; 22 kW (30 HP) motor. Pneumatically operated grit compensation. -- 3rd Head: Rubber Contact Roller, spirally grooved, approx. 45° Shore hardness, 250 mm ( 9.8") diameter. 3-speed motor 12 / 15 / 17 kW (16 / 20 / 23 HP). Pneumatically operated grit compensation. -- 4th Head: "Superfinishing" Segmented Polishing Platen with inner Chevron belt. With "PE 45 EPICS" (Electronic Pad Independent Control Stroke) - electronically controlled, segmented pressure pad with (45) pneumatically activated segments, each 30 mm (1.2") wide. The EPICS-system allows imperfections in the panel of up to 2 mm (1/16"). Driven by 2-speed motor 15 / 18 kW (20 / 25 HP) motor. -- 5th Position: (2) Oscillating Air Jet blowers for panel cleaning.All heads use abrasive belt size 2,620 x 1,370 mm (103" x 54"), and are equipped with electronic abrasive belt tracking, and pneumatic belt tensioning. Feed System with 900 mm (35-7/16") Constant pass line: -- Vacuum bed assembly to ensure flatness of parts and feeding of small & lacquered panels. -- Variable feed speed 4 - 19 m/Min (13 - 62 FPM), with 7,5 kW (10 HP) feed motor. -- Motorized thickness opening 4 to 170 mm (3/16" - 6.7") and Automatic thickness adjustment. -- Pneumatically operated conveyor belt tracking. Holddown shoes for the first three heads, rubberized rollers in the platen area.Machine Management System: -- Front-mounted control console with B&E "HYDRA V-PAD" 17" colour touch-screen monitor. NC-computer control and management of all machine functions. Storage capacity for (120) different sanding programs. -- Sanding heads with computer setup and adjustment, light indication of panel movement, thickness, and features maintenance indicator.Complete with: Roller table extensions front & back (28" each), Emergency stops front & back, Load meters, oversized parts and infeed protection. Includes dust extraction manifold. CE Compliant - Approx. weight 11,000 Lbs (5,000 kG)Actual model is D M C EUROSAND L ERL 1350 M4 ... Wide Belt Sander with (4) Sanding Heads
