Description:

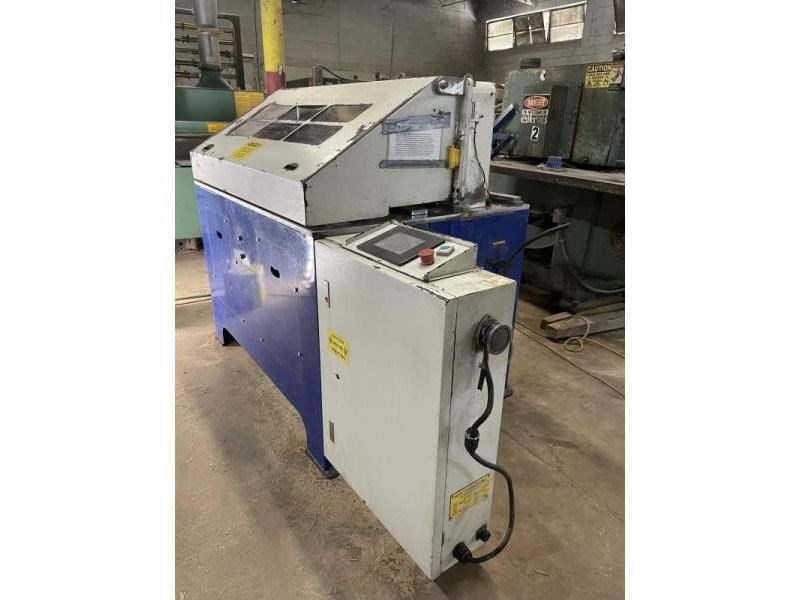

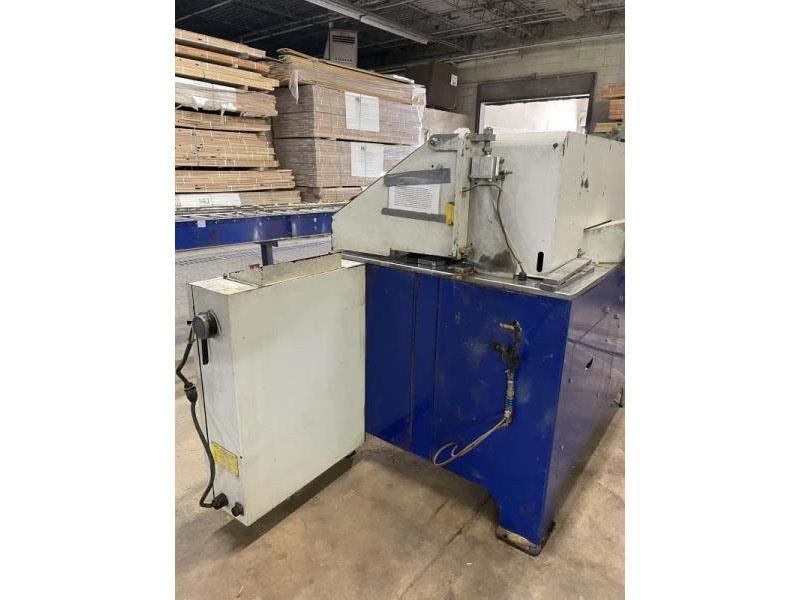

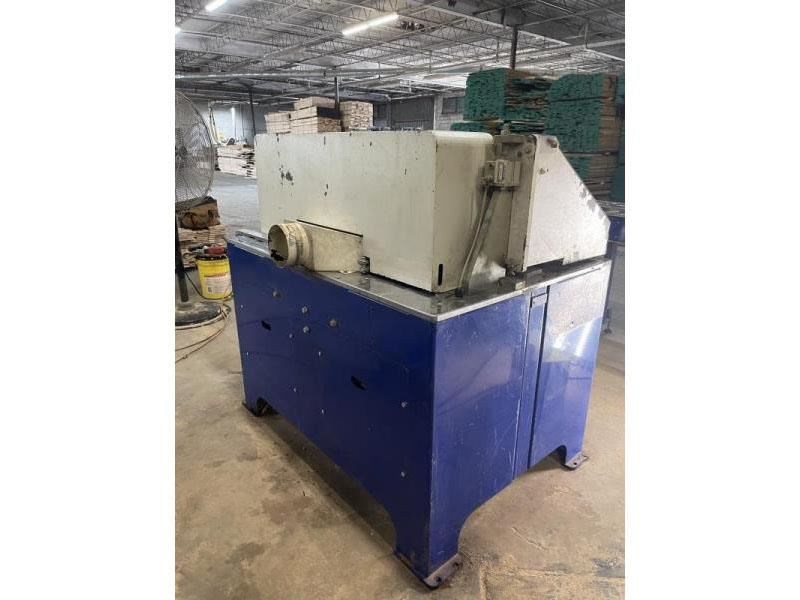

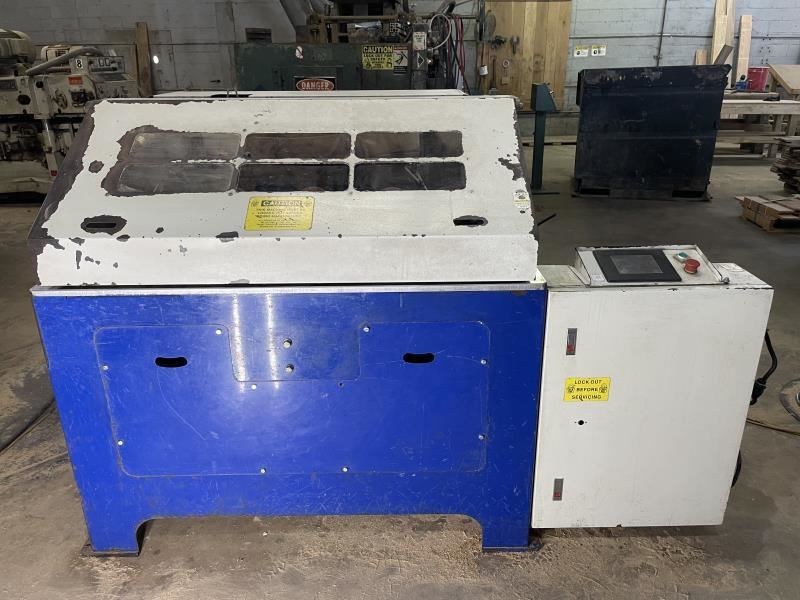

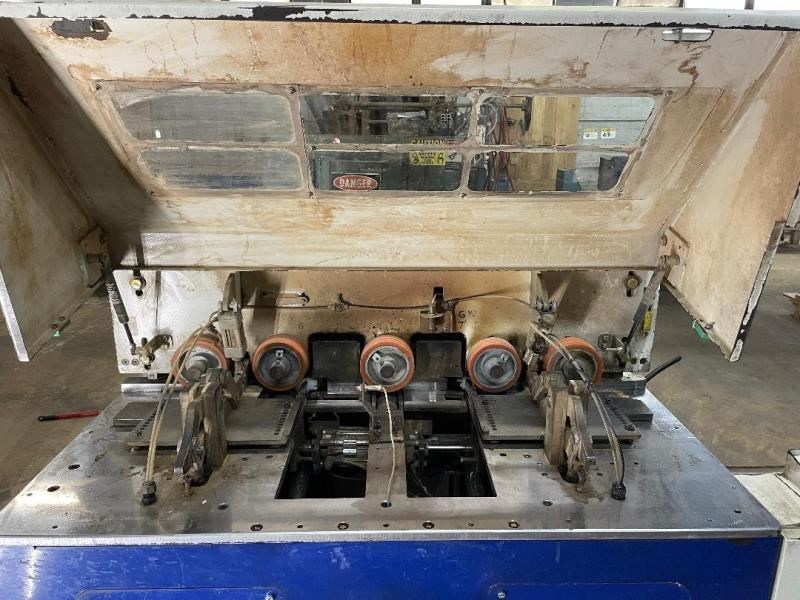

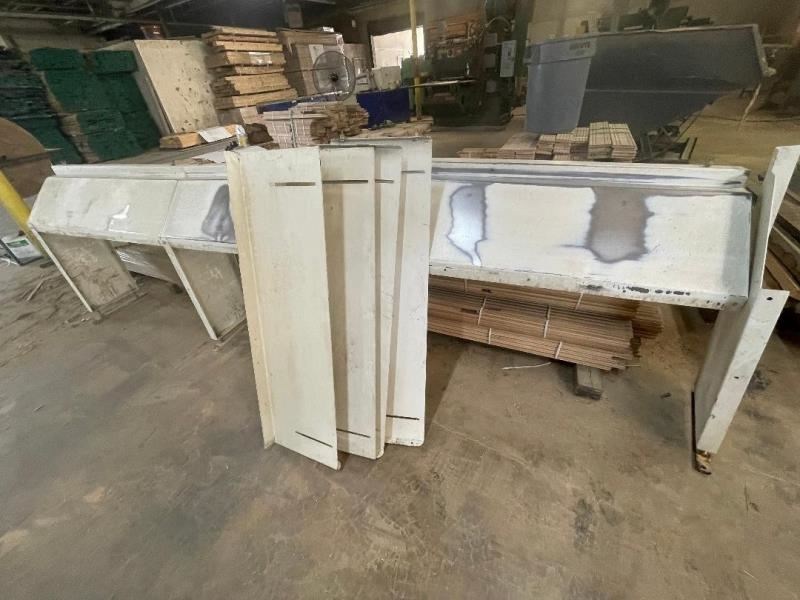

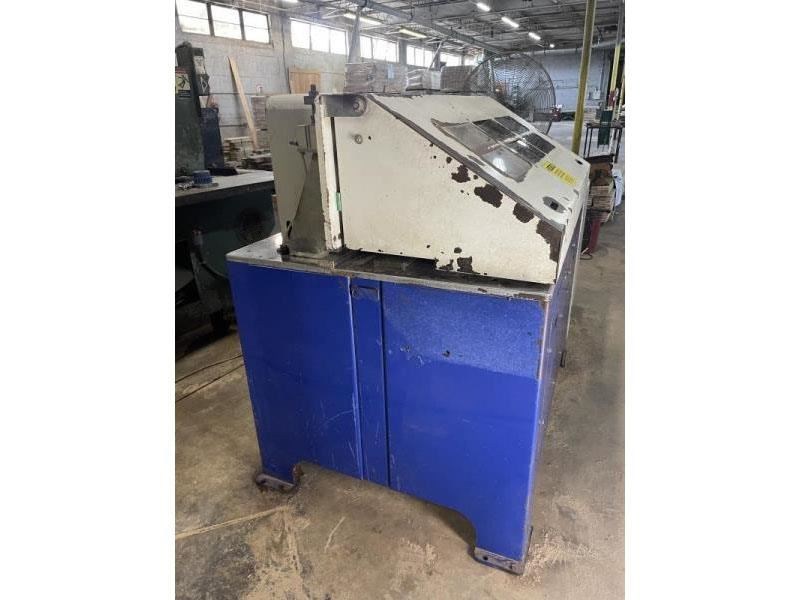

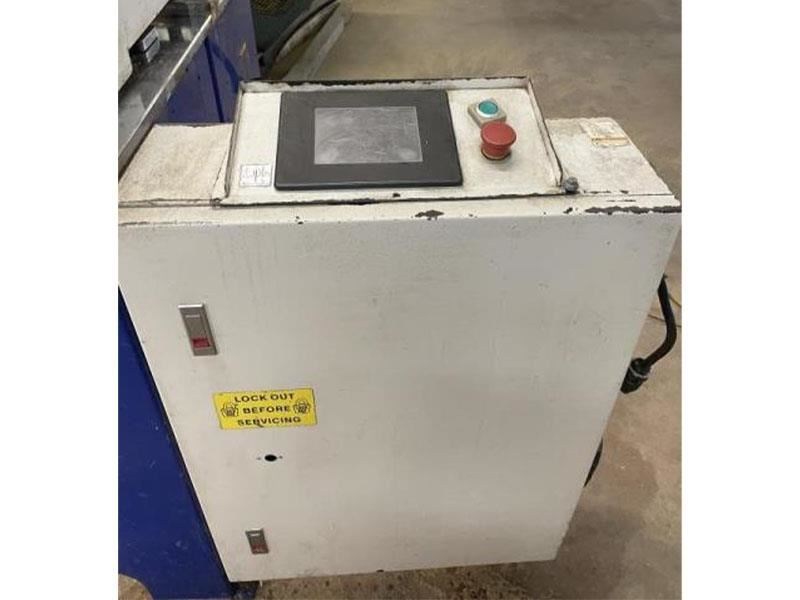

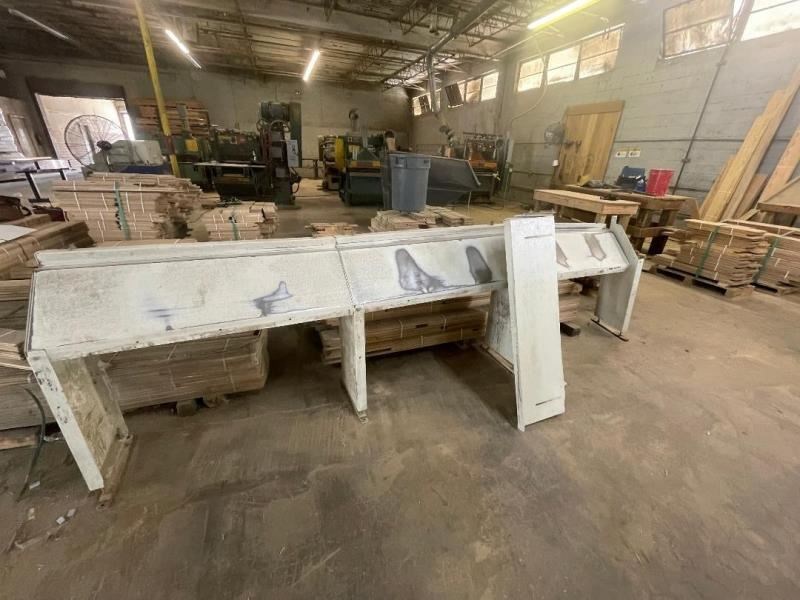

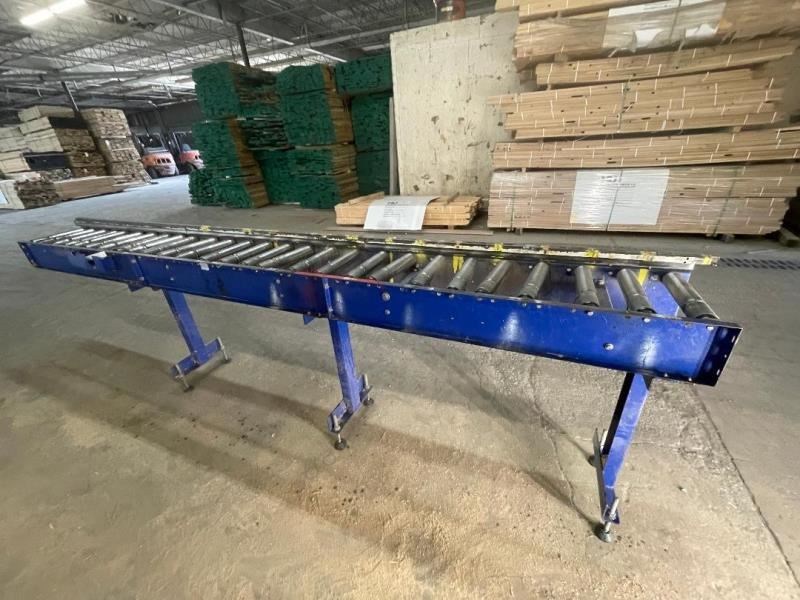

MPB Series - III End Matcher. --Random length End Matcher with: 40 mm Dia., 7,200 RPM spindles, powered by(2) 5 HP motors.Specifications: --10" (250 mm) Min. length x unlimited length. --÷2-3/8" (60 mm) - 10" (250 mm) Width cap.; 1/4" (6 mm) to 1-3/8" (35 mm) thickness capacity. --÷ 2HP Feed motor with: 295 FPM (90 MPM) via (5) top powered rolls & (5) bottom idle bedrolls. --÷Processing speed based on 6' average length; incoming boards are 78 FPM (24 MPM). Stock held securely for accurate profiling during the machining cycle by top and side clamps. --÷ 24 Volt DC machine; control from the panel and automatic operation via included PLC. --÷Includes: 9' Canted powered infeed roll conveyor; outfeed with an outfeed system including a material slide & landing section. -- 12 HP Total connected load.Features: -- MPB is an automatic & versatile "linear feed" flooring End Matcher; compact design retains the ability to end match long and wide boards with speed and accuracy.÷LC controlled twin cutters and dual action clamping system produce a square cut. -- Machine tongue & groove with or without Vs on flooring and panel product; designed to be used for finger joint cutting. -- Heavy-Duty self-supporting mainframe; compact design requires minimum floor space; capable of processing material as short as 11" to an unlimited length. --Variable speed thru-feed system is controlled by frequency inverter; thru-feed system allows the tongue to be cut simultaneously on the tail of one board and the leading edge of the next board. -- Touchscreen Control is used to quickly activate and adjust the machine functions; powered top urethane feed rolls and spring-loaded bed rollers feed the material into position for processing; pneumatic side pressure system ensures the material is held square against the fence; with safety and noise reduction enclosure.
