Description:

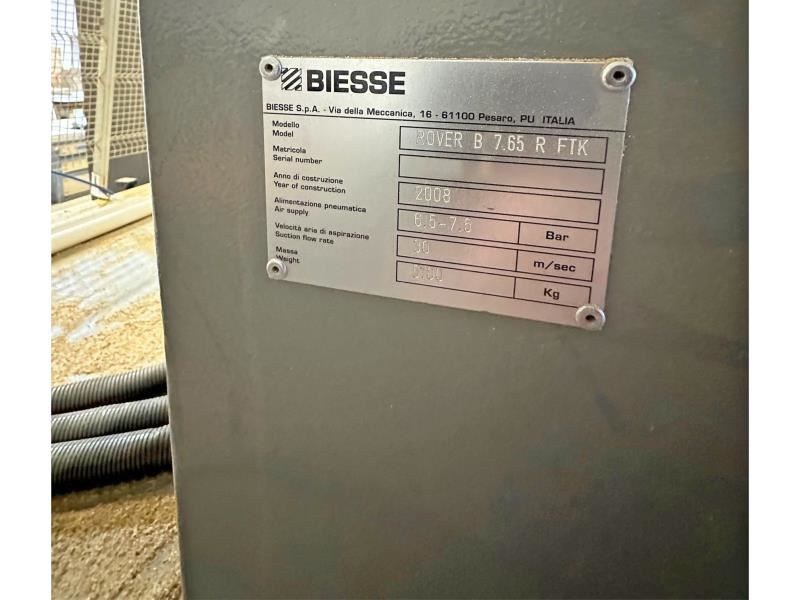

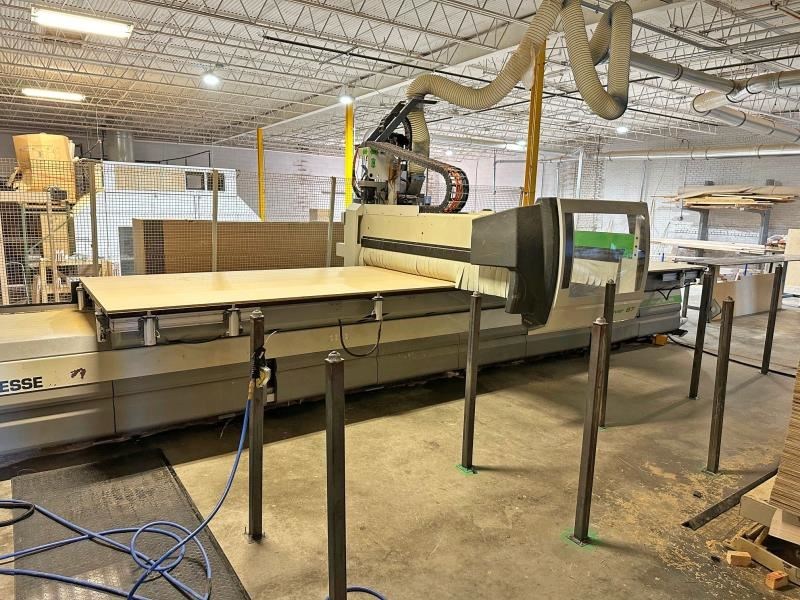

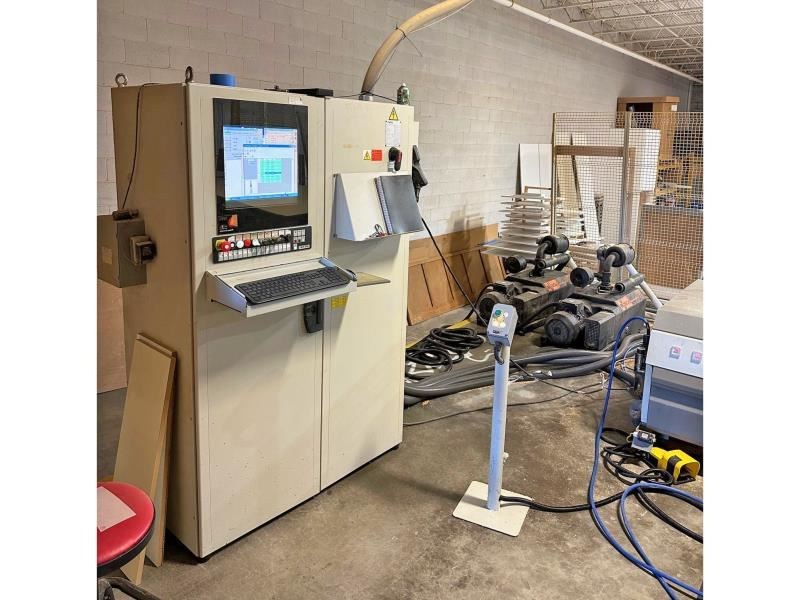

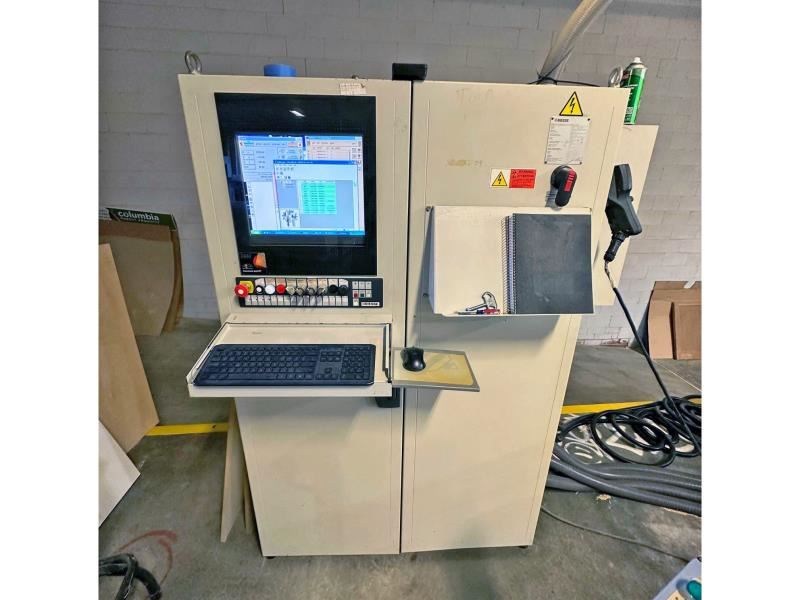

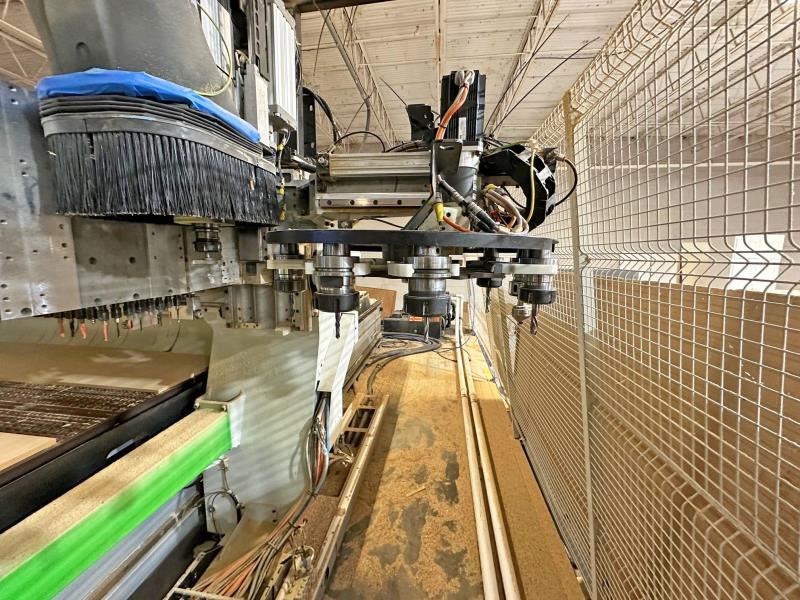

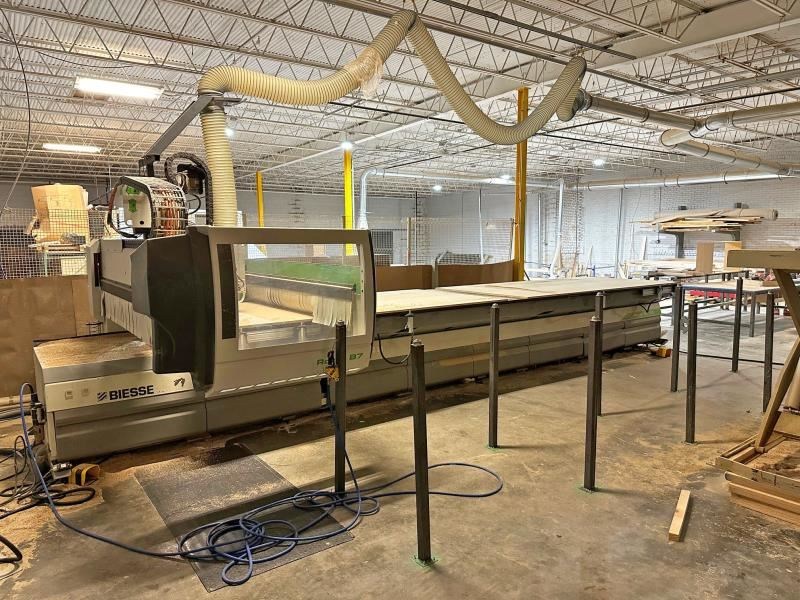

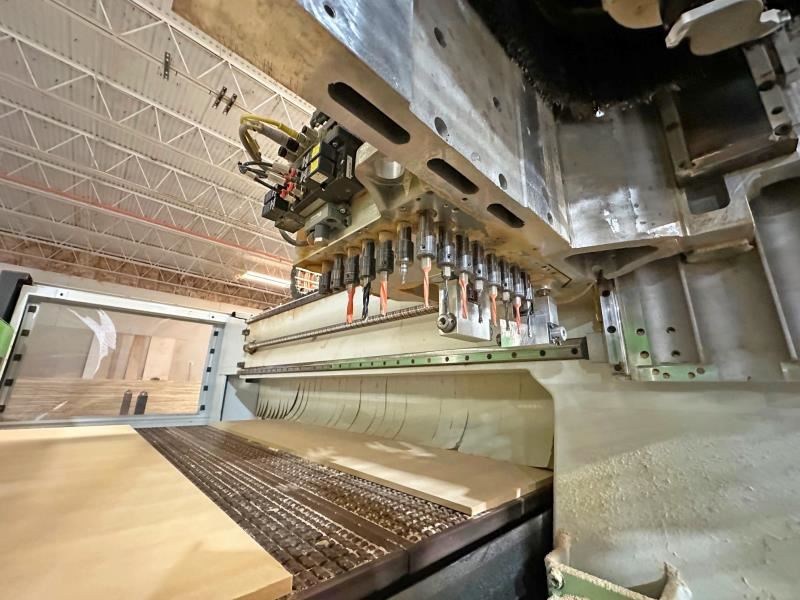

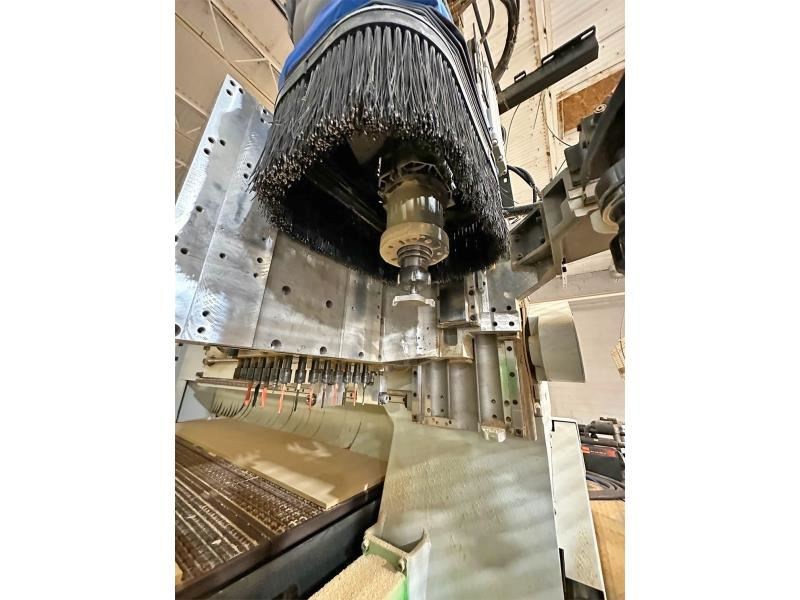

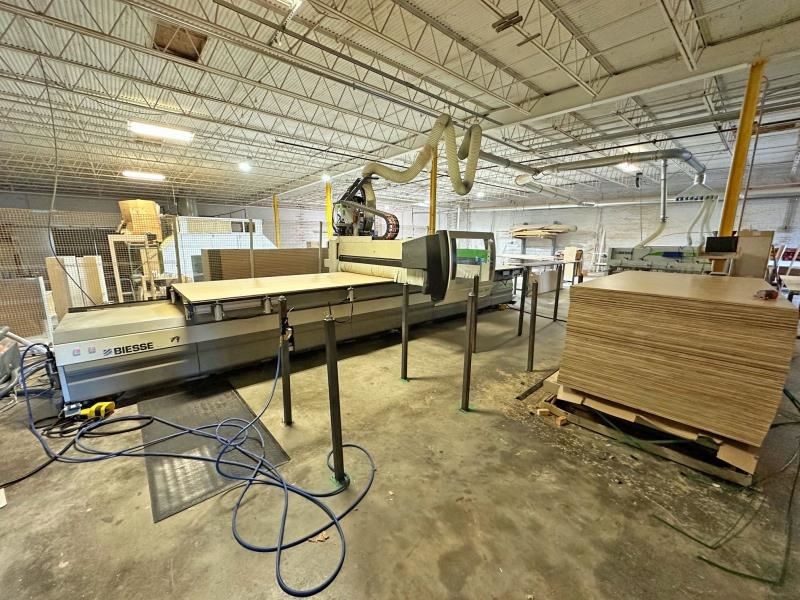

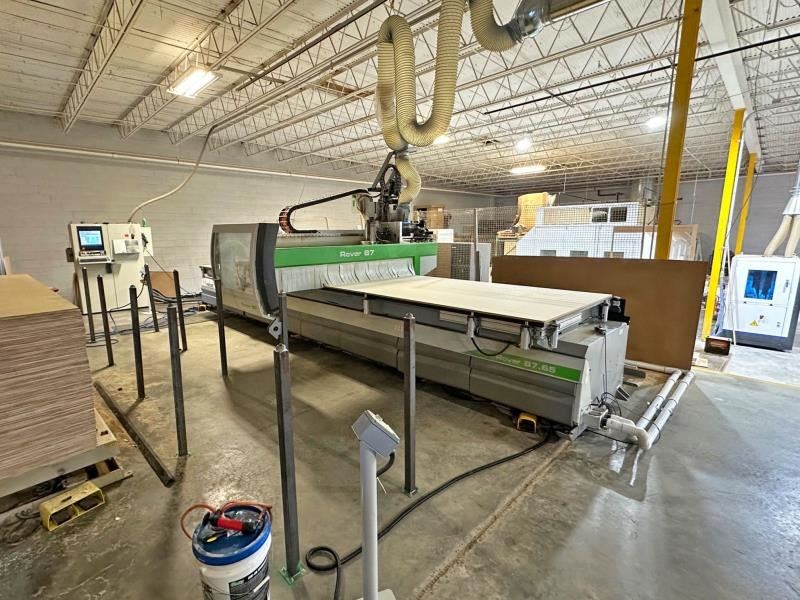

BIESSE ROVER B 7.65 R FTK FLAT TABLE MACHINE (W/ATC/BORING): -- Specifications:5' x 20' Flat table design for "Nested Base" processing: Working field; "X" axis 240" (6,095 mm), "Y" axis 61.4" (1,552 mm), "Z" axis stroke is 7" (180 mm); max material thickness 5.9" (150 mm). -- Positioning Speed:"X" & "Y" axis 262 FPM (80 MPM), "Z" axis 98 FPM (30 MPM); "X" axis uses a helical rack & pinion system, "Y" & "Z" axes use precision ball screws.All axes movement is on precision linear guides & ways & controlled by digital, brushless AC Servo motors; all motion components are maintained by an automatic lubrication system. -- Work Table:Phenolic "MATRIX" grid vacuum table for FT "Nesting" or single part processing using (optional) pods or jigs; (1+1) side pop-up pins for easy material location. -- Boring Unit:(1) 2.5 HP (1.7 kW) - 4,000 RPM motor: (14) independent vertical spindles, (7) in "X" axis & (7) in "Y" axis; (4) horizontal spindles with (1+1) in "X" axis & (1+1) in "Y" axis. -- Machining unit:(1) 16 HP (12 kW) liquid cooled electro-spindle with HSK-F63 adaptor, variable speed from 1,000 - 24,000 RPM; (1) 12-position ride along tool changer for "on the fly" ATC. -- Operator Interface:PC Front End Controls with Biesse "NC 1000" + WINDOWS "XP" operating system; 15" color CRT; 40 GB hard drive; full keyboard & mouse; Ethernet connection capabilities. -- Complete with:(2) 10 HP (7.5 kW) BUSH vacuum pump; original manuals & documentation; safety fencing & perimeter devices. -- Actual Model is Biesse Rover B 7.65 R FTK.
