Description:

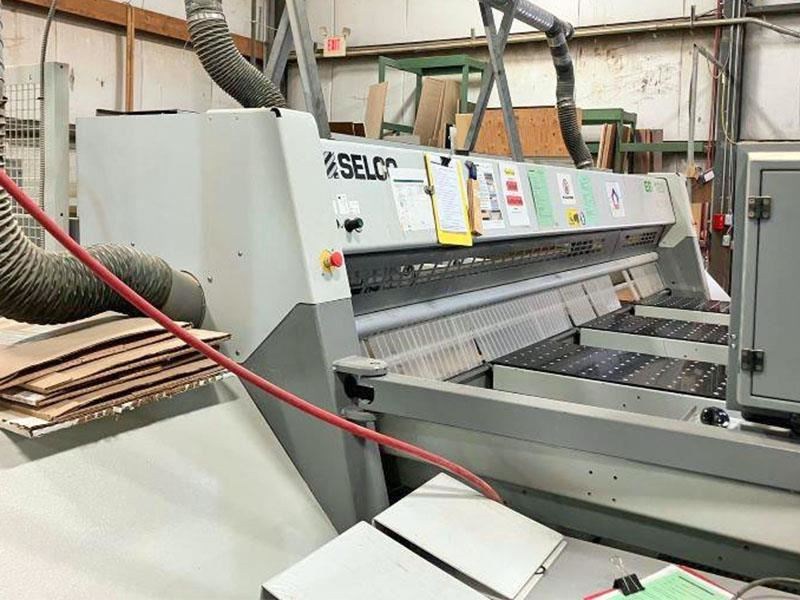

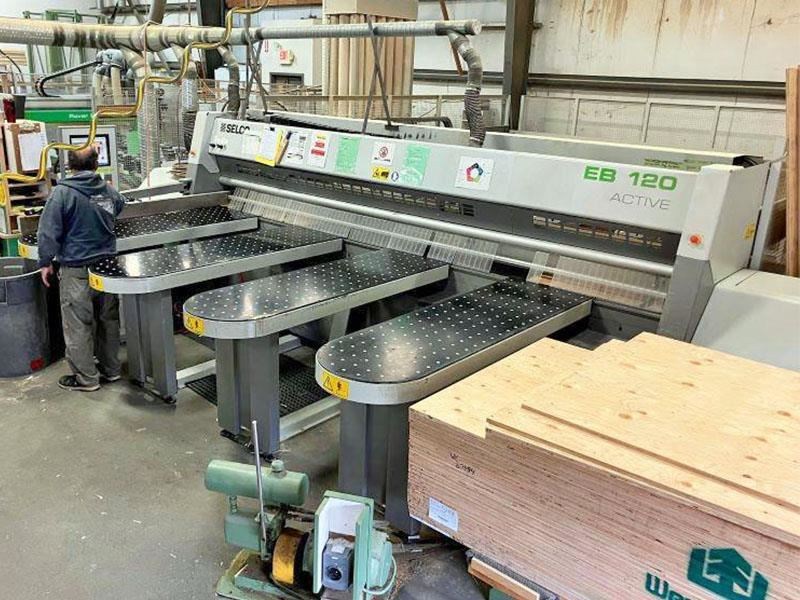

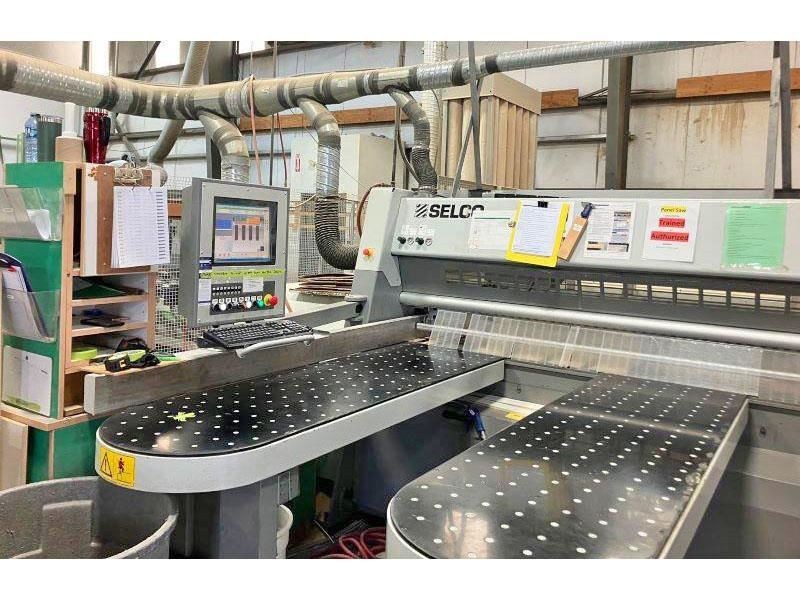

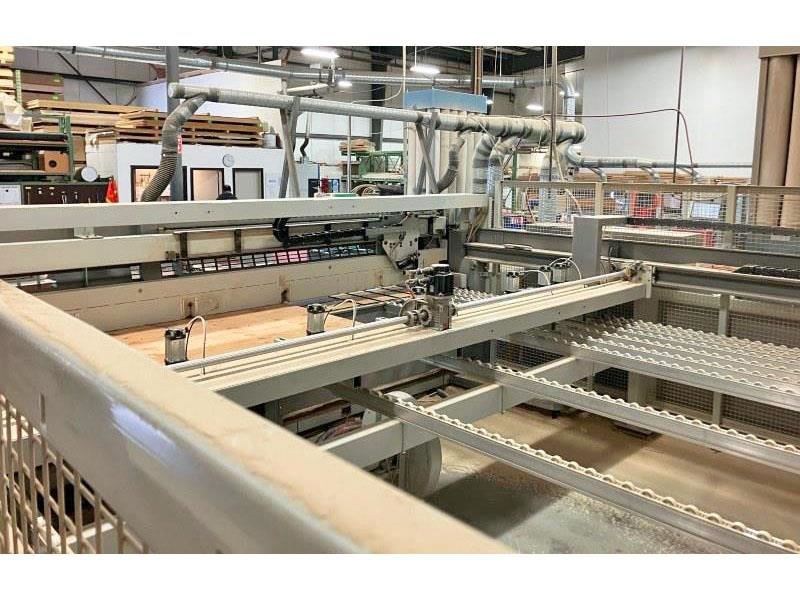

SELCO EB 120 CNC Frontload Panel SawSpecifications: -- 126" Overall cutting length & 4.7" (120 mm) max. saw blade projection; 18 HP main & 2.4 HP scoring motor, modular roller rear machine table, side aligning device, and (2) longitudinal aligners to accurately position the book of panels on the rear saw table prior to cutting. -- Variable saw carriage travel speed 0 - 328 FPM; electronically controlled overhead program fence, rack & pinion driven, forward speed 196 FPM, return speed 196 FPM.Equipped with: -- (6) Clamps (open up to 122 mm), of which (3) are closely spaced in crosscut area and the other (3) are at equal distance in rip cut area. -- AC Servo motor drives on both, saw carriage and pusher fence. Operator & Machine Control: -- The front end is controlled by a PC, which has a Color monitor integrated into a high-tech-look operator control panel (which displays cutting dimensions and patterns). The panel has virtually unlimited cutting pattern storage capacity, and it is self-diagnostic. Data can be input by keyboard or downloaded directly from the office PC. Complete with: -- 2,300 mm Long crosscut fence stroke (side to side), (2) side/crosscut aligners. -- (3) Front mounted air float tables with rounded front for moving panel from rip to crosscut position, (24" x 79" each). -- Rear of machine partially enclosed for safety.
