Description:

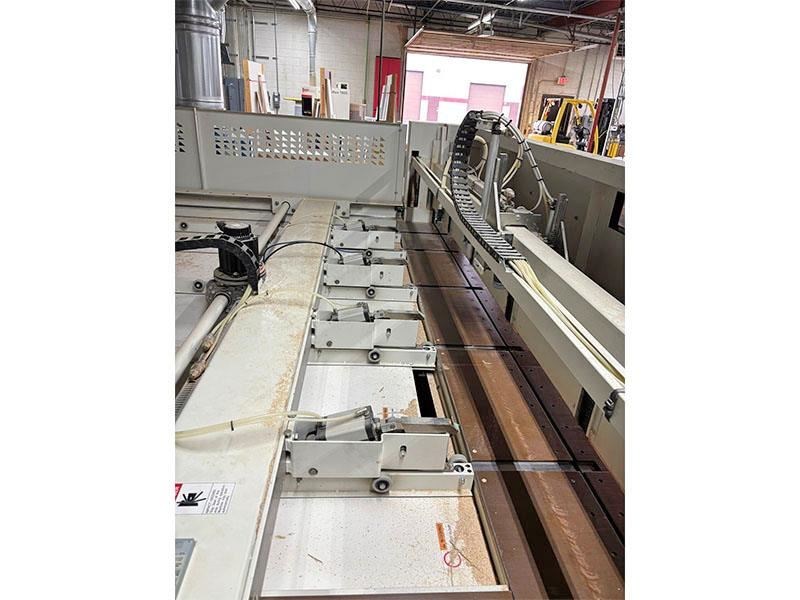

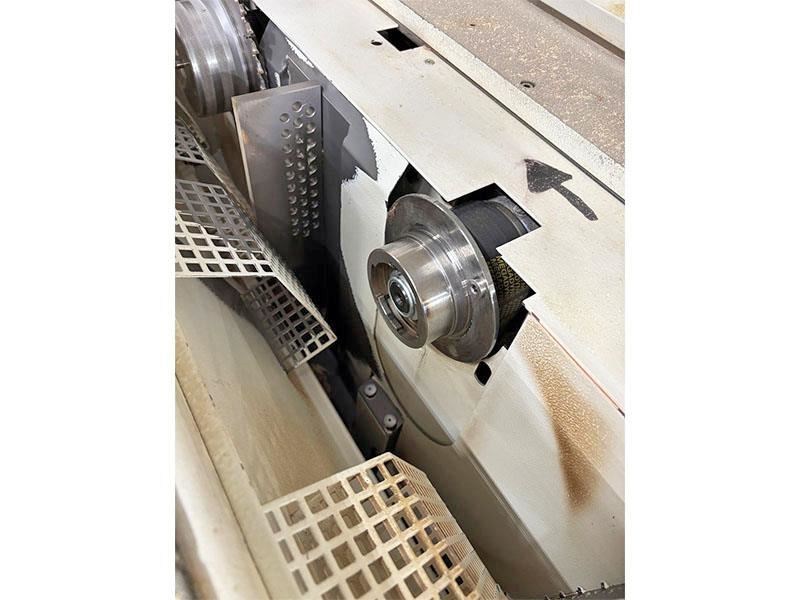

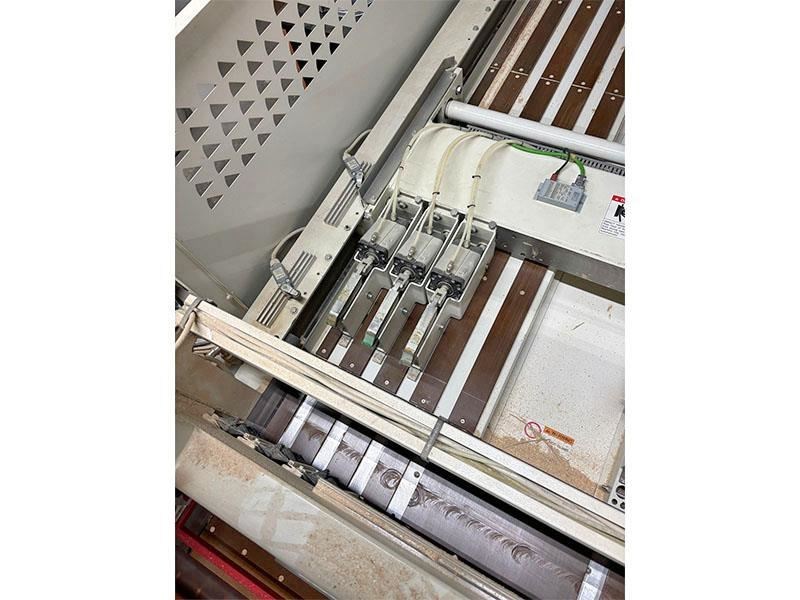

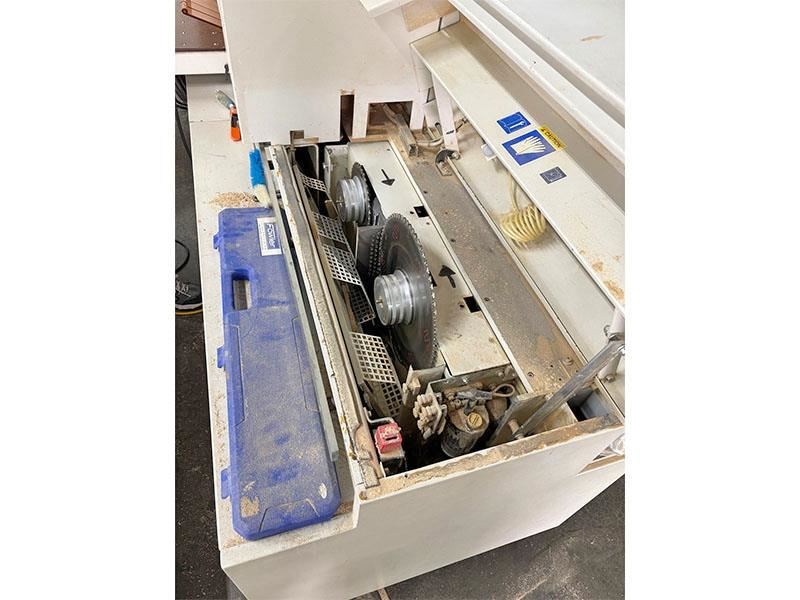

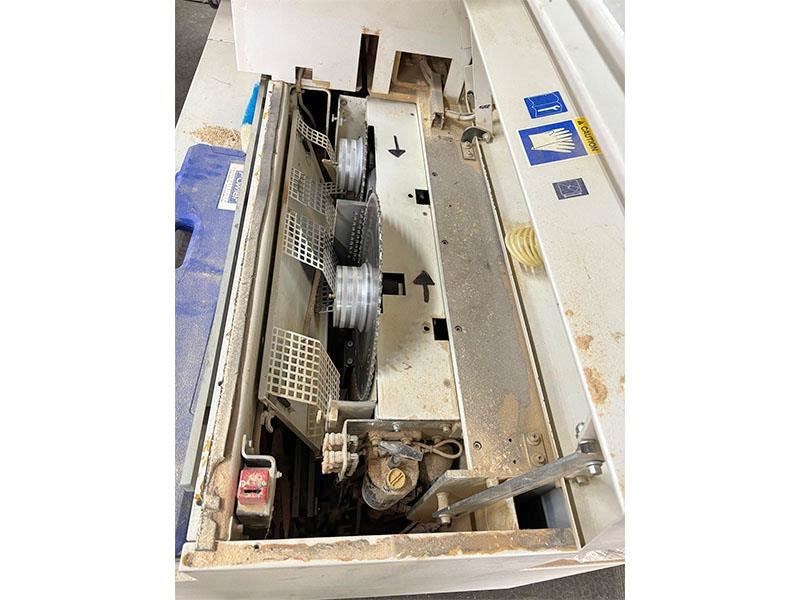

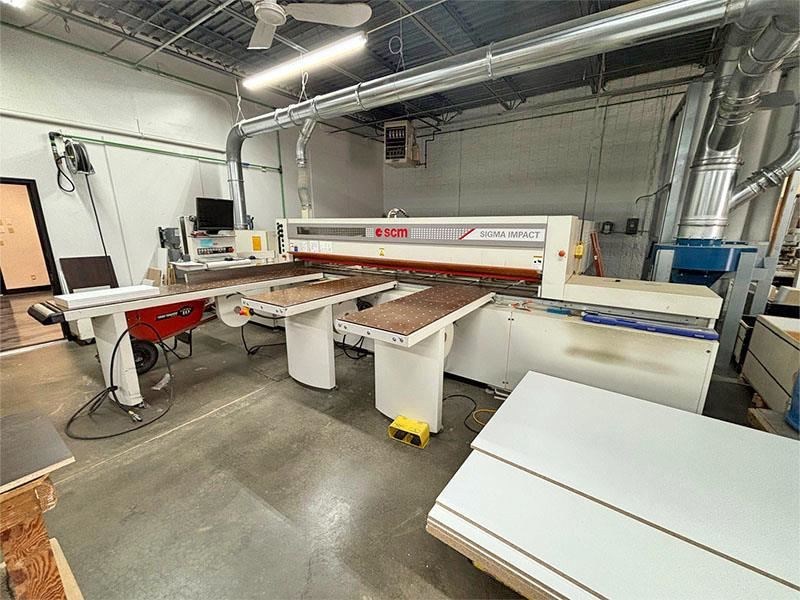

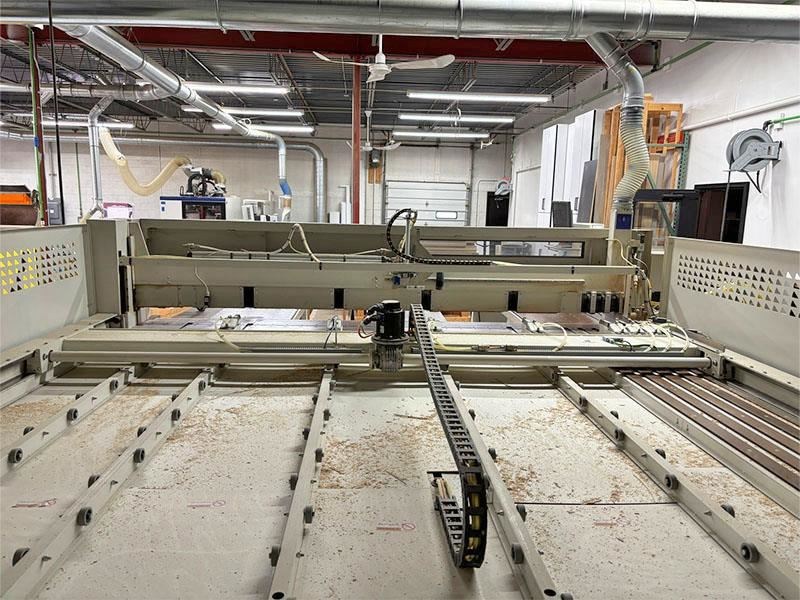

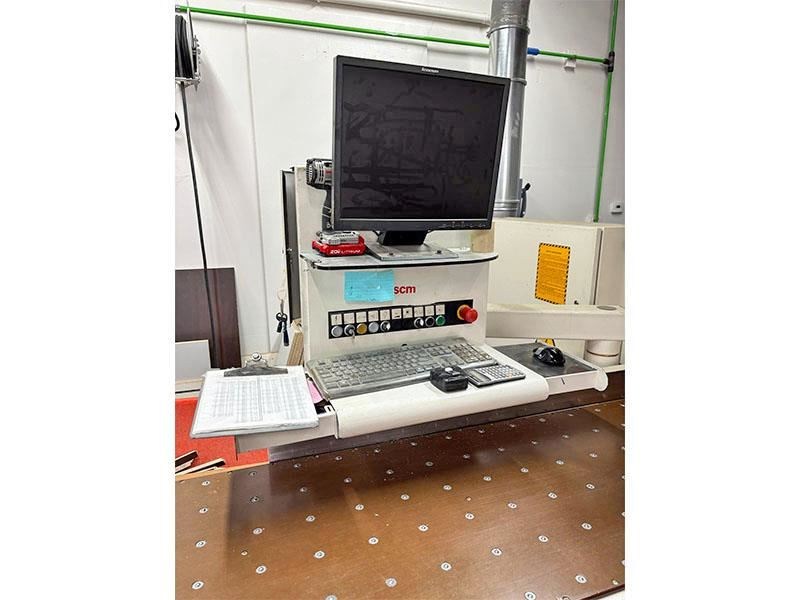

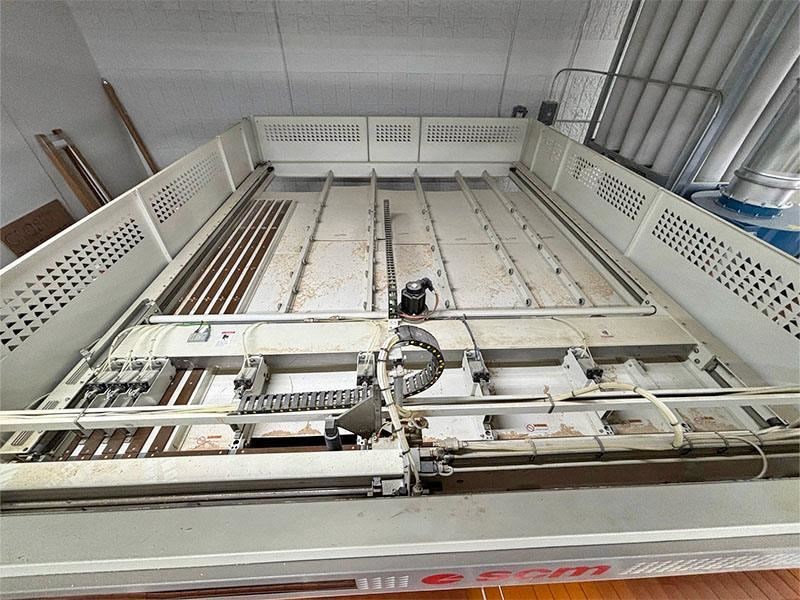

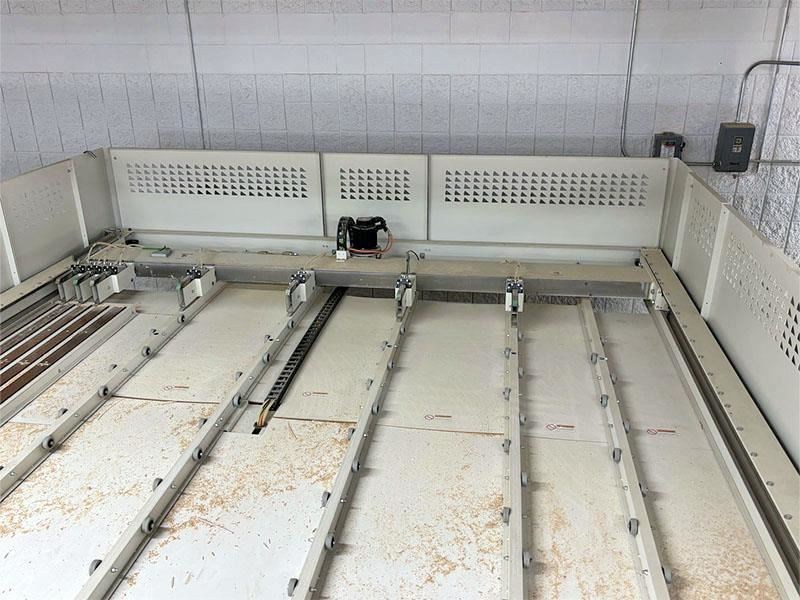

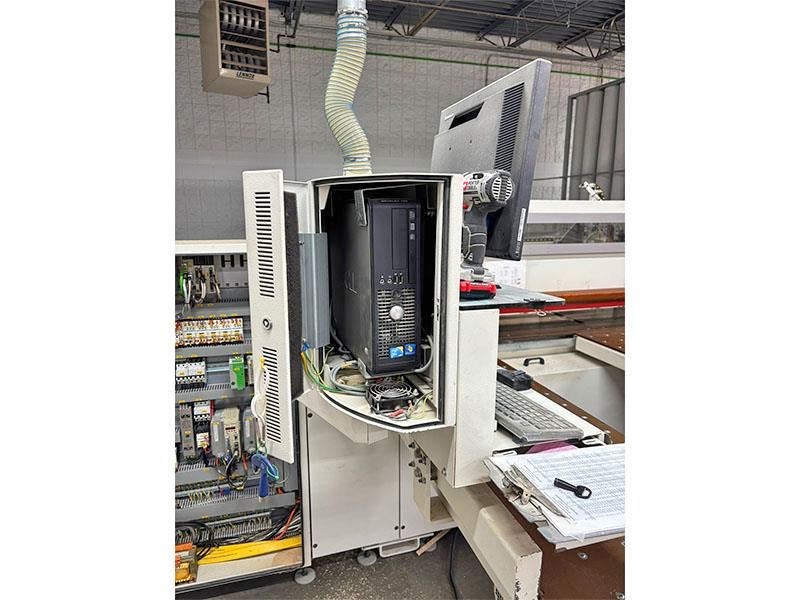

SCM IMPACT C Front-Load Panel Saw Working Capacity:149.6" (3,800 mm) max. rip cut, 149.6" (3,800 mm) pusher stroke, 4.33" (110 mm) saw blade projection;380 mm dia. Main blade with 80 mm bore & 200 mm dia scoring blade with 80 mm bore,17 HP (13 kW) Main saw motor, 3,900 RPM main blade speed, 2 HP (1.5 kW) scoring motor, 6,300 RPM score blade speed.Positioning Speed:Feed speed for saw carriage from 20 - 442 FPM (6 - 135 MPM), return speed of 442 FPM (135 MPM);Automatic saw carriage lubrication, balanced on hardened cylindrical guides, external score saw adjustment, THK guides for vertical saw movement.Pusher Fence:Programmable rear fence with rack & pinion movement, 78 FPM (24 MPM) forward speed, 262 FPM (80 MPM) return speed; (8) material gripper clamps, grippers fit into a slotted pressure beam for positive material control during the final cut.Operator & Machine Control: PC Front-end with 64 X2 Dual Core Processor 5000+ 2.60 GHz, 896 MB of Ram,15" Color super VGA monitor, on-screen diagnostics & production reports. SCM "WinCut" real-time operation software with onboard optimizer.
