Description:

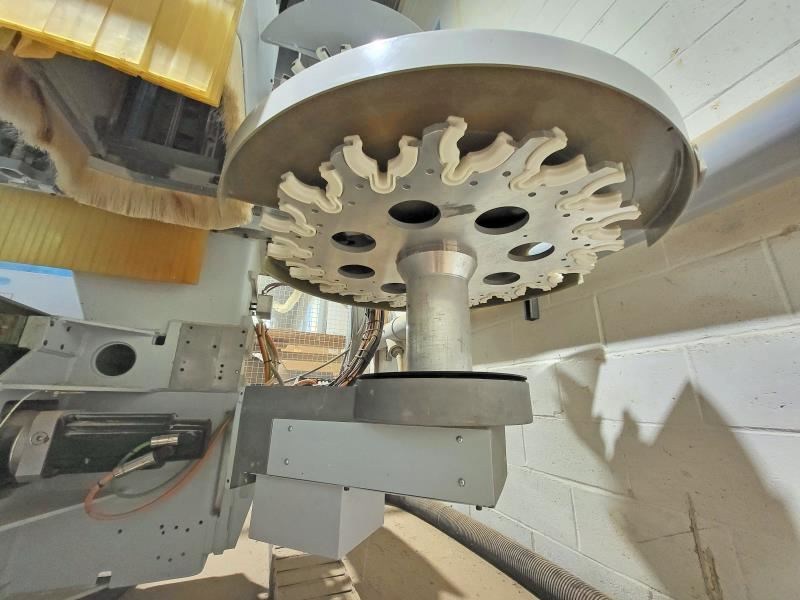

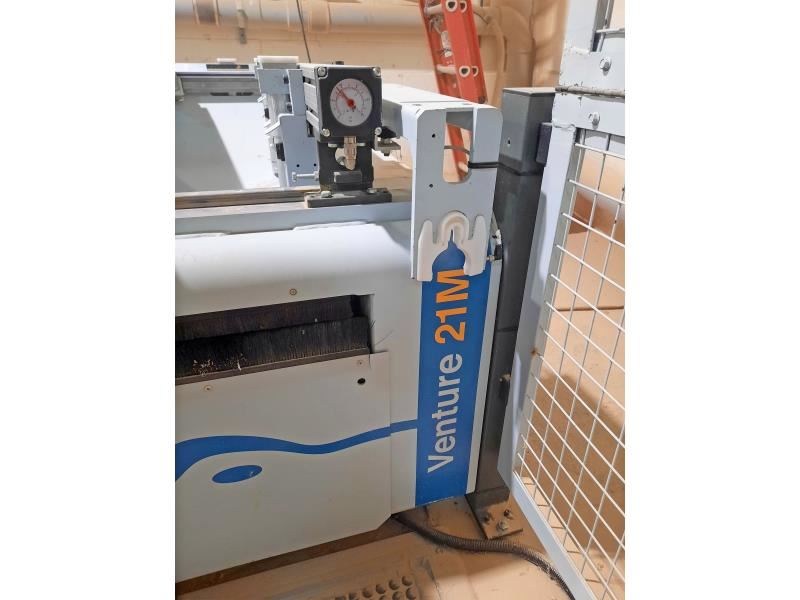

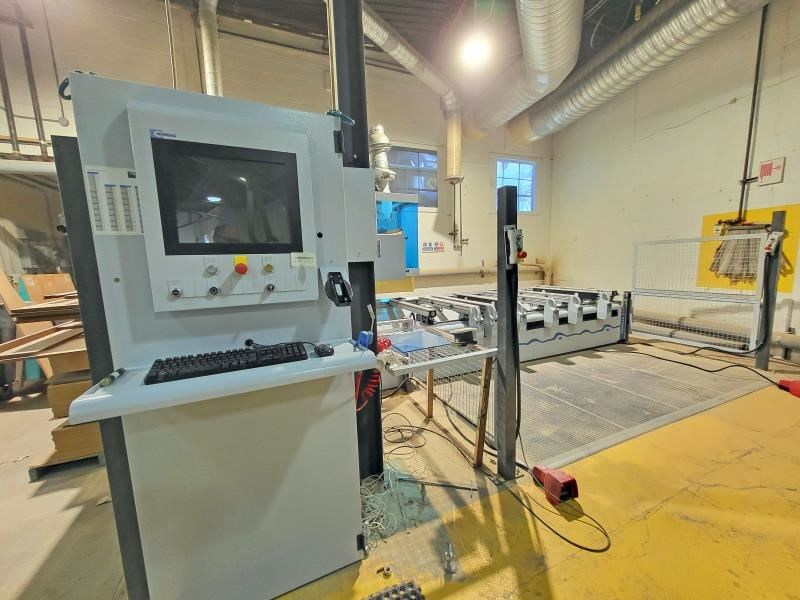

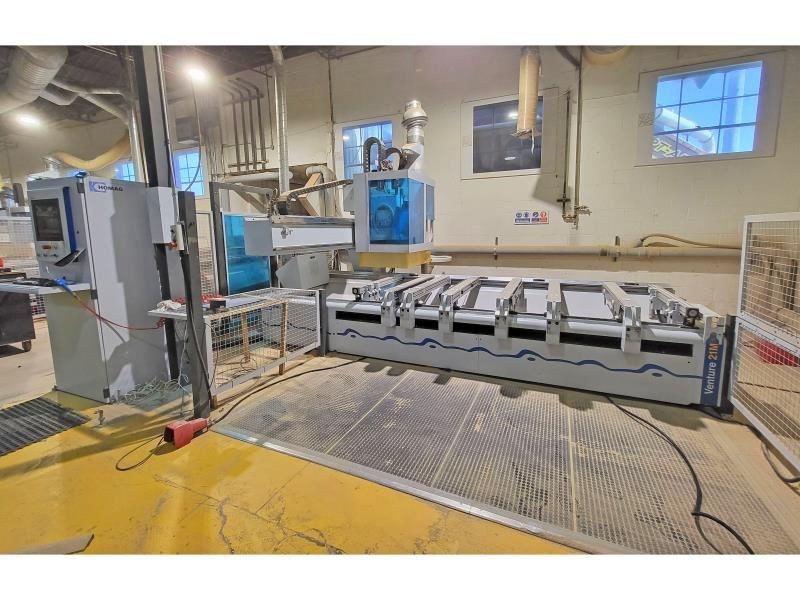

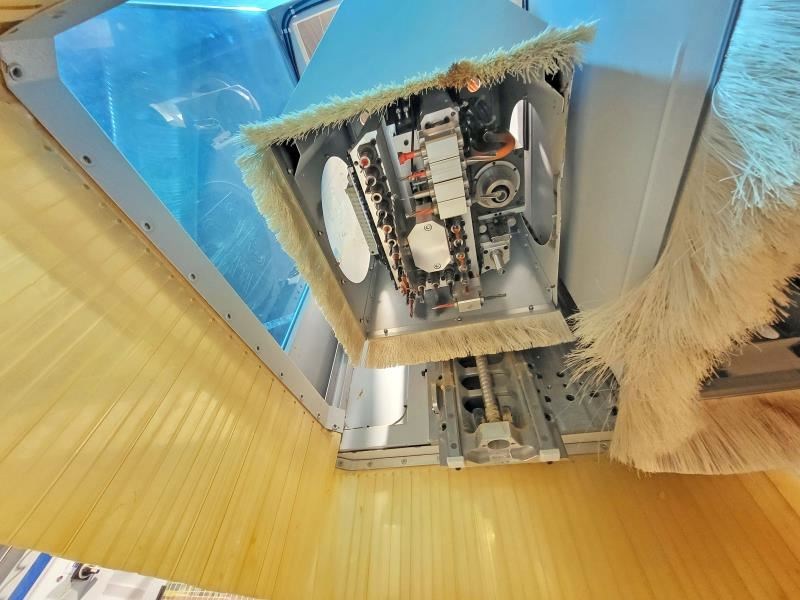

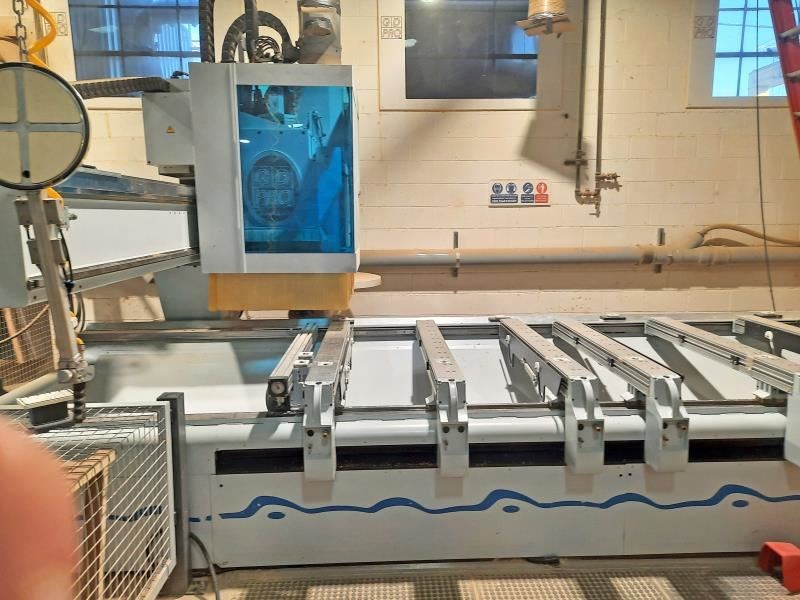

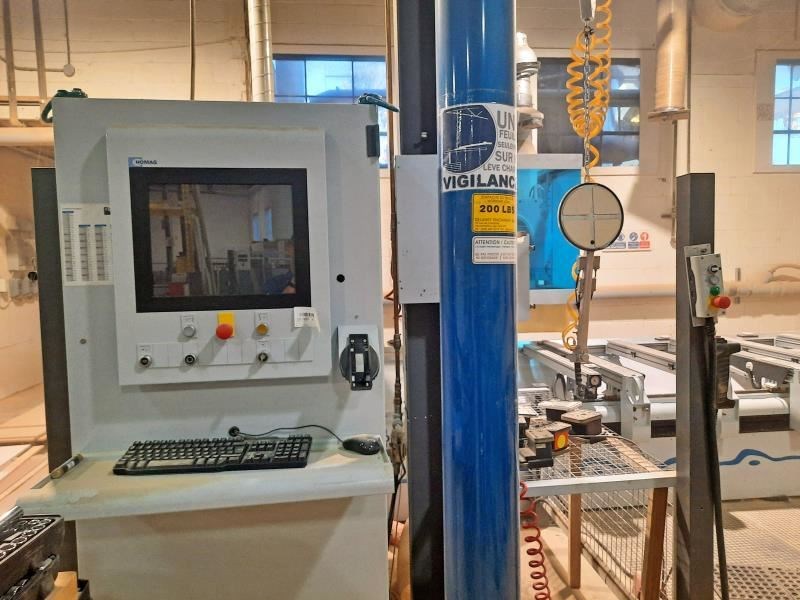

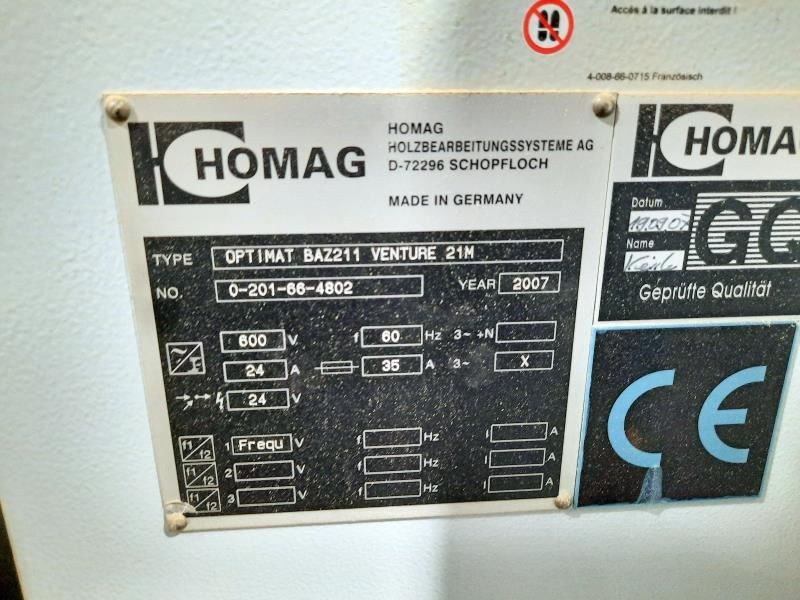

HOMAG BAZ 211 VENTURE 21M Machining Center W "C" Axis -- Maximum Working field: X-Axis 3,225 mm (126.9"), Y-axis 1,500 mm (59"), Z-axis stroke 300 mm (11.8"), max work piece thickness 60 mm (2.4"). -- X-axis travel speed 80 MPM (262 FPM), -- Y-axis travel speed 60 MPM (197 FPM), -- Z-axis 40 MPM (131 FPM), AC Brushless Servo motors with digital drive and linear guides ensure high speeds with a smooth acceleration-and-deceleration. -- Working area: Working tables consist of (6) adjustable support rails, (2) vacuum cups per rail; laser unit to aid in the quick positioning of the vacuum cups. -- Machining unit: (1) 14.75 HP (11 kW) liquid cooled electro-spindle router (1,500 - 18,000 RPM), "HSK F63" quick change tooling; 12-position ATC automatic tool changer, "C" axis for 360ø horizontal processing. -- Drilling Unit: Vertical drilling head with (17) individual vertical spindles, 11-spindles in "X", 7-spindles in "Y", spindles on 32 mm centers. (1) saw blade aggregate, 125 mm dia; (1) 4-spindle lock case horizontal trimming unit aggregate. -- "POWER CONTROL PC 85" Numerical control with: "WOODWOP + BAZ" interface software, "WINDOWS NT"; icon driven with a graphical interface to allow the operator to quickly and efficiently create programs. -- Includes: 144 MB Disk drive, CD ROM drive, 12" color LCD monitor. -- Features: RS-422 Serial & USB connection to PC (up to 300 meters), (2) line adaptors RS-232 & 485.2 with 9-25 pin and card for RS-232 line (cable not included). -- Features: Multitask operating system, input/output modules, axes override, 4-axis interpolation, "WOOD SCOUT" diagnostic graphics aid for programming, machine data & tool management. -- Editor Module for PC with same look and functionality of software on the machine, allows transmission of programs and work lists; Required office PC configuration (not included): Pentium processor, 8 MB RAM, 8 MB hard disk; VGA video card. Complete with: -- ELMO 100 cm/h vacuum pump; perimeter protection cage; user & maintance manuals on CD with wiring diagrams and operation of Numerical Control. -- "C" Axis -- Actual Model is BAZ 211 VENTURE 21M.Riggers are required for tear don and loading
