Description:

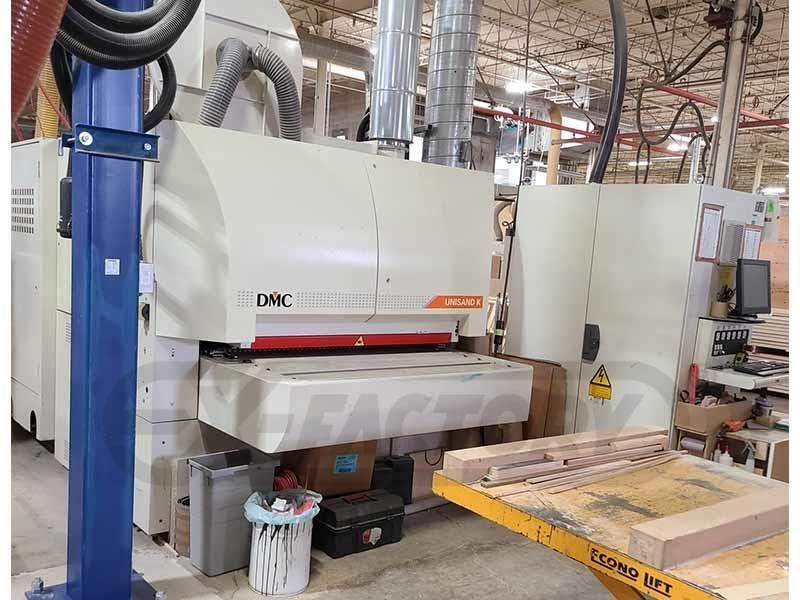

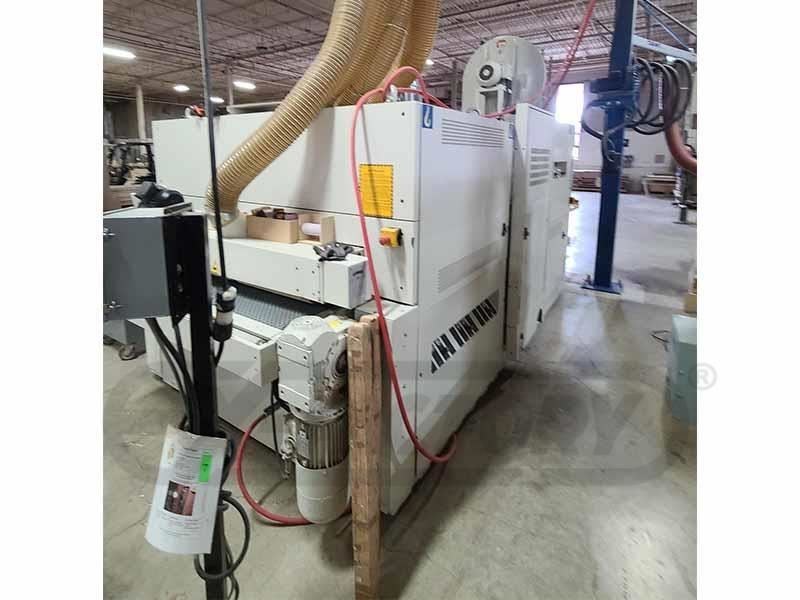

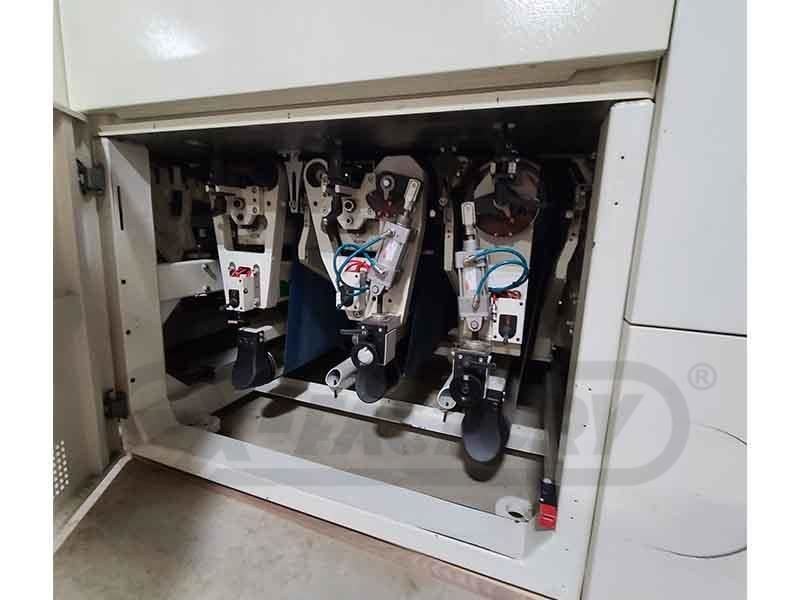

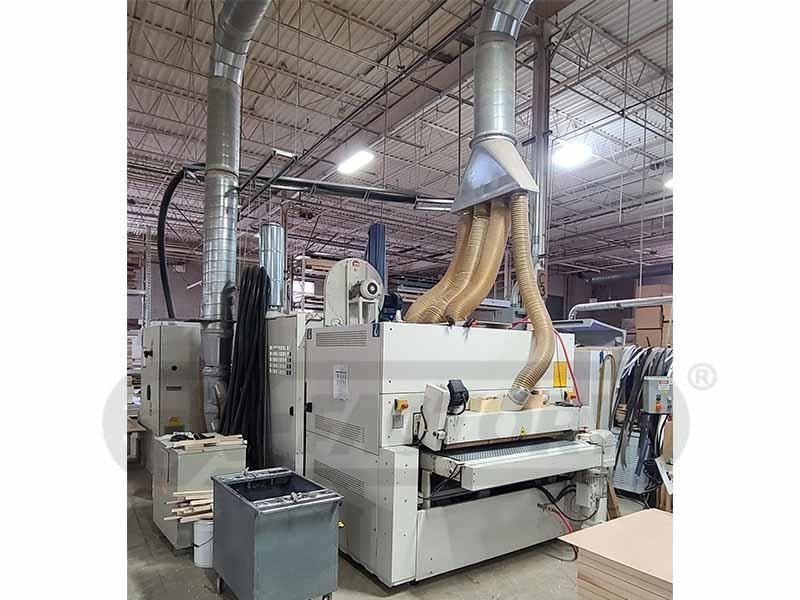

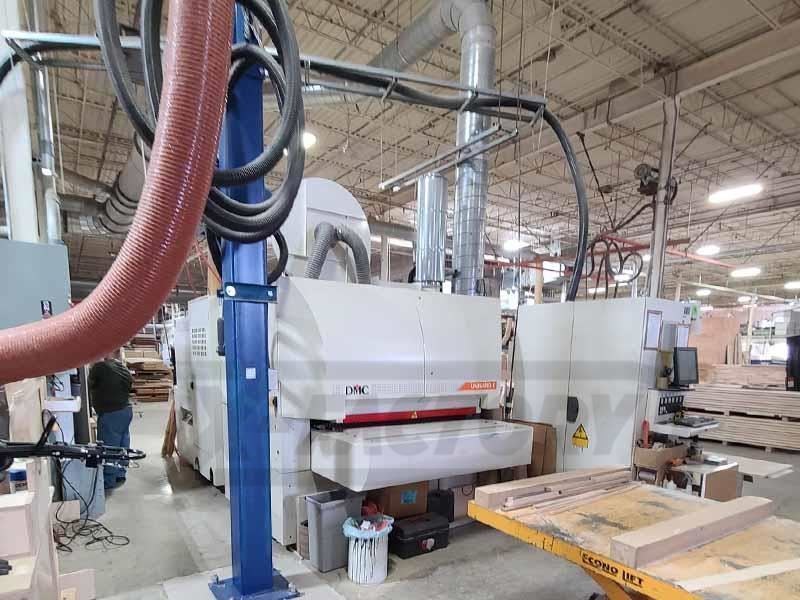

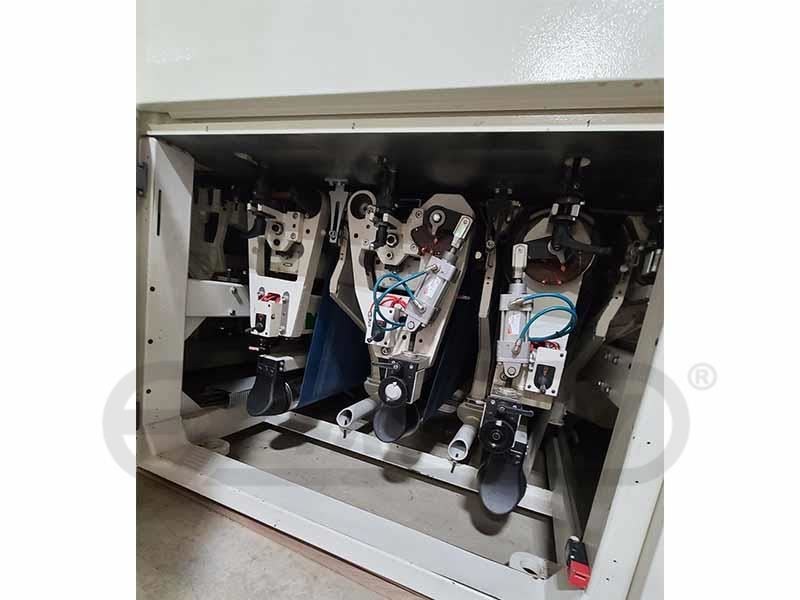

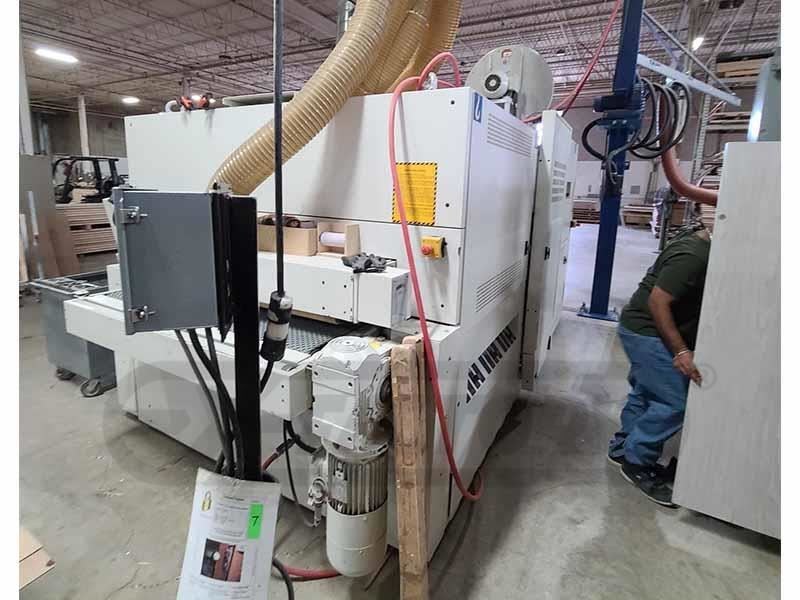

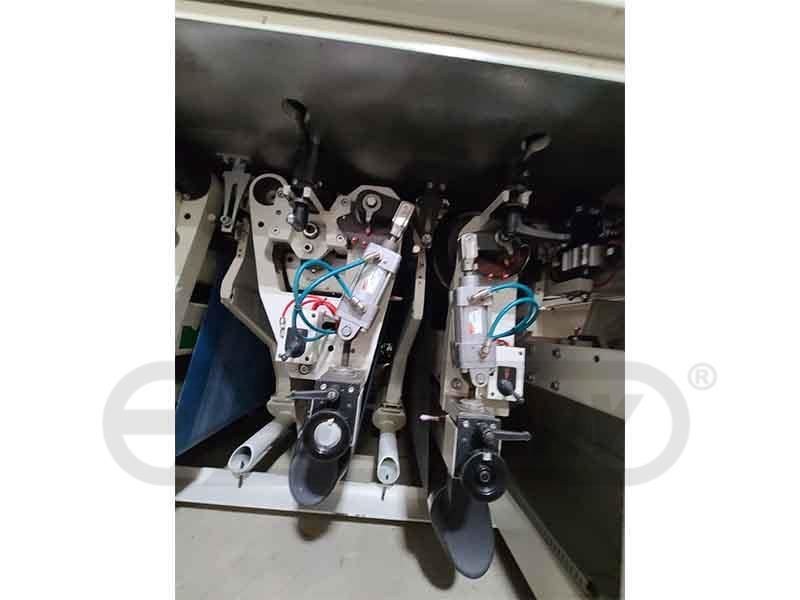

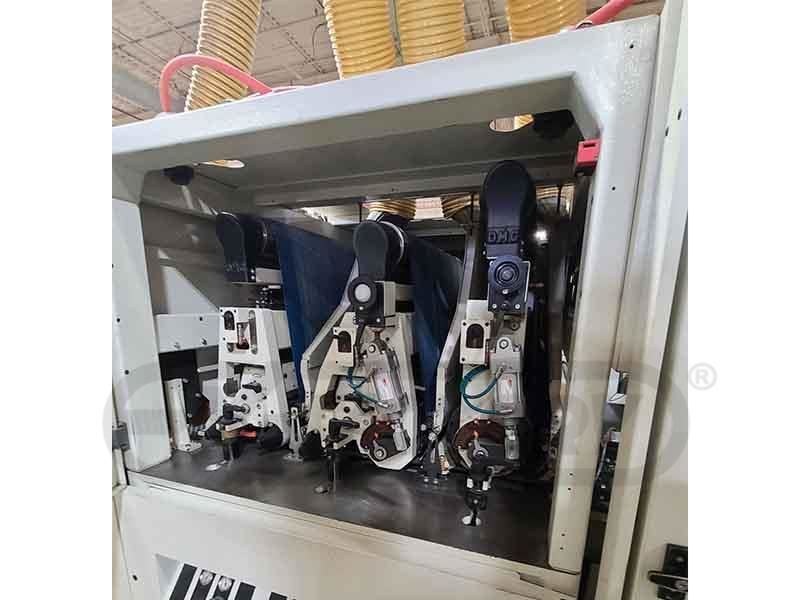

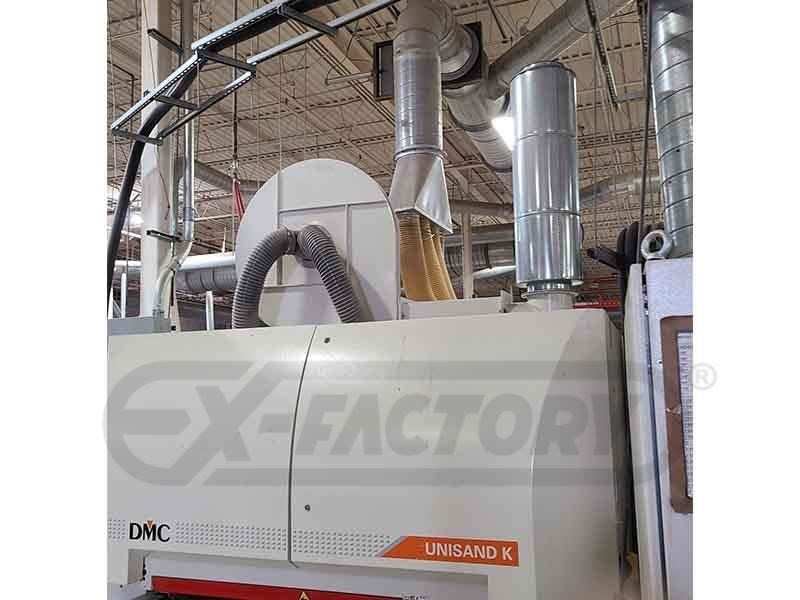

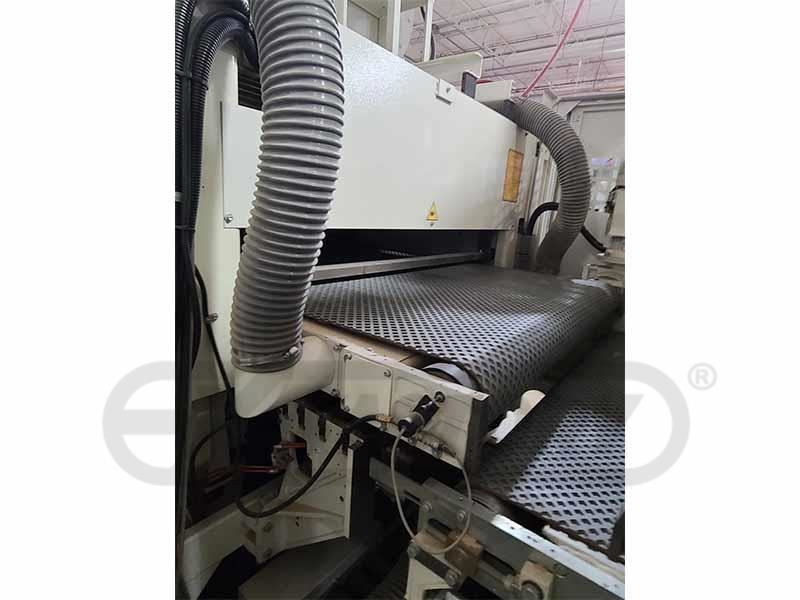

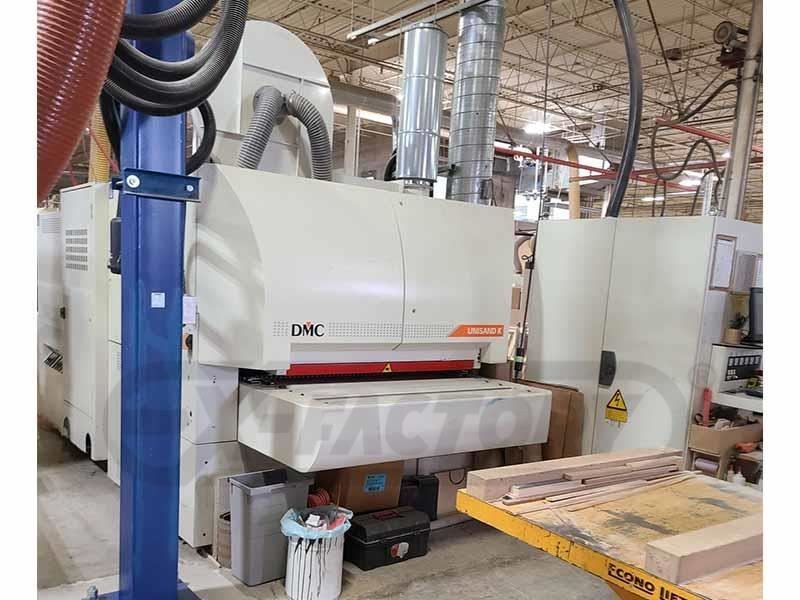

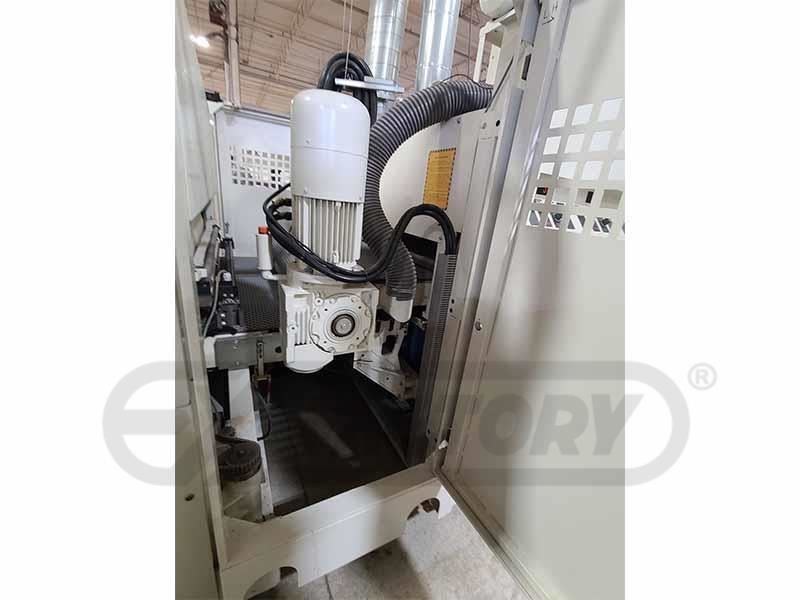

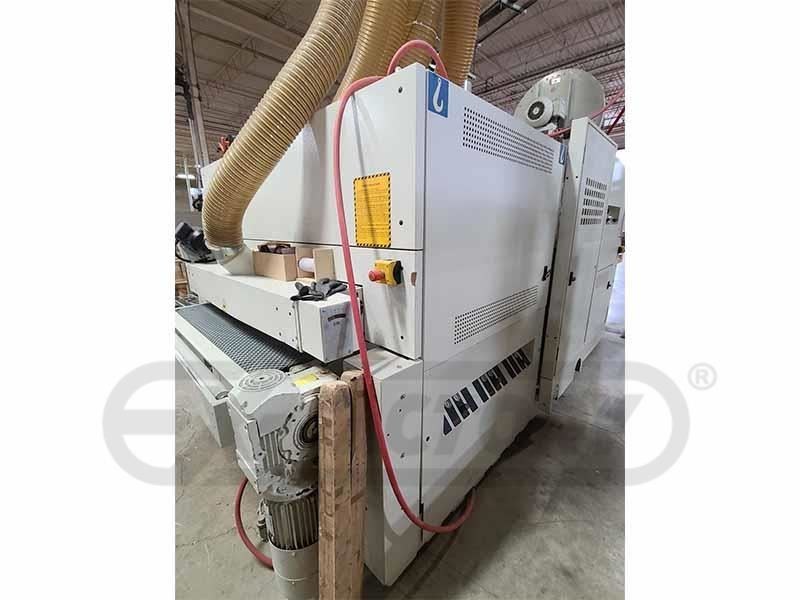

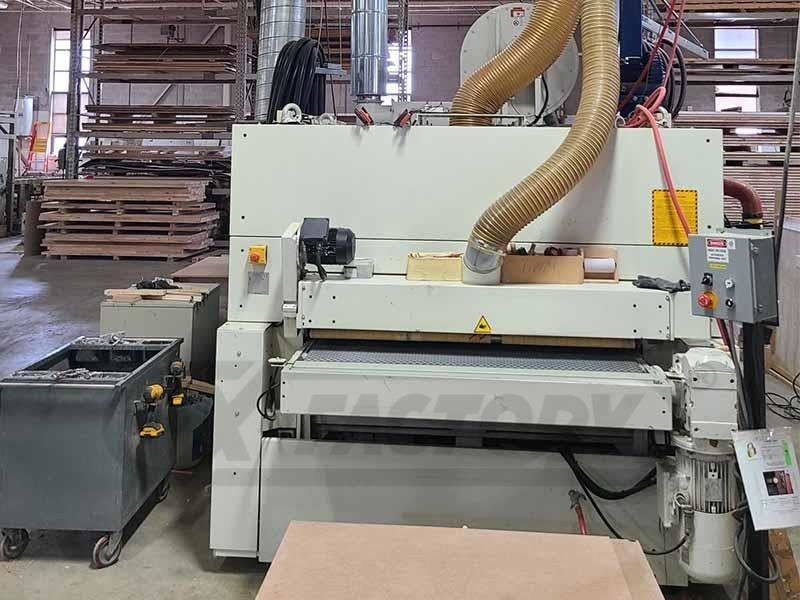

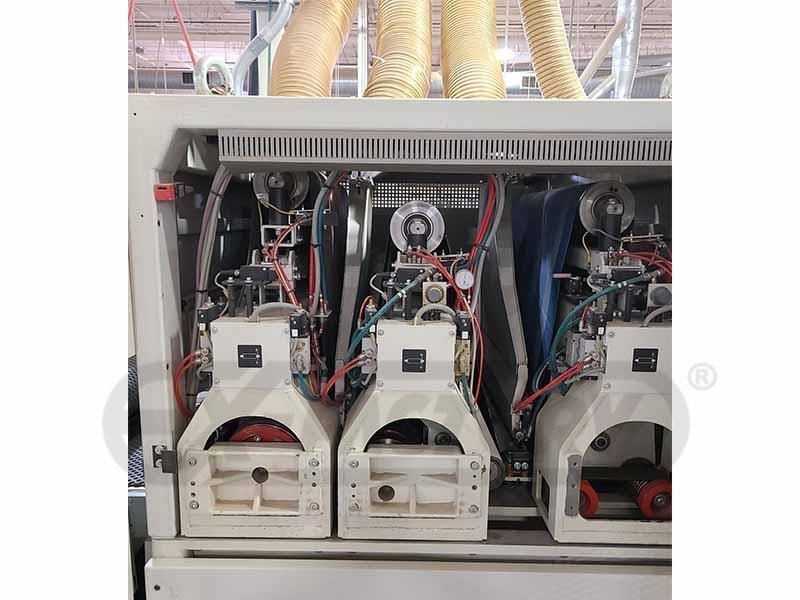

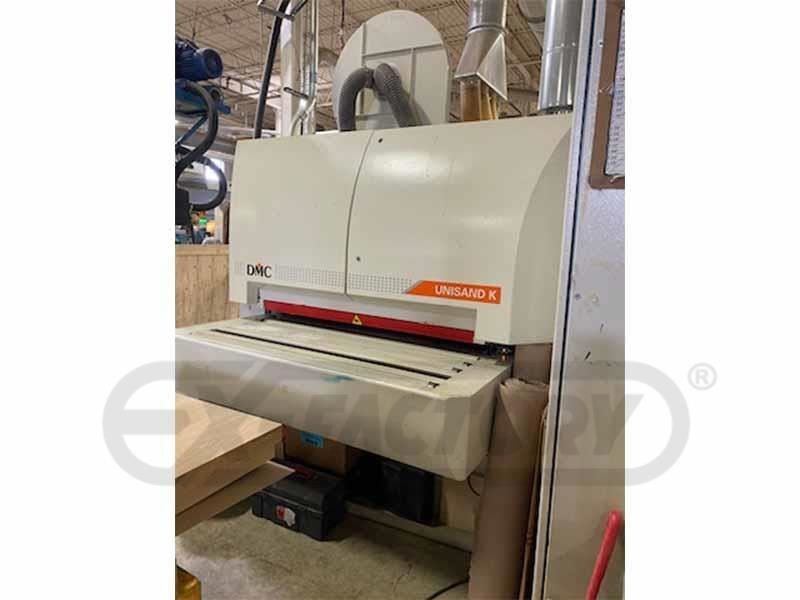

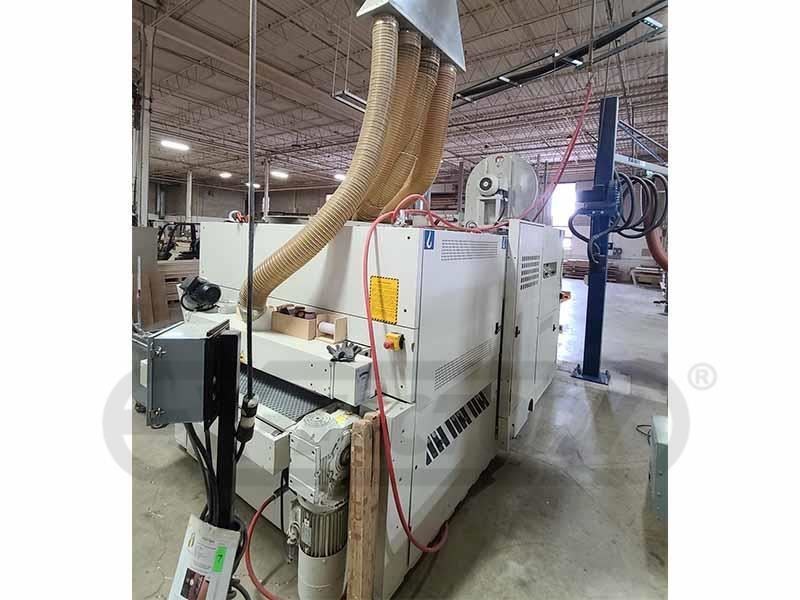

DMC UNISAND K (3) Bottom and (3)Top heads wide belt sander. --, 43" max. width. - Bottom Head sequence : 1st Head Contact roll, approx.18.5 KW motor- 2nd Bottom Head Contact roll, 2rd Bottom head, Combination head with roll and platen , approx.15 KW 2-speed motor, belt speed 118 m/sec. -- Bottom panel brush. -- Top Heads: 1st Top Head: Rubber covered contact roll approx. 18.5 KW motor, 2 speed, belt speed 9/18 M/Sec. adjustable contact roll with pneumatic grit adjustment. 2nd and 3rd Top Head: Combination head with Rubber covered contact roll and polishing platen, approx. 18.5 KW HP motor, adjustable contact roll with pneumatic grit adjustment.Top panel brush. -- 44"x 103" abrasive belts with electronic tracking; computer controlled set-up functions with key pad and LCD screen. -- Vacuum Conveyor feed belt with variable feed speed from 11 - 60 FPM, approx. 7.5 KW HP feed drive, automatic conveyor belt tensioning & tracking. -- Infeed & outfeed holddown pinch rolls on all heads, motorized part thickness opening with LED readout, 1/8" - 4" max opening, automatic part thickness set-up sensor. -- Complete with: Infeed safety stop, outfeed emergency stop, motor load meters, high efficiency dust extraction and control console with monitor. -- Actual model USK1350-IM3 + USK1350
