Description:

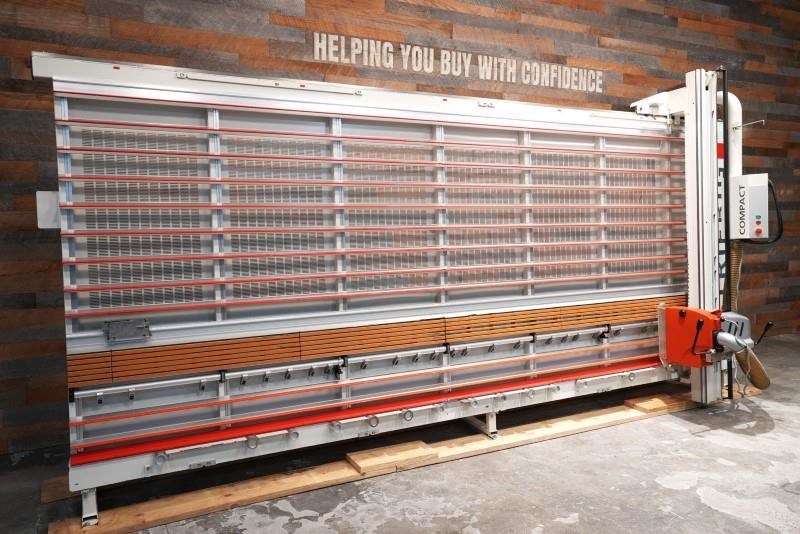

STRIEBIG COMPACT Vertical Panel Saw with Scoring (15' Cut Cap.)Specifications: -- 4 HP motor with automatic STAR-DELTA starter electric brake (stops within 4 Sec). -- 181" Rip cap., 64" crosscut; 2-3/8" (60 mm) cutting depth; 250 MM dia. (9-7/8") blade with 30 mm bore - 5,400 RPM rotation. Equipped with: -- Full length center measuring rail with mid level flip-out small parts support shelf; special long-wing crosscut measuring stop, crosscut lock-in stations in 40" increments. -- Automatic mechanically shifting support grid with replaceable lath tips for rip-cuts. -- Specially designed measuring flip stop for use with small parts; (6) Template bar stops for setting common rip cuts; split center shelf useful for staging material; auto-engaging splitting wedge (riving knife)Complete with: -- Heavy Duty panel support roller system (1,200 Lbs cap.) with integral panel stop brake; -- Dust extraction system to rear of frame (requires a bag or dust collector); 4" dust extraction connection. Includes: -- (3) Adjustable base & rear supports for free-standing installation of the one-piece fully welded frame. -- Dismantling and loading onto flat bed truck.Actual model is STRIEBIG Compact 5207.
