Description:

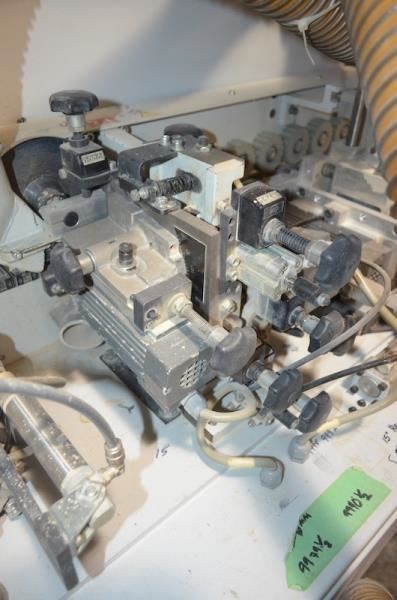

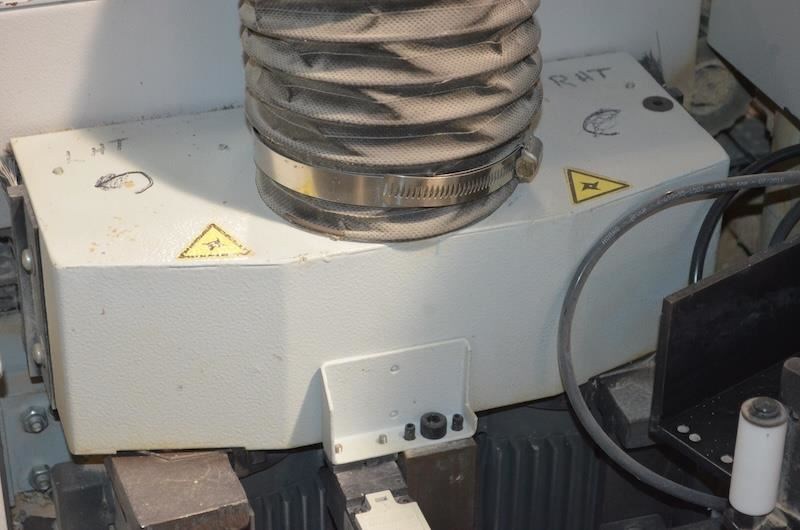

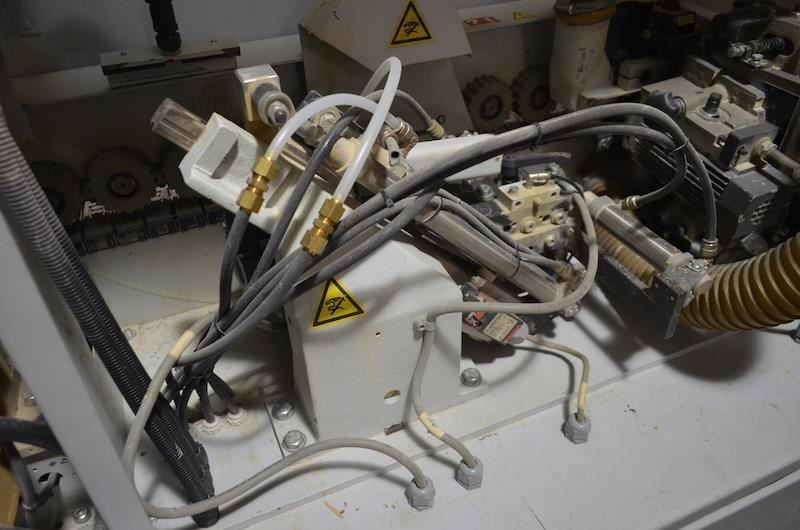

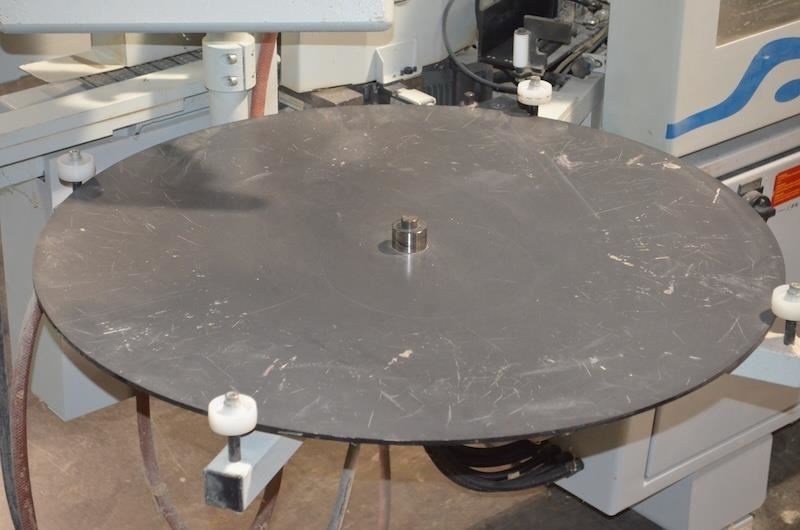

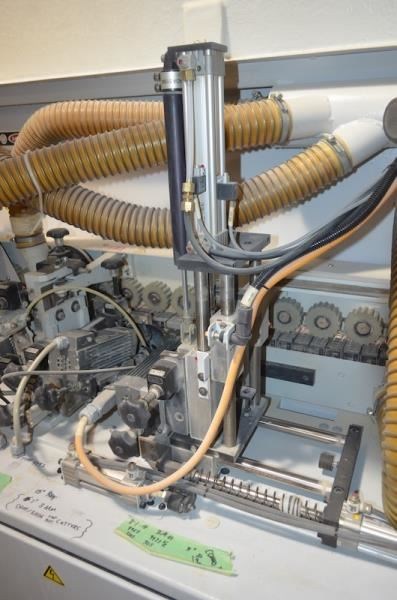

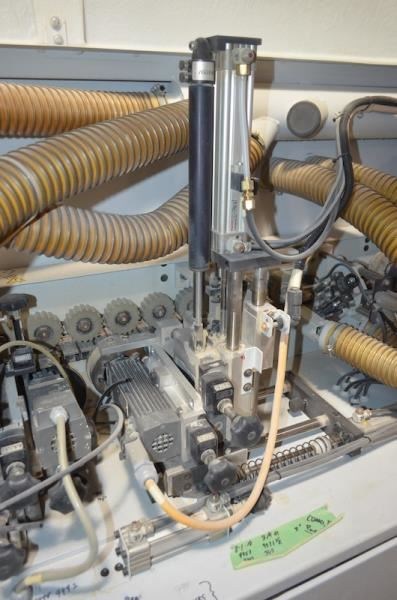

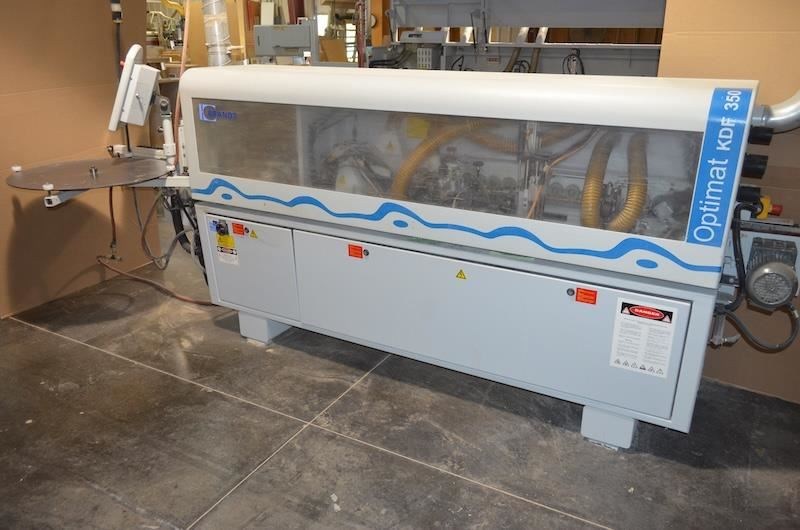

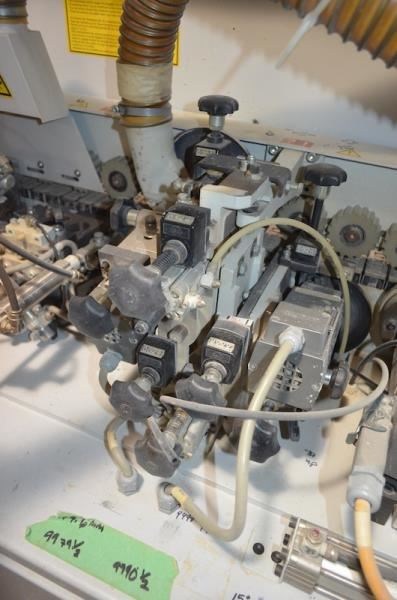

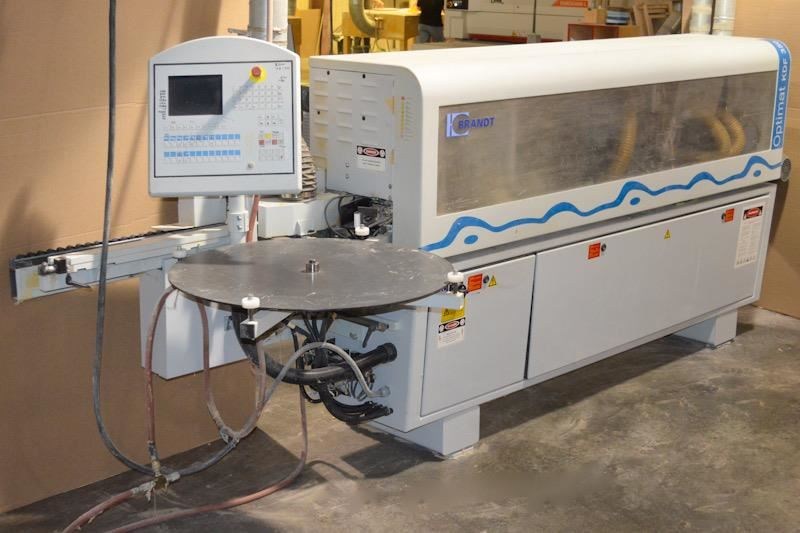

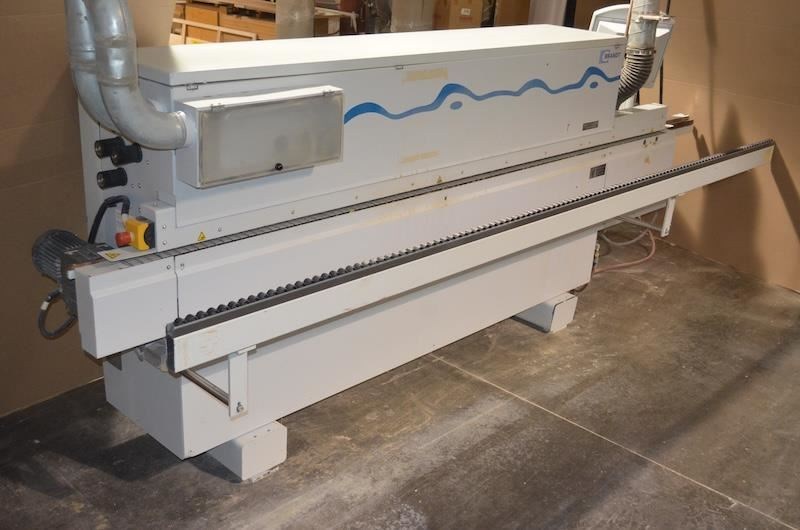

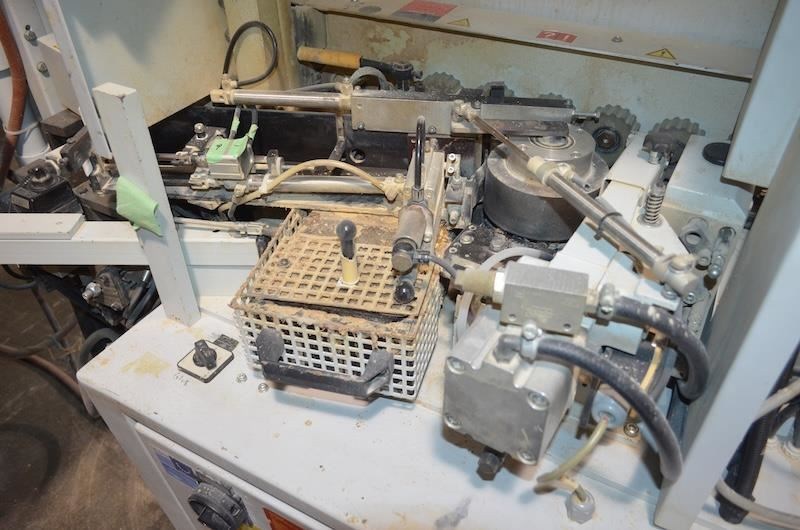

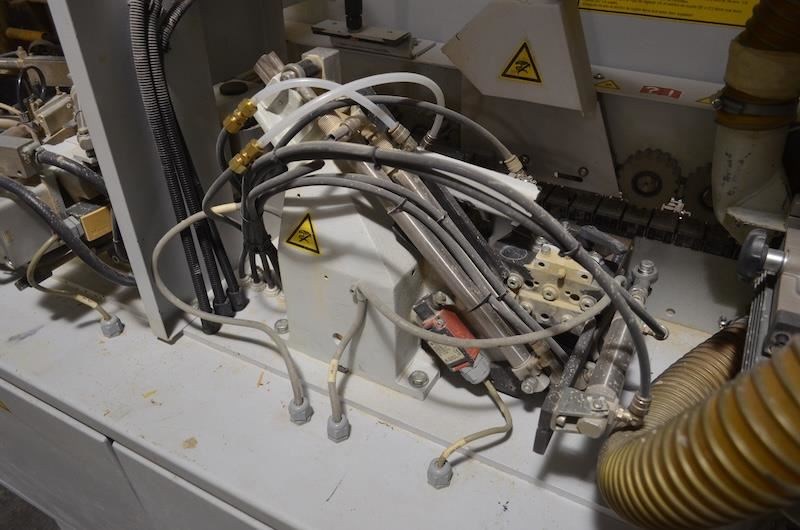

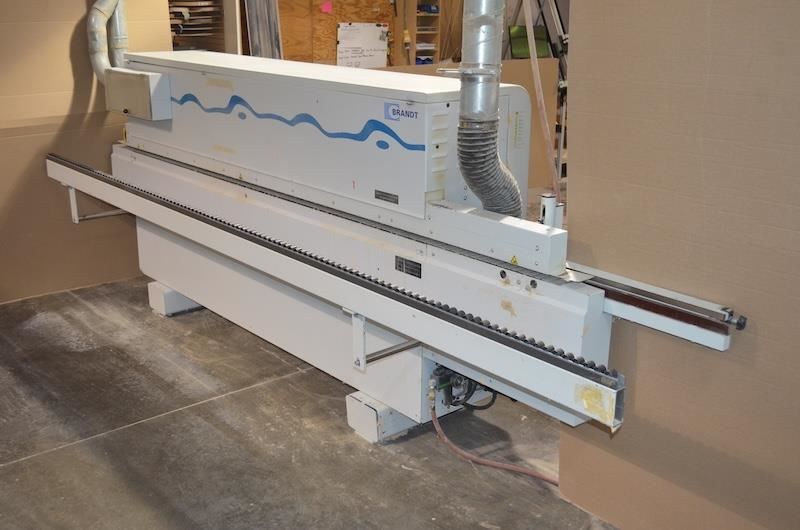

BRANDT KDF-350 C Edgebander with PRE-MILL & CORNER ROUNDING: Specifications: 0.4 - 3 mm (0.125"), panel thickness 8 mm (0.31") - 55 mm (2.1"), min. panel length 160 mm (6 - 0.37") and 65 mm (2 - 0.5") min. width; PLC line control (no limit switches) for workstation function.Infeed & Equipped with: -- Pressure beam height adjustment for all work stations via digital height indicator. -- Features: Signal infeed light to insure proper spacing between panels and a panel edge pre-heating system. -- Equipped with: (2) Motor Pre-milling (3 HP- 12,00 RPM); -- Hotmelt granulate glue application system with approx. 10 Min heat up time; automatic reduction of glue temperature when idle more than 5 Min. -- Automatic magazine for strip & coil (large coil table 800 mm dia. to accommodate large coils of 3 mm PVC) stock, 3 mm PVC guillotine, (1) drive plus (1) split secondary roller "pneumatically controlled" pressure sections. -- "See-through" sound & safety enclosure. -- Operator control panel w/PLC (Programmable Logic Control), keypad & 7-0.5" screenEdgebanding Workstations: -- End trim (0.33 HP - 12,000 RPM motor ea.), chamfers 0° - 15°, program controlled from straight to bevel. -- Top & bottom flush/bevel/radius trim, bevels 0° - 15° (0.5 HP - 12,000 RPM motor ea.), with insert knives for 3 mm PVC radius. -- 1-Motor corner rounding unit for top & bottom corners (0.5 HP - 12,000 RPM motor). -- Top & bottom scraping for 2 - 6 mm radius, pneumatically controlled blowoff nozzles and program controlled indexing. -- Last Station: Top & bottom buffing (0.9 kW (1.21 HP - 2,710 RPM - 230/400 V Motors).Features & Feed: -- End trim, flush trim and corner round stations have HF motors w/electronic brakes; 200 Hz Electronic frequency inverter. -- Feed chain track speed 36 FPM with 2 HP feed drive; workpiece support track extends up to 19-0.5".NOTE: Machine does not power on.
