Description:

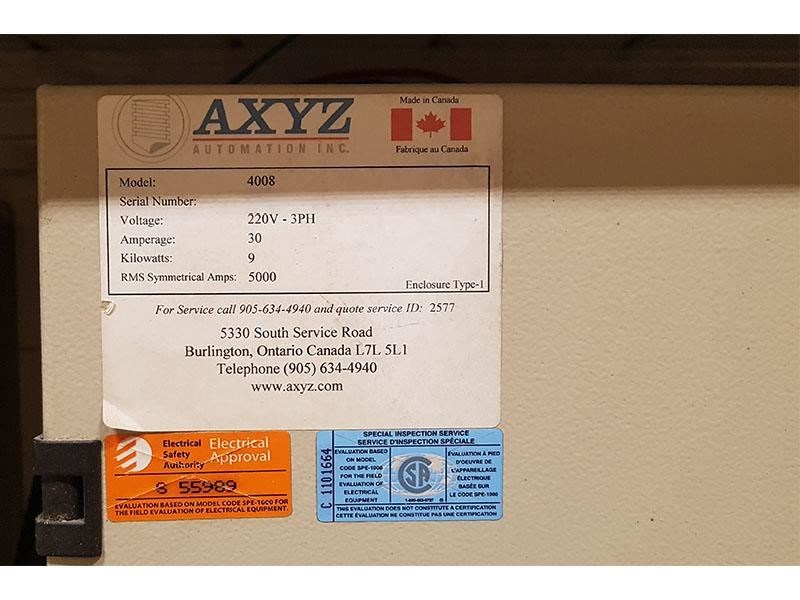

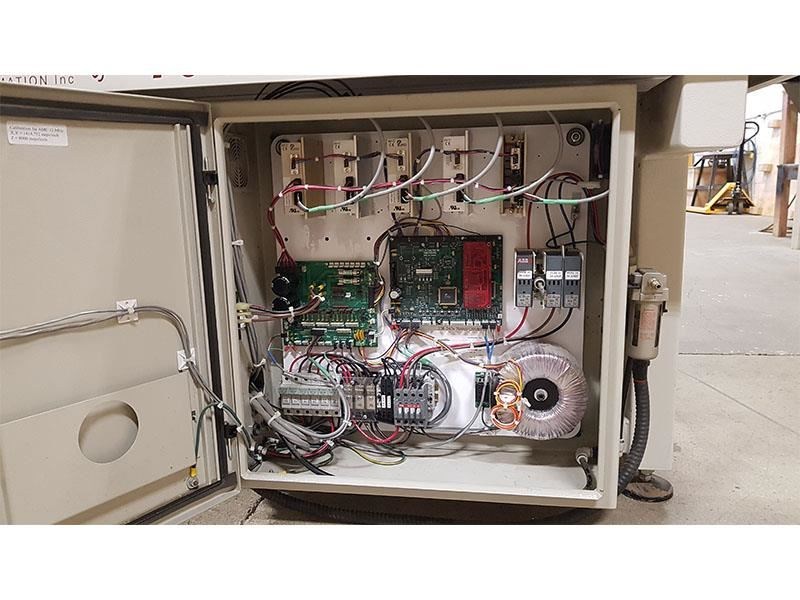

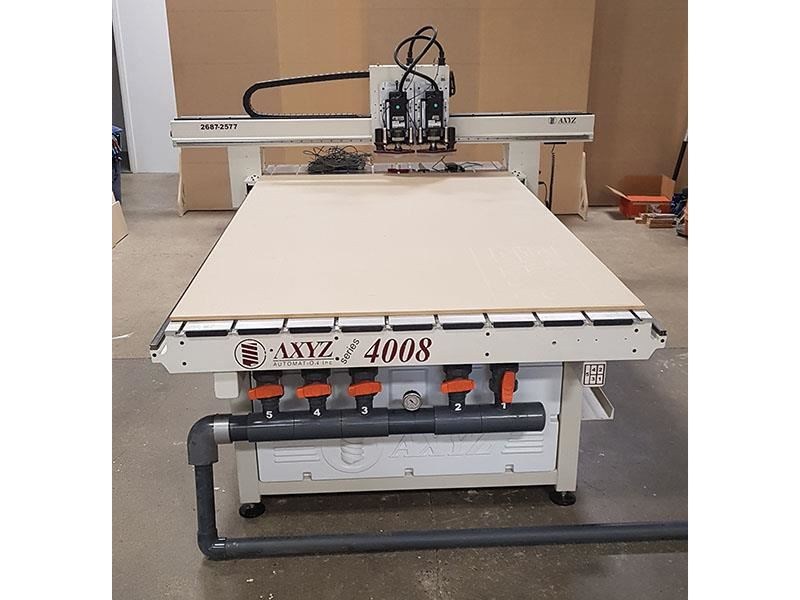

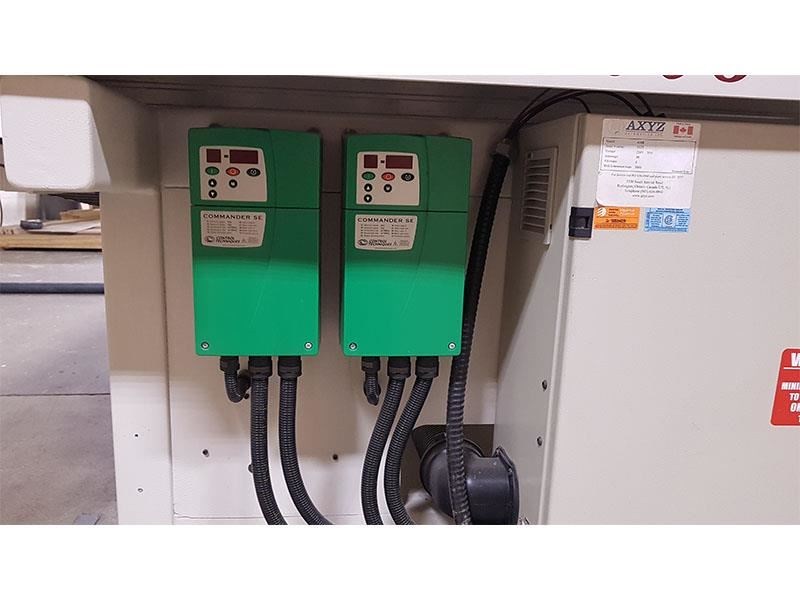

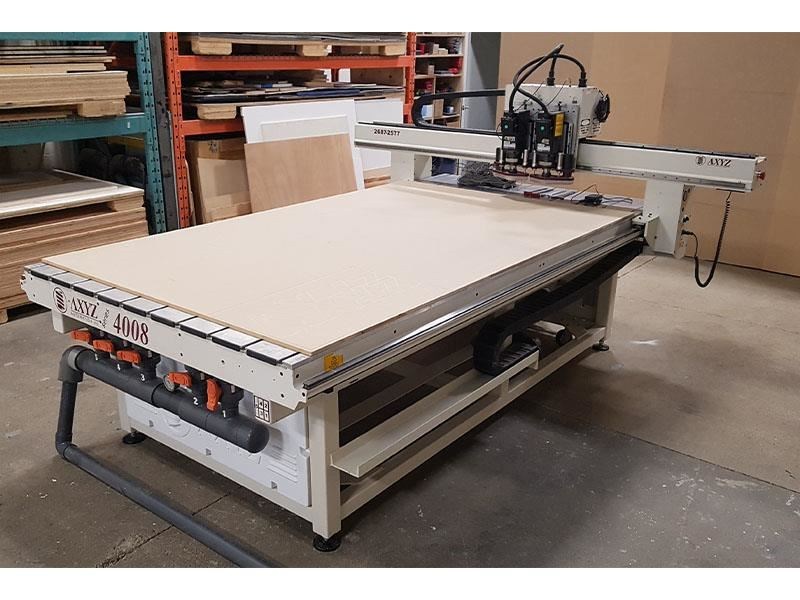

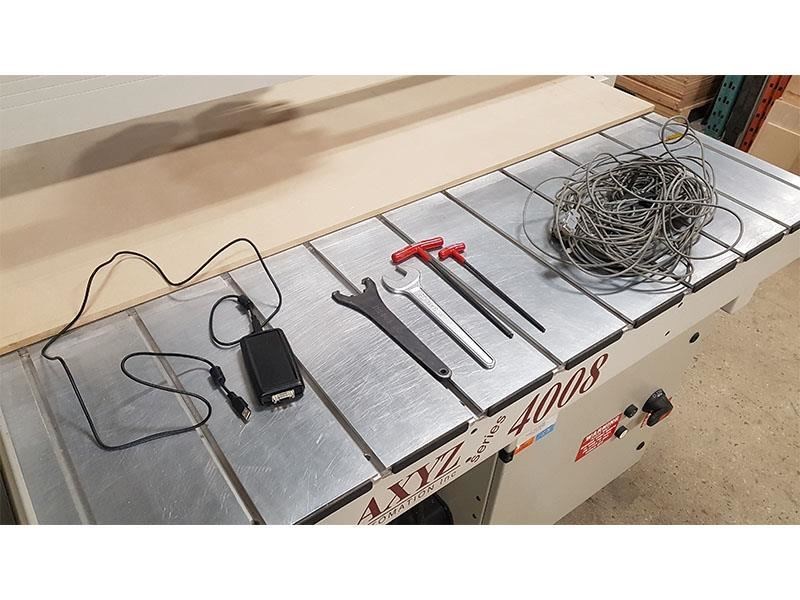

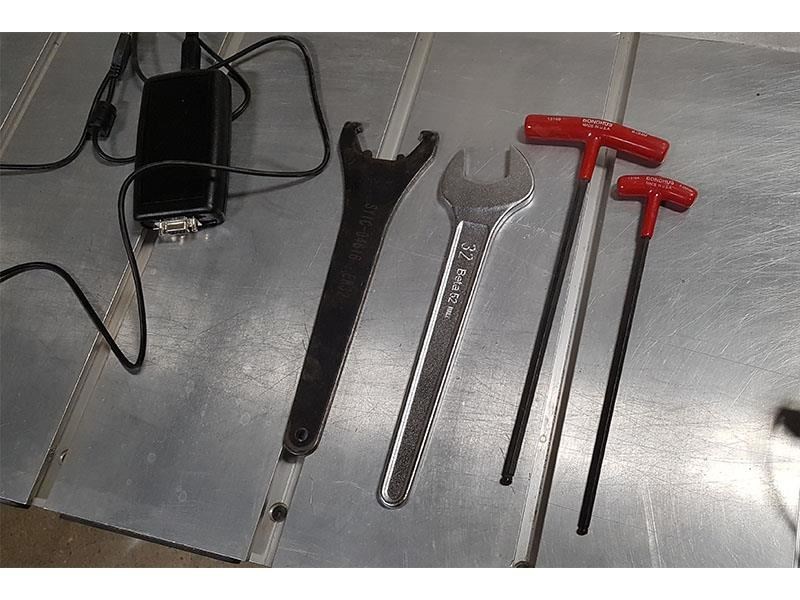

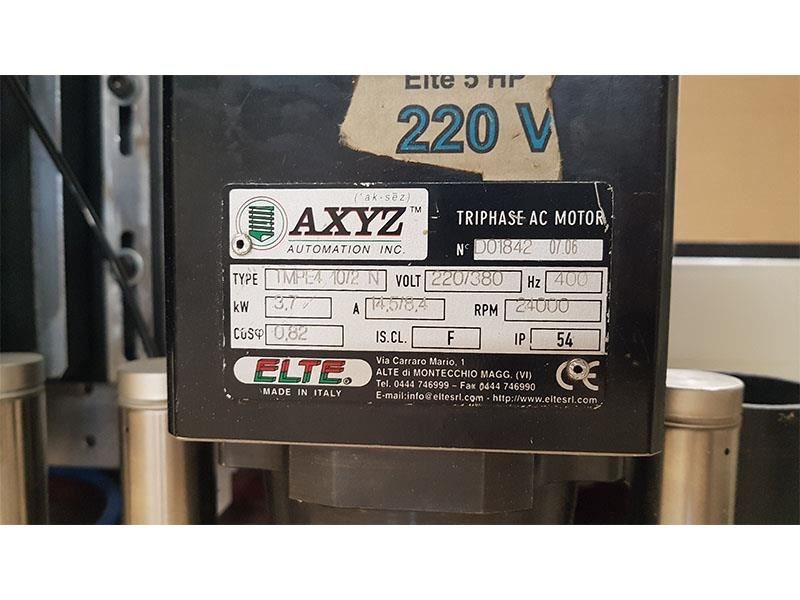

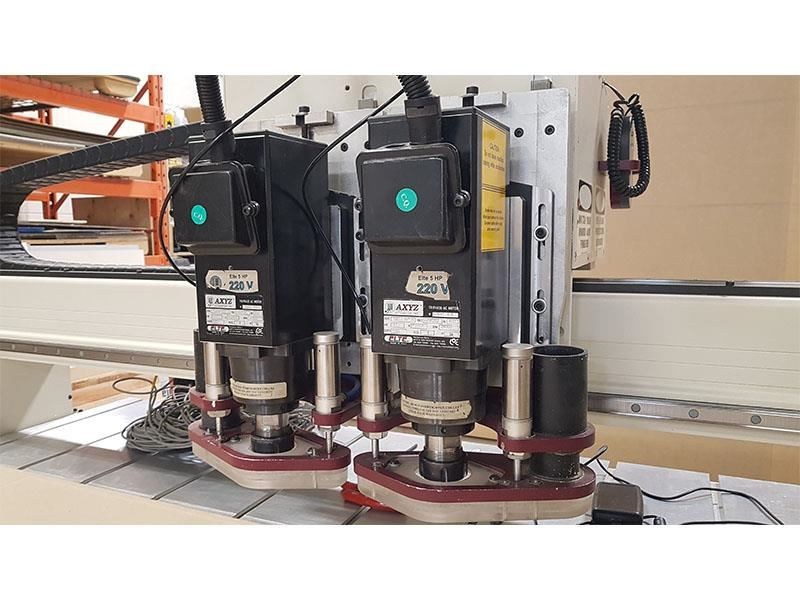

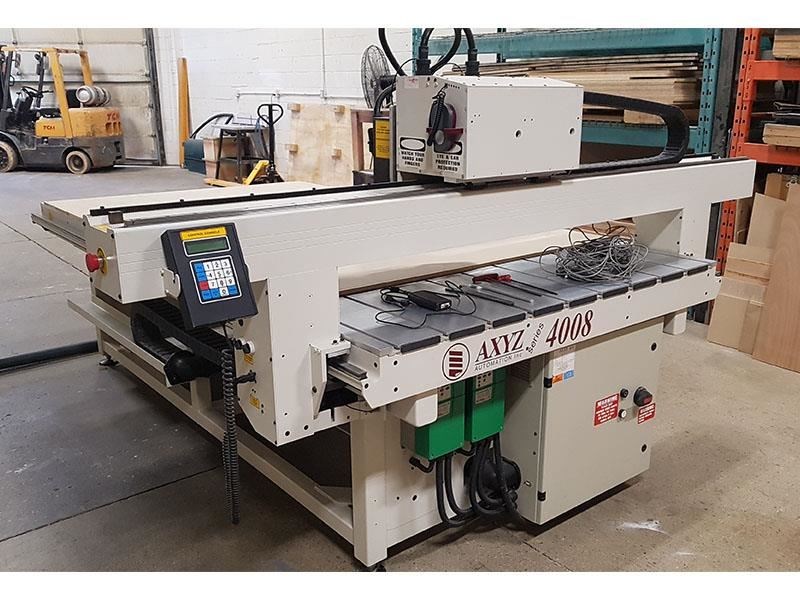

--AXYZ SERIES 4008 CNC 5X8 Router With Two Spindle Heads. Moving gantry style machine in a front-to-back configuration with stationary table, approx. 60" X 97" process area; Z-axis with 6" gantry clearance and 10" ball screw; max. speed 1,000 IPM. -- Aluminum table with multi-zone vacuum, complete with internal plumbing and gages; T-slot fixturing capability when spoil board is removed; heavy duty gantry bridge rides on double drive integral rack & pinion system. -- Equipped with: (2) Italian made ELTE 5 HP wrench-type spindles, variable RPM from 6,000 to 24,000 RPM each with a COMMANDER SE A/C inverter. -- Control system using AXYZ AWC0004G processor using 7-segment motion profile for high speed complex calculations; 2 Gig onboard memory, ethernet connection. -- Includes the AXYZ "Tool Path Interface", and hand-held pendant is a user friendly WINDOWS PC based control system with over (75) operator programmable functions, and can run DXF, HPGL and G-Code file formats. -- Comes complete with Tool Height Sensor, documentation, software, and manuals. -- Electrical supply 220/3/60, 30 Amps , 9 KW Total Load. Ontario Hydro and CSA approved. -- NO VACUUM PUMP IS INCLUDED.
