Description:

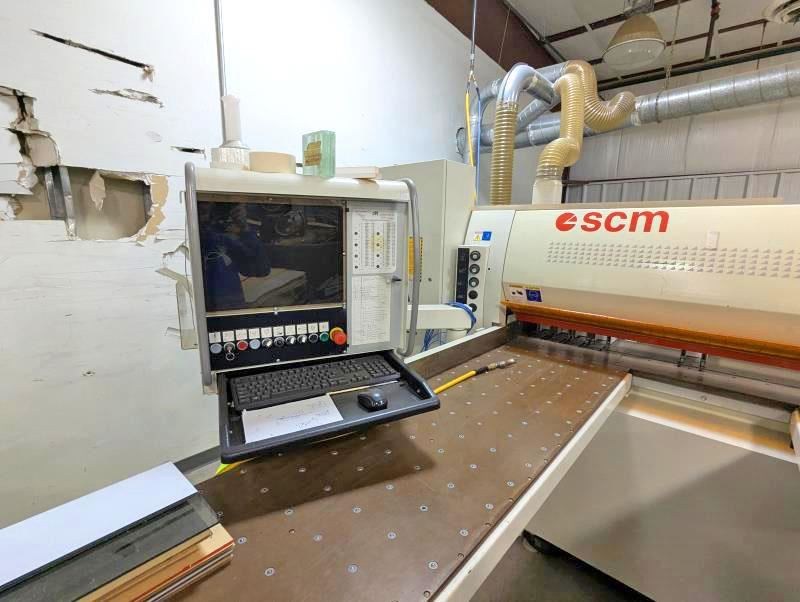

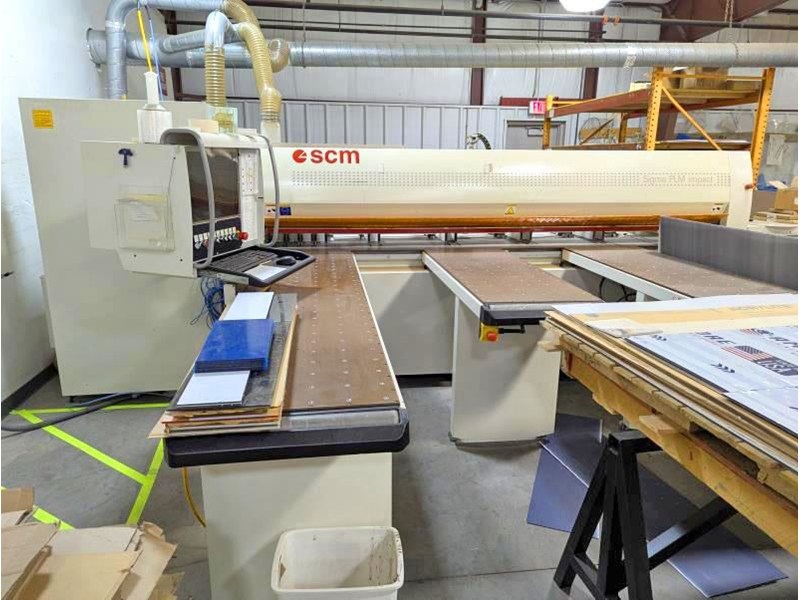

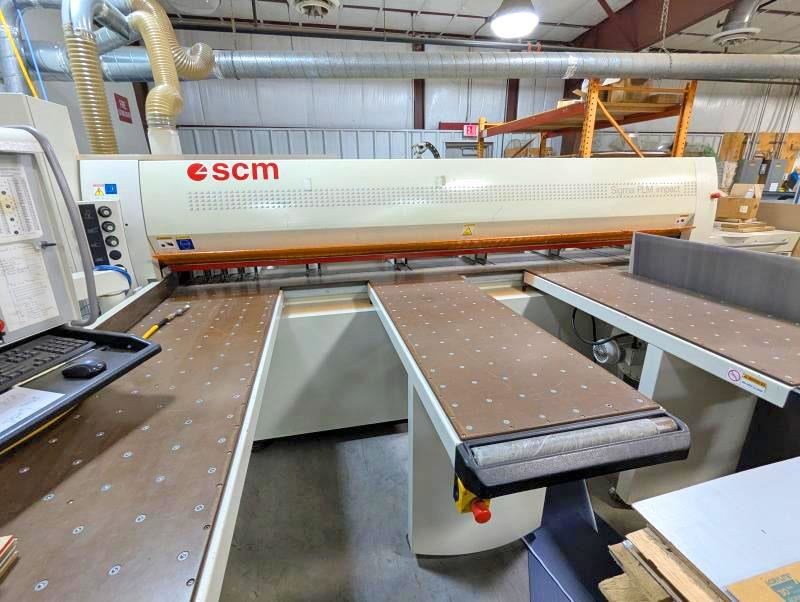

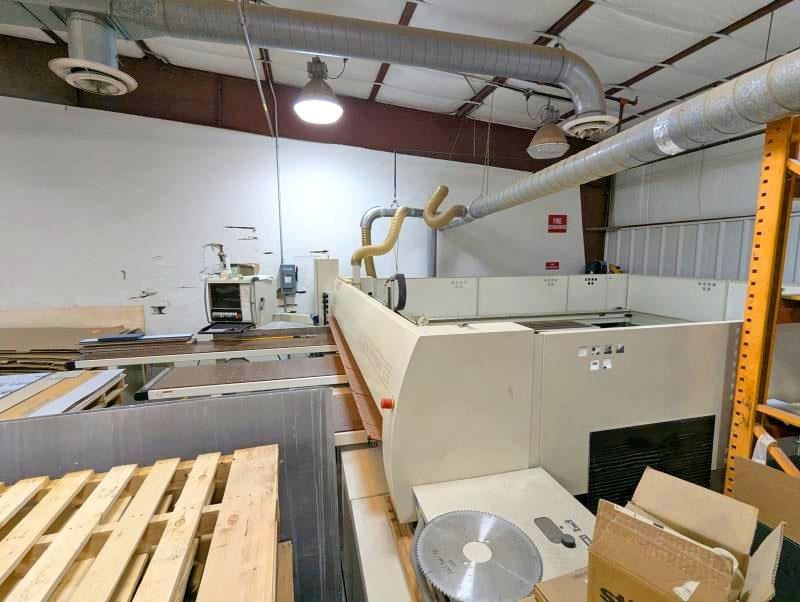

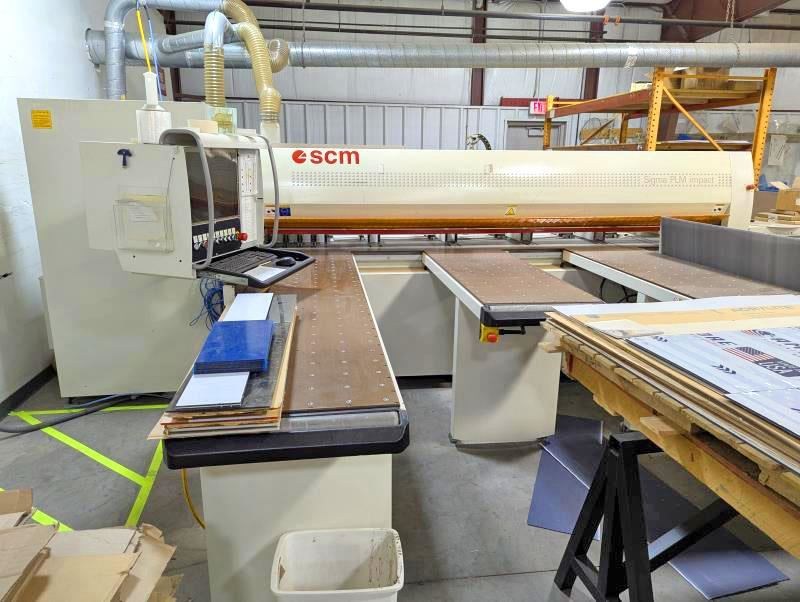

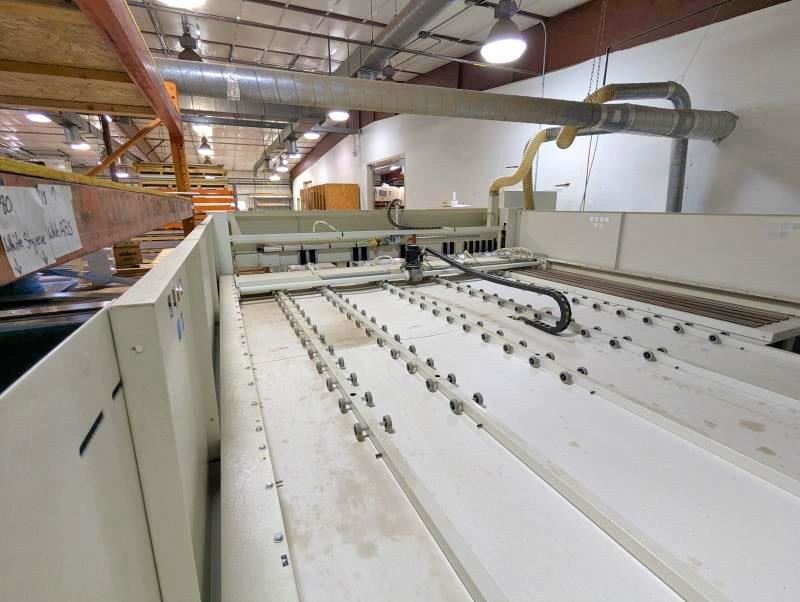

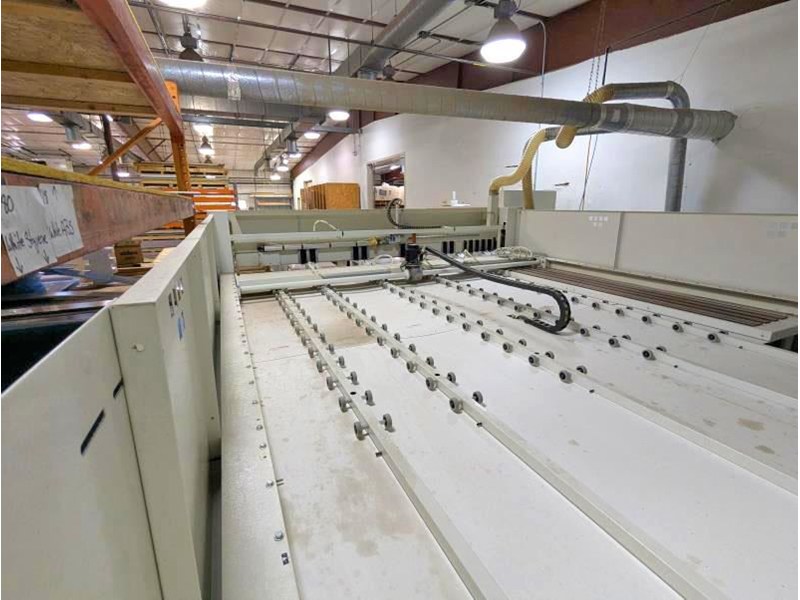

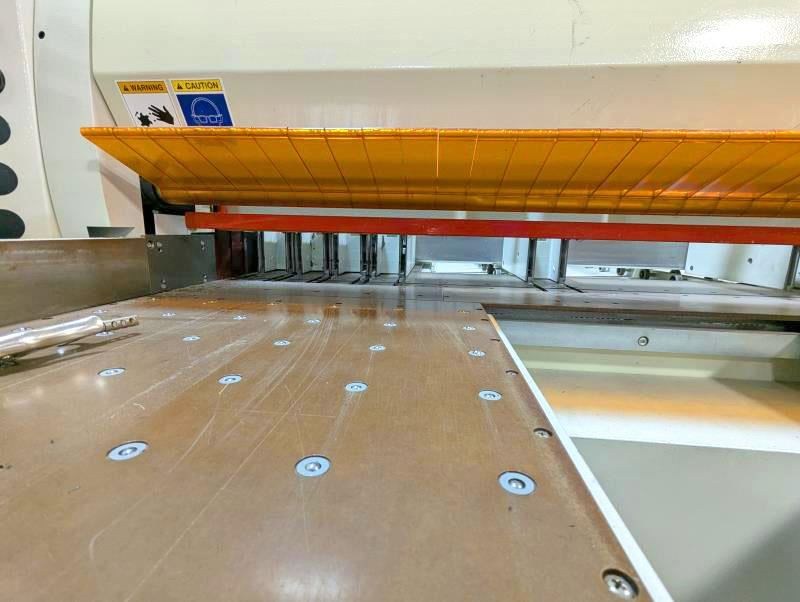

2005 SCM SIGMA IMPACT 105 PLM Panel SawSpecifications: -- Overall Foot Print - 19ft x 23ft÷Max cutting length and cutting width - 126". -- Max blade projection - 4.13"; max cutting height - 3.63"; machine cutting tolerances - +/- .006"; main saw motor - 18 HP (variable to 3800 RPM); main blade dia. - 15" (4300 RPM); scoring saw motor - 2 HP (eliminates chipping on bottom sheet); scoring blade dia. - 8". -- Equipped with: -- High Speed rack and pinion saw carriage - brushless A/C motor (saw carriage speeds 0-446 ft/min); pusher speeds 0-330 ft/min; automatic side aligner ensures tight cut tolerances (2.8 to 48" aligning zone); variable 0-3900 RPM; 19.5" wide rear phenolic table for cross cutting narrow strips; (1) 2' x 8' fixed front load air table; (2) 2' x 5' movable front load air tables. -- Complete with: -- Premium Plastic Configuration (7) clamps with thin plastic configuration, air cooling of the main blade with mist lubrication; pneumatic quick blade change - no tool required. -- Operating air pressure - 7 ATM (95 to 105 P.S.I); Dust extraction 2100-2800 CFM; Power - 80 amps @ 230 volts 3-phase, 60HZ (+/- 5% voltage); Dell PC, Windows XP; Win Cut Optimization software
