Description:

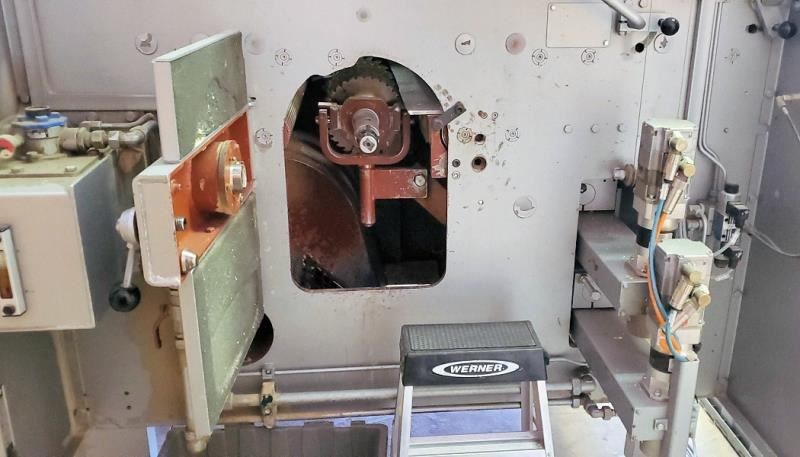

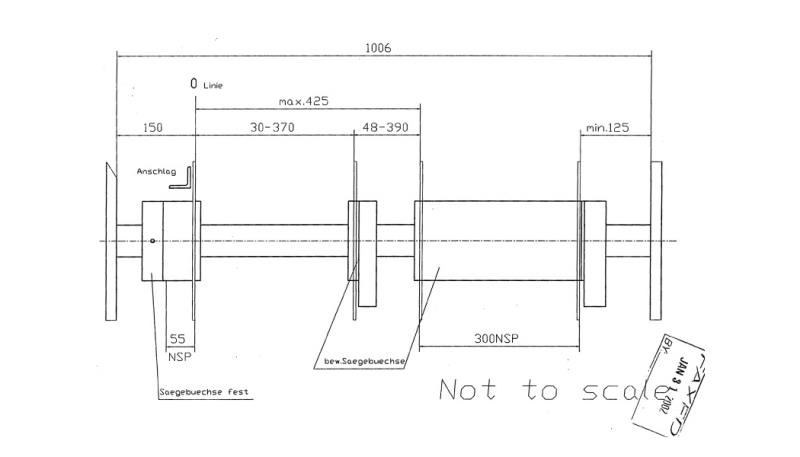

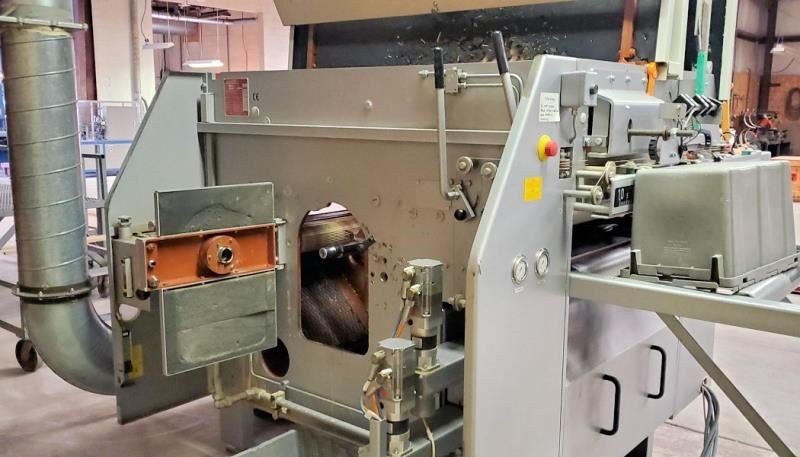

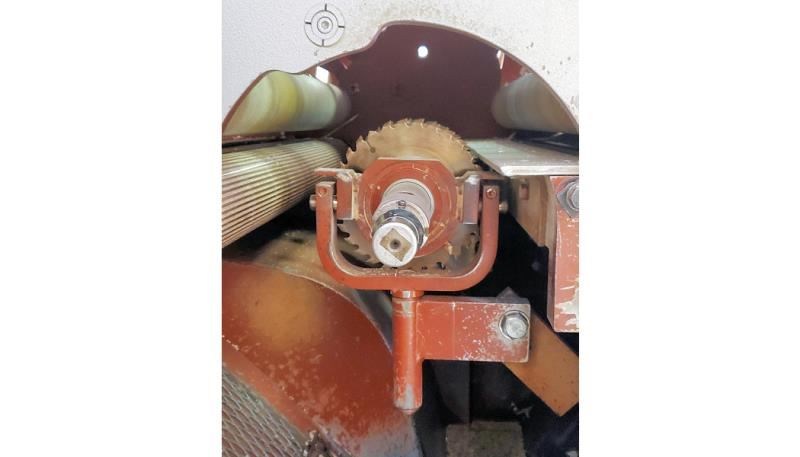

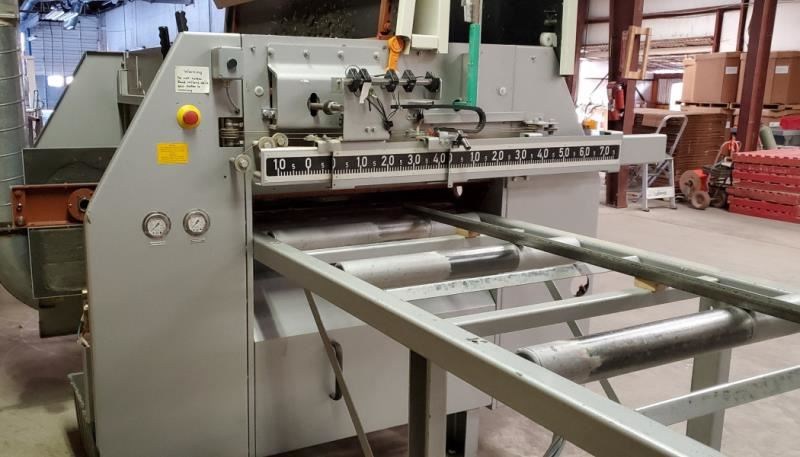

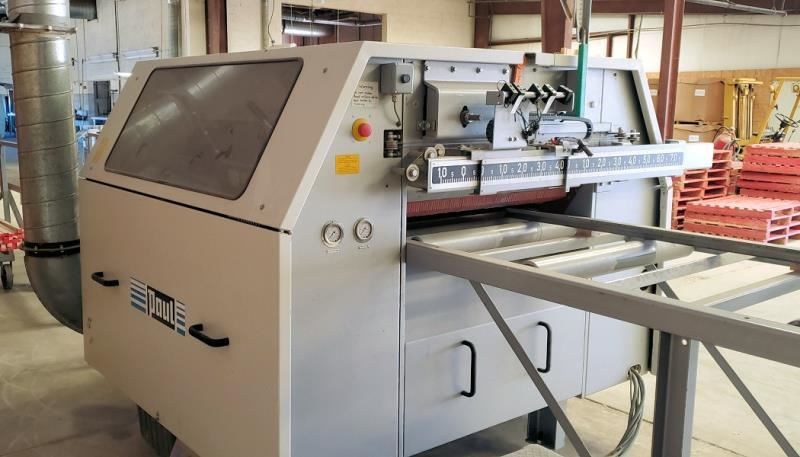

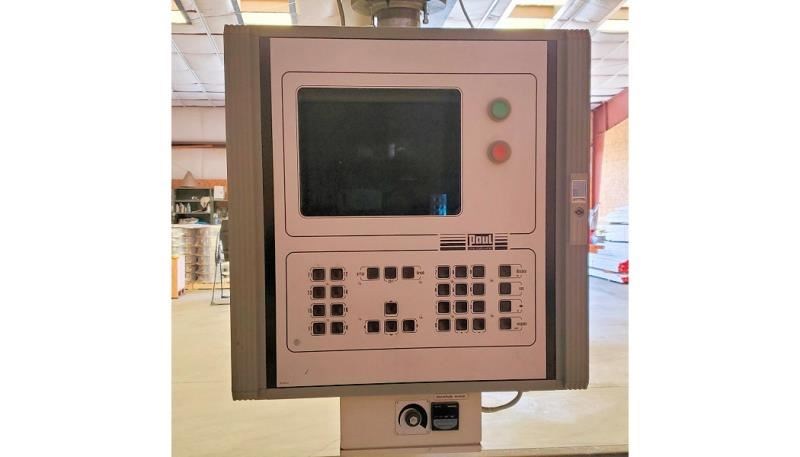

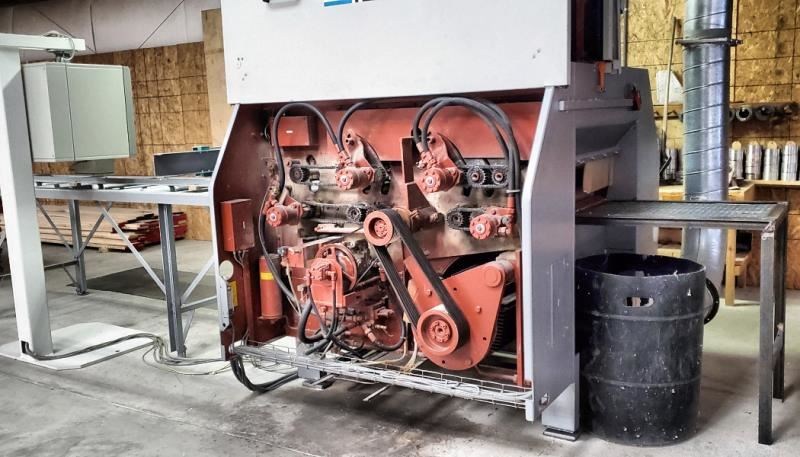

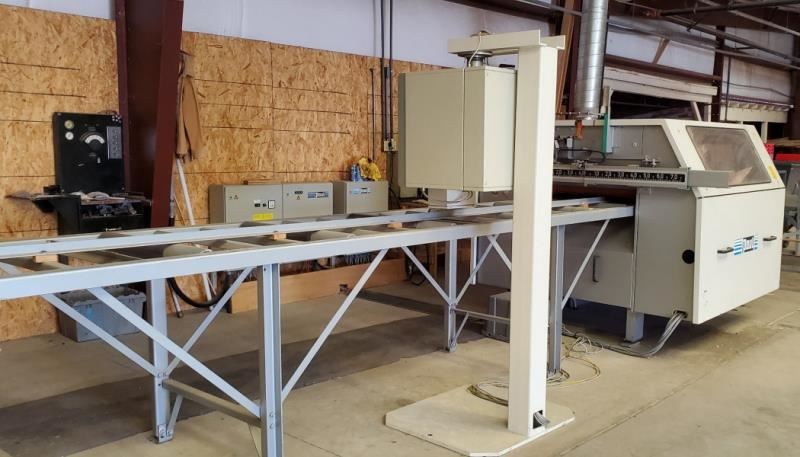

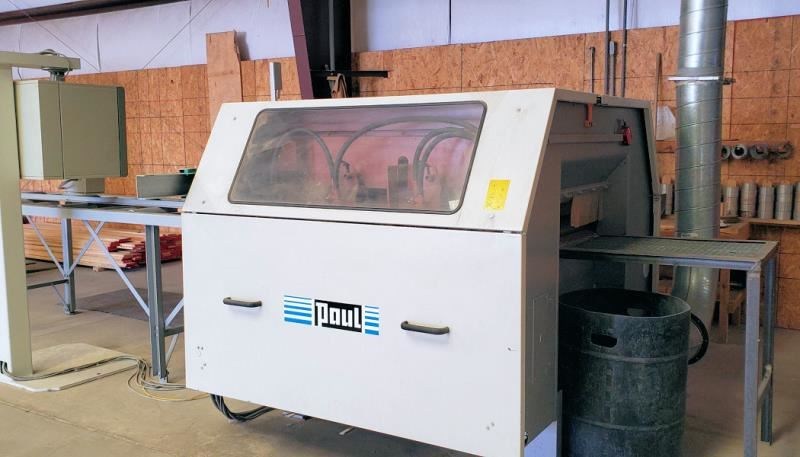

PAUL K34V/1000 RIP SYSTEM WITH (1) SHIFTING BLADE39.3" (1000 mm) max. cutting width x 4.1" (105 mm) max. thickness cap. -- Specifications: Bottom arbor design; (6) powered bottom and (6) powered top feed rolls propel lumber from the infeed system thru the Ripsaw.50 HP (37 kW) Main motor, 2,900 RPM driving a 2.362" (60 mm) dia. arbor with (1) moveable blade. Moveable saw has a shift-able range of 400mm.Moveable blade and fixed fence positions indicated by 15mw laser lights that project 16' lines down inbound boards. Arbor is removable on a slide system; -- Feed Works: 49 - 262 FPM (15 - 80 MPM) Variable feed speed feed drive; hydraulic drive to (3) sets of smooth top and corrugated bottom feed rolls before and (3) sets of smooth top and corrugated bottom feed rolls after the blades and individually controlled pressure to the feed rollers. With (3) sets of anti-kickback fingers. -- Equipped with: Automatic oiler, push-button station, upper dust hood and upper and lower dust chutes. In-feed roller table 980 mm with (7) rollers; universal type mounted to the machine. -- Operator Interface: 1 NCD control, VGA color monitor, features 10-width lists with 200 items (8 variable-width lists, 2 set-up lists for long bush fitted for fixed blades.) -- Machine is under power but not in production.
