Description:

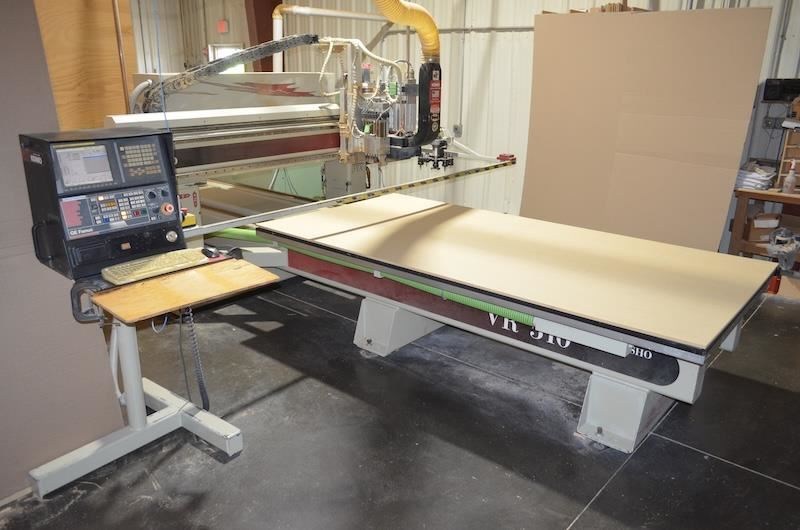

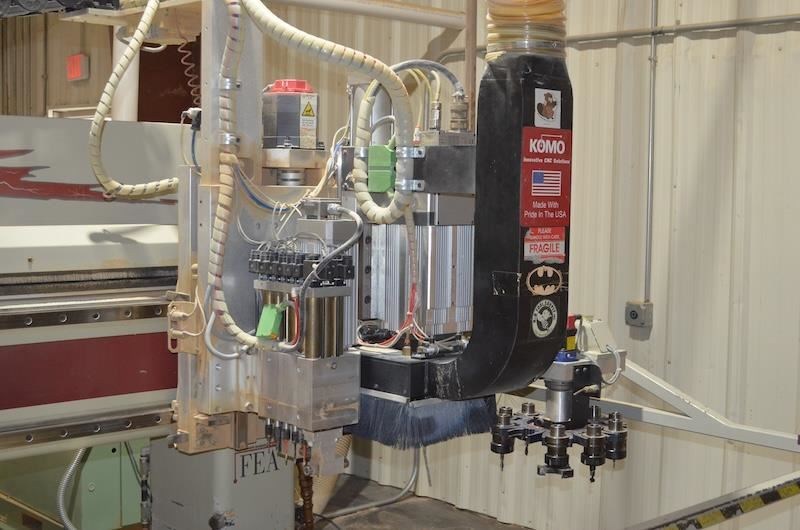

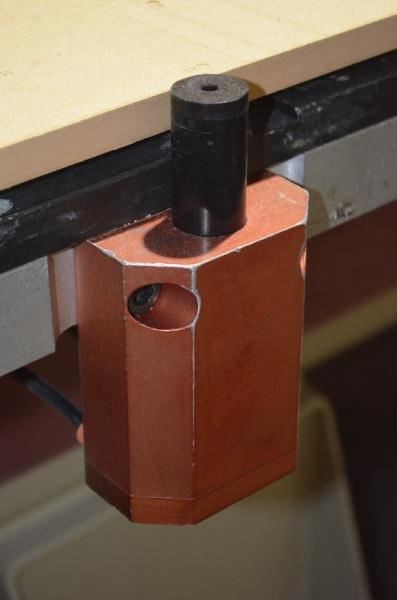

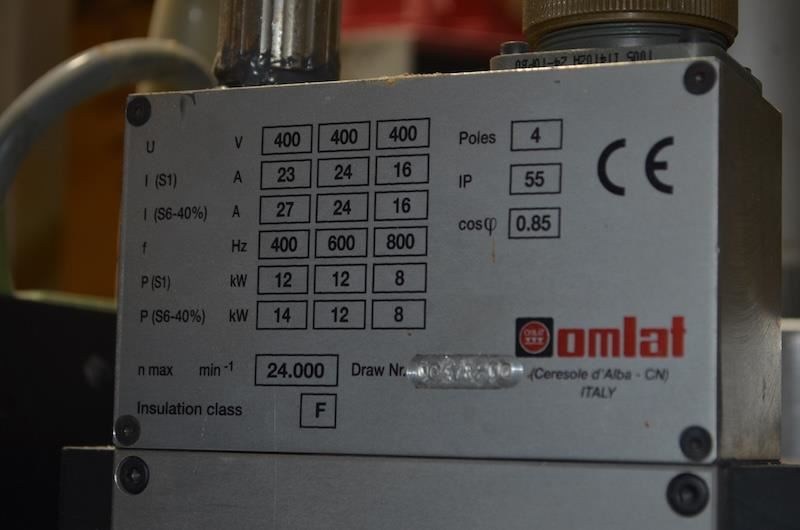

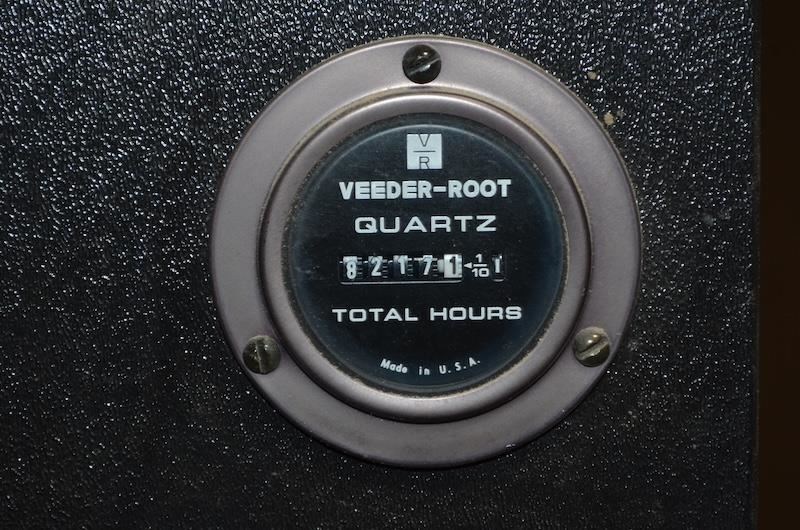

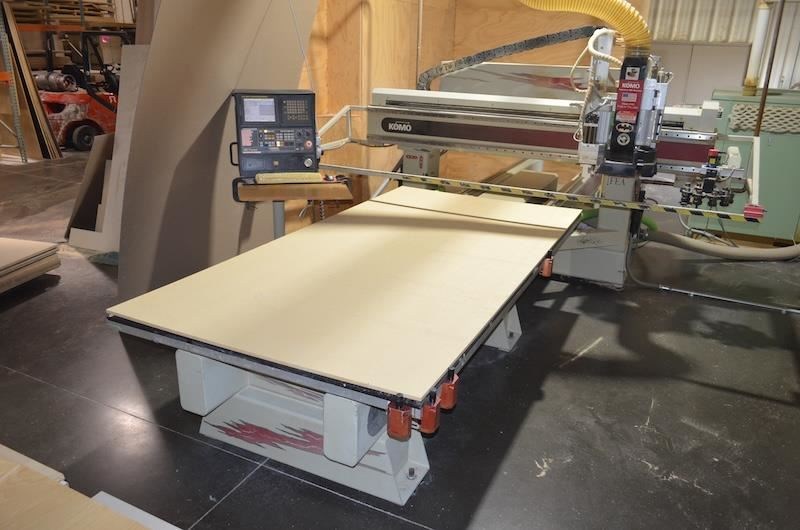

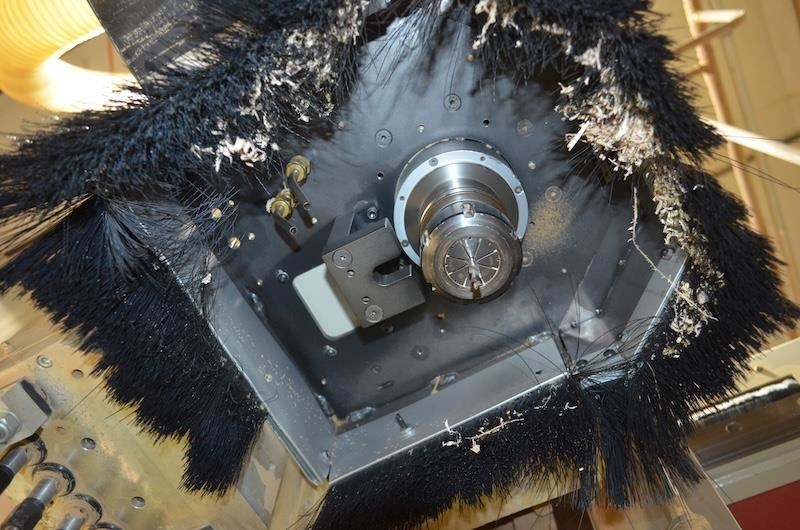

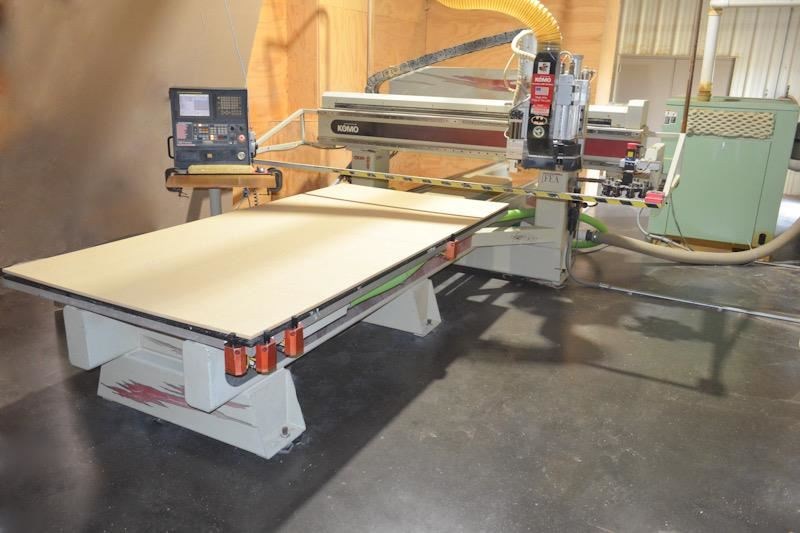

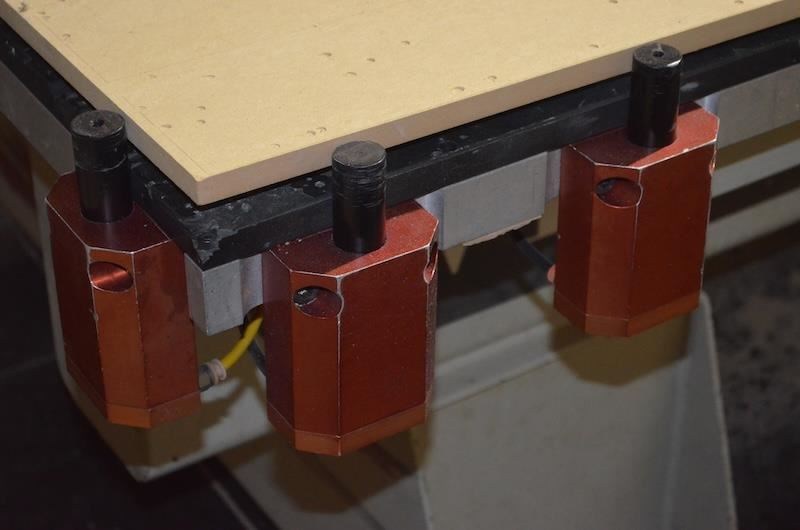

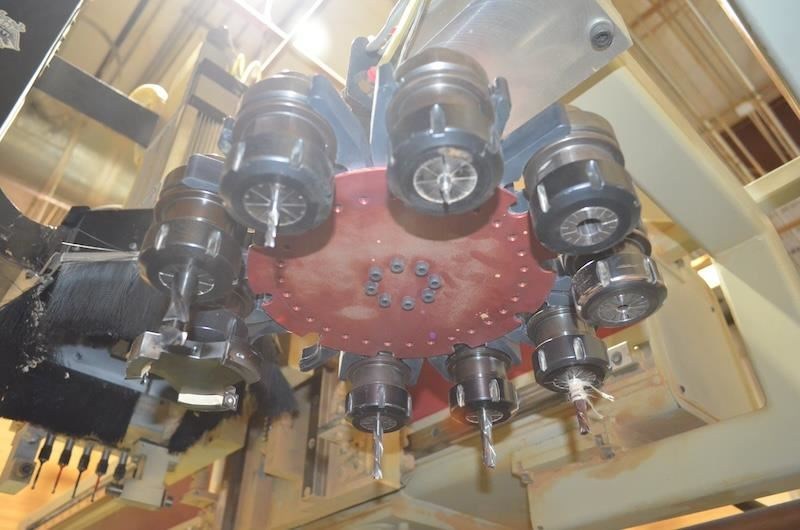

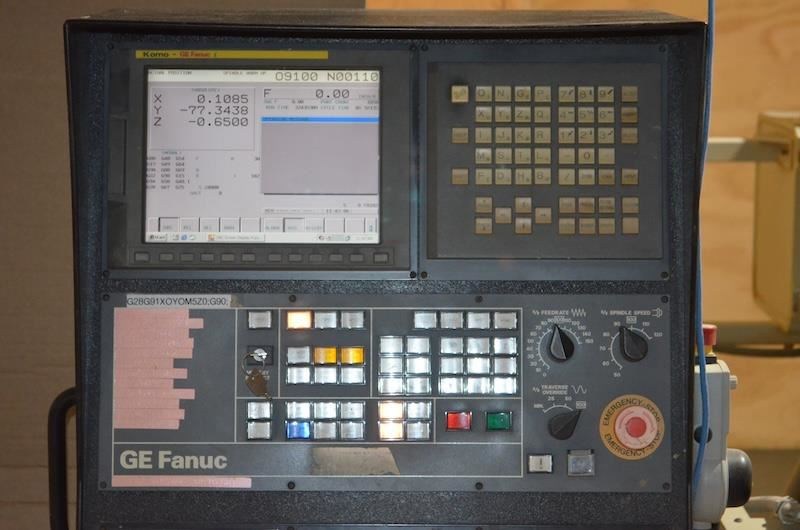

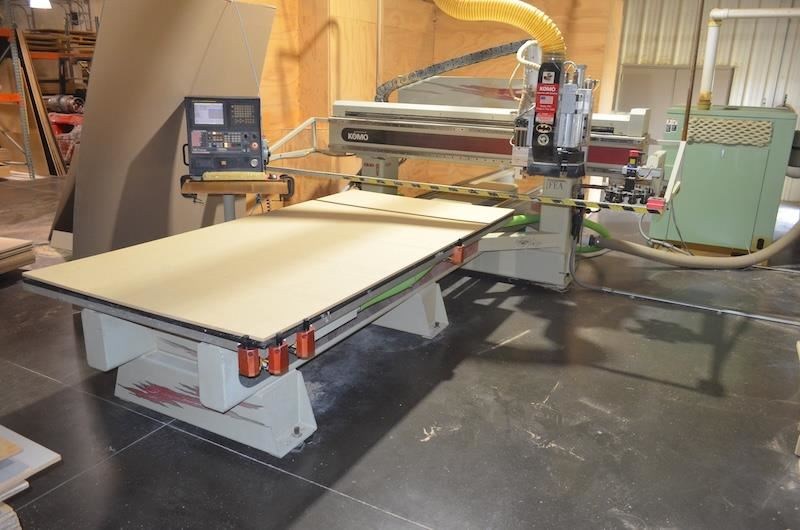

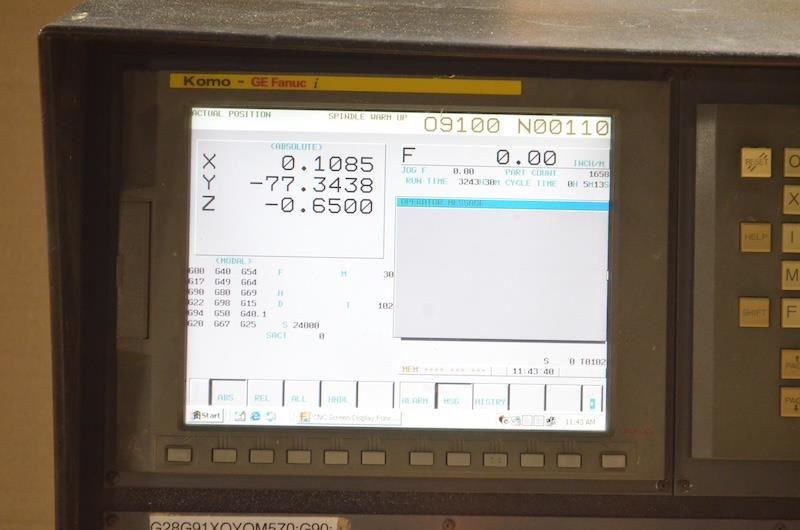

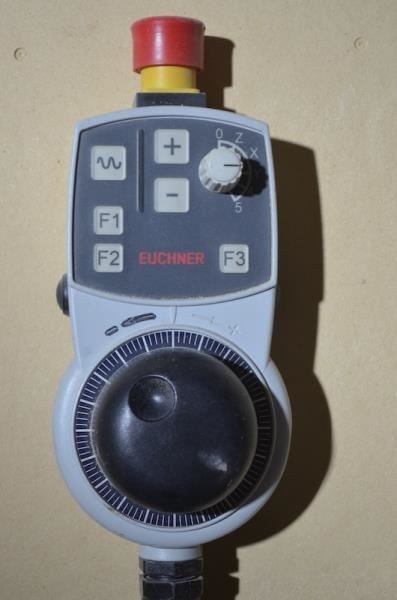

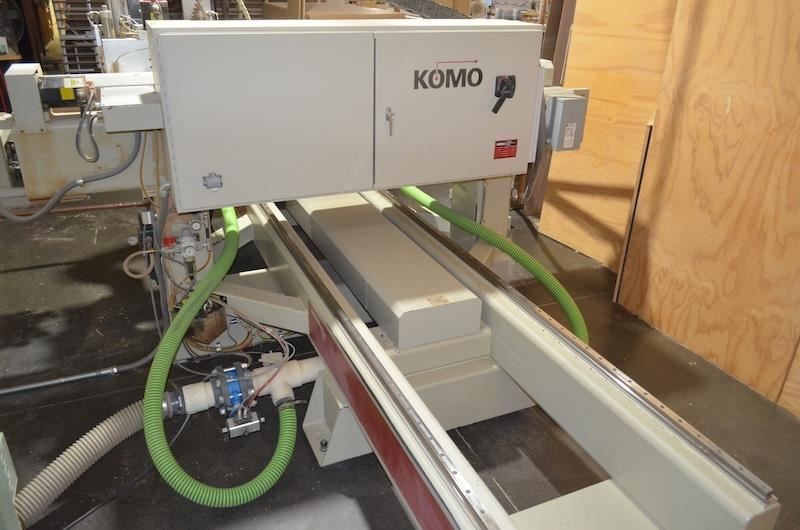

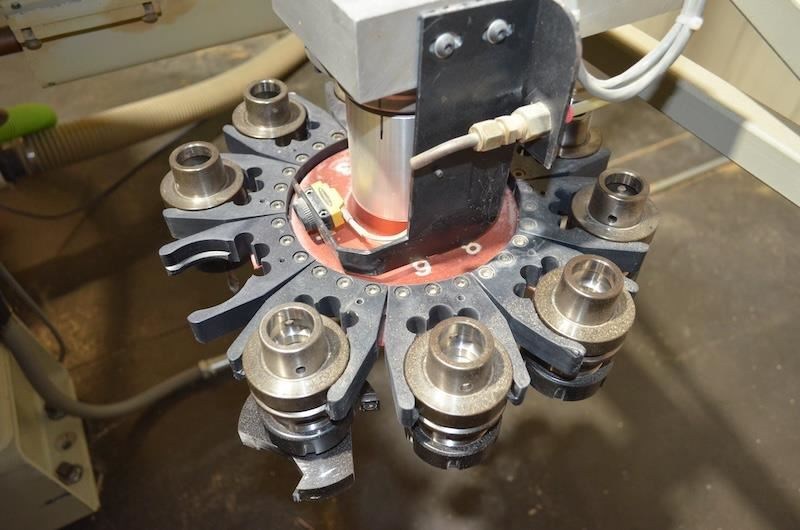

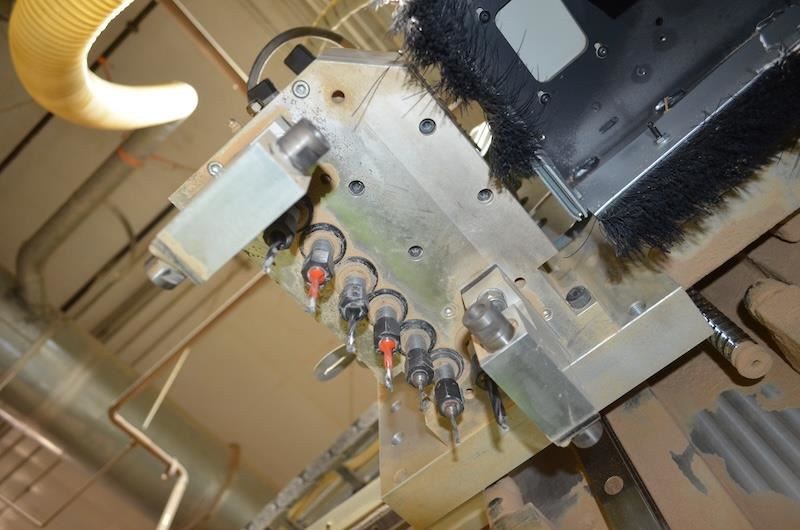

KOMO VR 510 MACH ONE SHO with ATC and Boring & 8,217 Hrs. (As of 9/24/25), Just Serviced!60" x 120" Moving table, Heavy Duty fixed bridge machine, front-to-back configuration, Phenolic vacuum table machined with a single vacuum zone, (4) pop-up pins for material location. -- Equipped with:(1) 12 kW (14 HP) "HSK-63F" Type ATC spindle, variable spindle speed from 6,000 - 24,000 RPM, 10-station tool carousel and (1) boring unit. -- All axes:Ride on THK linear guideways, closed-loop AC Servo motors drive precision preloaded ball screws for positioning tolerances of 0.001" & 2,500 IPM rapid traverse rates. - Automatic lubrication system to service all ball screws & way bearings. -- Control:GE/FANUC "i" Control WINDOWS PC Front end, 10.4" high-resolution color CRT, (3) axes simultaneous control, linear & circular interpolation, network compatible, RS-232 port, and handheld controller.. -- Features:Background editing, self-diagnostics, high speed, high precision machining function, canned cycles, absolute & incremental programming, inch/metric capability, cutter & tool length compensation, and feed rate & spindle speed override. -- Complete with: -- (1) SULLAIR "VS16-40 A/C SULL" 40 HP Rotary Screw Vacuum Pump, with 68,560 Hrs. (As of 9/24/25), (New Motor Installed in 2022, Hours not reset), 230/460 V, 60 Cy, 3 Ph. -- (10) Tool Holders.Router Dimensions: 258" x 145"; x 78"; H.Vacuum Pump Dimensions: 72" x 60" x 68" H.
