Description:

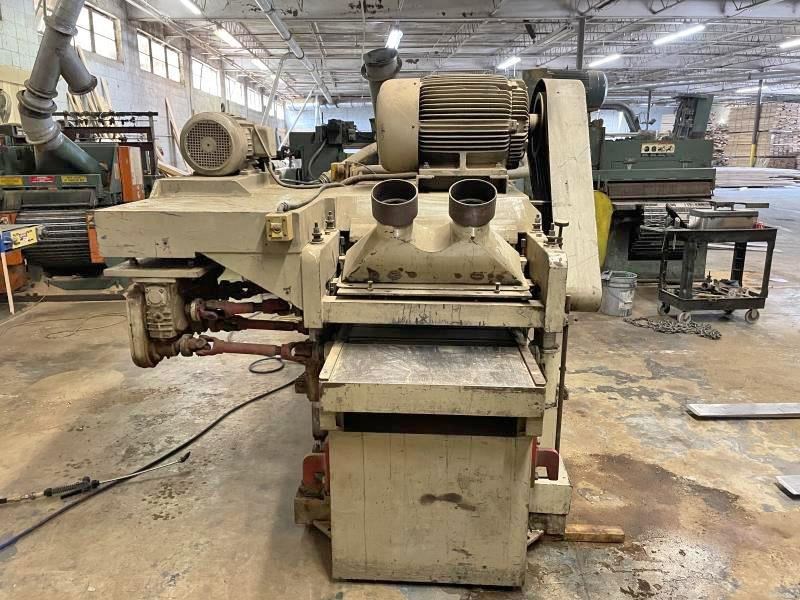

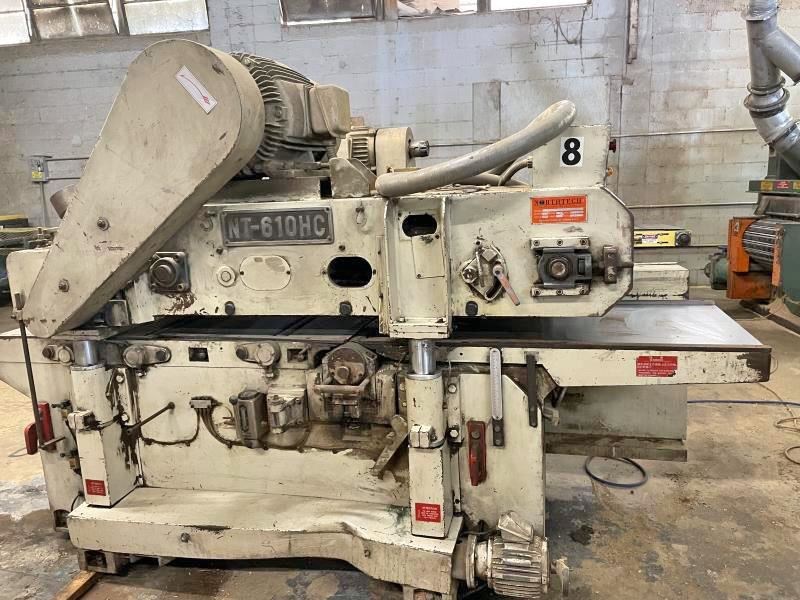

NORTHTECH NT-610HC TOP AND BOTTOM PLANER: --24" x 8" cap., min. material length 12". Table size is 111" x 24". -- 50 HP top and 40 HP bottom belt driven motors; --Minimum working length is 12" and minimum working thickness is 1/4". -- Variable feed speed 55 - 155 FPM powered by a 5 HP feed motor; 1 HP motor for table raise & lower and (4) ball screws. -- Both cutter heads are helical carbide insert knife heads, 6,000 RPM. MACHINE FEATURES: -- Rugged cast iron and plate steel fabrication. -- Overhead feed conveyor with 1,100 individual spring loaded "feed fingers" to provide excellent feed characteristics. -- Computerized top cutterhead positioner is accurate to +/-0.001" -- Cutterhead tooling technology gurantees low noise, reduced power requirements, minimal operations cost and repetitive finish on the most difficult hardwoods. -- Patented lifting column system (synchronized transmission) gurantees repetitive setup and long-term dependability. -- DP-525 Thickness Setting Unit --Patented universal drive transmission for feed groups and infeed carpet allows a maintenance free design verses chain drives. -- Cutterheads are solid steel construction, dynamically balanced and mated with precision pulleys. -- Cutterheads are supported by "NSK" class 7 precision ball bearings and precision housings. -- Chromed beds, Guards and skirts for operator safety. -- Additional Specs: Machine dimensions: L2830 x W185 x H1700 MM; Weight: 9,000 lbs; Dust Collection: 3600 CFM
