Description:

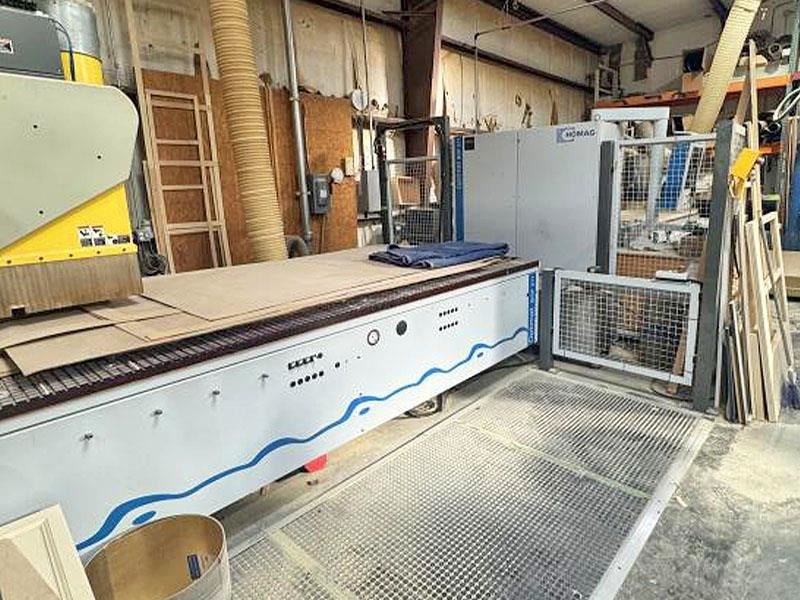

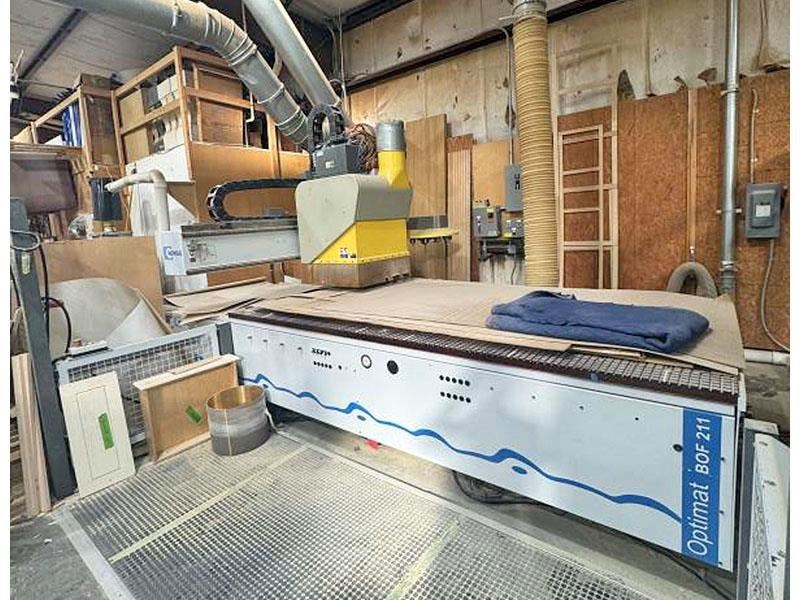

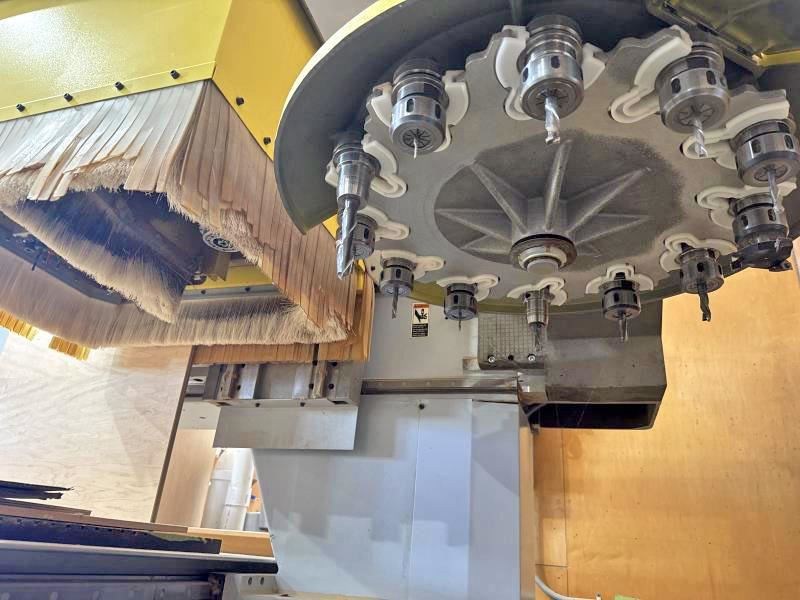

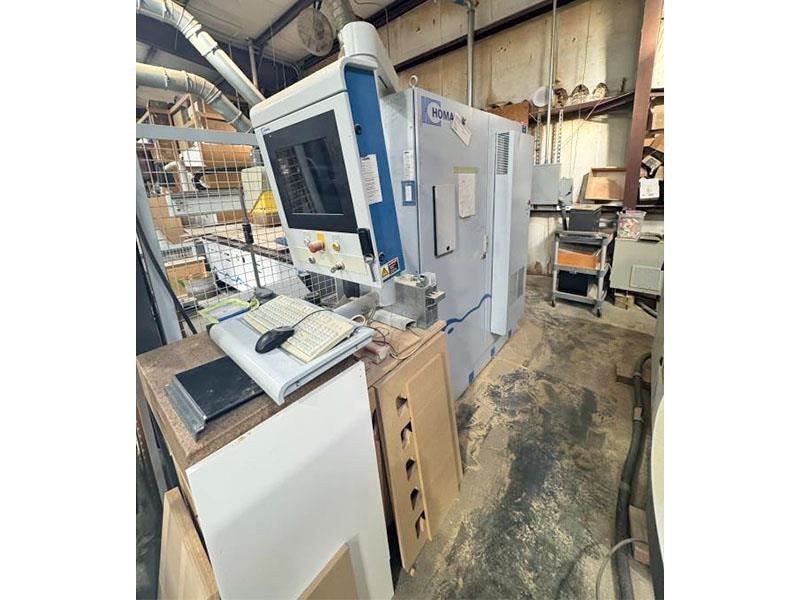

HOMAG OPTIMAT BOF 211/30/R FLAT TABLE MACHINE (W/ATC/BORING/"C"AXIS): -- Specifications: 4' x 10' Flat Matrix grid Phenolic working table. -- Working Field:"X" Axis 120" (3.050 mm), "Y" axis 51" (1,300 mm), "Z" axis stroke 21" (535 mm), max material thickness 8.2" (210 mm). -- Positioning speed:"X" & "Y" Axis is 260 FPM (80 MPM), "Z" axis is 98 FPM (30 MPM). -- Boring Unit:4.2 HP (3 kW), variable speed from 1,500 - 7,500 RPM; (12) independent vertical spindles, (6) in "X" axis & (6) in "Y" axis. -- Machining:(1) 19.4 HP (14.5 kW) Liquid cooled Electro-spindle router with HSK 63F adaptor, variable speed form 1,000 - 24,000 RPM. -- (1) NC controlled "C" axis for 360° horizontal processing. -- (1) 12-positon automatic tool changer mounted at the back of the head for "on the fly" ATC. -- Operator Interface: PC Front-End with: "Homatic" PC 85 Power Control + Windows "NT" + WoodWOP operating system. -- 14" Color graphic monitor, industrial keyboard for data entry, 1.44MB & CD RW disk drives; EtherNET interface for possible LAN connection to office PC. -- USB & RS-232 serial interface for simple PC connection. -- NUM (PLC) with 3D-Linear interpolation, 4-axis control for "X", "Y" "Z" & "C" axis. -- All mounted in separate free-standing control cabinet. -- Complete with:(1) 40 HP "DEKKER" VMX055 Vacuum Pump; safety fencing; safety mats (will stop machine if operator enters work area); Hand-Held pendent control. -- Actual Model is HOMAG OPTIMAT BOF 211/30/R.
