Description:

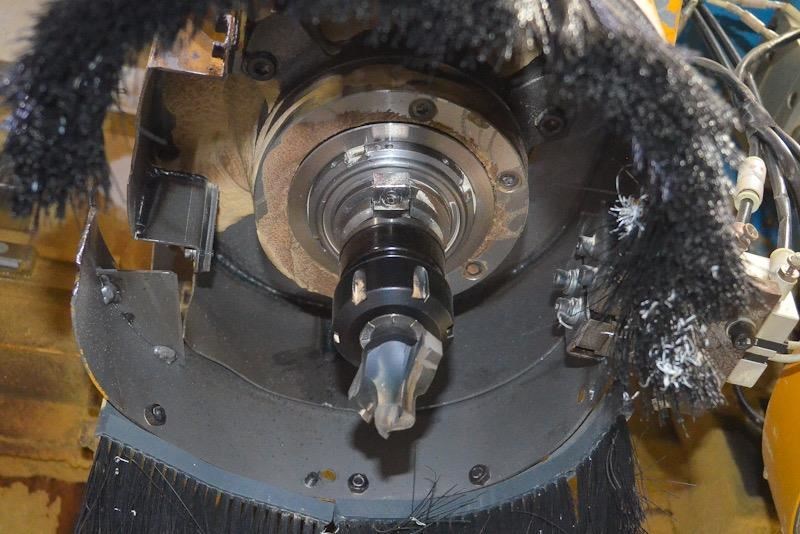

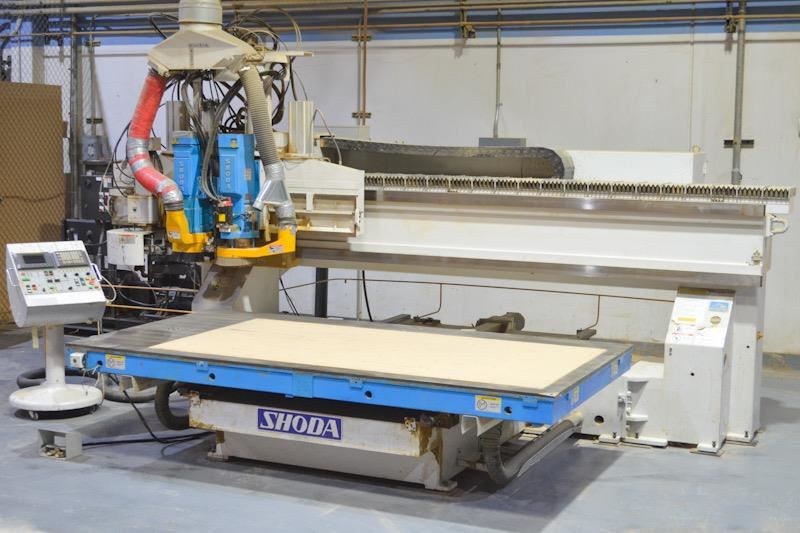

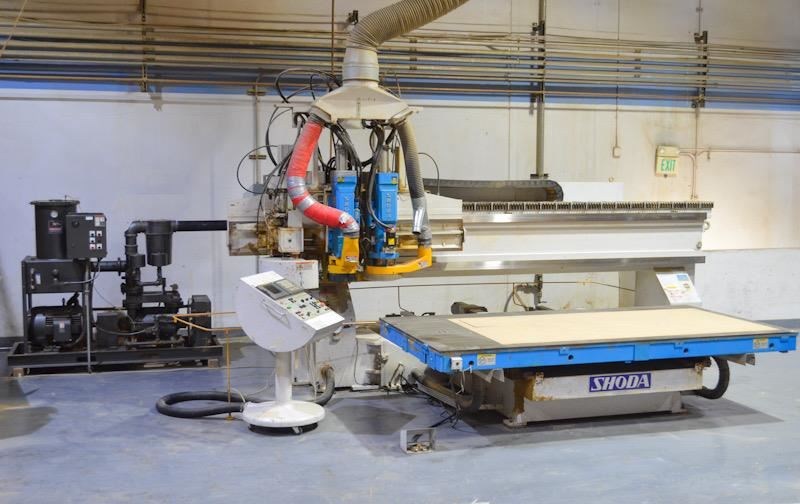

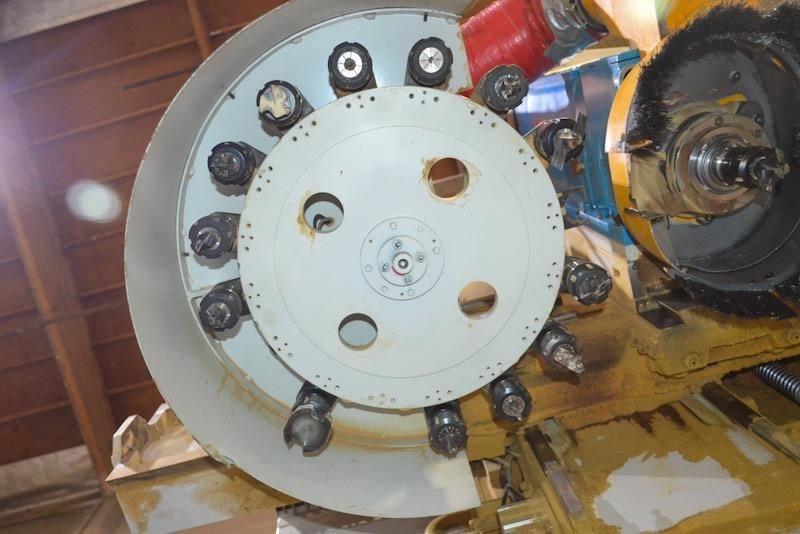

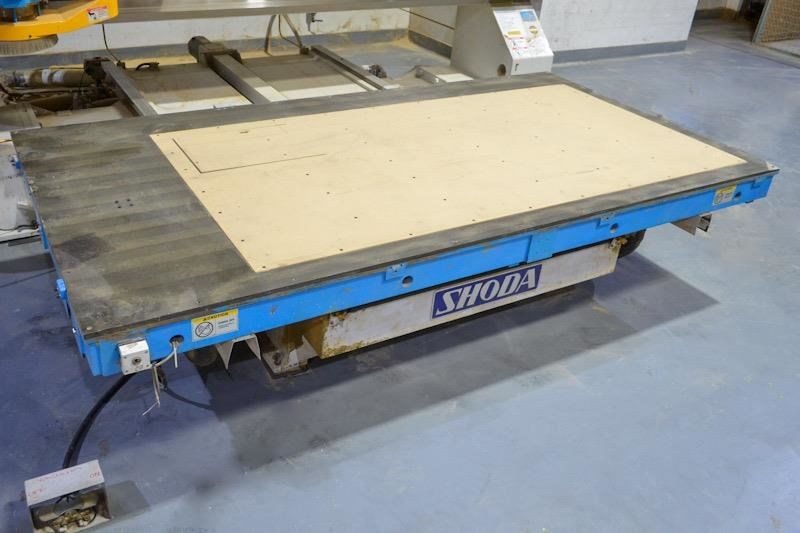

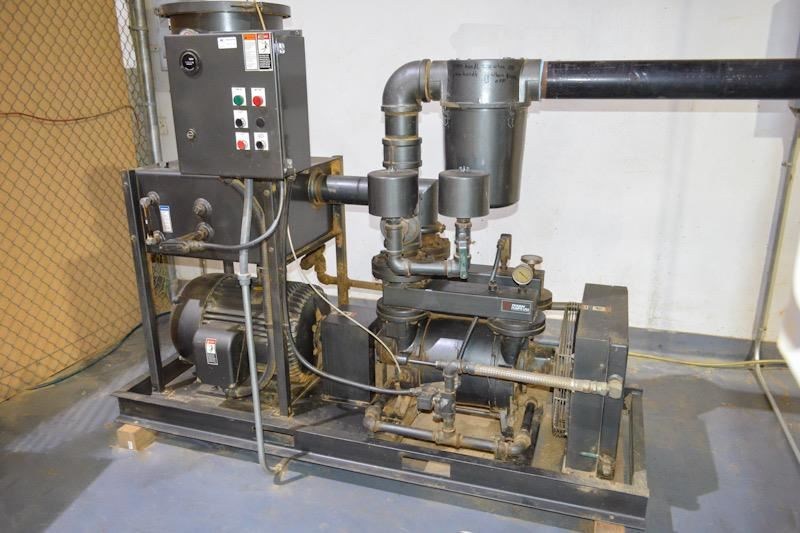

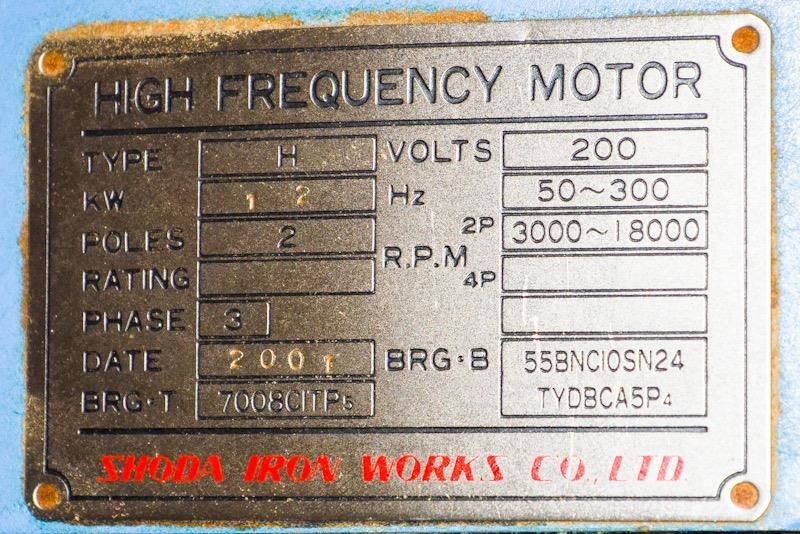

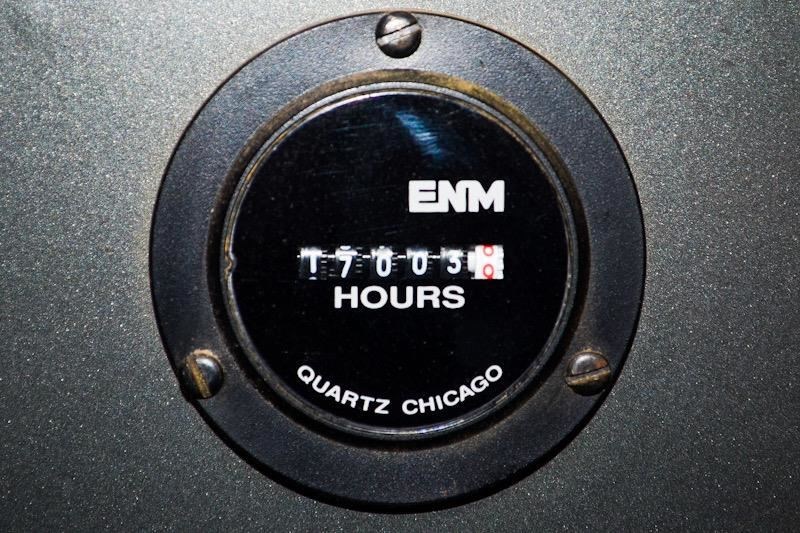

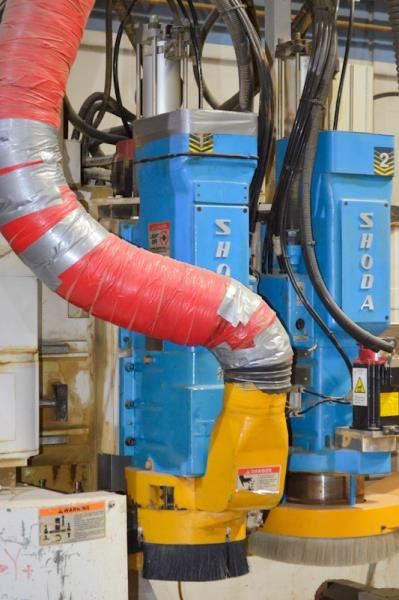

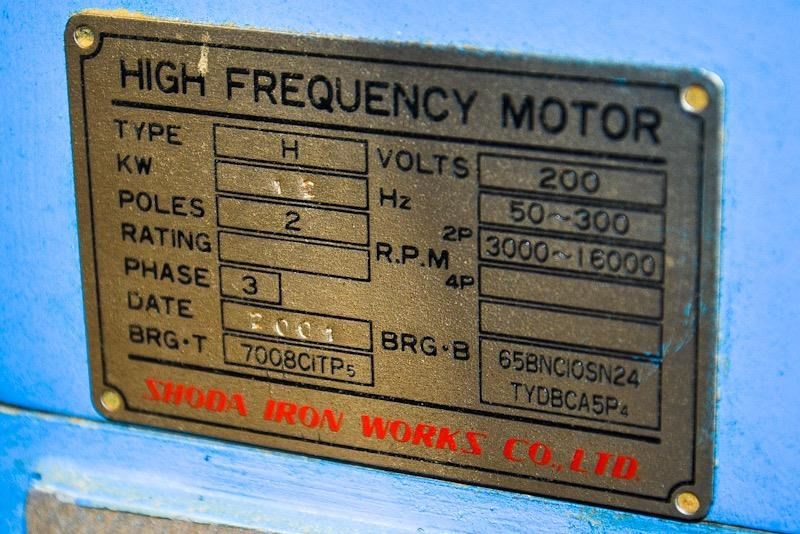

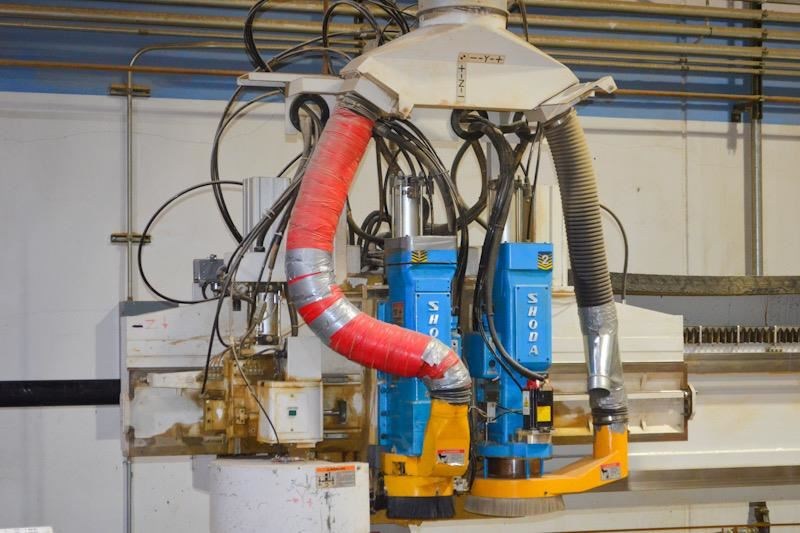

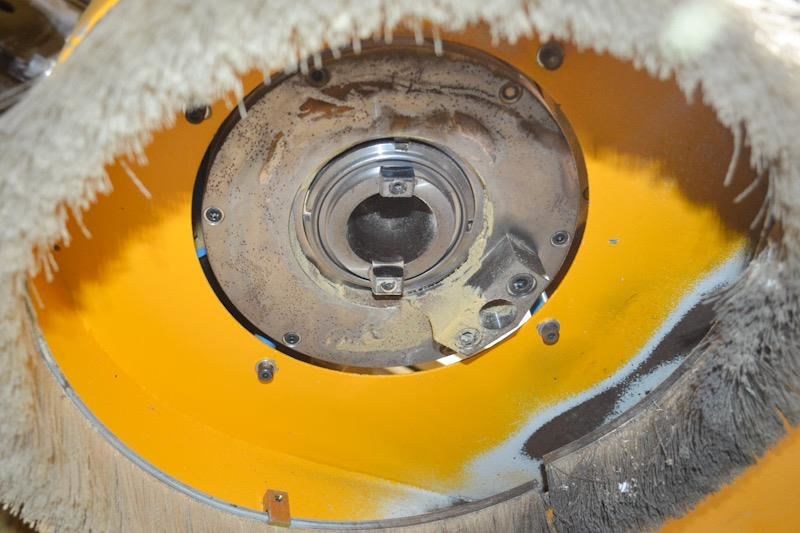

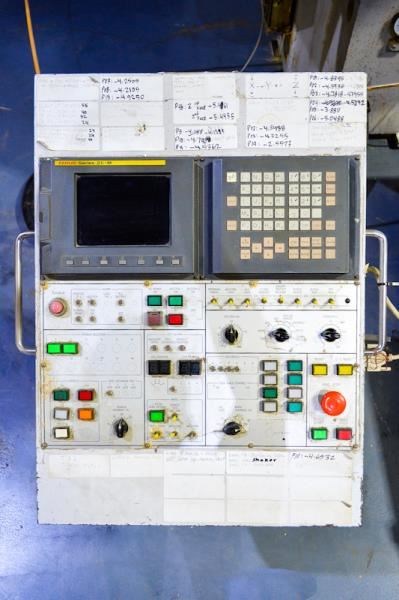

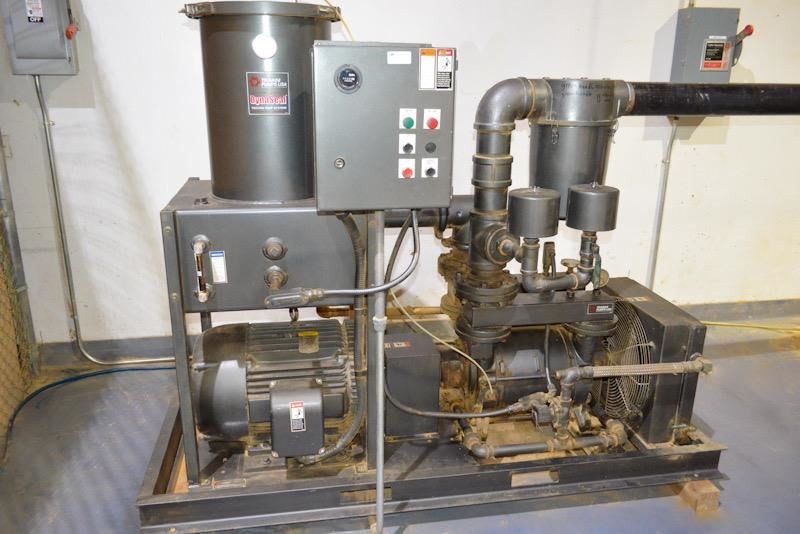

SHODA MAXXIM 5' x 10' 2-Head CNC Router, with Vacuum Pump – Seller states that machine was run (1) shift from 2002 - 2006, then only a few days per year since!Specifications: -- Table size 63"; x 122"; x 29"; H, with 3/4"; Thick Top. -- Travels: X-Axis 133", Y-Axis 73", & Z-Axis 10". -- Max. machining feed speed 590 IPM. -- Max. positioning speed for X & Y-Axes 1,180 IPM.Equipped with: -- Moving single-zone vacuum table, with Extra-hard phenolic surface, Front-to-back configuration. -- (2) 12 kW (16 HP) - 18,000 RPM BT-30 Air-cooled electro-spindle, with Variable spindle speeds 3,000 - 18,000 RPM, AC Inverter, Dynamic spindle braking, Air/Oil mist lubrication. -- 16-Position Carousel-type automatic tool changer.Features: -- All Axes with Extra-large precision contour linear guideways. -- Closed loop AC Servo drives & Precision ground ball screws. -- Extended extra heavy-duty bridge for full 5' x 10 table coverage. -- Centralized lubrication system for all spindle & roller bearings, ball screws & guides.Operator Control: -- FANUC "SERIES 21i-M" Mobile CNC Control, with 10.4" Display, RS-232 Port, PCMCIA Slot, (3) Axes Simultaneous control, Manual pulse generator, Inch & Metric operation, Feed rate & Spindle speed override, Helical interpolation, Full cutter compensation, Background editing features, EIO/ISO recognition. -- Foot pedal control.Complete with: -- 2001 TRAVAINI "1-501V1A-460" 40 HP Vacuum Pump, S/N S1433, with Hour meter reading 17,003 Hrs. -- (10) Toolholders. -- Dust Manifold.Dimensions without Safety Rails: 202" x 155" x 110" H.Dimensions of Vacuum Pump: 82" x 36" x 65" H.
