Description:

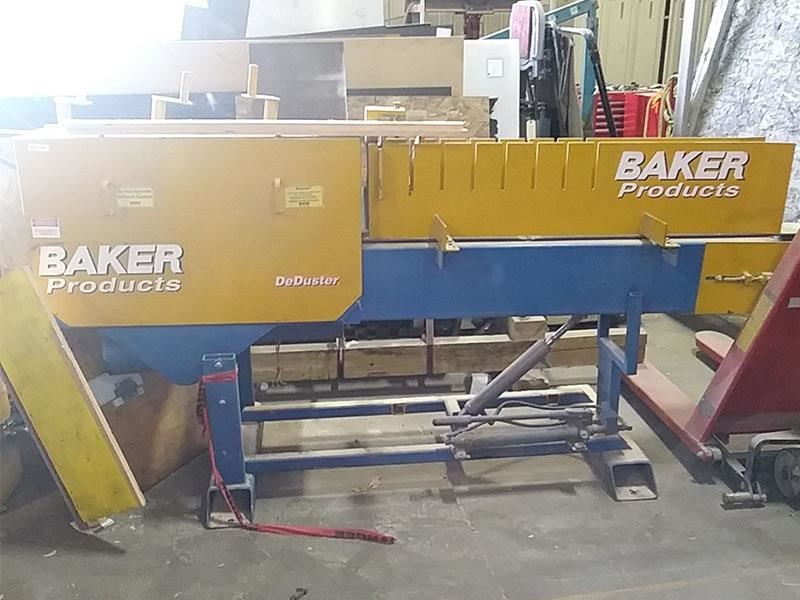

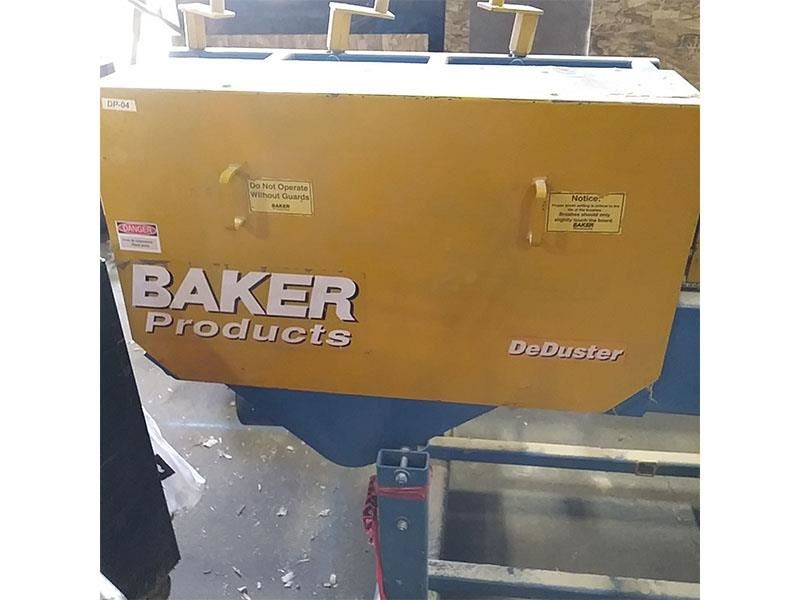

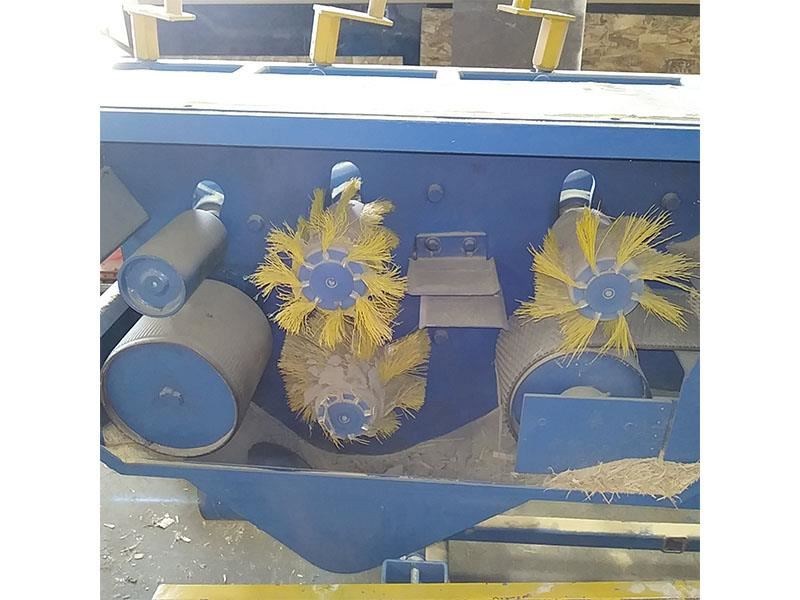

BAKER BDDO Board DedusterSpecifications: -- Conveyor Height: Min: 24", Max: 34" -- Feed Speed: Fully variable 0-700 feet (0 to 213.36 m) per minute -- Brushes: 3 Nylon brushes (replaceable) 0.040" diameter 8 strips per brush -- Height Adjustment: Hydraulic hand pump -- Dust Hook-up: 6" diameter recommended air flow dust pipe for 1,300 CFM (37 m³/min) -- Power: 3 Brush Motors with 2 HP (1.49 kw) TEFC on each brush. -- Hopper Conveyor Drive: 2 HP (1.5 kw) variable speed frequency drive. -- Board Width: Up to 8" -- Board Height: Up to 2.5"—modifications to this are available upon request) -- Board Length: Min: 36" Max: 55" or longer if dead rollers are added
