Description:

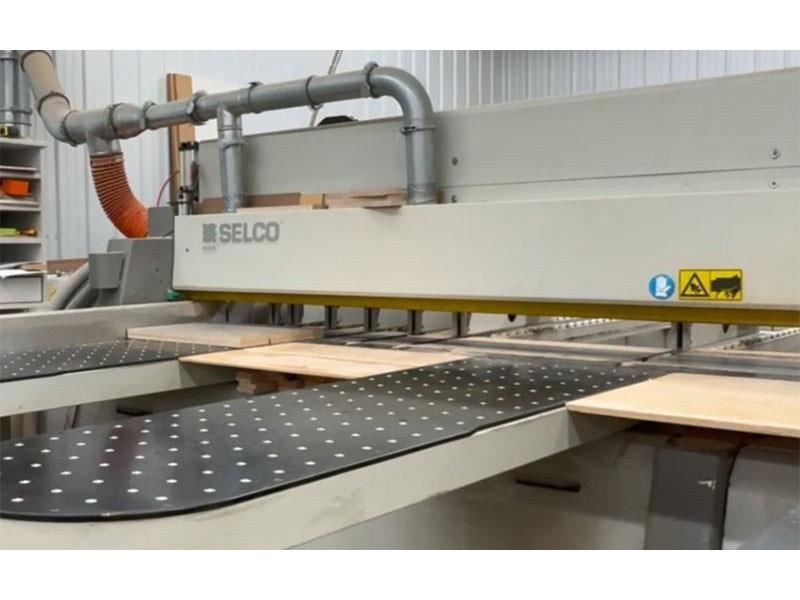

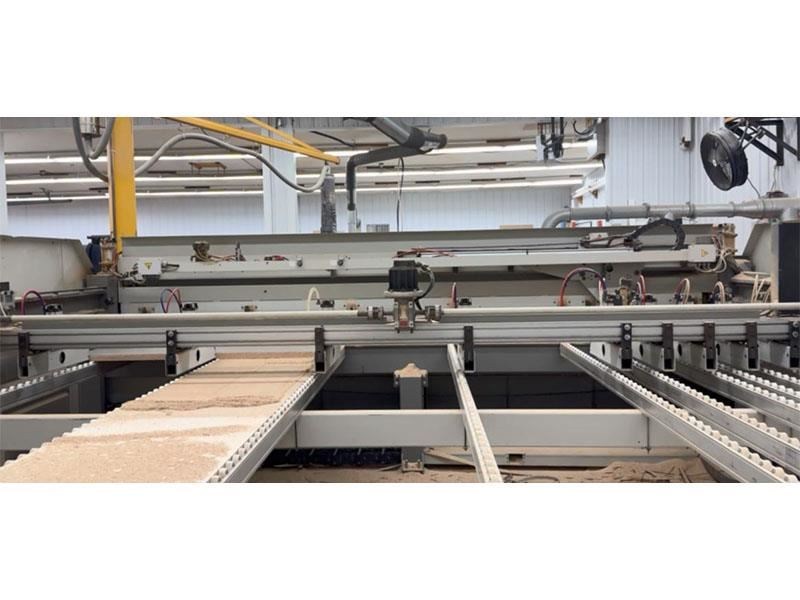

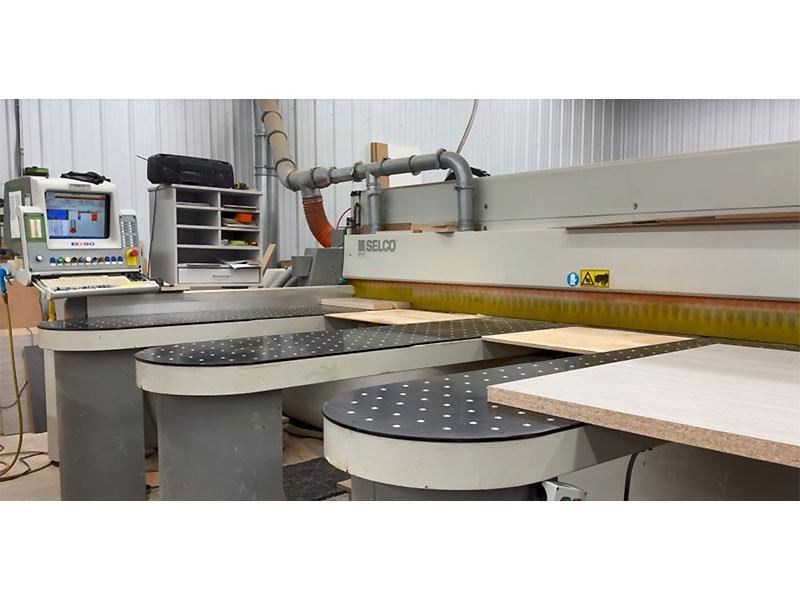

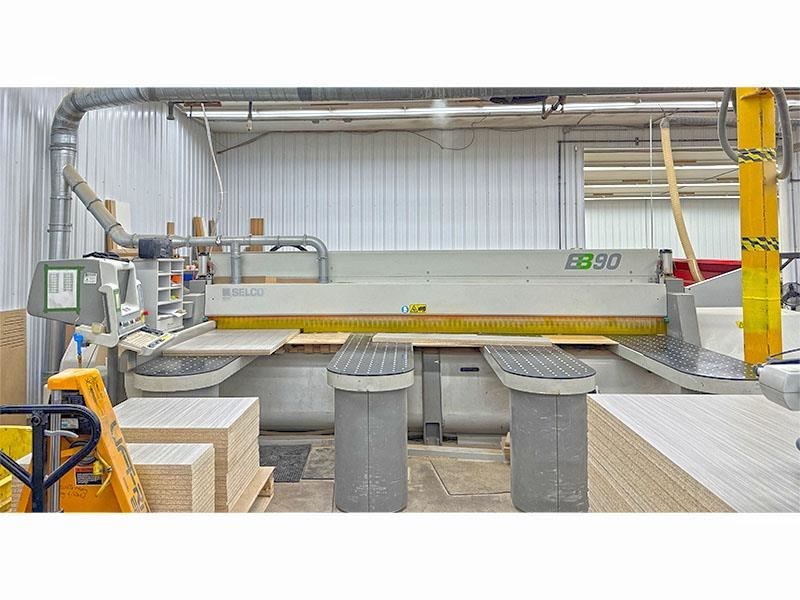

SELCO - EB 90: CNC Front Load Panel SawSpecifications -- 173" Overall cutting length; 173" pull back; 3.3" (85 mm) max. saw blade projection; 12 HP (9 kW) main saw motor; 2.4 HP (1.8 kW) scoring motor. -- Modular roller rear machine table; side aligning device; (2) longitudinal aligners to accurately position book of panels on rear saw table prior to cutting. Equipped with: -- Variable saw carriage travel speed from 0 - 197 FPM (0 - 60 MPM); return speed: 197 FPM (60 MPM). -- Electronically controlled overhead program fence; rack & pinion driven; forward speed: 0 - 197 FPM (0 - 60 MPM); return speed:197 FPM (60 MPM). -- (9) Clamps (open up to 85 mm); AC Servo motor drives on both saw carriage & pusher fence.CNi "NC 400 Plus" control with: Color monitor & "Assist Line" with: LED readout (displays cutting dimensions & patterns; virtually unlimited storage capacity of cutting patterns & different dimensions."Assist Line" with: Real-time graphics; self-diagnostic; data input by keyboard or possible direct downloading from an office PC. Complete with: -- 90" (2,300 mm) Long crosscut fence (front-to-back); (2) side/crosscut aligners; "Quick Change" saw blade replacement system. -- (4) Front mounted air float tables with: Rounded front 24" x 79" for moving panel from rip to crosscut position. -- Includes: -- Rear roller module support rails; rear of machine enclosed for safety.
