Description:

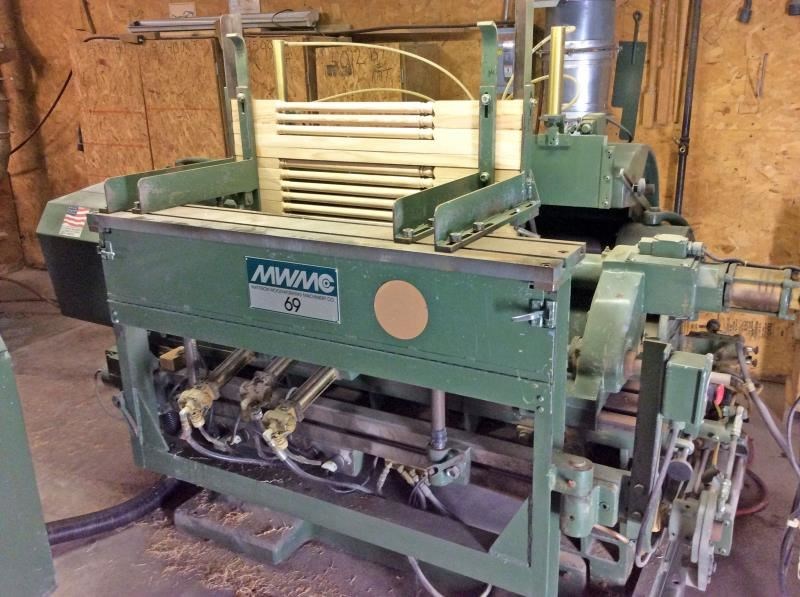

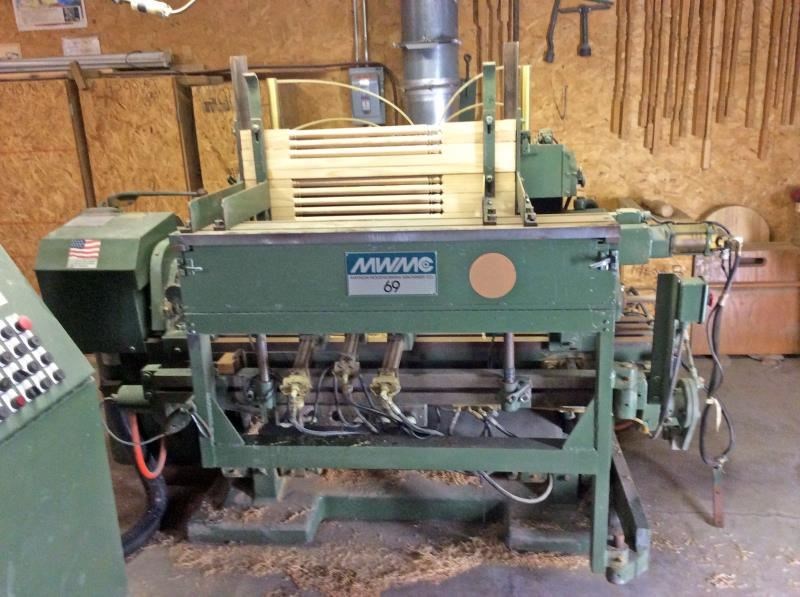

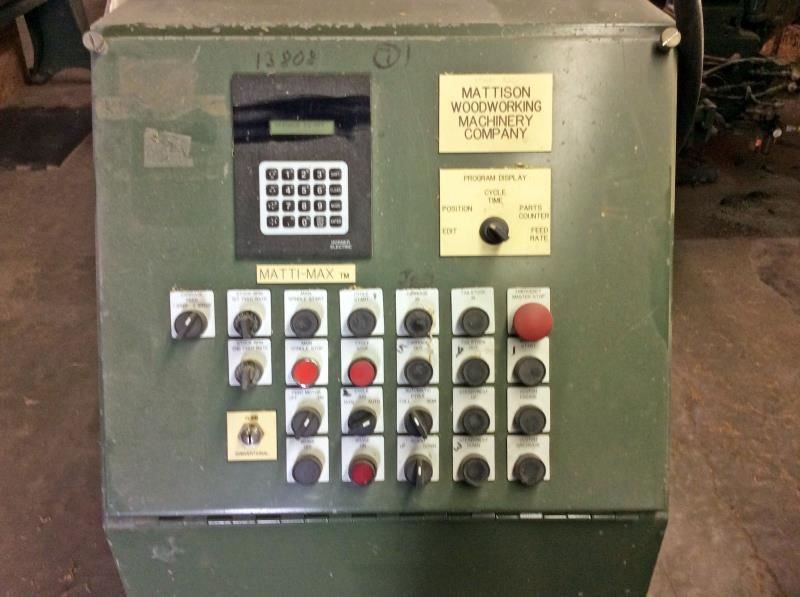

MATTISON 69-42 MATTI-MAX Heavy Duty Automatic Rotary, high production Turning Lathe with Hopper Feed.Microprocessor controlled for quality turnings and ease of setup; 42" long turning cap. with rotating rear arbor, 4" x 4" max. and 3/4" x 3/4" min. stock size. -- Drives & Speeds: Equipped with: 25 HP - 2,700 RPM Cutterhead Drive, 2-5/8" dia. arbor with variable speed, -- 2 - 45 RPM stock-rotational speed via 1.5 HP DC drive (reversing) & self-contained hydraulic unit for precise feed control..Complete With: -- Automatic hopper feed; MATTI-MAX microprocessor-based PLC controller with keypad entry; machine functions & operations parameters are set directly from the control; RPM of workpiece and feed rate can be programmed to vary during the cut. Matching the feed rate to the stock-rotational speed produces an efficient cutFeatures: -- MATTI-MAX also allows rough cutting at higher speeds (especially rounding of corners) and fine finish cutting at slower speeds. . -- Pneumatic tailstock with dual pressure to insure penetration of spur center at high pressure and can be adjusted lower for small dia. turnings. -- Total electrical load 26.5 HP. -- Set up Stand Note: Large quantity of knife and heads available for additional cost
