Description:

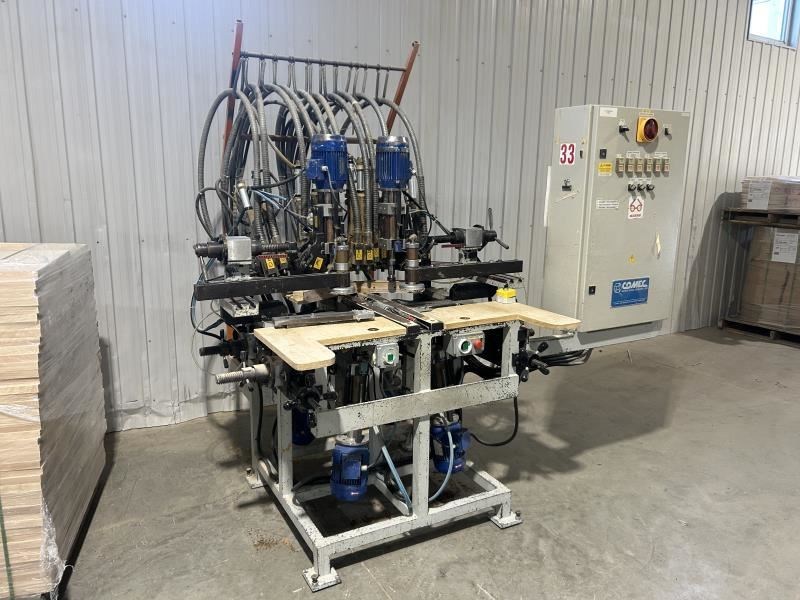

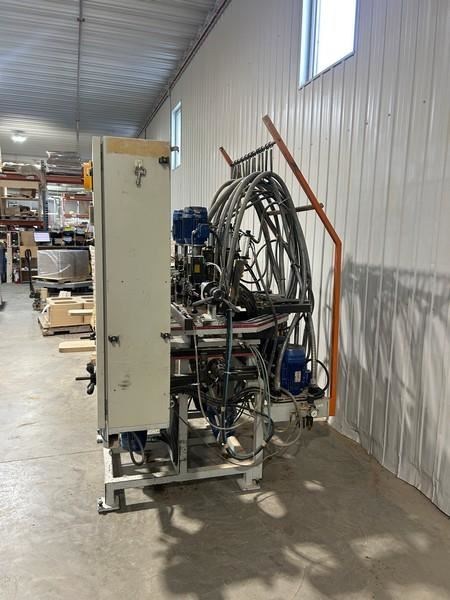

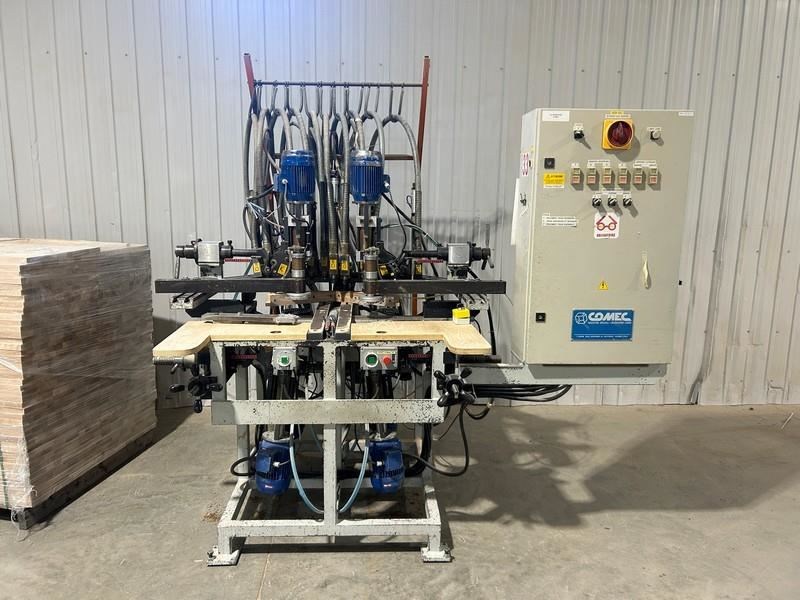

COMEC FS/SR4/2/10 FLX Cair Seat Boring MachineTop and Bottom Vercical Boring Machine for chair seat Specifications: -- (4) Bottom sefl feed spindle driven by 1.9 HP motor rotation 3,300 RPM, Tilting front to back + 30° - 30° and Lateral tilting 0° to 20° -- (2) Top Self Feed spindle driven by 1.9 HP motor rotation 3,300 RPM, Tilting Lateral + 30° - 30° and front tilting 0° to 20° -- (10) Top vertical spindle driven by (3) 6.5 HP motor, 3,300 RPM ((1) motor drive 3 to 4 spindle) Tilting front to back -20°- +20° and Lateral +20° - -20° -- Motor starter independant for spindle group of 4/2/10 -- Spindle movement electropneumatic -- Maximum part size 34" X 30" -- (2) Pneumatic hold down -- Steel structural frame
