Description:

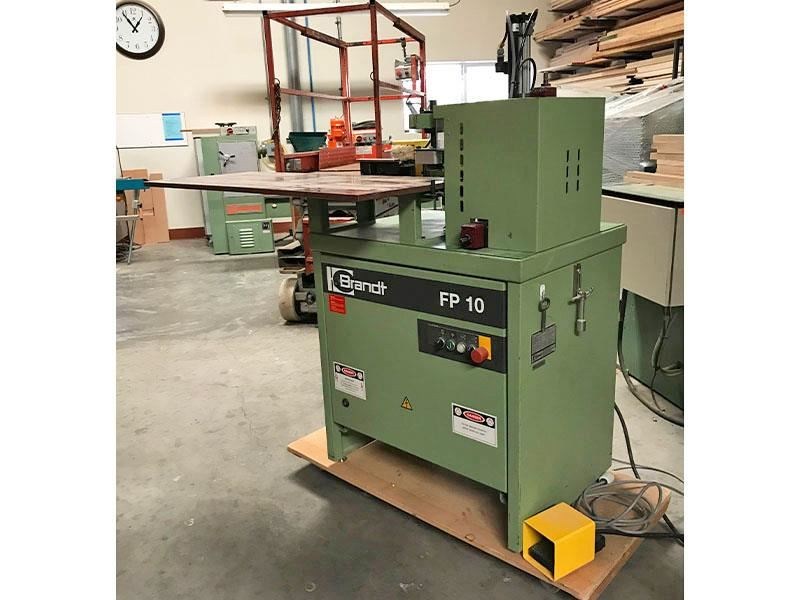

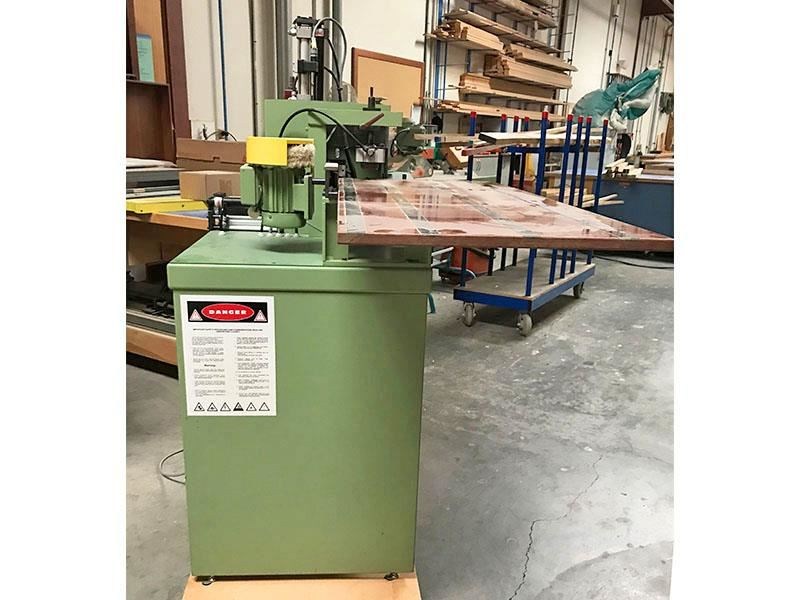

BRANDT FP 10 Corner Rounding Unit: -- Specifications:Free standing unit for profiling, shaping, chamfering or rounding most common type & shape of corner/edge on an edgebanded panel. -- Capacity: 55 mm (2-1/8") Max. panel thickness, 90 x 140 mm min. panel size, 3 mm max. edge thickness (depending on radius & edge material). Plunge in & plunge out points for tooling are programmable on operator control panel with digital readout. -- Automatically scans profile with an SPS control, handles 90° & 180° symmetric profiles; tracing wheel & shoe follow exact shape contour of edgeband of corner. -- Equipped with: 0.75 HP - 27,000 RPM Motor, pneumatic clamping cylinder and optional 0.25 HP table mounted Buffing Wheel; electro-pneumatic operation with foot pedal control.
