Description:

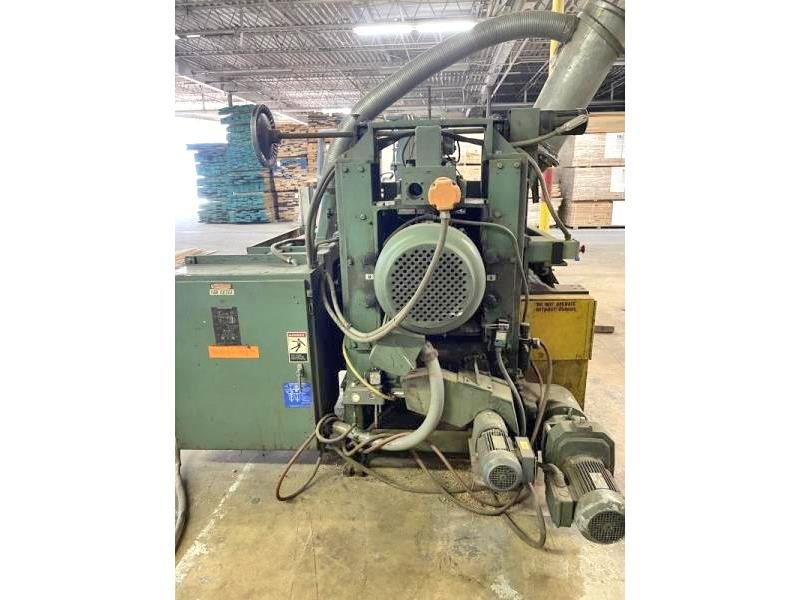

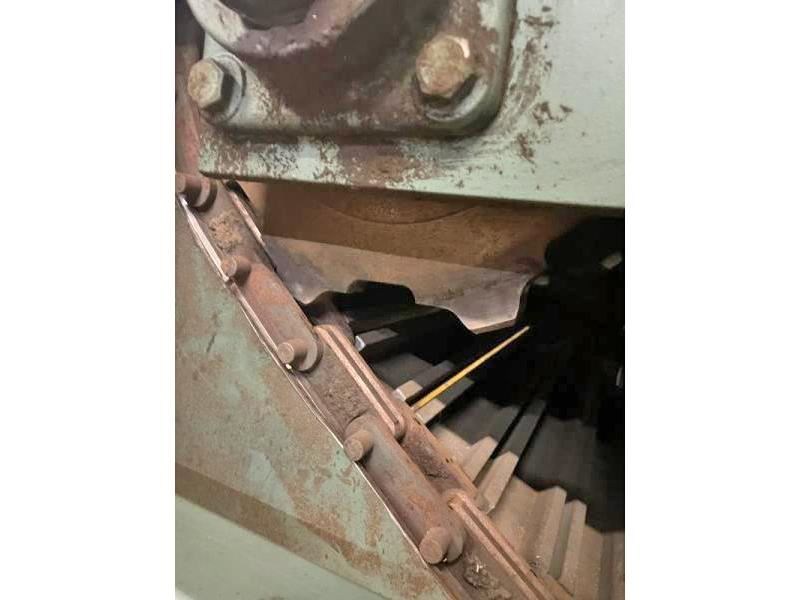

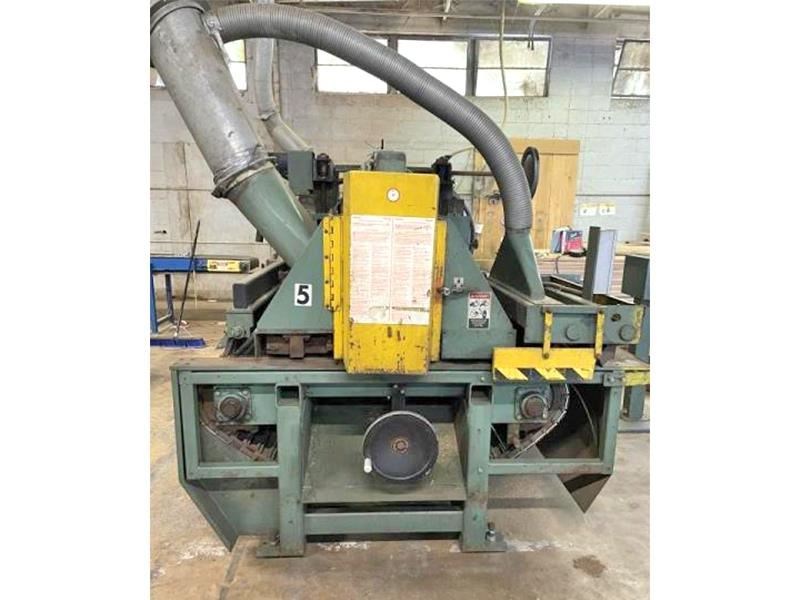

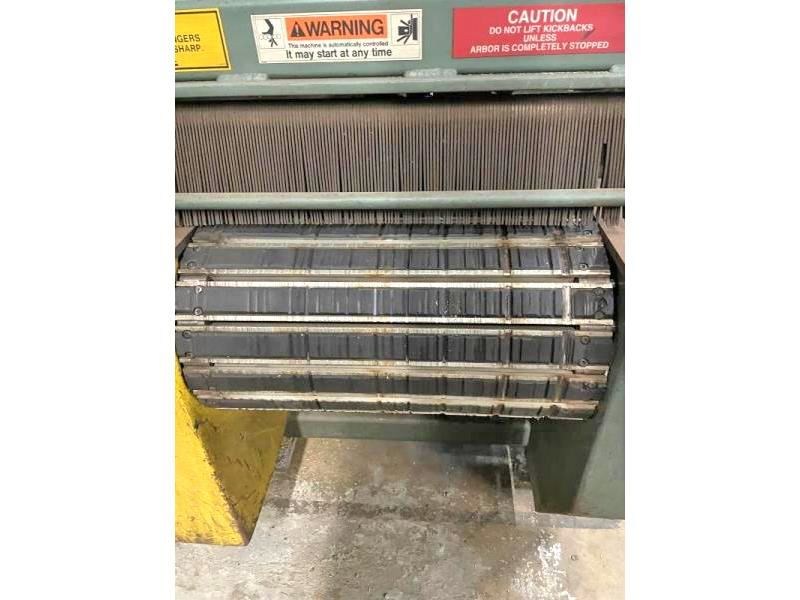

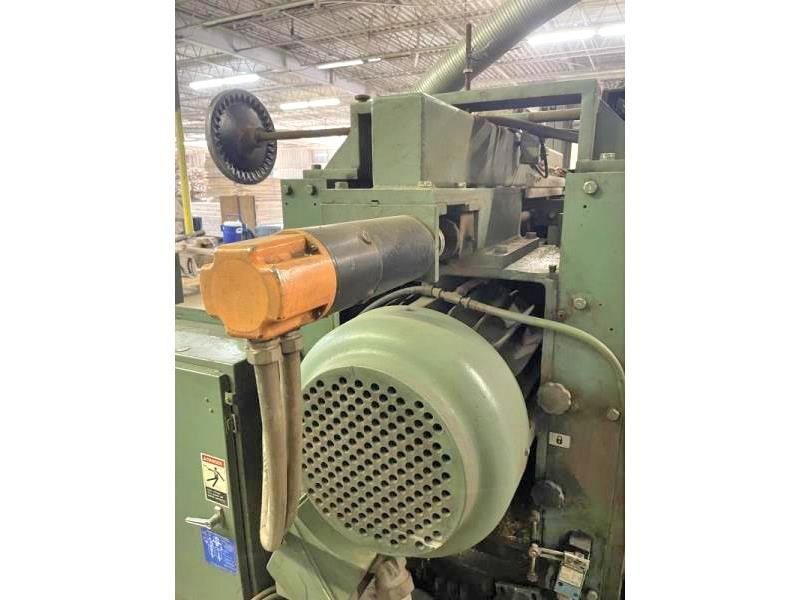

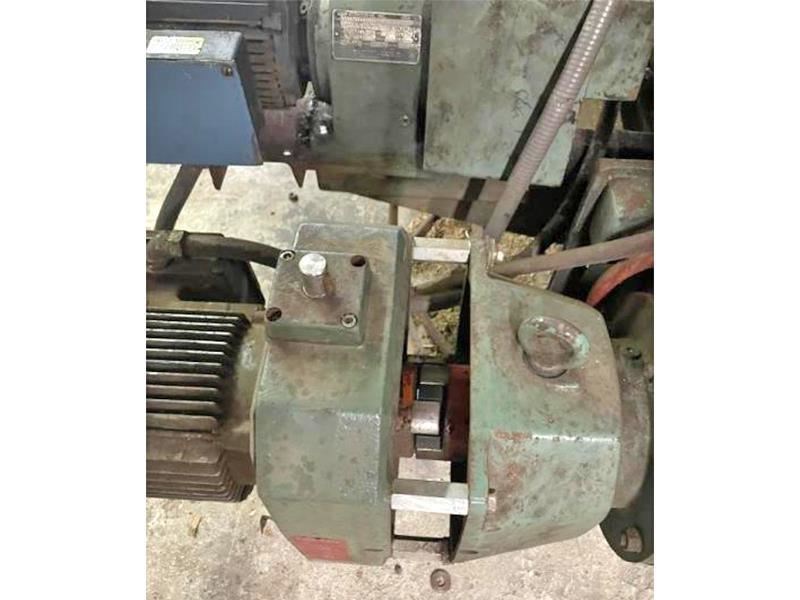

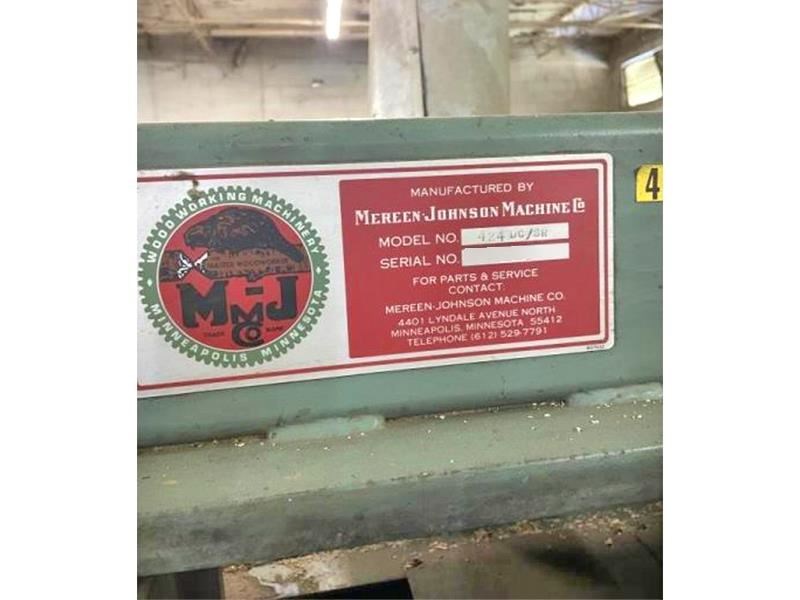

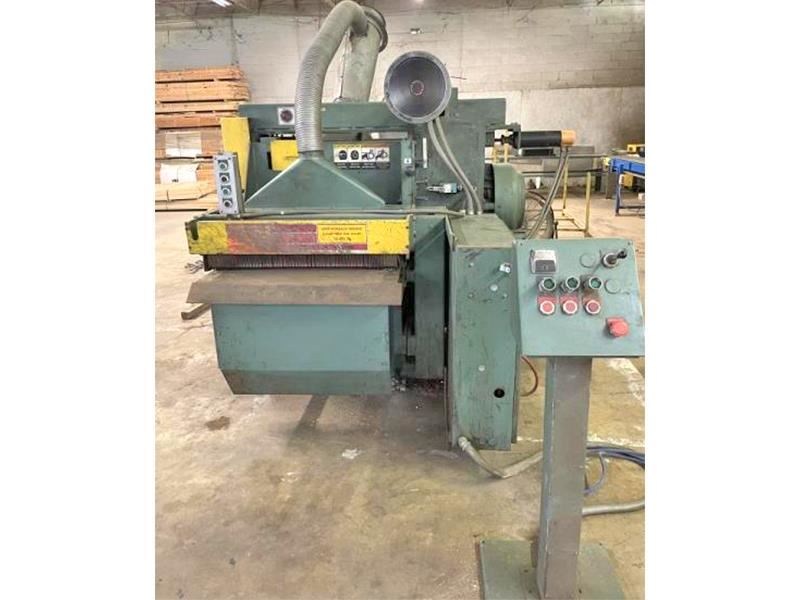

MEREEN-JOHNSON Model "424-DC/SR ( 1 ) Moving Blade Gang Rip SawSpecifications -- 24" Arbor cap., -- 14" max. dia. tooling, -- 3-1/2" max., -- 22" min. length, 6" throat. -- "Select-A-Rip" multiple Rip Saw with rapid adjustment of (1) moveable saw blade (shifts at approx. 3" per second); can be used independently or in conjunction with a gang sleeve arrangement; provides straight line gang ripping while maintaining optimum yield and delivering glue-joint accuracy.Equipped with & Features -- Select-A-Rip includes a control console and overhead laser lights for accurate blade positioning. -- 75 HP - 3,600 RPM TEFC Direct drive motor. -- Feed & chain: 3 HP Variable feed speed from 50 - 150 FPM, -- M-J "Posi-Feed" dip bed carried on 5" pitch hardened double-V chain, "Quad Life" hardened dip cams, -- Extruded structural aluminum feed bed slats with replaceable steel backed rubber insert strips, -- Automatic chain oiler with low level shutoff. --: (4) 3" Dia. air loaded overhead pressure rolls; full width spring loaded overhead bed plate, -- Eight ( 8 ) adjustment with scale & pointer reference; -- Anti-kickback finger system with (1) lower & (2) upper on infeed. -- (2) Upper dust hoods, (1) 10" & (1) 5" dia., requires 3,820 CFM. -Note From The Seller Machine was used in a low production environment and has low hours.
