Description:

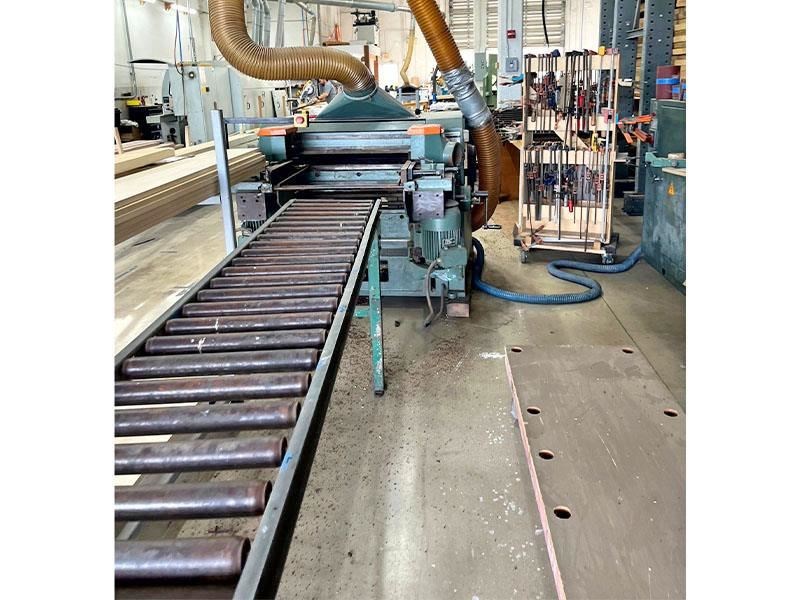

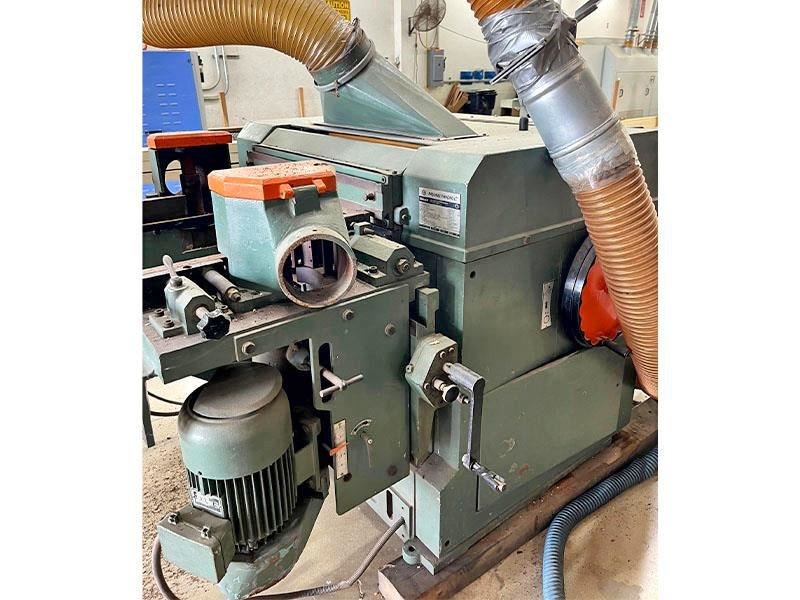

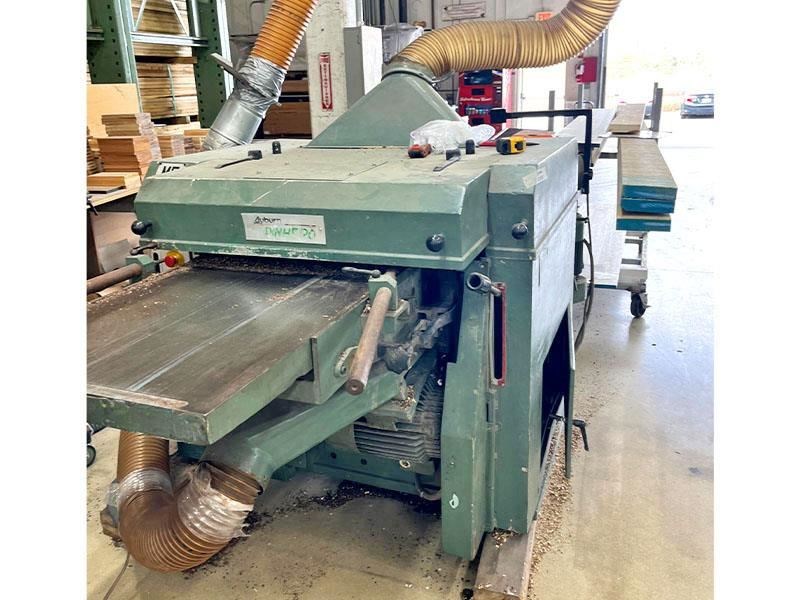

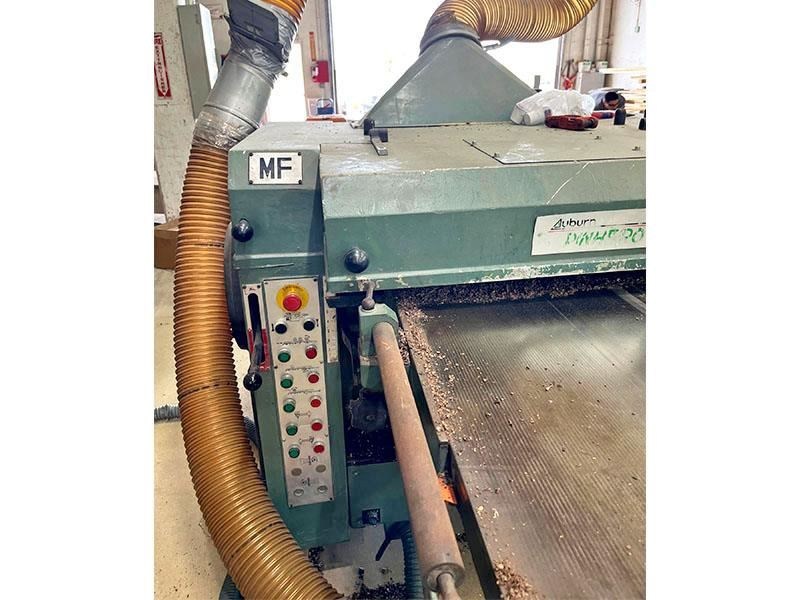

PINHEIRO - MF 4-630: 4-Sided PlanerSpecifications: -- 24" Planing width and 20" molding width cap.; 8" max. motorized opening via 1/2 HP motor. -- Top Head: 18 HP; 5" x 25", 4 knives; 5,500 RPM; cutting circle: 50-1/4"; max chip removal: 3/8". -- Bottom Head: 12 HP Motor; 5" x 25"; (4) knives; 5,500 RPM; cutting circle: 5-1/4"; max. chip removal: 3/8". -- (2) Side heads (opposed) with: 8" Spindle capacity; 9 HP each motor; vertical adjustment: 4". -- 11/16" Max. profile depth; 5-1/2" max. tool dia.; 1-13/16" spindle dia. x 8" long at 5,000 RPM. -- 4 HP Feed drive; variable feed speed: 10 - 100 FPM; 39" infeed bed; (6) powered feed rolls; sectional feed rolls; sectional chipbreaker; central lubrication system.Complete with: -- High speed steel knives in the top & bottom heads; dust hoods.
