Equipment For Sale

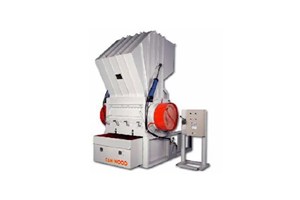

CAM-WOOD WX-1502H Horizontal GrinderFeatures Impact resistant tooling with excellent wear capability. Specifications: -- Horizontal feed, 20 HP - 1,750 RPM drive motor; 15-3/8" x 2-3/8" infeed chute; 8" dia. air discharge. -- Equipped with: -- (18) rotary cutter sets with cutter head angle to allow aggressive cutting rates and high-speed shredding of waste; (4) stationary cutter sets; 10" dia. rotor; 575 RPM. -- The shaft rest for the cutter head is constructed by round hollow with special angle for cooling during production. -- Complete with: -- Removable screen for easy cleanup and chip size changes from standard 1/2". -- Includes: -- Operators' & Parts Manual and covered by (1) Year Warranty.

CAM-WOOD - VPS AV, ...CNC Fully Automatic Vertical Saw w/Scoring & Panel Lifting ClampsPC Control Panel with Software Optimizing Panel Cuts, Automatic Positioning System; the machine automatically switches to the vertical and horizontal position by Automatic Positions System.Capacity: -- Top to Bottom cutting height is 82-1/2" (2,100 mm) without scoring and 78-3/4 (2,000 mm) with scoring; saw head w/motor rotates 90° for rip or crosscutting. -- Cutting length 161.4" (4,100 mm); cuts single or stacked panels up to 1.57" (40 mm) in thickness. Equipped with: -- 4 HP Motor; 250 mm (10") dia. x 80-tooth x 30 mm bore main blade rotate at 5,800 RPM; separate 3.15" dia. scoring blade belt driven at 7,800 RPM to insure clean cuts on everything from Plywood to Melamine to Hardwood. -- 2-Motorized panel lifting clamps "grab panel on top edge" for bottom cuts, clamps travel on (2) vertical screws for positioning of panels (660 Lbs cap.). -- (2) LED Readouts, (1) for crosscutting at the middle of the frame and (1) for horizontal rip cuts; (2) flip stops for crosscut measuring, one located on the bottom rail and the other on the mid-height measuring rail. -- Programmable Panel Drive System with +/- 0.1 mm accurate positioning to preprogrammed lengths. Complete with: -- Foldout shelf at the middle of the frame for small part cutting; automatically shifting material back support grid shifting away from the saw blade cutline prevents cutting into the grid support strips while rip cutting horizontally. -- Precision ground bottom edge support rollers with double bearings to facilitate easy loading & positioning of the larger or heavy panels; standard inch preset "beam lock" stations. -- Vertical cutting stations are spaced at 40" or 1,000 mm increments to lock in the saw beam for vertical crosscuts. -- Rip gauge for repeat (same size) rip cuts and (3) adjustable preset stops; material always rests firmly against the "angled" back grid support. -- Spring-loaded floating saw blade enclosure shoe glides over panel surface applying a holddown force while it enhances dust collection & safety by enclosing the saw blades. -- Includes: -- Automatic Lock System; Repeat Cutting Device; (1) 250 mm (10") dia. 80-tooth, 30 mm bore main blade; (1) 125 mm (4.92") dia. 24-tooth, 20 mm bore scoring blade.Optional label printer available for additional cost.

CAM-WOOD - VPS I, ...Vertical Panel Saw (82.677" x 161.417" w/Scoring)Top to Bottom cutting height is 2,100 mm with or without scoring; saw head w/motor rotates 90° for rip or crosscutting; cutting length 4,100 mm; cuts single or stacked panels up to 60 mm (2.36") in thickness. Standard features: -- 4 HP Motor with a 250 mm (10") dia. 80-tooth main saw blade. -- Separate 3.15" Dia. scoring blade, belt driven at 7,800 RPM; single-screw adjustment for side-to-side and depth. -- Auto-shifting material back support grid; shifting away from the saw blade cut line prevents cutting into the grid support strips while rip cutting horizontally; it senses the blade/cutter position and automatically shifts away. Equipped with: -- Precision ground bottom edge steel support rollers to facilitate easy loading and positioning of the larger or heavy panels; both standard inch and metric preset "beam lock" stations. -- Vertical cutting stations are spaced at 40" or 1,000 mm increments to lock-in the saw beam for vertical crosscuts. -- (2) Adjustable flip stops on inch (metric available) measuring scales, one located on the lower rail and the other on the foldout shelf at the middle of the frame. -- Retractable Material Support Shelves throughout the entire length of the machine frame allows for ergonomic cutting of smaller parts, at any cutting station without the need for the operator to bend down.Includes: -- (1) 250 mm (10") dia. 80-tooth, 30 mm bore main blade; (1) 80 mm (3.14") dia. 24-tooth, 20 mm bore scoring blade; Repeat Cutting Device.Optional Equipment available: Built-in Dust Collector, please add ...$ 1.250.

CAM-WOOD - VPS I +, ...Vertical Panel Saw (82.67" x 161.41" w/Scoring), Vertical-Horizontal Digital Readouts & Auto Lock System. Top to Bottom cutting height is 2,100 mm with or without scoring; saw head w/motor rotates 90° for rip or crosscutting; cutting length 4,100 mm; cuts single or stacked panels up to 60 mm (2.36") in thickness.Standard features: -- 4.0 HP Motor (5.5 HP Option) with a 250 mm (10") dia. 80-tooth main saw blade. -- Separate 80 mm (3.15") Dia. scoring blade, belt driven at 7,800 RPM; single-screw adjustment for side-to-side and depth. -- Auto-shifting material back support grid; shifting away from the saw blade cut line, prevents cutting into the grid support strips while rip cutting horizontally; it senses the blade/cutter position and automatically shifts away. Equipped with: -- Precision ground bottom edge steel support rollers to facilitate easy loading and positioning of the larger or heavy panels; both standard inch and metric preset "beam lock" stations. -- Vertical cutting stations are spaced at 40" or 1,000 mm increments to lock in the saw beam for vertical crosscuts. -- (2) Adjustable flip-stops on inch (metric available) measuring scales, one located on the lower rail and the other on the foldout shelf at the middle of the frame. -- Repeat Rip Gauge for duplicating multiple horizontal cuts. -- Retractable Material Support Shelves throughout the entire length of the machine frame allows for ergonomic cutting of smaller parts, at any cutting station without the need for the operator to bend down.Includes: Vertical-Horizontal Digital Readouts; Pneumatic lock System; Repeat Cutting Device; (1) 250 mm (10") dia. 80-teeth, 30 mm bore main blade; (1) 80 mm (3.14") dia. 24-tooth, 20 mm bore scoring blade.Optional Equipment available: Built-in Dust Collector, please add ... $ 1,250.

CAM-WOOD - VPS IS Compact, ...Vertical Panel Saw (76" x 122" w/Scoring)Short 10' Frame Compact Model with Scoring offers many features in a compact space-saving design. -- Top to Bottom cutting height is 2,030 mm (78-3/4") without scoring and 1,930 mm (76") with scoring; saw head w/motor rotates 90° for rip or crosscutting. -- Cutting length "rip cut from left/right" is 3,100 mm (122"); cuts single or stacked panels up to 42 mm (1-5/8") in thickness.Features: -- Separate 5" dia. scoring blade belt driven at 7,800 RPM to insure clean cuts on everything from Plywood to Melamine & Hardwood, especially preventing surface chipping when cutting laminated materials. -- Includes: -- 4 HP Motor and true scoring with a 125 mm (5") dia. 24-teeth blade, 250 mm (10") dia. 80-tooth main blade; spring loaded floating saw blade enclosure - shoe glides over panel surface applying a holddown force while it enhances dust collection & safety by enclosing the saw blades. -- Auto-shifting material back support grid shifting away from the saw blade cutline prevents cutting into the grid support strips while rip cutting horizontally; it senses the blade/cutter position and automatically shifts away.Equipped with: -- Precision ground bottom edge support rollers to facilitate easy loading & positioning of the larger or heavy panels; both standard inch & metric preset "beam lock" stations. -- Vertical cutting stations are spaced at 40" or 1,000 mm (in inch or metric) increments to lock in the saw beam for vertical crosscuts. -- (2) Adjustable flip-stops on inch (metric available) measuring scales, one located on the lower rail and the other on the foldout shelf at the middle of the frame. -- Retractable Material Support Shelves throughout the entire length of the machine frame allows for ergonomic cutting of smaller parts, at any cutting station without the need for the operator to bend down. -- Includes: -- Pneumatic lock System; Repeat Cutting Device; (1) 250 mm (10") dia. 80-tooth, 30 mm bore main blade; (1) 80 mm (3.14") dia. 24-tooth, 20 mm bore scoring blade.Optional: -- Add ACCURATE TECHNOLOGY Proscale Digital Readouts on X & Y axis ($ 2,000 upgrade).

CAM-WOOD - VPS Twin, ...Automatic Vertical Panel Saw, for Cutting & Grooving Aluminum Composites (78-3/4" x 157-1/2").The VPS TWIN is engineered with specific features for cutting or grooving Aluminum Composite or similar materials. Top to Bottom cutting height is 2,000 mm (78-3/4"). Saw head w/motor rotates 90° for rip or crosscutting grooving.Automatic Cutting Cycle: Cutting or grooving length "rip cut: Left/right" is 4,000 mm (157-1/2"); cuts or grooves panels up to 20 mm (3/4") in thickness; Digital LED readout scales for both X- & Y-axis measurement. Unique saw head design: (1) Standard Saw blade and (1) V-grooving blade all in (1) housing. An operator can select a standard or V-grooving cut automatically by a flip of a switch. Automatic “Flip of the Switch"; changeover from a cut-to-size blade cutting operation to channel grooving cutting; includes precision depth control required for ACM (Aluminum Composite Material) panel grooving and bending.4.0 HP Motor (5.5 HP Option): Spring-loaded floating shoe guide enhances dust collection and safety by enclosing the blades & cutterhead, automatically shifting material back support grid; shifts away from the saw blade cut line, preventing cuts into the grid support strips, while rip cutting horizontally; grid senses the blade/cutter position and automatically shifts away, built-in Dust Collection with collection bag mounted on the rear of the Saw frame. Alternatively, remove & bypass the bag for easy connection to your existing Dust Collection System.Equipped with: Precision ground bottom edge support rollers to facilitate easy loading & positioning of the larger or heavy panels.Vertical cutting stations are spaced at 40" increments to lock in the Saw beam for vertical crosscuts. Cross- or rip cutting: Material always rests firmly against the "slightly angled" back grid support; repeat rip gauge for duplicating multiple horizontal cuts; a foldout shelf that runs the entire length of the frame for small parts cutting and (2) standard flip-stops for dimension setting.Includes WARRANTY: 12-Month Factory Warranty covering defective parts and workmanship (not including wear parts); 6-Month Factory Warranty on electrical; manuals; (1) 62T x 230 mm dia. Main Saw Blade; (1) 10T x 200 dia. V-grooving blade (90°); 5,800 RPM.

CAM-WOOD WX-4150 Vertical Grinder-ShredderImpact resistant tooling with excellent wear capability. Specifications & features: -- Vertical-feed Chute, 50 HP - 1,750 RPM drive motor; 41" x 12" infeed chute; (12) rotary cutter sets with cutter head angle to allow aggressive cutting rates and high speed shredding of waste. -- The shaft rest for the cutter head is constructed by round hollow with special angle for cooling during production. -- Complete with: -- Removable screen for easy clean up and chip size changes from standard 1/2". -- OutPut: -- 1,300 - 1,800 Lbs/Hr, depending on material and moisture content. -- Includes: -- Operators' & Parts Manual and covered by (1) Year Warranty.

CAM-WOOD - XL 300, ...Dip Chain Gang Rip Saw: Short Stock version12" Width cap.; 3/8" min. to 3-3/4"; max. cutting depth; 7" min. stock length.Specifications: -- 70 mm Dia. saw sleeve (one is included) with (2) keyways and the following spacers: (4) 15 mm, (4) 10 mm, (18) 1 mm, (10) 0.5 mm, and (8) 0.25 mm (see drawing after the "literature link); with 12"; usable cutting width. -- Accepts saw blades from 10"; - 12"; dia.; arbor is powered by a 40 HP motor driving the spindle at 3,200 RPM. -- Feed chain is powered by a 2 HP motor with variable chain speeds from 30 - 100 FPM; feed chain is 12"; wide. -- Table: 28"; Wide x 67"; with 12"; between the column and the 1st saw blade. - Integrated 6"; dia. dust extraction connection.General Description: -- Designed for high-quality Production Line use. CAM-WOOD’s Rip Saws are manufactured to precise tolerances and feature the newest designs for operator safety and volume production. -- Precision fence ensures absolute accuracy between blade & fence; equipped with: Measuring ruler gauge. -- Triple anti-kickback fingers mounted at the infeed side provide max. safety protection; (2) rows from the top and (1) row from the bottom. -- Heavy-Duty industrial motor for powerful cutting capacity. -- Ruggedly constructed cast iron frames for durability usage.Feed System: -- Variable feed speed enables the machines to meet different requirement of work. -- V-way track and chain block surface are heat-treated for long wear resistance. -- Automatic lubrication to V-Way track facilitates chain running smoothly. -- Auto lubrication device is equipped with an alarm that sends signals upon a lack of lubrication oil to increase the durability of the machines. Features & Equipped with: -- Precision-built saw head ensures accuracy for straight-line rip saw operations. -- (4) Bearing spindle assembly ensures rigidity & long life. -- Power raise & lower to the arbor. -- (4) Pressure rollers & (2) holddown plates for precise cutting of large and small workpieces. -- 10-Piece V-Belt for max. motor power output and guarantees Heavy-Duty multiple rip cutting. -- The saw arbor is manufactured from NI-Cr-MO alloy steel for durability and anti-fatigue, heat treated, precision ground and balanced providing precise cutting performance. -- Adjustable guide rollers make cutting straight or slight radial rip cuts. They also firmly secure lumber to the feed chain for glue joint work on short parts or longer length boards.

CAM-WOOD - XL 300, ...Dip Chain Gang Rip Saw: (...Typically in stock for immediate delivery!)12" Width cap.; 3/8" min. to 4-3/4"; max. cutting depth; 14"; min. stock length.Specifications: -- 70 mm Dia. saw sleeve (one is included) with (2) keyways and the following spacers: (4) 15 mm, (4) 10 mm, (18) 1 mm, (10) 0.5 mm, and (8) 0.25 mm (see drawing after the "literature link); with 12"; usable cutting width. -- Accepts saw blades from 12"; - 14"; dia.; arbor is powered by a 50 HP motor driving the spindle at 3,200 RPM. -- Feed chain is powered by a 2 HP motor with variable chain speeds from 30 - 100 FPM; feed chain is 12"; wide. -- Table: 30"; Wide x 62"; with 12"; between the column and the 1st saw blade. - Integrated 6"; dia. dust extraction connection.General Description: -- Designed for high quality Production Line use. CAM-WOOD’s Rip Saws are manufactured to precise tolerances and feature the newest designs for operator safety and volume production. -- Precision fence ensures absolute accuracy between blade & fence; equipped with: Measuring ruler gauge. -- Triple anti-kickback fingers mounted at the infeed side provide max. safety protection; (2) rows from the top and (1) row from the bottom. -- Heavy-Duty industrial motor for powerful cutting capacity. -- Ruggedly constructed cast iron frames for durability usage.Feed System: -- Variable feed speed enables the machines to meet different requirement of work. -- V-way track and chain block surface are heat-treated for long wear resistance. -- Automatic lubrication to V-Way track facilitates chain running smoothly. -- Auto lubrication device is equipped with an alarm that sends signals upon a lack of lubrication oil to increase the durability of the machines. Features & Equipped with: -- Precision-built saw head ensures accuracy for straight line rip saw operations. -- (4) Bearing spindle assembly ensures rigidity & long life. -- Power raise & lower to the arbor. -- (4) Pressure rollers & (2) hold-down plates for precise cutting of large and small workpieces. -- 10-Piece V-Belt for max. motor power output and guarantees Heavy-Duty multiple rip cutting. -- The saw arbor is manufactured from NI-Cr-MO alloy steel for durability and anti-fatigue, heat treated, precision ground, and balanced, providing precise cutting performance. -- Adjustable guide rollers make cutting straight or slight radial rip cuts. They also firmly secure lumber to the feed chain for glue joint work on short parts or longer length boards. Options when ordering with machine: -- (1) Set spare feed chain link, please add ...$ 96. -- (1) Set of arbor drive belts consisting of (6) matched belts, add ...$680. -- Additional saw sleeve with spacer set consisting of: (2) 50 mm, (3) 25 mm, (4) 10 mm, (18) 1 MM, (10) 0.5 mm, (8) 0.25 mm, Please add... $745

CAM-WOOD - VPS I +, ...Vertical Panel Saw (76" x 122" w/Scoring), Vertical/Horizontal Digital Readouts & Auto-Lock SystemTop to Bottom cutting height is 2,000 mm (76") with or without scoring; saw head w/motor rotates 90° for rip or crosscutting; cutting length 3,100 mm; cuts single or stacked panels up to 60 mm (2.36") in thickness.Standard features: -- 4.0 HP Motor (5.5 HP Option) with a 250 mm (10") dia. 80-teeth main saw blade. -- Separate 80 mm (3.15") Dia. scoring blade, belt driven at 7,800 RPM; single-screw adjustment for side-to-side and depth. -- Auto-shifting material back support grid; shifting away from the saw blade cutline, prevents cutting into the grid support strips while rip cutting horizontally; it senses the blade/cutter position and automatically shifts away. Equipped with: -- Precision ground bottom edge steel support rollers to facilitate easy loading and positioning of the larger or heavy panels; both standard inch and metric preset "beam lock" stations. -- Vertical cutting stations are spaced at 40" or 1,000 mm increments to lock-in the saw beam for vertical crosscuts. -- (2) Adjustable flip-stops on inch (metric available) measuring scales, one located on the lower rail and the other on the fold-out shelf at the middle of the frame. -- Repeat Rip Gauge for duplicating multiple horizontal cuts. -- Retractable Material Support Shelves throughout the entire length of the machine frame allows for ergonomic cutting of smaller parts, at any cutting station without the need for the operator to bend down.Includes: Vertical/Horizontal Digital Readouts; Pneumatic lock System; Repeat Cutting Device; (1) 250 mm (10") dia. 80-tooth, 30 mm bore main blade; (1) 80 mm (3.14") dia. 24-tooth, 20 mm bore scoring blade.Optional Equipment available: Built-in Dust Collector, please add ...$ 1,250.

CAM-WOOD XL300/5116 DIP CHAIN GANG RIPSAW12" Width cap.; 5-5/8"; max. cutting depth; 14"; min. stock length; Designed to meet the exacting standards required for high quality production line use. CAM-WOOD’s Rip Saws are manufactured to precise tolerances, and feature the newest designs for operator safety and volume productionSpecifications: -- Accepts saw blades from 12"; to 16"; diameter. -- Arbor is 70mm dia. with (2) keyways -- Saw arbor is powered by a 60 HP motor driving the spindle at 3,200 RPM; Soft start starters and low voltage controls are standard equipment. -- Feed chain is powered by a 2 HP motor with variable chain speeds from 8 to 80 FPM; feed chain is 12"; wide -- Table is 28"; wide x 67"; and 12"; between the column and the 1st saw blade. -- (2) Integrated 6"; dia. dust extraction connections.Complete With: -- (1) 70 mm ID saw sleeve with (2) keyways and the following spacers: (4) 15 mm, (4) 10 mm, (18) 1 mm, (10) 0.5 mm, and (8) 0,25 mm (see drawing after the "literature link). -- Two (2) rows of anti-kickback fingers mounted on the top and one (1) row from the bottom (total 3 rows) provides maximum safety protection. Equipped with: -- Precision fence ensures absolute accuracy between blade & fence, equipped with measuring ruler gauge. -- Power raise and lower to the arbor. -- Heavy-duty industrial motor for powerful cutting capacity. -- Ruggedly constructed cast iron frame for durability usage. -- Variable feed speeds enables the machine to meet different work requirements. -- V-way track and chain block surface are heat-treated for long wear resistance. -- Automatic lubrication to V-Way track facilitates chain longevity smoothness -- Automatic chain lubrication device equipped with an alarm that sends signals upon a lack of lubrication oil. Features: -- Precision built saw head ensures accuracy for straight line rip saw operations. -- Four (4) bearing spindle ensures rigidity & long life. -- Saw arbor is manufactured from NI-Cr-MO alloy steel for durability and anti-fatigue; spindle is heat treated, precision ground and balanced to provide the utmost in precision cutting performance -- Four (4) pressure rollers & two (2) hold-down plates for precise cutting of large and small workpieces. -- Ten (10) groove pulley and V-Belt arrangement ensures maximum motor output, excellent HP delivery to the saw spindle, and guarantees proper power transmission for heavy-duty multiple rip cutting. -- Adjustable guide rollers make cutting straight for slight radials material; they also secure glue joint at short pieces or long stacks.Options when ordered with machine: -- Additional saw sleeves (sleeve only), each, $415 -- Additional saw with spacer set consisting of: -- (2) 50 mm -- (3) 25 mm -- (4) 10 MM, -- (18) 1 MM -- (10) 0.5 MM -- (8) 0.25 MM -- Add per Sleeve with Spacer Set, $795 -- Laser Light with Mounting Bracket, each $1,190 -- Power raise & lower of the hold-down system when ordered with

CAM-WOOD WS-DA2560 Wide Belt Sander, (2) HeadsWith the two-head 25" width capacity wide belt sander, you can accurately, and heavily sand your stock with the first drum head and with the second combination head you can give an unlimited fine finish. -- Rugged heavy-duty sheet metal construction designed for durability usage -- Powerful industrial motors drive sanding and auto infeed smoothly. -- Infeed and outfeed are spring-loaded hold-down rollers to ensure positive feeding without sanding marks. -- Combination platen & drum sanding head for best sanding choice such as: -- With the platen up, the sander functions as a drum-only machine, for sanding with a 40 ~ 100 grit belt. -- With the platen and drum same level, intermediate and final finishing is possible, using a grit of 120 ~ 180. -- With the platen down (below the drum), used for the fine finishing or lacquer sealer sanding, with 180 ~ 600 grit.Head Configuration1st Head : 15 HP Drum2nd Head : 10 HP Combination HeadSpecifications: -- Max. Working Width 25" Max. -- Working Thickness 5" -- Min Working Length 12½" -- Sanding Belt Dimensions (W x L) 25" x 60" -- Dust Collection Hood (Dia x Holes) 5" x 2 -- Main Motor 15, 10 HP; -- Feed Motor 2 HP -- Table Raising / Lowering Motor ½ HP -- Var. Feed Speed (FPM) 20 ~ 80 20 -- Working Air Pressure 6 CFM -- Exhaust Volume Require 1800 CFM -- N.W. 4400 Lbs - G.W. 5000 LbsEquipped with and Features -- Sanding platen with a quick release and lock down design for easy removal or loading of graphite platen. -- Computerized thickness adjustment control with accurate digital readout; key in the size desired and automatic table movement for sanding thickness within 0.005"; accuracy. -- Large-size diameter contact drum is dynamically balanced, rubber-covered spiral grooves designed to provide considerable advantages for the effective removal of material. -- Special rubber feed belt for safe non-slipping, transporting the workpieces. -- The abrasive belts are tracked by oscillating cylinders linked to the upper roller. The edge of the belt is detected by an electric eye sensor, which in turn controls the air supply to the position via solenoid value. Also, one limit switch is located on each end of the top roller of the sandpaper for quick stop in case of belt breakage. -- The main table is designed with a convenient leveling adjustment which ensures greater stability with excellent tolerance providing a variable range from 0"; ~ 5"; sanding thickness. -- (4) Heavy-duty jack screws power conveyor table elevation.

CAM-WOOD WS-DA3760 Wide Belt Sander, (2) HeadsWith the two-head wide belt sander, you can accurately, and heavily sand your stock with the first drum head, and with the second combination head, you can give an unlimited fine finish.Application: -- Rugged heavy-duty sheet metal construction designed for durability usage. -- Powerful industrial motors drive sanding and auto infeed smoothly. -- Infeed and outfeed have spring-loaded hold-down rollers to ensure positive feeding without sanding marks. -- Combination platen & drum sanding head for best sanding choice such as: --With the platen up, the sander functions as a drum-only machine, for sanding with a 40 ~ 100 grit belt. -- With the platen and drum same level, intermediate and final finishing is possible, using a grit of 120 ~ 180. -- With the platen down (below the drum), used for the fine finishing or lacquer sealer sanding, with 180 ~ 600 grit.Head Configuration:1st Head : 20 HP Drum2nd Head : 15 HP Combination HeadSpecifications: -- Max. Working Width 37" Max. -- Working Thickness 5". -- Min Working Length 12½". -- Sanding Belt Dimensions (W x L) 37" x 60". -- Dust Collection Hood (Dia x Holes) 6" x 2. -- Main Motors 20 and 15 HP. -- Conveyor bed Feed Motor 2 HP. --Table Raising / Lowering Motor 1/2 HP -- Variable Feed Speed 20 - 80 FPM. -- Working Air Pressure 6 CFM. -- Exhaust Volume Require 2,400 CFM. -- N.W. weight 5,100 Lbs.Equipped with and Features: -- Sanding platen with a quick release and lock down design for easy removal or loading of graphite platen. -- Computerized thickness adjustment control with accurate digital readout; key in the size desired and automatic table movement for sanding thickness within 0.005"; accuracy -- Large size diameter contact drum is dynamically balanced, rubber-covered spiral grooves designed to provide considerable advantages for the effective removal of material. -- Special rubber feed belt for safe non-slipping, transporting the workpieces. -- The abrasive belts are tracked by oscillating cylinders linked to the upper roller. The edge of the belt is detected by an electric eye sensor, which in turn controls the air supply to the position via solenoid value. Also, one limit switch is located on each end of the top roller of the sandpaper for quick stop in case of belt breakage. -- The main table is designed with the convenient leveling adjustment which ensures greater stability with excellent tolerance providing a variable from 0"; ~ 5"; range sanding thickness. -- (4) Heavy-duty jackscrews power conveyor table elevation.

CAM-WOOD WS-DA4375X DUAL HEAD WIDE BELT SANDERWith the two-head wide belt sander, you can accurately, heavily sand your stock with the first drum head, and with the second combination head, you can give an unlimited fine finish.Application: -- Rugged heavy-duty sheet metal construction designed for durability usage. -- Powerful industrial motors drive sanding and auto infeed smoothly. -- Infeed and outfeed have spring-loaded hold-down rollers to ensure positive feeding without sanding marks. -- Combination platen & drum sanding head for best sanding choice such as: --With the platen up, the sander functions as a drum only machine, for sanding with a 40 ~ 100 grit belt. -- With the platen and drum same level, intermediate and final finishing is possible, using a grit of 120 ~ 180. -- With the platen down (below drum), used for the fine finishing or lacquer sealer sanding, with 180 ~ 600 grit.Head Configuration:1st Head : 30 HP Drum2nd Head : 20 HP Combination HeadSpecifications: -- Max. Working Width 43" Max. -- Max. Working Thickness 5". -- Min Working Length 12½". -- Sanding Belt Dimensions (W x L) 43" x 75". -- Dust Collection Hood (Dia x Holes) 6" x 2. -- Main Motors 30 and 20 HP. -- Conveyor bed Feed Motor 3 HP. --Table Raising / Lowering Motor 1/2 HP -- Variable Feed Speed 20 - 80 FPM. -- Working Air Pressure 6 CFM. -- Exhaust Volume Require 3,800 CFM. -- N.W. weight 6,160 Lbs.Equipped with and Features: -- Sanding platen with a quick release and lock down design for easy removal or loading of graphite platen. -- Computerized thickness adjustment control with accurate digital readout; key in the size desired and automatic table movement for sanding thickness within 0.005"; accuracy -- Large size diameter contact drum is dynamically balanced, rubber covered spiral grooves designed to provide considerable advantages for the effective removal of material. -- Special rubber feed belt for safe non-slipping, transporting the workpieces. -- The abrasive belts are tracked by oscillating cylinders linked to the upper roller. The edge of the belt is detected by an electric eye sensor, which in turn controls the air supply to the position via solenoid value. Also, one limit switch is located on each end of the top roller of the sandpaper for quick stop in case of belt breakage. -- Main table designed with the convenient leveling adjustment which ensures greater stability with excellent tolerance providing a variable from 0"; ~ 5"; range sanding thickness. -- (4) Heavy-duty jackscrews power conveyor table elevation.

CAM-WOOD WS-M1000 NAX Planer Sander -- 2 Heads with 39.4" width capacity planer head and combination sanding headFeatures: -- This machine is especially designed for tale off heavy materials such as glue panel, bend board, rough lumber. -- The first head is a knife planer head, with 25 HP motor. The spiral planer cutterhead is fitted with 14 x 14 mm, four edge throw away Tungsten Carbide knife inserts, providing superior chip removal rate, minimum noise, and extremely smooth cutting effect. Changing knife inserts are conveniently done without removing the cutterhead. -- The second head is a combination of drum and platen driven by a 20 HP motor, belt size 40.5" x 78 3/4". (1030mm X 2000 mm) -- Anti-kickback fingers, mounted at the infeed of the machine, this anti-kickback finger gives a safety guard for the operator. -- Insufficient pressure protection, in case insufficient working air pressure occurs, the machine brakes automatically for safety guard.Irreversible running of pressure roller, runs a single direction only, giving an additional safety guard for panel kickback. -- Motorized elevation of conveyor table (micro-computer controlled with digital readout), it accurately displays the position of the conveyor table and automatically moves to the setting thickness for planning, sanding. -- Panel cleaning brush roller; built at outfeed end of the machine, this cleaning brush roller cleans the powder on the sanded panel. -- Hold-down plate is hard chrome treated for maximum wear resistance.Technical Specification: -- Working width 39.4" (1000 mm). -- Working thickness up to 6 1/4". -- Minimum working length 21". -- Feed speed 10 to 90 FPM inverted driven by 3 HP motor. -- Table raised and lowered by 1/2 HP motor. -- Cleaning brush driven by 1/2 HP

CAM-WOOD WS-MN700NAX Planer/Sander Equipped with: -- (2) Heads with 27" width capacity planer head and combination sanding head -- This machine is specially designed for take-off heavy materials such as glued-up panels, bend boards, and rough lumber. -- The first head is a knife planer head, with 20 HP motor. The spiral planer cutterhead is fitted with 14 x 14 MM, four edge throw away Tungsten Carbide knife inserts, providing superior chip removal rate, minimum noise, and extremely smooth cutting effect. Changing knife inserts are conveniently done without removing the cutterhead. -- The second head is a combination of drum and platen driven by a 20 HP motor, belt size 28 3/4" X 75" -- Anti-kickback fingers, mounted at the infeed of the machine, these anti-kickback fingers provide a safety guard for the operator.Features: -- Insufficient pressure protection, in case insufficient working air pressure occurs, the machine brakes automatically for safety guard.Irreversible running of pressure roller, runs a single direction only, giving an additional safety guard for panel kickback. -- Motorized elevation of conveyor table (micro-computer controlled with digital readout), it accurately displays the position of the conveyor table and automatically moves to the setting thickness for planning, sanding. -- Panel cleaning brush roller; built-in at the outfeed end of the machine, the cleaning brush roller cleans the fine sanding dust off the sanded panel. -- Hold-down plate is hard chrome treated for maximum wear resistance.Technical Specification: -- Working width 27" -- Working thickness up to 6 1/4" -- Minimum working length 20" -- Feed speed 20 to 90 FPM inverted driven by 3 HP motor -- Table raised and lowered by 1/2 HP motor -- Cleaning brush driven by 1/2 HP

CAM-WOOD WS-NDA 1300 3-Head Planer Sander[Equipped with Planer, Drum and combi head]Features: -- This machine is especially designed for removing heavy material such as glued-up panels, bent boards, and rough lumber. -- The first station is a knife planer head, followed by a combi head with drum and platen at the second station and a finishing platen head at the third station. -- Head configuration can be made to meet customer’s requirements. -- The spiral planer cutter head is fitted with 14 x 14 MM, four-edge throwaway Tungsten Carbide knife inserts, providing a superior chip removal rate, minimum noise, and an extremely smooth cutting effect. -- Changing knife inserts is convenient without removing the cutter head. The spiral cutter head is precision machined from special aluminum alloy steel, tempered, and precision ground by a CNC machine center. -- Anti-kickback fingers, mounted at the infeed of the machine, this anti-kickback finger gives a safety guard for the operator. -- Insufficient pressure protection: If inadequate working air pressure occurs, the machine brakes automatically for safety guard. -- The irreversible running of the pressure roller runs in a single direction only, giving an additional safety guard for panel kickback. -- Automatic elevation of conveyor table (micro-computer controlled with digital readout): it accurately displays the position of the conveyor table. It automatically moves to the setting thickness for planning and sanding. -- Panel cleaning brush roller: built at the outfeed end of the machine, this cleaning brush roller cleans the powder on the sanded panel. -- Hold-down plate is hard chrome treated for maximum wear resistance.Specifications: -- First head Planer with 40 HP motor -- Second head combi drum & platen with 30 HP motor -- Third head finishing platen with 30 HP motor -- Panel cleaning brush at outfeed with 1/2 HP motor -- Working width: 52" -- Working thickness up to 6 1/4" -- Minimum working length: 21" -- Feed speed 10 FPM to 90FPM inverted driven by 5.5 HP motor -- Table hoist motor 1 HP -- Sanding belt size 52" X 75" -- Floor space requirement: 107" X 103" X 80", weight 12,300 Lbs

CAM-WOOD WP-1010H 40"; Heavy Duty Planer with S.C.H.Features & Specifications: -- Precision ground cast iron table with motorized worktable raising & lowering manual adjustment by hand wheel via (2) large lead screws. -- Digital thickness display with touchpad positioning control for accurate thickness adjustments. -- Maximum thickness capacity 8" -- 5" Spiral cutterhead with 4-sided carbide inserts provide precise, efficient planing with low noise levels. -- With (4) each 4" diameter dust outlets -- 20 HP Main drive motor. -- 3 HP Variable feed speed 10 to 50 FPM. -- Maximum depth of cut 1/4". -- Sectional steel infeed roller & segmented chip breaker. -- Independently adjustable feed rollers. -- (2) Externally adjustable bed rollers. -- Hinged top for easy access to cutterhead & gear assembly. -- Self-braking motor. -- Magnetic starter & thermal overload switch. -- Emergency stop. -- Operations manual, parts list & tool kit. Machining Specifications: -- Max. Cut Width 40" -- Max. Cut Thickness 8" -- Max. Cut Depth ¼" -- Min. Cut Length 9" -- Cutting Speed 3600 RPM -- Table Size (W x L) 43" x 55" -- Main Motor 20 HP, 3 Ph -- Feed Motor 3 HP -- Table Raising Motor 1 HP -- Feed Rate (Variable) FPM 10 ~ 50 -- Net Weight 4,750 Lbs -- Shipping weight 5,500 LbsFOR UPGRADE TO 25 HP ADD ...$900.00

CAM-WOOD WP-1400H 52"; Heavy Duty Planer with S.C.H.55" Cap. solid cast iron construction planer with powerful 25 HP motor.Features & Specifications: -- Precision ground cast iron table with motorized worktable raising & lowering, manual adjustment by hand wheel via (2) large lead screws. -- Digital thickness display with touchpad positioning control for accurate thickness adjustments. -- 5" Spiral cutterhead with 4-sided carbide inserts provide precise, efficient planning with low noise levels. -- With (4) each 4" diameter dust outlets. -- Sectional steel infeed roller & segmented chipbreaker. -- Independently adjustable feed rollers. -- (2) Externally adjustable bed rollers. -- Hinged top for easy access to cutterhead & gear assembly. -- Self-braking motor. -- Magnetic starter & thermal overload switch. -- Emergency stop. -- Operations manual, parts list & tool kit. Machining Specifications: -- Max. Cut Width 52". -- Max. Cut Thickness 8". -- Max. Cut Depth ¼". -- Min. Cut Length 9". -- Cutting Speed 3,600 RPM. -- Table Size (W x L) 55" x 55". -- Main Motor 25 HP, 3 Ph. -- Feed Motor 5 HP. -- Table Raising Motor 1 HP. -- Feed Rate (Variable) 0 ~ 50 FPM. -- Shipping weight 7,400 Lbs.

CAM-WOOD WP-16L- V5HX 4 Sided 5 Heads High Speed Planer Designed for furniture, cabinet, flooring, intermittent planning mill work, and other industrial uses. Perfect Planer for S2S and S4S planning, tongue & groove flooring, wall paneling, etc. up to approximately 180 FPM depending on depth of cuts and dimensions of partsSpecifications: -- Width: ¾"; to 16"; -- Height: 3/8"; to 4"; -- Length: Maximum Unlimited, Minimum 70";. -- Maximum Cutting Depth; 8 mm -- Feed Rate 40 to 180 fpmFeatures:Horizontal Top & Bottom with Slip-On Spiral Head or Optional Profile cutter head, Tooling Information. -- Standard supply with Slip-On HAR Series Profile / Spiral Cutter head, Profile Knives combined with Carbide Insert 15 x 15 x 2,5 mm. Max depth of cut 8 mm each side (Standard 7"; O.D. Shaft 46 mm): Vertical with Helical or Optional Profile cutter heads -- Left & Right Side/ Standard HAR Series Vertical profile heads. -- Max depth of cut 8mm, 7"; OD, Spindle arbor diameter: 40 mm, -- Left & Right-side Heads can be profile work with owner provided tooling. Fifth head for moulding or sawing -- 15 HP Top Saw Head, raise/lower power digital by HMIQuality Features: -- Simple touch screen with Digital Positioning Controllers for width, thickness adjustment and variable feed speed. -- Hard Chrome plated table for long life -- Automatic top spindle – cutter head height adjustments entered via HMI touch screen control with PLC. -- Floating bottom infeed rolls for smooth, positive feeding -- Variable feed speeds by VFD. Controlled from touch screen. -- Heavy-duty spindle assemblies for durability & smooth finishes. -- Overhead assembly travels up/down and positions via touch screen control, Assembly is support by (4) hard chromed, polished posts and precision screws. -- Tables, fences, etc. are precision ground, polished and hard chromed to provide long life and smooth feeding. -- Massive, heavy-duty sheet metal frame for vibration absorbing finishes and extra-long bearing life. Compact construction with exclusive see-through top guard. -- Motor Control Center with under voltage and overload protection. UL and CSA labeled electric components.Motor Sizes and Feed Works: -- Top and Bottom Cutter Heads Motors each: 30 HP, 5,000 RPM -- Right & Left Side Cutter Motors each: 25 HP, 5,000 RPM -- Second top head for Top saw head, raised and lowered motorized digitally by HMI, drive motor 15 HP -- Variable Feed speeds from 40 to 180 FPM by VFD (invertor) -- Feed is powered by (2) each 5 HP VFD feed motors, (1) motor drives the top infeed and (1) Motor drives the top outfeed feed rolls. Top powered feed rolls are air cylinder loaded / Floating. (4) idle bottom infeed feed rolls and (4) idle bottom outfeed rolls.Overall dimensions: 167" X 71" X 73".
