Routers For Sale

CAMASTER - PANTHER 408: Router w/Vacuum Pump -- SpecificationsMaterial processing dimensions: 48" Wide x 96" long x 8" thick; 11" "Z" axis stroke. -- Fixed 4-zone universal vacuum table for simple clamping of workpiece to machine; moving gantry bridge rides on high precision HIWIN linear rails for consistent movement & accurate cutting. -- Welded structural steel machine base: Provides solid foundation for superior cut quality; tool gantry & bridge travel by rack & pinion; vertical axis travels on ball screws for smooth consistent movement. -- Working UnitsIndustrial grade direct drive: 4 HP (3 kW) HSD router spindle; variable tool speed: Up to 18,000 RPM allows for the right cutting speed in any application. -- X- & Y-Axis; 1,500 IPM traverse speed for quick movement between cutting cycles to reduce total CNC machining time. -- Includes Windows-based CNC control preloaded on a PC (included); very intuitive interface; quick to learn and easy to use. -- Full-featured machine Operating System with: On-screen tool path graphics & CAM software; controller accepts direct import of: DXF, HPGL, BMP, or JPEG files & will create machine code simply & easily with a few "clicks" from the mouse. -- Compatible with virtually all CAD/CAM programming software on the market, which means you can choose the software that suits your business best. -- IncludesRemote Control Pendant; dust hood with: 4" Dia. inlet; BECKER "VTLF 2.250/10" HP Vacuum Pump & piping; JET Cyclone Dust Collector & ductwork; Toolholder & Collet. -- Actual Model - CAMASTER PANTHER 408 ROUTER.

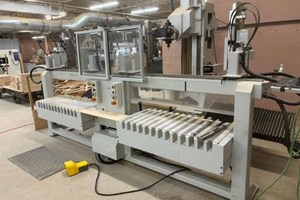

CMS VIVA PF 6-B2-TUCU+GF CNC Router (5-Axis) W/ATC: -- Specifications:High-Speed bridge type 5-axis CNC router with two moving worktables with an overall 228" x 148" Table size. The tables can be used single or synchronized together with head travel of: X-Axis 258", Y-axis 168", Z-axis 47.25". -- Positioning speed:On X- and Y- axis 2,340 IPM, movable tables with loading and unloading on front side end, gantry with head assembly travels in a "shuttle style" across entire table which is divided into left and right working area. -- Equipped with:Router head, air cooled 17.5 HP spindle motor with static inverter frequency changer, infinitely variable speed of 1,200 to 18,000 RPM, accepts "HSK 63F" spindle chuck with 1" collets, features C-axis with 360ø rotation, rotates at a max. speed of 90ø/Sec, B-axis + or - 110ø -- (1) 16-Position ATC tool changer, "HSK 63F" for tool holders with tooling and aggregates,(includes 2 90ø tools each with 2-spindle that are opposed) 300 mm tool dia. and 12 Lbs max. tool weight, mounted on a traveling gantry for an "on-the-fly" tool change. -- Drilling unit:with 17-spindles 9-vertical + 8-horizontal @ 32 mm center distance. Additionally includes (1) drill unit for the under-side of machine. RENISHAW probe for X - Y - Z of the tools in tool holder & parts location from zero. -- Work Area:Support table with phenolic & vacuum hold down; the table is equipped for part support fixtures or parts that can be secured directly to the table, lowerable side and back stops plus 2-extra center stops for each table for the placement of double parts on the table, the table is sectional allows parts to be removed from one end of table while remaining fixed on the other end. -- Operator Interface:"Fanuc 31i-Model B5: Popularly selected for high-precision tooling and heavy-duty milling applications requiring robust multi-axis simultaneous interpolation." Control, port for an RS-232 connection to a PC, floppy disk, CD ROM, direct link to PC, bar coding, etc., CRT display unit with color screen. -- Program memory of 200 KB editing capabilities of stored programs, diagnostic full time on-line with modem, closed loop system, 3-axis simultaneous positioning for linear movement, cutter radius compensation, tool length compensation, absolute & increment positioning ability, system for tool recognition. -- Complete with:Control in separate movable cabinet, central automatic lubrification for all feed guides & driving units, (1) 160 m³/Hr, Vacuum Pump. Safety devices & safety bumper provided at both sides of gantry.

CNC FACTORY PYTHON XPR FLAT TABLE MACHINE (W/LOADING, UNLOADING): -- Specifications:• 5’ x 10’ Vacuum Table• 10.7 HP Router Electro-Spindle• ISO-30 Tool Holders• 12-Position Carousel Automatic Tool Changer (2) holders missing• 5 x 5 Vertical Drill Block• Automatically Adjusted Infeed Scissors Lift• Gantry-Mounted Vacuum Loading Device• Automatic Outfeed Belt Conveyor with Dust Extraction• (2) 7.3 HP Vacuum Pumps• PC Front-End w/ Syntec Controller• Gantry-Mounted Zebra Manual Label Printer• Actual Model is CNC FACTORY PYTHON XPR 510.

CNC FACTORY - VIPER: Flat Table Machine (w/ATC) -- Specifications:4' x 8' Flat Table "Bridge Gantry" machine with: "Phenolic "MATRIX" grooved flat table for "NESTED BASE MANUFACTURING". -- Working Capacity"X" Axis: 97" (2,463 mm); "Y" axis: 49" (1,245 mm); "Z" axis stroke: 20.2" (515 mm); max. material thickness: 10" (250 mm). -- Positioning Speed"X" & "Y" Axis: 279 FPM (85 MPM); "Z" axis: 115 FPM (35 MPM).All axes movement is with 5 G driverless Servo System with: Direct helical rack & pinion & 5 G no homing calibration. -- Work AreaFlat table design with: "Matrix" grid phenolic surface for "Nested Base Manufacturing".Machine has: (4) Independent working/vacuum zones with: Dual layer high flow vacuum; 1-left origins, 1-right origins, 1-front origin & 1-rear origin.Auto-material alignment pins; auto-unloading arm; material loading wheels; rear & side material alignment pushers. Automatic on/off vacuum flow; vacuum hold-down communication; automatic parts hold-down; automatic release.Robotic Material Sensing Dust Hood; Single & dual vacuum ports. -- Machining(1) 10 HP (7-1/2 kW) Air-cooled "HSD Electro Spindle" with: ISO 30 Adaptor; RH & LH rotation; variable speed from: 1,000 - 24,000 RPM.(1) 12-Position ATC tool rack mounted on the Bridge of the machine. -- Operator Interface"SYNTEC" PC Front-End Touchscreen control with: CNC Factory 5G; 5th generation CNC control + At machine cabinet and V-carve cutting software. Air-Conditioned control cabinet, 21" "TOUCHSCREEN" monitor with: Automatic vacuum control; all mounted on a mobile cart. -- Complete with:(1) V300 Vacuum Pumps; automatic pressurized Lubrication System for linear guides; pads & recirculating ball screw. Auto tool length measurement probe; Perimeter Safety System & fencing. -- Actual Model: CNC FACTORY VIPER

Cosmic Fox 13 and Fox 16 CNC Router New machines

CR Onsrud Inverted Router more information to follow

- Dual Supported Gantry: Enhances stability and precision with independent servo motors and drives on both sides. - 18 HP Spindle: High-power, fully programmable, and capable of reaching 24,000 RPM, suitable for a wide range of routing and drilling tasks. - 5'x20' Phenolic Vacuum Grid Table: Ensures superior material hold-down through vacuum zones, ideal for flow-through spoil boards or dedicated fixtures. - Integrated Dust Collection System: Keeps the work area clean with integrated dust extraction hoods for chip removal during operations. - 12-Tool Dynamic Automatic Rotary Tool Changer: Facilitates efficient tool changes, with a fully servo-controlled system for quick transitions between tools. - OSAI PC Front Series Controller: Provides advanced control options with a high-resolution touch screen, PLC capabilities, and compatibility with AlphaCAM for programming automation. - 11-inch Z-Stroke: Suitable for various materials and applications, offering flexibility with under-bridge clearance. - 2-Year Warranty: Includes full parts and labor coverage, ensuring reliability and long-term operational support. Included Options: - 9 Spindle Drilling Block Package: Allows for simultaneous or independent drilling along the X and Y axes. - Pneumatic-Controlled Vacuum Table Switch: Actuated via a push-button or PLC control for precise operation. - 20 KVA Isolation Transformer: Ensures stable power supply and noise filtering for optimal performance.

GENERAL SPECIFICATIONS X – Axis: 62.99 inches Y – Axis: 157.48 inches Z – Axis (Without Tool): 7.87 inches Total Power Consumption: 24.0 HP Max. Rotation Speed: 18,000 RPM Tool Holder ISO: 30 FEATURES: Used for v-channel opening, processing and sizing operations of composite panels and plates. Composite plate fixing and superior processing quality with strong vacuum Tool replacement magazine: capacity for 4 independently operating fan cooled spindle motors Ability to process wooden and plastic plates by replacement of milling cutter Ideal vacuuming with air channels on polyethylene board 2D CAD CAM graphics and optimization software Tools replacement in 2.5 seconds Vacuuming in independent sections Automatic milling cutter length reset External dust vacuuming system NC-300A – MI CNC Control unit Automatic, pneumatic alignment system Data transfer over remote network connection, Ethernet and USB Remote access Steel frame with tension resistance, high accuracy processing Special vacuum circuit designed for local vacuum delivery Ability to resume operation following problems such as power outage, etc. Ability to edit loaded code file Ability to write and process manual code ? Standard Equipment: 2D CAD CAM Cutter (2 pcs 0.15 inch cutter, 2 pcs V channel cutter) Vacuum pump Dust vacuuming system

Felder Creator 950 Premium CNC Center

Felder Creator 950

FELDER FORMAT4 - Profit H08: Flat Table Machine (w/Offloading) -- Specifications5' x 10' "MATRIX" Phenolic Flat Table design for: "Nested Base" Manufacturing. -- Working Capacity"X" Axis is 121.6" (3,090 mm); "Y" axis is 60.2" (1,530 mm);"Z" axis stroke is 11.8" (300 mm); max. material thickness is 4.3" (110 mm). -- Positioning Speed"X" & "Y" Axis at 197 FPM (60 MPM); "Z" axis is 49 FPM (15 MPM). -- WorktableWorking area is subdivided into (8) vacuum fields (H08 16.31) to: Ensure the best holding force for the most varied board sizes.The vacuum fields are controlled manually by means of: Hand levers on the front side of the machine. Prepared for (optional) elevated pods: Allows profile & horizontal machining. -- Boring Unit(1) DH 8-Spindle Vertical Drill block: On 32 mm centers. -- Machining(1) 13.4 HP (10 kW) Vertically mounted electro spindle Router with: HSK F63 Adaptor; inverter driven 1,000 - 24,000 RPM; max. torque from 12,000 RPM.(1) 15-Position ATC Tool Rack: Mounted at the end of the machine. -- Operator & Machine ControlPC Based user-friendly; icon driven control housed on the: Main machine base + "WOODFLASH" Operating System. -- Complete with:(2) 250 m³/Hr Vacuum pumps; handheld terminal with: Potentiometer & emergency stop; automatic measuring system of the tool length.Sound absorbing protective head enclosure with: Debris curtain around bottom edge. -- Options Include: Automatic unloading unit with: Electromotive offloading pusher. This addition allows finished workpieces to be automatically pushed off the table after processing: Reducing manual handling & speeding up production cycles. -- Actual model: FELDER FORMAT4 - PROFIT H08 16.31

GIBEN G2 GENESIS 48 CNC ROUTER (ATC & BORING): 4' x 8' Fixed table; moving gantry machine with: Single zone vacuum table. -- Equipped with:(1) 12 HP, ANDI HSK-63F ATC spindle; air-cooled; ceramic bearings; variable spindle speed from: 6,000 - 24,000 RPM. -- 6-Station Automatic Tool Changer & 2 HP 9-spindle vertical drill bank (5 in X- & 4 in Y-Axis). -- Axis Stroke1,300 mm (51") In Y-Axis; 2,500 mm (98.4") in X-Axis; 200 mm (7.8") in Z-axis. -- Max. Feed Rate60 MPM (2,362 IPM) In X- & Y-axis; 30 MPM (1,180 IPM) in Z-axis. -- FeaturesTool Length Measuring System (Tool Touch Off device). -- ControlANDI/SYNTECH Controller with: Network compatible WINDOWS PC based front-end; color monitor; keyboard; mouse.Full function handheld pendant absolute & incremental programming; cutter & tool length compensation; feed rate & spindle speed override; inch/metric operation; linear/circular & helical interpolation. -- Complete with:10 HP BECKER Vacuum Pump; Tool Holder’s collets; Light safety fences. -- Maintenance supplies: Grease, grease guns; full manuals; product literature.

GIBEN - G4 EVO 510: CNC Router ATC & Boring: + Infeed, Rake & Offloading -- Specifications 5' x 10' "Matrix" grid Phenolic surface for "Nested Base Manufacturing". -- Working CapacityX-Axis 126" (3,200 mm); Y-axis 62.9" (1,600 mm); Z-axis stroke is 9.8" (250 mm); max. material thickness 4.7" (119 mm). -- Positioning Speed• X- & Y-Axis 262 FPM (80 MPM); Z-axis 98 FPM (30 MPM).• X- & Y-Axis use: Precision Rack & Pinion system; Z-axis uses precision ball screws.• All axes movement is on precision linear guides & ways and controlled by digital, brushless AC Servo motors.• All motion components are maintained by an automatic Lubrication System. -- Work Area• Flat table design with: "Matrix" grid phenolic surface for "Nested Base Manufacturing".• (2) Side clamps + (4) external pneumatic pop-up stops for piece positioning at (4) corners of workstations; automatic NC controlled 8-zone vacuum table.• Prepared for (optional) "quick fit" vacuum outlets for optional clamping of small or awkward shaped parts; with: "Quick Connect" vacuum outlet for custom vacuum pods & fixtures. -- Boring Unit• (1) 2-1/2 HP (1.7 kW) Motor; variable speed: Up to 6,000 RPM; "HSD" Boring unit.• (16) Independent vertical spindles with: (9) In X-axis & (7) in Y-axis. -- Machining• (1) 15 HP Air-Cooled "ANDERSON" Electrospindle with: HSK F63 Adaptor; RH & LH rotation; variable speed from 1,000 - 24,000 RPM.• (1) 8-Position ride-along ATC tool changer for "on the fly" ATC. • NC Controlled "touch off probe" tool presetting for the measurement of the tool length. -- Operator & Machine Control• PC Front-End with: ANDI/GIBEN "SYNTEC" + "WINDOWS" Operating System.• 19" LCD Flat screen monitor; server; full keyboard; mouse: All mounted on a mobile cart.• Intel(R) Core i CPU; 8 GB RAM memory; 500 GB (SSHD) hard disk; dedicated graphic card; DVD reader; USB ports; Ethernet card for network connection capabilities. • Automatic program update according to the tool length (touch off probe). -- Equipped with: • (2) 250 m³/Hr (9 HP) "BECKER" vacuum pumps • Automatic Lubrication system for: Linear guides, pads, & recirculating ball screw • Teleservice capabilities • Perimeter safety light bars & perimeter fencing • Manuals & Documents on CD. -- Options Include:• (1) NC Controlled infeed Scissor Lift table • (1) Vacuum loading device • (1) Rake system • (1) NC controlled & powered belt outfeed table with vacuum sweeping system. -- Actual Model is: GIBEN - G4 EVO 510

GRIZZLY G9981 Heavy-Duty Overarm Pin Router Specifications: Throat 25-19/32". Table size 29-3/4” LR x 21-1/2” FB with Table tilt 0° - 45° Forward, Table height 36-1/2" - 42-3/4".Vertical table travel 8". Spindle speeds 10,000 & 20,000 RPM. Spindle travel 3-15/16". Equipped with: 5 HP - 3,450 RPM Motor. Foot pedal control.

HOLZ-HER LYNX 7511 FT FLAT TABLE MACHINE (W/ATC/BORING): -- Specifications:5' x 10' Phenolic "MATRIX" table for "Nested Base" Manufacturing. -- Working Field: "X" Axis 120" (3,050 mm), "Y" axis 62" (1,575 mm), "Z" axis stroke is 16-1/2" (419 mm), max material thickness 7" (180 mm). -- Positioning Speed: "X" & "Y" Axis 230 FPM (70 MPM), "Z" axis is 65 FPM (20 MPM). -- Worktable:Flat table designed for "Nested Base Manufacturing" with (3) "Y" axis pneumatically controlled reference stop pins. -- Boring Unit:2.3 HP (1.1 kW) motor for spindle speed from 1,000 to 6,000 RPM; (10) independent vertical boring spindles with (6) spindles in the "X" axis & (4) spindles in the "Y" axis; -- Machining: (1) 15 HP (11 kW) Electro-spindle Router, HSK F63 adaptor, 1,000 - 20,000 RPM; (1) 12-position tool rack for ATC. -- Operator & Machine Control: PC Front-End with Holz-Her "CAMPUS" + Windows operating system, 17" Color monitor; continuous graphical and barcode interface,BAUMULLER - PLC for (3/4) axes simultaneous control, feed rate and spindle speed override & axis movement. -- Complete with:(1) 250 m³/Hr BECKER Vacuum Pump; automatic "forced" lubrication system for guides & ball screw; sound absorbing protective head enclosure. -- Actual Model is HOLZ-HER LYNX 7511 FT.

HOLZ-HER DYNESTIC 7516 FLAT TABLE MACHINE (W/ATC/BORING): -- Specifications: 5' x 10' MATRIX Table for "Nested Base" Manufacturing. -- Working Field: "X" Axis 122.2" (3,105 mm), "Y" axis 61.45" (1,561 mm), "Z" axis stroke is 16.5" (418 mm). -- Positioning speed: "X" & "Y" Axis 230 FPM (70 MPM), "Z" axis is 65 FPM (20 MPM). -- Worktable: Flat table designed for "Nested Base Manufacturing" with (4) pneumatically controlled reference stop pins. -- Boring Unit:2 HP (1.7 kW) motor for spindle speed from 1,000 to 4,400 RPM;(10) Independent vertical boring spindles with (6) spindles in the "X" axis & (4) spindles in the "Y" axis; -- Machining: (1) 15 HP (11 kW) Electro-spindle Router, HSK F63 adaptor, 1,000 - 24,000 RPM;(1) 8-Position ATC. (dynamic carrousel type) -- Operator & Machine Control: PC Front-End with: CAMPUS Version 6.3.0.3 (BECKHOFF CNC Version 2.3.7) machine control,17" Color Flat Panel Monitor; continuous graphical and barcode interface, (3) axes simultaneous control; feed rate and spindle speed override & axis movement. -- CAMPUS/NC Hops Software: This package provides the prerequisites for effective machining and convenient operation. Our ECO Mode automatic standby control is a standard feature on all HOLZ-HER CNC machining centers for software-controlled minimization of the power consumption.Campus aCADemy is a full-fledged, high-performance CAD/CAM software package with versatile import features. -- Complete With:(1) BECKER 250 m³/Hr vacuum pump; manual central lubrication pump for guides & ball screw; left & right-side safety enclosure; Hand Control, pendant for set-up and program try-outs -- Actual Model is HOLZ-HER DYNESTIC 7516 10.5.

HOLZ-HER DYNESTIC 7505 10.5 PUSH CNC FLAT TABLE MACHINE (W/LOADING/OFFLOADING): -- Specifications:5' x 10.5' Phenolic MATRIX Table for "Nested Base" Manufacturing. -- Working Area:"X" Axis 122" (3,100 mm), "Y" axis 62.2" (1,580 mm), "Z" axis stroke is 12.4" (317 mm). -- Positioning speed: "X" & "Y" Axis 230 FPM (70 MPM), "Z" axis is 65 FPM (20 MPM). -- Worktable: Flat table designed for "Nested Base Manufacturing". -- (4) Pneumatically controlled reference stop pins with (3) in "Y" axis & (1) in "X" axis. -- Boring Unit: 2 HP (1.7 kW) motor for spindle speed from 1,000 to 6,000 RPM. -- (10) independent vertical boring spindles with (6) spindles in the "X" axis & (4) spindles in the "Y" axis. -- (4) Horizontal spindles with (1+1) in "X" axis & (1+1) in "Y" axis. -- (1) "X" axis Saw for max 120 mm dia. blade. -- Machining unit:(1) 10.7 HP (8 kW) Electro-spindle Router with HSK F63 adaptor, 1,000 - 24,000 RPM. -- (1) 6-position Linear ATC tool rack mounted to the machine base. -- Operator Interface:PC Front-End with Holz-Her "CAMPUS V7" operating system; 17" Color monitor; standard keyboard, mouse & USB slots for data entry; (3) axes simultaneous control; feed rate and spindle speed override & axis movement. -- CAMPUS/NC Hops offers "Real Time" 2D or 3D graphics; Campus aCADemy is a full-fledged, high-performance CAD/CAM software package with versatile import features. -- Complete with: (2) 140 m³/Hr BECKER Vacuum Pumps with ECOVac Intelligent Vacuum that automatically turns on/off vacuum units in reference to required static negative pressure; "forced" lubrication system for guides & ball screw; sound absorbing protective head enclosure. -- Options Include:Powered In-Feed Lift System 63" x 144" (1,600 x 3,657 mm Pusher/offload Belt system, 63" x 144" (1,600 x 3,657 mm) Belt Pusher/rake, vacuum evacuation for dust extraction & Spoil board from below. -- Actual Model is HOLZ-HER DYNESTIC 7505 10.5 PUSH

HOLZ-HER DYNESTIC 7505, 5x12 CNC FLAT TABLE MACHINE (W/ATC/BORING): 5' x 12' Phenolic MATRIX Table for "Nested Base" Manufacturing. -- Working Area: "X" Axis 145" (3,683 mm), "Y" axis 61.45" (1,561 mm), "Z" axis stroke is 12.4" (317 mm). -- Positioning speed: "X" & "Y" Axis 230 FPM (70 MPM), "Z" axis is 65 FPM (20 MPM). -- Worktable: Flat table designed for "Nested Base Manufacturing"; (4) Pneumatically controlled reference stop pins with (3) in "Y" axis & (1) in "X" axis. -- Boring Unit:2 HP (1.7 kW) motor for spindle speed from 1,000 to 6,000 RPM; (10) independent vertical boring spindles with (6) spindles in the "X" axis & (4) spindles in the "Y" axis;(4) Horizontal spindles with (1+1) in "X" axis & (1+1) in "Y" axis.(1) "X" axis Saw for max 120 mm dia. blade. -- Machining unit: (1) 15 HP (11 kW) Electro-spindle Router with HSK F63 adaptor, 1,000 - 24,000 RPM;(1) 12-position Linear ATC tool rack mounted to the machine base. -- Operator & Machine Control: PC Front-End with Holz-Her "CAMPUS V7" + Windows "7" operating system; 17" Color monitor; standard keyboard, mouse & CD ROM for data entry; (3) axes simultaneous control; feed rate and spindle speed override & axis movement.CAMPUS/NC Hops offers "Real Time" 2D or 3D graphics; Campus aCADemy is a full-fledged, high-performance CAD/CAM software package with versatile import features. -- Complete with:(3) 250 m³/Hr BECKER Vacuum Pumps with ECO Vac Intelligent Vacuum that automatically turns on/off vacuum units in reference to required static negative pressure; "forced" lubrication system for guides & ball screw; sound absorbing protective head enclosure. -- Actual Model is HOLZ-HER DYNESTIC 7505 5x12

HOMAG - CENTATEQ N 300/510 OPTIMAT NBP084/VANTECH510: Flat Table Machine (W/Loading/Unloading/ATC/Boring) -- Specifications 5' x 10' Flat Table "Bridge Gantry" machine with: User-Friendly "MATRIX" grooved phenolic vacuum table. -- Working Area"X" Axis: 122" (3,100 mm); "Y" axis: 61" (1,550 mm); "Z" axis stroke Routing: 12.8" (325 mm); "Z" axis stroke boring: 7.3" (185 mm); max. material thickness: 3.9" (100 mm). -- Positioning Speed "X" Axis: 236 FPM (72 MPM); "Y" axis: 203 FPM (62 MPM); "Z" axis: 82 FPM (25 MPM). - Machine head travels on: THK Linear motion guides on all axes. -- Worktable(1) Pneumatic locator/positioning rail: "X" Axis; (1) pneumatic locator/positioning rail: "Y" Axis. - (10) NC Controlled Vacuum Table work zone. -- Boring Unit3.6 HP (2.7 kW) Motor; (12) independent vertical spindles with: "Quick-Change" drill bit holders; programmable variable speed: 1,500 - 7,500 RPM. -- Machining(1) 16 HP (12 kW) High-speed electrospindle router with: "HSK F63" Adaptor; constant duty; variable speed: 1,250 - 24,000 RPM; RH or LH rotation. - (1) 14-Position Rotary Tool Changer. -- Operator InterfacePC Front-End with: WEEKE "PC 85T" + Windows "10 PRO" + WoodWOP Operating System. 17" TFT Color graphic monitor; keyboard for data entry; PC 85T hand control pendant; CD R/W & floppy drives; EtherNET interface for LAN connection to office PC; RS-232 serial interface; USB ports. • BECKHOFF Programmable logic control for (3/4) axes: Linear, circular & helical interpolation. • Controller: Contained in a separate freestanding, dust-free control cabinet that can be placed at either the LH or RH side of the machine. -- Complete with: • (2) 9 HP BUSCH "Mink MV 0312 B" Vacuum Pumps. • Light curtain (machine will stop if the Operator enters the work area). • Perimeter safety devices. • Separate control cabinet. • Touch-off tool length measuring device. • Handheld pendant control. -- Options Include• (1) NC Controlled infeed Scissor Lift table with vacuum loading; • (1) Rake system; • (1) NC Controlled & powered belt outfeed table with: Vacuum sweeping system. -- Actual Model: HOMAG - CENTATEQ N 300/510 OPTIMAT NBP084/VANTECH510.

HOMAG - CENTATEQ N 300 V7: Flat Table Machine (w/ATC/Boring) + Rake/OutfeedSpecifications. 4' x 8' Flat Table "Bridge Gantry" machine with: User-Friendly "MATRIX" grooved phenolic vacuum table.Working Area. "X" Axis: 99.2" (2,520 mm); "Y" axis: 49.2" (1,250 mm); "Z" axis stroke: 9.6" (245 mm); max. material thickness: 3.9" (100 mm). Positioning speed. "X" Axis: 236 FPM (72 MPM); "Y" axis: 203 FPM (62 MPM); "Z" axis: 82 FPM (25 MPM). Machine head travels on: THK Linear motion guides on all axes.Worktable. (1) Pneumatic locator/positioning rail in "X" Axis; (1) pneumatic locator/positioning rail in "Y" Axis. - (4) NC Controlled Vacuum Table work zone.Boring Unit. 3.6 HP (2.7 kW) Motor; (7) independent vertical spindles with: "Quick-Change" drill bit holders; programmable variable speed: 1,500 - 7,500 RPM.Machining. (1) 16 HP (12 kW) High-speed electro spindle router with: "HSK F63" Adaptor; constant duty; variable speed from: 1,250 - 24,000 RPM; RH or LH rotation. - (1) 8-Position Automatic Tool Changer.Operator Interface. PC Front-End with: "Power Control with PowerTouch2" + Windows10© + woodWOP 7 Operating System.21" TFT Color graphic touchscreen for data entry; PC 85T hand control pendant; INTEL Core 2 Duo Processor; 1 SATA 160 GB hard disc; CD R/W drives.EtherNET Connection 10/100 MBIT RJ45 (without switch) for LAN connection to office PC; USB ports & central USB connection at the operating panel. -- BECKHOFF Programmable logic control for: (3/4) Axes; linear, circular & helical interpolation; Controller is contained in a separate freestanding, dust free control cabinet that can be placed at either: the LH or RH side of the machineComplete with -- (1) 9 HP - BUSCH Mink MV 0312 B: Vacuum Pump. -- Light curtain (machine will stop if the Operator enters the work area). -- Perimeter safety devices. -- Separate control cabinet. -- Touch off tool length measuring device. -- Handheld pendant controlIncludes -- (1) “Optional" Outfeed Rake & Transport Belt.
