Equipment For Sale

CAM-WOOD PTX-2513 Entry Door/Window Hydraulic Assembly Press, 4' x 8'. Hydraulically operated. Solidly constructed and welded with great precision.Specifications: -- Working area:1300 mm (51") Max. width; 2500 mm (98") max. length. -- (2) Vertical cylinders, each of stroke 80 x 600st; (2) side cylinders, each of stroke 50 x 800st. -- Comes with: 2 HP hydraulic pump motor. -- Outer structure is made of two vertical beams which are individually located at the upper and the bottom side of the machine. The horizontal beams have vertical hydraulic cylinders thereby moving beams up and down to distribute the pressure evenly on the workpiece. The overhead push button operates the hydraulic motor. -- Stops (square blocks) are moved manually to set to the desired position. The mobile pressing platen of the square block and the horizontal upper beam can be moved by the vertical hydraulic cylinder. -- Equipped with: A pressure gauge and pressure control valve to regulate the vertical and horizontal hydraulic cylinders for precise, desired working pressure. -- Overall Dimensions/eight: 3000 x 1200 x 2200 mm (120 x 48 x 87"). Weight: 1200 Kg (2650 Lbs).NOTE: Also available in 5' x 10' Press for ...$26,500.

TRS-460M4 Multiple Blade Rip Saw w/Optimizing, (4) SHIFTING BLADES WITH 18" OF USEABLE ARBOR SPACE!Specifications: -- Moveable sawblades when using the Optimization program.1-1/2"; minimum distance between movable saw blades -- Sawblade configuration with (4) movable saws and (1) fixed sawblade -- Sawblades are optional -- Infeed & outfeed roller tables are optional -- With 50 HP saw arbor drive motor and 3 HP feed motor -- Pressure rollers elevation motor: 1/2 HP -- (4) 1 HP servo motors for shifting sawblades -- Fence adjustment is manual. -- (4) 0.13 HP servo motors for shifting Laser Lights -- With (5) Laser Lights -- UL electrical components. -- 10 to 130 FPM variable feed speed -- 18"; Max. distance between fixed saw and the last (outside) movable saw -- 31"; Max. material feeding width -- 27"; Min. cutting length -- (2) 6"; Dust hoods -- Cutting depths: 10" blade, 1.65"; thick ; 12"; blade, 2.65"; thick; 14", 3.66"; thick; 16" blade, 4.64"; thick -- Sawblade size vs. RPM. Make Blade size clear when order) -- Spindle speed @: 3,800 RPM (10" & 12"sawblade) / 3,000 RPM (14" & 16"sawblade)Computerized Rip Optimizing Program, Included: -- The operator only sets a line for total width, then the computer performs optimized ripping according to sizes set on the job sheet and the priority mode set from these options: -- 1. Priority according to the widest -- 2. Priority according to the same size -- 3. Fixed-width ripping -- 4. Yield priority -- 5. Value priorityOPTIONAL MODEL TRS-460M4-INCOV 3500mm AUTOMATIC INFEED CONVEYOR SYSTEM WITH SCANNER AND OPTIMIZING SYSTEM, add $198,000 -- Automated infeed system, speed rate controlled by electrical clutch connected with the Ripsaw's feed chain -- 13' max. infeed length with (16) width detectors (scans every 8") -- Special pressure roller set, motion with liner rail and air cylinder -- Width scanning by sensors, with optimizing program for auto calculating -- Moving fence by servo motor, according to the wood width

CAM-WOOD MODEL TRS-2050TBX SLAT RIPPER - (1) Top & (1) Bottom Rip Spindle.The machine can plane or shape the wood on two surfaces and then rip it. Ideal for shutters, louver slats, yardstick blanks, etc.Features: -- Special profile hold down & groove table for slat ripping, optional -- Designed to meet the exacting standards required for high-quality production line use. -- CAM-WOOD’s Slat Rip Saws are manufactured to precise tolerances and feature the newest designs for operator safety and volume production. -- All of these features combine to show what a true value these machines are in today’s highly competitive market. -- Precision fence assures absolute accuracy between cutterheads & fence and is equipped with a measuring gauge. -- Double anti-kickback fingers mounted at the infeed end of the machine provided maximum safety protection. -- Heavy-duty industrial TEFC motor ensures full-depth cutting capacity in all materials. -- Ruggedly constructed steel frame for durability and extended machine life. -- The variable speed feed works allow the machine to meet the cutting requirements of different materials. -- Saw head built to precise tolerances assures accuracy for all straight-line ripping operations and provides a stellar quality of cut. -- Top & bottom powered pneumatically tensioned feed rolls for precise feeding and cutting. -- Saw arbor is manufactured from alloy steel for dependability and anti-fatigue, heat treated, precision ground, and balanced providing precise cutting performance.SPECIFICATIONS: -- 8"; Max. Cutting Width -- 5"; Max. Cutting Depth -- 10"; Min. Workpiece Length -- 4"; to 6"; Dia. Top Spindle Sawblade Size -- 8"; to 12"; Dia. Bottom Spindle Sawblade Size -- 6,000 RPM Top & Bottom Moulder Spindle Speed -- 8"; Spindle Length -- 40 mm Rip Saw Arbor Diameter (with key) -- 10 HP Top Rip Saw Motor -- 15 HP Bottom Rip Saw Motor -- 12 to 60 FPM Feeding Speed (Variable) -- 1/2 HP Feed Roll & Top Head Elevating Motor -- 1/2 HP Rip Saw Arbor Elevating Motor -- 3 HP Feed Motor

CAM-WOOD - XL 300, ...Dip Chain Gang Rip Saw: Short Stock version12" Width cap.; 3/8" min. to 3-3/4"; max. cutting depth; 7" min. stock length.Specifications: -- 70 mm Dia. saw sleeve (one is included) with (2) keyways and the following spacers: (4) 15 mm, (4) 10 mm, (18) 1 mm, (10) 0.5 mm, and (8) 0.25 mm (see drawing after the "literature link); with 12"; usable cutting width. -- Accepts saw blades from 10"; - 12"; dia.; arbor is powered by a 40 HP motor driving the spindle at 3,200 RPM. -- Feed chain is powered by a 2 HP motor with variable chain speeds from 30 - 100 FPM; feed chain is 12"; wide. -- Table: 28"; Wide x 67"; with 12"; between the column and the 1st saw blade. - Integrated 6"; dia. dust extraction connection.General Description: -- Designed for high-quality Production Line use. CAM-WOOD’s Rip Saws are manufactured to precise tolerances and feature the newest designs for operator safety and volume production. -- Precision fence ensures absolute accuracy between blade & fence; equipped with: Measuring ruler gauge. -- Triple anti-kickback fingers mounted at the infeed side provide max. safety protection; (2) rows from the top and (1) row from the bottom. -- Heavy-Duty industrial motor for powerful cutting capacity. -- Ruggedly constructed cast iron frames for durability usage.Feed System: -- Variable feed speed enables the machines to meet different requirement of work. -- V-way track and chain block surface are heat-treated for long wear resistance. -- Automatic lubrication to V-Way track facilitates chain running smoothly. -- Auto lubrication device is equipped with an alarm that sends signals upon a lack of lubrication oil to increase the durability of the machines. Features & Equipped with: -- Precision-built saw head ensures accuracy for straight-line rip saw operations. -- (4) Bearing spindle assembly ensures rigidity & long life. -- Power raise & lower to the arbor. -- (4) Pressure rollers & (2) holddown plates for precise cutting of large and small workpieces. -- 10-Piece V-Belt for max. motor power output and guarantees Heavy-Duty multiple rip cutting. -- The saw arbor is manufactured from NI-Cr-MO alloy steel for durability and anti-fatigue, heat treated, precision ground and balanced providing precise cutting performance. -- Adjustable guide rollers make cutting straight or slight radial rip cuts. They also firmly secure lumber to the feed chain for glue joint work on short parts or longer length boards.

CAM-WOOD XCL-59 Auto Copy Lathe. via a template. SPECIFICATIONS: --Max. Between Center: 59". --Max. Finish Product Dia: 4-1/4". --Spindle Speed: 2,000 ~ 6,000 RPM. --Main Motor: 7.5 HP. --Hydraulic Motor: 3 HP. --Template Copier: One. --Model Copier: One. --Max. Copier Travel: 3-1/8". --Total Cutting Knives: 4 (including top plunging knives) --Feed Speed: Variable. --Includes (2) top plunging knives which can hold profiled or flat knives for dowel ends, etc. --Operation Modes: Manual Semi-auto, Auto. --Gross Weight: 3,400 Lbs, Net Weight: 2,900 Lbs.FEATURES: • Suitable for small quantity and multiple style production uses.• Can use sample or template for duplicate productions.• Cutter carriage forward and backward movements are hydraulically operated with feed.speed control, providing a smooth motion and stable cutting performance.• Adopts the precision hydraulic copy unit, most forms can be duplicated.• Easy to operate and lower maintenance costs.• There is a tongue shaving knife to pre-cut and guide ring to support the workpiece whencutting. This enables the cutting performance to be stable and more accurate.• Equipped with two sets of copying devices; one is copying device, which is driven by links andadopts U-Cutting tools. The other one is sample copy device by hydraulic system and adopts V-Cuttingtools.• Equipped with material center setup rack and automatic lubricator to lubricate the slide waysand keeps the slide ways in the optimal lubricated condition.• Industrial full power motor for maximum cutting capacity.• Precision sealed long-life bearing.• Heavy cast iron frame and table for durability usage.

CAM-WOOD 1AM-1150 Pallet NotcherSpecification: -- 10 HP Motor (remanufactured w/ new bearings) currently wired 220V, 3-Ph (440V, 3-Ph available). -- Maximum notch size 9" L x 2.5" H x 1-5/8" D. -- New design cutter-head with (4) straight HSS knives installed. -- Approximately 400 to 600 notches / Hr. -- Wired magnetic starter with on/off switch. -- (6) Months warranty on manufacturing defects on mechanical parts only. Machine Floor Dimensions: 48" L x 36" W x 40" H - Weight 665 Lbs.Palletized Shipping Dimensions: 48" L x 40 W x 44" H - Weight 720 Lbs.

CAM-WOOD 1AM-1180 Pallet NotcherSpecification: -- 10 HP Motor currently wired 220V, 3-Ph (440V, 3-Ph available). -- Maximum notch size 9" L x 3" H x 3" D. -- Cutter-head with (40) insert replaceable tip knife cutters for recycled wood. -- Approximately 400 to 600 notches / Hr. -- Wired magnetic starter with on/off switch. -- 6-Month warranty on manufacturing defects on mechanical parts. Machine Floor Dimensions: 48" L x 36" W x 40" H - Weight 720 Lbs.Palletized Shipping Dimensions: 48" L x 40" W x 44" H - Weight 772 Lbs.

CAM-WOOD 1AM-1180-G Gasoline Pallet NotcherSpecification: -- 13 HP PREDATOR Gasoline motor -- Maximum notch size 9" L x 3" H x 3" D. -- Cutter-head with (40) insert replaceable tip knife cutters for recycled wood. -- Approximately 400 to 600 notches / Hr. -- Imported Head and Blades – The Highest Quality. -- Heavy Duty Industrial Construction. -- 6-Month warranty on manufacturing defects on mechanical parts. Machine Floor Dimensions: 48" L x 36" W x 40" H - Weight 720 Lbs.Palletized Shipping Dimensions: 48" L x 40" W x 44" H - Weight 772 Lbs.

CAM-WOOD 1AM-1180-G Gasoline Pallet NotcherSpecification: -- 13 HP PREDATOR Gasoline motor -- Maximum notch size 9" L x 3" H x 3" D. -- Cutter-head with (40) insert replaceable tip knife cutters for recycled wood. -- Approximately 400 to 600 notches / Hr. -- Imported Head and Blades – The Highest Quality. -- Heavy Duty Industrial Construction. -- 6-Month warranty on manufacturing defects on mechanical parts. Machine Floor Dimensions: 48" L x 36" W x 40" H - Weight 720 Lbs.Palletized Shipping Dimensions: 48" L x 40" W x 44" H - Weight 772 Lbs.

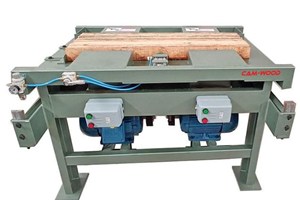

CAM-WOOD 1AM-1250 Double Head Pallet NotcherSpecification: -- Heavy-duty steel frame. -- (2) 10 HP Electric Motors. -- (2) On/Off switches with magnetic starters. -- Maximum notch size 9" L x 2-1/2" H x 1-5/8" D. -- Cutter-heads with (4) HSS knives installed. -- Saw dust removal: 12.25"; wide x 10.5"; tall each opening in the back side. -- Saw dust removal: 2,300 CFM recommended, equivalent to a 3 HP dust collector for each opening. -- Notch (12) 2" x 4" at one time. -- 6-Month warranty on manufacturing defects on mechanical parts.Gasoline version available with (1) 20 HP motor Machine Floor Dimensions: 60"; length x 53"; width x 37"; height - Weight: 1544 lb.Palletized Shipping Dimensions: 60"; length x 53" width x 42"; height - Weight: 1588 lb. - Freight Class: 85.

CAM-WOOD 86PAAU Raised Panel Door Machine machines entry door stile and rail door parts as well as cabinet door parts, chair legs and furniture parts, up to 86" length and 7" width.. One operator to machine profiles to the rail copes, stile and rail sticking and raised panels with rapid change over all on one machine for high productivity. Features Include: -- Hydraulic table movements from right to left to achieve powerful cutting and adjust cutting speed variability. Table movements in and out are pneumatic powered to follow a template sensitively. --One operator to machine all profiles for stiles and rails on one machine, along with raising all panels both edges top and bottom. -- Capacity for machining a 6" arch/oval on panels and rails, and raises both face on a raised panel at the same time (arc size varies depending on cutter diameter). -- Raise a curved panel up to 6" radius both on rails and panels. -- Hydraulic pump unit for accurate table speed control. -- Simple guide system follows templates for curved or arched profiles and is quickly repositioned for straight machining profiles. -- Cutterhead knives can be stacked on the same spindle to eliminate changing machines to machine door parts. -- Easy stop system for door stiles or rail lengths. Two separate stops work for rail/stile/panel arch cut positions. -- Heavy duty 10 HP motor, allows for high speed cutterhead to eliminate unnecessary sanding. -- Proximity switches control the cutting stroke. Linear guide rails and bearing for a lightweight & smooth slide. -- More than one part may be milled at one time. Pneumatic holddown cylinders hold parts tightly without slide during cutting. -- Easy positioning of parts on a precision ground, cast iron table ensures accurate stile rail and panel machining and alignments. -- Machines door stiles up to 86" in length.More Specifications: -- Spindle Motor 10 HP @ 7,000 RPM; Hydraulic Motor 1 HP; Feed Speed 0-60 FPM. -- Spindle Diameter 1-1/4"; Spindle Height 7"; Depth of Radius Cut 6";; Min. Radius Cut 6" (based on cutter diameter) machine door stiles up to 86" in length. Dust Hood is 4" dia. -- Dimension: Length 120";; Operating Length 228";; Width 48";; Height 48";. Weight 300 lbs. Air Supply Required 100 PSI -- Note: Delivery time about 10-12 weeks.

CAM-WOOD MODEL TRS-3000TB.12" SLAT RIPPER - (1) top & (1) bottom rip spindle.CAM-WOOD MODEL TRS-2050TB.8" SLAT RIPPER - (1) top & (1) bottom rip spindle - DEDUCT $8,000 for the 8" Cap. modelFEATURES: -- The machine can plane or shape the wood at two surfaces and then rip it. Ideal for shutters, louver slats, yardstick blanks, etc.. -- Special profile hold down & groove table for slat ripping, optional -- Designed to meet the exacting standards required for high-quality production line use. -- CAM-WOOD’s Slat Rip Saws are manufactured to precise tolerances and feature the newest designs for operator safety and volume production. -- All of these features combine to show the true value of these machines in today’s highly competitive market. -- Precision fence assures absolute accuracy between cutterheads & fence and is equipped with a measuring gauge. -- Double anti-kickback fingers mounted at the infeed end of the machine provided maximum safety protection. -- Heavy-duty industrial TEFC motor ensures full-depth cutting capacity in all materials. -- Ruggedly constructed steel frame for durability and extended machine life. -- The variable speed feed works allow the machine to meet the cutting requirements of different materials. -- Saw heads built to precise tolerances assure accuracy for all ripping and profiling operations providing a stellar cut quality. -- Top & bottom powered pneumatically tensioned pressure rollers for precise feeding and cutting. -- Saw arbor is manufactured from alloy steel for dependability and anti-fatigue, heat treated, precision ground, and balanced providing precise cutting performance.SPECIFICATIONS: -- 12"; Max. Cutting Width (TRS2050 WITH 8" MAX. WIDTH) -- 4-3/4"; Max. Cutting Depth -- Min. Cutting Depth Limited by Thin Material Breakup -- 10"; Min. Workpiece Length -- 14"; Dia. Max. Sawblade Size on Top Spindle -- 10" to 16"; Dia. Sawblade Size on Bottom Spindle (TRS2050 WITH 16" DIAMETER) -- 4,000 RPM Top & Bottom Spindle Speed -- 12"; Spindle Length (TRS2050 WITH 8" SPINDLE LENGTH) -- 40mm Arbor Diameters with 2-Keyways (TRS 2050TB WITH 70MM ARBORS) -- 15 HP Top Rip Saw Motor (TRS 2050 WITH 10 HP MOTOR) -- 30 HP Bottom Rip Saw Motor -- (6) Upper and (2) lower Feed Rolls -- 12 to 60 FPM Feeding Speed (Variable) -- 1 HP Feed Roll & Top Head Elevating Motor -- 1/2 HP Lower Saw Arbor Elevating Motor -- 7-1/2 HP Feed Motor (TRS2050 WITH 3 HP MOTOR) -- Dimensions (L x W x H) 96" x 64" x 55"

Cam-Wood TRS-MR-1300 X 75mm Roll Feed Gang Rip SawSpecifications -- Working thickness: 10 - 100mm • -- Working width: 530 - 1300 mm • -- Working thickness : 10 – 75 mm / 100 mm • -- Saw Blade 14", • Washer Diameter 110mm • -- Minimum length of work piece when feeding consecutively: 600mm • -- Number of spindle : 1 • Equipped with & Features -- Up & down motor : 1 HP x 1 • -- Feed speed : 6 - 15 M/ min. • -- Feed motor: 7.5 HP x 1 with Inverter • -- Multiple rip saw spindle motor:150 HP / 200 HP • -- Spindle diameter : 80 mm with two key-ways 10 mm5 mm • -- Spindle R.P.M.: 4,000 R.P.M. • -- Movable 1300 mm Saw Shaft Support for easy saw blade replacement.

Cam-Wood TRS-MR-1300 X 100mm Roll Feed Gang Rip SawSpecifications -- Working thickness: 10 - 100mm • -- Working width: 530 - 1300 mm • -- Working thickness : 10 – 75 mm / 100 mm • -- Saw Blade 14", • Washer Diameter 110mm • -- Minimum length of work piece when feeding consecutively: 600mm • -- Number of spindle : 1 • Equipped with & Features -- Up & down motor : 1 HP x 1 • -- Feed speed : 6 - 15 M/ min. • -- Feed motor: 7.5 HP x 1 with Inverter • -- Multiple rip saw spindle motor:150 HP / 200 HP • -- Spindle diameter : 80 mm with two key-ways 10 mm5 mm • -- Spindle R.P.M.: 4,000 R.P.M. • -- Movable 1300 mm Saw Shaft Support for easy saw blade replacement.

CAM-WOOD XCL-1000S 4-Spindle Auto Copy Lathe/Shaper w/Sanding of Asymmetrical parts .via a template. Shaping with (4) cupped cutters and sanding with individual belts.Specifications: -- Capacity: (4) Spindle duplicating/carving/copy heads with (4) copy belt sanders for asymmetrical parts. Working length 6-3/8"- 39.5" -- Working dia. 1-1/8" - 8-1/4". Cutter diameter approx. 1.4" -- Speeds: Spindle Speed : Variable 2000 - 6000 RPM. Cutting Circle 2 - 12 times/min. -- Features: (4) Spindles with pre-loading centering station and pneumatic clamping. -- Drives: Hydraulic carriage motor 3 HP; Cutter drive motor 7.5 KW (10 HP). Sanding heads motor 2 x 1 HP. -- Electrical controls: 220 V Relay style. -- Overall Dimensions: 120" long x 47" deep x 110" high -- Approx. net weight: 6,240 Lbs. -- NOTE 1: Larger diameters are possible by using every second carriage position, ie. (2) heads instead of four heads. -- NOTE 2: Version without Sanding, XCL-1006 is priced at

CAM-WOOD WX-1504HC Horizontal Grinder w/ConveyorImpact resistant tooling with excellent wear capability. Specifications: -- Horizontal feed with (2) 1 HP infeed roller motors; 20 HP - 1,750 RPM drive motor; -- 15-3/8" x 4" Infeed chute; 8" dia. air discharge.Equipped with: -- (18) Rotary cutter sets with cutter head angle to allow aggressive cutting rates and high-speed shredding of waste; -- (4) Stationary cutter sets; 10" dia. rotor; 680 RPM. -- The shaft rest for the cutter head is constructed by a round hollow with a special angle for cooling during production. Complete with: -- Removable screen for easy clean up and chip size changes from standard 1/2". Includes: -- Operators' & Parts Manual and covered by (1) Year Warranty.

CAM-WOOD 102PAAU Raised Panel Door MachineMachines entry door stile and rail door parts as well as cabinet door parts, chair legs and furniture parts, up to 102" in length and 7" in width. One operator to machine profiles for the rail copes, stile and rail sticking and raised panels with rapid changeover, all on one machine with high productivity. Features Include: -- Hydraulic table movement from right to left to achieve powerful cutting and adjust cutting speed variability. Table movements in and out are pneumatically powered following a template with very high accuracy. -- One operator to machine all profiles for stiles and rails on one machine, along with raising all panels both edges top and bottom. -- Capacity for machining a 6" arch/oval on panels and rails, and raising both faces on a raised panel at the same time (arc size varies depending on cutter diameter). -- Raise a curved panel up to 6" radius both on rails and panels. -- Machines door stiles up to 102" in length.Technical Features: -- Hydraulic pump unit for accurate table speed control. -- Simple guide system follows templates for curved or arched profiles and is quickly repositioned for straight machining profiles. -- Cutterhead knives can be stacked on the same spindle to eliminate changing machines to machine door parts. -- Easy stop system for door stiles or rail lengths. Two separate stops work for rail/stile/panel arch cut positions. -- Heavy duty 15 HP motor, allows for high speed cutterhead to eliminate unnecessary sanding. -- Proximity switches control the cutting stroke. Linear guide rails and bearing for a lightweight & smooth slide. -- More than one part may be milled at one time. Pneumatic holddown cylinders hold parts tightly without slide during cutting. -- Easy positioning of parts on a precision ground, cast iron table ensures accurate stile rail and panel machining and alignments.More Specifications: -- Spindle Motor 15 HP @ 7,000 RPM; Hydraulic Motor 1 HP; Feed Speed 0-60 FPM. -- Spindle Diameter 1-1/4"; Spindle Height 7"; -- Depth of Radius Cut 6";; Min. Radius Cut 6" (based on cutter diameter). Dust Hood is 4" dia. Dimension: -- Machine Length 120";; Operating Length 228";; Width 48";; Height 48";, Weight 300 Lbs; Air Supply Required 100 PSINote: Delivery time about 10-12 weeks.

CAM-WOOD DS 4080 NC Control Squaring Saw -- NC controlled cutting saw (4) blade heads for squaring up to 1,200 mm X 2,450 mm (47.2" X 96.5")Features: -- Automatic Cutting Cycle for all the 4 side with mass production capacity. -- Automatic width, length setting by Digital Key Pads. -- Variable Cutting Speed with Inverter. -- Saw head runs on ball bearings giving effortless and smooth movement. -- Heavy sheet metal frame and stand construction. -- Quick tilting positions stop at 45º, right and left. -- Saw head is firmly set at any angle desired. Safety saw blade guard. -- Anti-kickback attachment included. -- Full power industrial motor for durability usage. Overload protection switchTechnical Data: -- Maximum cutting/shaping length 2,450 mm (96.5") -- Minimum shaping length: 1,750 mm (68.9") -- Maximum cutting width 1,200 mm (47.2") -- Minimum shaping width: 600 mm (23.6") -- Saw motors (4) x 4 HP each -- Saw blade diameter 305 mm -- Inverted speed control of the saw movement driven by 1 HP motor from 10 FPM to 60 FPMFloor space requirement: 3,950 mm X 2,150 mm X 2,070 mm (155.5" X 86.6" X 81.5")

CAM-WOOD PT-48VAX Door Clamp (Single Sided). -- Work Space: 48" Max. width x 97" max. length, hydraulically operated.Specifications: -- Applies max. 11,000 PSI pressure from (2) sides; 90 PSI from holddown. -- Includes 5 HP hydraulic pressure system. -- Hydraulically operated assembly table; twin hydraulic cylinders for moveable rams at two sides pressing for max. assembly capacity. -- Easy adjustments of rams, makes changing sizes simple; separate controls for adjusting the each side of press rams. -- Fixed reference points for lower & left edges ensure 90° assembly of face frames; heavy gauge steel metal table & frame.NOTE: Also available as a 2-sided Clamp for ...$26,500.

CAM-WOOD - EX-ARES ...CNC Door Processing Machine Center for Pre-Hung Doors with Automatic Tool Changer. Distinctive design for Door Pre-Hang Processing. -- All the 5-side Project Processing -- Automatic Feed Through (Options with Auto Loading and Out-Feeding) -- Hinge Face Milling, Screw Hole Drilling -- Lock Bore Drilling -- Latch Face Milling, Latch Bore Drilling. FEATURES: -- DSP CNC controller is setup to accept standard G-code programming formats along with on board conversational applications. -- Optional CAD/CAM system can create and edit part programs then send to machine for easy cutting. DXF files can imported, modified, and edited from here to create a G-code. -- Horizontal and vertical spindle for top and side stock processing -- Machine designed ready for 3-D cutting usage and superior performance. -- Moving gantry construction for space saving. -- The rigid steel frame construction has been stressed relieved prior to finish machining to provide repeatability and accuracy. --Automatic frequency brake for the spindle allows rapid deceleration resulting in faster tool changes. -- Linear guides and sliding blocks are prismatic pre-loaded with recirculation bearings to ensure maximum rapid traverse and precision. -- The X & Y axis equipped with a precision rack & pinion driving system. The Z axis utilizes a ball screw assembly complete with the pre-loaded and ground screw for long life and optimum accuracy.SPECIFICATIONS: -- Working size 51"; Width x 98"; Length x 7-7/8"; Height (Door Lock Maximum Depth 4-3/4";) -- Custom made door vacuum table (Optional Vacuum Pump) -- SYNTEC 60WA control with All in one PC Controller -- 9.0KW air cooling Spindle with 4 pcs ISO30 tools linear ATC for Top Side Milling, Drilling, Lock, Bore.. Processing -- 6.0KW double Side milling Spindle at X direction for X Axis Two Side, Milling, Drilling, Ball Catch, Split Line. Processing -- 6.0KW double milling spindle at Y direction, Two Side, Milling, Drilling, Hinge, Latch Hole, Face, Dead Ball, Processing -- 2.2KW 4 Side Milling Spindle for All the 4 Side, Small Holes, or Screw Hole Drilling process -- 1500W servo drive. -- Max travel speed 200 FPM (60m/min), Max working speed 50 fpm (15m/min) (According different processing material) -- Professional PTP table with German SCHMALZ Vacuum pads 6pcs -- 2M helical rack, 30 square rails & Ball screw -- Automatic control with Aluminum oil pipe Oil lubrication.OPTIONS: -- 10' table capacity ...............$US3,100. -- ARES Options for 3 Degrees Bevel.A.) Pre-set the Angle heads point to left or right side at tool rack. HSD Angle Head $US8,990.00 each (most time, it will need at least two units, preset to 3 degrees, one bigger cutter for routing, one small cutter to do re-fine the latch corner or drill the screw holes).B.) Upgrade to Italy HSD C Axis System add $US23,990.00. (Horizontal 360 Degrees turning, it can work on all the 4 door edges). Plus, HSD Angle Head $8,990.00 each (most time, it will need at least
