2019 Holz-her Sprint 1327 Call for more information

HOLZ-HER - Sector 1254: Panel Processing & Dust Collection System. Complete Panel Processing & Dust Collection System. Ideal for professional woodworking and cabinet shops. Less than 100) hours of use. -- 1. HOLZ-HER "1254" Vertical Panel Saw: Heavy-Duty steel/aluminum grid support system. Vertical & horizontal precision cuts. Integrated dust port for clean operation. Ideal for sheet goods: MDF, plywood, laminates. -- 2. HOLZ-HER "SuperCut Plus" Lift & Feed System. -- 3. ONEIDA AIR SYSTEMS Cyclone Dust Collector.

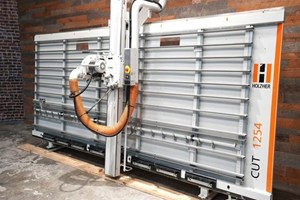

HOLZ-HER Sector 1254 Vertical Panel Saw w/ScoringSpecifications: -- 1,900 mm (74") x 4,300 mm (169") cap.; 1,810 (71-1/4") max trim height; 60 mm (2.36") depth of cut with scoring, 250 mm (9-7/8") dia. saw blade. -- Saw blade rotates 90° for rip or crosscutting; Super Cut Plus Scoring Head Attachment scoring system. Features: -- Automatically moving back grid w/interlocks to prevent cutting into back grid laths when rip cutting; retractable longitudinal stop with extended stop plate for narrow parts; -- Central work-piece support can be folded out and placed at the optimal level for machining.

HOLZ-HER CONTRIGA 1366 EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): -- SpecificationsNC Controlled Edgebander has the ability to program all functions including: Panel thickness, edge feed, glue application, end trimming, radius/fine trimming, corner rounding, scraping, and buffing. - Virtually eliminates setup time by selecting & loading program that automatically activates these functions simultaneously.Coil edgebanding up to: 3 mm PVC Cap.; 2-3/8" max. panel thickness; 7" min. panel length; powered pressure beam opening adjustments. Equipped with:"1961" Pre-milling Station: PC Controlled with up to 45 mm (1-3/4") milling height; (2) motors @ 2 kW (2.6 HP) - 9,000 RPM each. -- Features granulate glue system with: Hopper System, "floating" applicator nozzle & "quick melt" feature. -- Automatic magazine for coil, strip & solid edgebanding model "1901" with: TRACTOR-BELT Feed System, Heavy-Duty guillotine for 3 mm PVC. -- "1914" Pressure Section for 12 mm thick edgebanding with: (3) Rollers; each w/individual pressure control; powered 1st roller with electronic speed control synchronized with chain feed speed; Servo motor adjustment for edgebanding thickness from PLC. Workstations"1819-1" Double motor (1 HP - 6,000 RPM motor ea.) end trim units with: "Uni-Point" Swivel system; "quick change" from flush to 0° - 15° bevel from Operator Panel. -- "1962" Top & Bottom flush trim unit: 2.6 HP - 200 Cy HF motors; 12,000 RPM cutter speed; NC Servo control, non-tilt. -- "1966" Top & Bottom fine trim unit with: Motorized 5-axis positioning; 1.5 HP - 200 Cy HF motors; 12,000 RPM cutterhead speed; bevels 0° - 45°, Servo control; all adjustments programmable through the PLC. -- "1933 & 1934" 4-Motor corner rounding unit for top & bottom of leading & trailing corner when edgebanding all (4) sides; 0.7 HP - 200 Cy ea.; both motors with Servo positioning from control panel; Servo adjustment of entire unit (base). -- "1927" Scraper Unit: Finishing up to 5 mm thick PVC banding for radius range from 2 - 5 mm; vertical & horizontal tracing wheels, Servo positioning enabled through "PC"; Servo controlled in/out of base. -- "1964" Top & Bottom Glue scraper. -- "1851" Oscillating buffing unit: Cleaning & polishing of panel; (2) 0.25 HP - 1,440 RPM motors; tilts 0° - 45° vertically and 0° - 20° swivel on horizontal plane.Other Specifications & Features:Variable feed speeds up to 25 MPM (81 FPM); panel overhang beyond chain 35 mm (1.38"); features automatic track pad lubrication. Operator Interface:"PPC-231" Controller for: Line control; glue temperature; flow; feed speed setting; motorized hold-down pressure beam adjustment. -- Frequency inverter, outboard panel support, and sound enclosure w/interior lights over all milling units. -- Actual Model: HOLZ-HER CONTRIGA 1366

HOLZ-HER CUT 6120 FRONT LOAD, AUTOMATIC PANEL SAW: -- Specifications: 3,900 mm (153.5") Max. rip cut cap., 3,900 mm (153.5") pull back pusher stroke; 82 mm (3.2") saw blade projection.15 HP (11 kW) Main saw motor, 1.5 HP (1.1 kW) scoring motor. -- Saw Carriage:Variable feed speed from 3 - 320 FPM (1 - 100 MPM ), return speed of 416 FPM (130 MPM).Motorized bi-directional grooving capabilities with electronic adjustment for 0 mm - 35 mm.Automatic cutting length limiter adjusts the cutting height & cutting length at the end of the workpiece. -- Pusher Fence:(7) Material gripper clamps, (1) Double Finger mounted at the cross-cut fence location for narrow strip cutting & (6) standard clamps. 82 FPM (25 MPM) forward positioning speed, 328 FPM (100 MPM) return speed.Variable pressure settings for delicate materials. Pressure beam has an integrated "Last Cut" operation to achieve a "0" mm panel dimension.Rack & pinion movement on both sides to assure the pusher remains parallel. -- Operator & Machine Control:PC Front-End with "CUTCONTROL 2" + "EASY-PLAN" + Windows operating system,19" TFT Display with unlimited program storage; keypad for data entry, USB & RS-232 serial port, "CUTCONTROL 2" offers Real-Time 3D Moving Graphics, diagnostic for errors or machine malfunction by means of an error signal code, incremental or absolute programming in mm or inches."CUTCONTROL 2" allows the operator to easily input information for absolute, serial, format, grooves, perforations, & position cutting which allows the machine to easily adapt to various situations & materials."Opti-Cut" & "EASY-PLAN" is a very user friendly on-board Optimizing System for all types of various cutting patterns, including angled cutting -- Complete with: Non-Marking rear roller support rails: Solid Air Cushion Table before & after the cutting line, ensures easy panel handling. Pneumatic crosscut side aligner, adjustable from 0" - 82.6" (0 - 2,100 mm). Side aligner is "Fully Automatic" adjustment when panel is less than 1,300 mm (51")"Quick Change" Blade system with automatic saw blade height adjustment; Electronic positioning of the scoring blade through the NC control.(3) Adjustable via "pneumatic locking" air support tables, ea. 70.8" x 23.6" (1,800 x 600 mm); -- Actual Model is HOLZ-HER CUT 6120 Dynamic

Holz-her Cut 85 Panel Saw; under power until 8/21 model 6210

HOLZ-HER CUT 85 FRONT LOAD, AUTOMATIC PANEL SAW: -- Specifications:4,250 mm (167") Max. rip cut cap., 3,800 mm (149") pull back pusher stroke; 97 mm (3.8") saw blade projection.15 HP (11 kW) Main saw motor, 3 HP (2.2 kW) scoring motor. -- Saw Carriage:Variable feed speed from 3 - 328 FPM (1 - 100 MPM ), return speed of 328 FPM (100 MPM).Automatic cutting length limiter adjusts the cutting length at the end of the workpiece, automatic saw carriage lubrication. -- Pusher Fence:(7) Material gripper clamps; 259 FPM (80 MPM) forward positioning speed, 259 FPM (80 MPM) return speed.Rack & pinion movement on both sides to assure the pusher remains parallel. -- Operator & Machine Control:PC Front-End with CUTCONTROL "Direct Cut" + "OPTIPRO" + Windows 2000 operating system,15" TFT Display with unlimited program storage via floppy disk, keypad for data entry, USB & RS-232 serial port, CD ROM & 1.44 MB disk drive for additional storage of programs.CUTCONTROL offers Real-Time Graphics, diagnostic for errors or machine malfunction by means of an error signal code, incremental or absolute programming in mm or inches."Direct Cut" allows the operator to easily input information for absolute, serial, format, grooves, perforations, & position cutting which allows the machine to easily adapt to various situations & materials."OPTIPRO" is a very user friendly on-board Optimizing System for all types of various cutting patterns, including angled cutting. -- Complete with: Rear roller support rails; automatic crosscut side aligner; automatic saw blade height adjustment.(3) Air support tables, ea. 78" x 24" (1,981 x 509 mm). -- Actual Model is HOLZ-HER CUT 85 4300.

Holzher Ergebender

Holz-her 1255 Panel Saw Digital Readout capacity 169” x 74” 2.36 depth of cut 3 KW motor rotates 90^

Holz-her Vertical 1265 Vertical Panel Saw

Holzher 1265S Vertical Panel Saw

HOLZ-HER - 1270: Automatic Panel Saw w/Supercut Scoring75" x 169" Cap.; 4 HP motor; 2" depth of cut; 220 mm (8-5/8") dia. saw blade at 6,640 RPM.Features: -- Saw head traverses automatically when rip or crosscutting and returns to starting position; (2) cycle lengths for long or short panels. -- 36 & 72 FPM Saw carriage travel speed; 0.75 HP feed drive. -- Automatically moving back grid w/interlocks. Complete with: -- Rip gauge with: (3) Cam settings. -- (2) Gauging bars throughout frame length with: (2) Flip stops. -- Bottom rollers for easy movement of larger panels.Includes: -- Spare Blades.

Holz-her 1315 Edgebender

HOLZ-HER 1315 EDGEBANDER WITH CORNER ROUNDINGMax. 5/16" (8 mm) solid wood banding & 3 mm PVC cap., 1-3/4" max. panel thickness and 5-1/2" min. panel length.Equipped with: -- Cartridge glue system w/cartridge hopper & "quick melt" feature, automatic magazine for coil, strip & solid edgebanding; HD guillotine for 3 mm PVC, glue applicator nozzle. -- Pressure section with (1) large dia. drive roller & (2) idle rollers, each w/individual pneumatic plunge & pressure control, powered 1st roller with electronic speed control synchronized with chain feed speed.Workstations: -- Double motor end trim "1918" (0.5 HP - 18,000 RPM motor ea. 300 Cy HF motors), adjustable 0° - 10° for chamfer cuts electro-pneumatically. -- Top & bottom flush fine & radius trim unit "1942M" (0.8 HP - 300 Cy HF motors 18,000 RPM Motor ea.), bevels 0° - 15°, SIKO digital readouts. -- "Single Station" corner rounding unit for leading & trailing edge. -- "1929" Top & bottom profile scraper for thick PVC. -- Top & bottom buffing unit "1940" (0.25 HP - 2,600 RPM ea.), tilts 0° - 5°. -- Two feed speed 8/16 MPM (26 & 52 FPM), panel overhang beyond chain 35 mm (1.38"). Complete with: -- Operator Touch Screen Monitor Microprocessor for line control & glue temperature, 10 KVA frequency changer, outboard panel support, and sound enclosure w/interior lights over enclosed workstations of the machine & used tooling on the stations.

HOLZ-HER 1321 SPRINT EDGEBANDER WITH PRE-MILLING & CORNER ROUNDING Specifications: 0.3 - 15 mm Thickness edgebanding capability (3 mm coil or 15 mm max. strip); 6 - 50 mm panel thickness, workpiece width min. of 60 mm; workpiece Length min. 180 mm; Feed speed 12.5 MPM (41 FPM). -- Programmable Logic Control (PLC) for Edge feed, glue application, end trimming, flush trimming, radius trimming, scraping, corner rounding, and buffing. -- Programs can be easily created and recalled at will; screen with graphic interface makes programming easy, icon of each unit may be brought up on the screen to show the operator the status of the unit and the parameters which can be programmed; Edgebander can be operated manually when required, without necessity to write a program.Machine configuration: -- Pre-milling station "1961", (2) 2.0 kW - 12,000 RPM motors; "1903" Edge strip Magazine; (1) Universal magazine for solid edges, strips, and coiled material.Utilizes motion detector to ensure accurate, trouble-free positioning of edge material; exclusive "Tractor-Belt feed System", edge guide equipped with automatic guillotine lock-out for safety, 3° approach angle allows easy feeding of large wood edges. -- "1906-M" Gluing Station - Cartridge System: Servo controlled pressure section with (1) large driven roller & (2) cantered idle rollers.Workstations: -- "1918 HF" Front & rear end trim unit (0.35 kW - 9,000 RPM motor each), Uni-Point axis for no re-indexing when changing from flush to bevel end trim (0° - 10° bevel),"PCS" Pneumatic Changeover from flush to bevel from control panel. -- Top & bottom flush trim unit "1823" (0.6 kW - 300 Cy HF motors 18,000 RPM Motor ea.), SIKO digital readouts. -- "1942-M" Servo controlled Top & Bottom combination flush/chamfer & radius unit (0.6 kW - 18,000 RPM each motor), Uni-Point design for no second adjustment when changing the degree of bevel, air jets for debris removal, digital counters, and includes 2-position "PCS" Pneumatic Changeover System from flush to radius from control panel. -- "1929" Servo controlled Top & bottom PVC scrape station: Reversible insert carbide knives, equipped with air-jet blowers; "PCS" Pneumatic Changeover System moves Scraper Unit in-and-out from control panel; Chip Collector Box. -- "1832" 1-Motor Corner Rounding unit: For edges up to 3 mm edge thickness; incl. Tooling R = 3 mm. -- Pneumatic controlled Top & Bottom glue scrape station -- "1940" Top & bottom buffing station: Possible to adjust in any direction (vertical tilt is 0° - 5°, horizontal Swivel is 0° - 20°); 1,440 RPM wheel rotation.Equipped with: -- Microprocessor for line control & glue temperature, 10 KVA frequency changer, outboard panel support, and sound enclosure w/interior lights over enclosed workstations of the machine, & used tooling on the stations.

HOLZ-HER 1327 SPRINT CLASSIC SPECIAL EDGEBANDER + GLU-JET EVA & PUR GLUING TECHNOLOGY: -- NOTE: This is a "Special Machine for THIN TAPE Only". -- Specifications:Features the: HOLZ-HER Patented dual "GLU-JET" EVA & PUR Zero Joint Technology System.Edgebanding capacity: Edge thickness min./max. 0.4 - 8 mm (0.02 - 0.31"); coiled material 0.4 - 3 mm (0.016 - 0.157").Workpiece thickness: 6 - 60 mm (0.23" - 2.36"); Workpiece width min. of 65 mm (2.56").Workpiece length: Min. 160 mm (6.29"); variable feed speed 10 - 18 MPM (33 - 59 FPM). Machine Infeed -- "Open Space" for Premilling Station "1802": (2) 2.0 kW (2.68 HP) - 12,000 RPM motors.NOTE: This machine is not equipped with the Premilling Station, but it can be added. -- Edge Magazine "1903":For coil & strip processing; utilizes motion detector to ensure accurate, trouble-free positioning of edge material.Exclusive "Tractor Belt Feed System": Edge guide equipped with automatic guillotine lockout for safety.3° Approach angle allows easy feeding of solid wood edges. -- Pressure Section "1913 Mot":1-Axis Servo controlled adjustment of the edge thickness.Pneumatic Plunge controlled pressure section with: (1) Large driven roller and (2) cantered idle rollers. -- Gluing System "GJ301Auto":Glue Jet Hybrid Technology; processes "EVA" or "PUR" glue in cartridge or granulate form.Motorized programmable glue nozzle (upper glue line); height positioning; approx. 3-minute heat up time. Workstations -- End Trimming Unit "1918P": Front & Rear; (2) x 0.45 kW (0.6 HP) - 9,000 RPM each motor.For Straight or Chamfer trimming with: "UNI-POINT Axis for "PCS" pneumatic changeover/swiveling up to 10° bevel. -- Combination Trimming Unit "1827": Top & Bottom; (2) x 0.65 kW (0.87 HP) - 12,000 RPM each motor; for T & B Flush/Bevel/Radius trimming. - "ProLock" Clamping System for rapid tool change.Manual edge radius adjustment up to 3 mm; chamfer adjustment up to 15° with a max. edge thickness of 6 mm. -- "Open Space" for: 2nd T & B Trimming Unit.NOTE-1: This machine is not equipped with the 2nd T & B Trimming Unit, but it can be added. -- "Open Space"for Profile Scraping Unit "1929P". NOTE-2: This machine is not equipped with the Profile Scraping Unit "1929P", but it can be added. -- "Open Space" for Finish Scraping "1964". NOTE-3: This machine is not equipped with the Finish Scraping "1964", but it can be added. -- "Open Space"for Buffing Unit "1940". NOTE-4: This machine is no not equipped with the Buffing Unit "1940", but it can be added. Operator Interface: -- HOLZ-HER "PPC 231" Power-PC + "Windows-like" Operating System. - 15" SVGA Flat "Touchscreen" control.USB Connection & Ethernet network connection ready; programs can be easily created and recalled at will. Graphic interface makes programming easy; icon of each unit may be brought up on the screen to show the Operator the status of the unit and the parameters that can be programmed.Edgebander can be operated manually when required, without necessity to

HOLZ-HER - 1619, ...Boring Machine (Construction & Line Boring) -- Specifications:(19) Spindles on 32 mm centers; bores vertically from top and horizontally from the rear; repositions via manual air shock assisted tilting.2 HP Motor with: 2,800 RPM Gear driven boring head. -- Features:4-Position turret style depth stop for boring depth and a 4-3/4" max. stroke of boring head.24-3/4" Working width; 27-1/8" max. panel width; 19-1/2"; x 38"; x 32-1/2"; H table size. -- Equipped & Complete with:RH & LH Indexing fence with flip stops; (2) indexing pins (for continuous line boring); (3) 4" dia. pneumatic holddown clamps; foot pedal actuator; magnetic push button starter. -- Actual Model is: HOLZ-HER 1619Dimensions of this specific machine with pallet: 52" x 40" x 65" H.Dimensions of this specific machine when vertical: 52" x 37" x 60" H.Dimensions of this specific machine when horizontal: 52" x 51" x 46" H.

Year: 2008 Excellent Condition HolzHer Triathlon 1488 Edge Bander Ligmatec Return Conveyor Manual Included Description: PreMill Front & Rear Trim Saws Top & Bottom Rough Cutter Top & Bottom Combination Finish Cutter 3mm Corner Rounding Edge Scraping Edge Buffing Variable Speed 8-18 mpm 8-60mm panel thickness Electrical: 230V 3Phase

HOLZ-HER 1402 HF Compact EdgebanderFeatures: -- Cartridge glue system, 3 mm edge thickness cap., -- Semi-automatic feed magazine, coil stock feeds automatically with guillotine cutoff, all strip stock is fed manually with pusher bar to advance the edging.Digital glue height indicator.Workstations: -- Double motor end trim (1 HP - 10,500 RPM motor ea.) -- Universal top & bottom fine trim (1942M) for bevels from 0° - 15³; allows simultaneous bevel & profile trimming (1 HP - 18,000 RPM motor ea.; trim motors are 0.6 kW HF - 300 Cy). -- Top & bottom PVC scraper unit (1929) for 0.8 - 3 mm radius. -- Top & bottom buffing (1940), 0.3 HP - 1,620 RPM motor ea. -- Single feed speed of 35 FPM.Complete with: -- Fixed outboard panel support, frequency converter, sound enclosure, and used tooling.

HOLZ-HER - 1516 Case Clamp (Single-Bay) -- Specifications1-Bay Clamp; 100" x 50" x 24" clamping cap.; (1) movable, vertically positioned clamping beam with: (3) Horizontal clamps; (4) adjustable vertical clamps. -- Total of (14) pressure cylinders with: 3-7/8" Stroke & (4) adjustable counter pressure bars; 700 Lbs/cylinder pressure at 100 PSI compressed air; built-in controls with pressure gauge.
