Dust Collection Systems For Sale

15 HP 6500 CFM 10” WC

MLS Number 12231702 2011 Clarke's Industries Bag House ? Explosion doors ? Abort gate at outfeed ? Abort gate at infeed ? Backdraft damper at infeed ? Spark detectors on infeed and outfeed lines ? Airlock ? Backdraft Damper on dust outfeed line ? Deluge System This baghouse is fed from a fan that has suction from Edger, 6”-10”-12”-20” Ukiah (chip/saw) and 20” sawbox. The sawdust from the discharge line under the airlock of the baghouse is sucked into Discharge blower (See Item#2). The dust outfeed line at the middle of baghouse, which discharges the dust fines during the cleaning cycle of bags, returns the fines to the baghouse fan. The Baghouse supplies air back into the building. This baghouse is fed from a fan with following specs: OEM & Model: Clarke’s Industries, Model MH-11, Serial 11OCWUBI3923 Driver: TECO 350 HP, 1785 RPM, 5009C Frame Motor Capacity: 66000 CFM Spark Detection Control System OEM/Model: Clarke’s Industries, Pyroguard CXC-2 Buyer responsible for dismantling.

7,000 Square feet of cloth Approx 70,000 CFM (2) 37" Positive Fans: 150 and 125 HP Ready to load on your truck!

CONCEPT-AIR "S12" Primary Filter Bag House Dust Collector System complete with the following components and features: -- Fan model HDR32 (CONCEPT AIR) belt driven with 100 HP Drive Motor -- Material Discharge Screw Conveyor Followed by a Rotary Air Lock. -- Return Air with summer/winter diverter. -- Shell is 12' dia. and houses (xxx) bags of size 8" x 120" Filter Bags for a total of x,xxx sq/ft Filter Cloth. Cleaning is with shaker system?. -- (4) Door Explosion Venting. -- Support Structure. -- Catwalk with Access Ladder. -- Professional removal and loading is available. -- NOTE: More information to follow.

Brand new System - IN STOCK! Coral FM 10 Ready Dust System 5,000 RPM 10 HP 230 or 480 V

New in the crate - Ready to ship! The ICON class dust system from Coral comes in 1-5 bag systems ranging from 1,400-3,800 CFM. - Easy installation! - Plug & Play setup - 3-10 HP Available!

In stock and ready to ship! ICON Pro Series from Coral - Integrated Fan - Easy installation - Plug and play! - 2900-3500 CFM - 5.5-7.5 HP

6 ft diameter stainless steel cyclone, Stainless 6ft dust cyclone 6ft diameter, dust inlet 17” x 16”, top outlet 32”, bottom outlet 20”, overall length 16ft, Inlet and or outlet may not be stainless, contact us for details. Price with shipping is available.

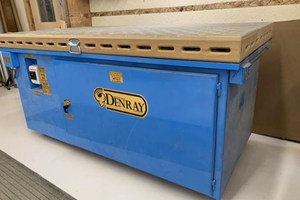

DENRAY 7200 B DOWN DRAFT TABLELarge 48" x 72" Table. -- 3,900 CFM rating after filters. -- 5 HP Motor w/magnetic starter. -- Space-saving fully self-contained unit: No duct work, no loss of conditioned air. Contains (2) cartridge filters that clean to 0.5 microns. -- Comfortable working height 36". -- 1-1/8" Thick hardwood frame worktable with 3/4" thick MDF board and rubberized surface. -- "Self-Cleaning" System with push button start to force compressed air from a storage tank into the filters and force dust into the dust drawer. -- Floor level air exhaust which can be directed away from the operator. -- 84 dBA Sound level. -- Options include; Timer to automatically clean filters without operator, (4) swivel casters (2) that lock into place, noise reducing muffler (Reduces volume by 10 to 12 dBA),Unit also available in 220 V single-phase.

DENRAY 9600 Down Draft Sanding Table: Extra long 48" x 96" table with a 36" working height. -- Rated at 4,300 CFM with 3 HP motor. -- This model features the Tube Filtration System which cleans with a 99% capture rate at 1 micron. -- Includes: (4) Swivel casters, including (2) that lock in place. -- No duct work, no loss of conditioned air. -- Comfortable 1-1/8" thick hardwood frame worktable with 3/4" thick MDF board and rubberized surface.

DENRAY 9600 B Down Draft Sanding TableExtra large 48" x 96" table; Comfortable 36" working height. -- Powerful system with 4,800 CFM rating. -- 5 HP Motor with magnetic starter. -- Space-saving self-contained unit w/built-in dust drawers and high efficiency cartridge filters. -- No duct work, no loss of conditioned air. -- 1-1/8" Thick hardwood frame worktable with 3/4" thick MDF board and rubberized surface. -- Fully enclosed unit. -- "Self-Cleaning" System with push button start to force compressed air from a storage tank into the filters and force dust into the dust drawer. -- Floor level air exhaust that can be directed away from operator. -- Quiet operation with only 82 dB. -- Available options; (4) Swivel casters with (2) that lock in place, Auto-Self cleaning timer or muffler.

DENRAY 3660B Down Draft Sanding TableConvenient 36" x 60" table with a 36" working height with DENRAY's Pulse jet Cleaning System. -- Rated at 3,400 CFM for fast, easy removal of dust. -- 2 HP 3-phase motor. -- Space-saving self-contained, double filtration unit with integrated table top surface filter and bottom filters on all (4) sides. -- No duct work, no loss of conditioned air. Sound level 74 dBA. -- 1-1/8" Thick hardwood frame worktable with 3/4" thick MDF board with rubberized surface. -- Also available in 115 V and 220 V single phase

DENRAY 3672 B Downdraft Sanding Table.Convenient 36" x 72" Table, comfortable 36" working height w/ DENRAY's Pulse Jet Cleaning System. -- Rated at 3,500 CFM. -- 2 HP, 3-Phase motor with magnetic starter. -- Self-contained system with 80/20 cartridge filters which clean with a 99.95% capture rate at .5 microns. -- 1-1/8" Thick hardwood frame worktable with 3/4" thick MDF board and rubberized surface. -- Space-saving design with no duct work, no loss of conditioned air. -- Sound level at 78 dBA. -- Available options include: Exhaust chimney, exhaust mufflers to reduce sound level to 10 - 12 dba, casters and filter cleaning auto timer.

DENRAY 2800 Down Draft TableConvenient size 28" x 48" table. -- 2,800 CFM Rating at 1" static with 1-1/2 HP motor. -- Space-saving self-contained unit with no ductwork and no loss of conditioned air. Tube filter system cleans with 99% capture rate at 1 micron. -- Comfortable 36" working height. -- 1-1/8" Thick hardwood frame worktable with 3/4" thick steel-reinforced MDF board and rubberized surface. -- (4) 4" Swivel casters with (2) that lock. -- Options available; Exhaust Muffler to reduce sound level 10 - 12 dBA, Magnehelic Gauges, HEPA Filter Banks, 3-Sided 20" Shields and Odor Control Filters. -- Also available in 230V, 460V and 575V, 3-Ph

DENRAY 2872 Down Draft TableLarge work surface on this 28" x 72" table (overall). -- Rated at 3,400 CFM, with 2 HP motor and magnetic starter. -- Space-saving self-contained unit w/built-in dust drawer. -- Features; New Tube Filtration System which cleans with a 99% capture rate at 1 micron. -- Quiet operation at only 77 dBA sound level. -- Comfortable 34-1/2" working height. -- 3/4" Thick steel-reinforced MDF board worktable with "non-marring" rubberized surface. -- Easy manual filter cleaning. -- (4) Casters, (2) of which lock in place. -- 115 Volt receptacle with 8' cord. -- Available options; Exhaust Mufflers to reduce sound 10 - 12 dBA, Magnehelic Gauges, HEPA Filter Banks, 3-Sided 20" shields and Odor Control Filters. -- Also available in 230V, 460V and 575V, 3-PH which includes magnetic starter.

DENRAY 2872 B Down Draft Sanding TableThis model is great for medium sized jobs, and can be used for plastics, woods and finishing materials. The 2872B comes with 80/20 cartridge filters which clean with a 99.95% capture rate at .5 micron. This model comes standard with Denray's "Jet Pulse" push-button cleaning, rubber coated top, along with motor access on the left end and filter access on the right end.Large work surface on this 28" x 72" table with DENRAY'S Pulse Jet Cleaning System. -- Rated at 3,000 CFM, after filters, with 2 HP motor and magnetic starter. -- Space-saving self-contained unit w/built-in dust drawer. -- High efficiency cartridge filters (180 sq. ft. of cloth area) that clean dirty air to .5-micron. -- Includes: Push Button cleaning -- Quiet operation at only 74 dBA sound level. -- Comfortable 36" working height. -- 3/4" Thick steel-reinforced MDF board worktable with "non-marring" rubberized surface. -- This machine can be used in heavy wood, finishes, solid surfaces and stone type materials. -- Available options: -- Explosion Proof Motor (3 Phase only). -- Light Bar. -- Casters. -- Auto-timer. -- Muffler (reduces sound level 10-12 dbs.). -- 100% Spunbond Polyester FiltersCarbon Filter Bank (odor only). -- HEPA Filter bank. --Three-sided Hinged Safety Shield. -- Magnehelic Gauge. -- HDPE Plastic Tabletop. -- Hydraulic Height AdjustmentAlso available in 230V, 460V and 575V 3 Ph..

DENRAY 2872 G Downdraft Sanding Table for Metal GrindingDenray grind downdraft tables are made for the general grinding of ferrous metals and come equipped with water pans built over the filters to help protect them from hot sparks. The flame-retardant 100% Spunbond polyester cartridge filters clean to .5 micron. These tables come equipped with Denray's "Jet Pulse" push-button cleaning, which can be set with an automatic timer.Includes: -- 28" x 72" Table top work area. -- 36" Work height. -- 3 HP motor w/ 3,600 CFM. -- 18" Fan. -- 76 Decibels Sound Level. -- Auto-timer. -- Magnehelic Guage Available Options: -- Explosion Proof Motor (3 Phase only). -- Light Bar. -- Casters. -- Muffler (reduces sound level 10-12 dbs.). --Carbon Filter Bank (odor only). -- HEPA Filter bank. -- Fiberglass Grate top. -- Rubber Mat for Steel Tabletop. -- Stainless Steel Tabletop. -- HDPE plastic tabletop. -- Hydraulic Height Adjustment. -- Smoke Arm. -- Larger Motor/Fan Up-grade?

DENRAY 2896 Down Draft Sanding Table: Extra long 28" x 96" table with a 36" working height. -- Rated at 3,500 CFM with 2 HP single phase motor. -- This model features the New Tube Filtration System which cleans with a 99% capture rate at 1 micron. -- Includes: (4) Swivel casters, including (2) that lock in place. -- No duct work, no loss of conditioned air. -- Comfortable 1-1/8" thick hardwood frame worktable with 3/4" thick MDF board and rubberized surface. -- Available options include; Exhaust Muffler to reduce sound 10 - 12 dBA, Magnehelic Gauges, HEPA Filter Banks, 3-Sided 20" Shields and Odor Control Filters. -- Also available in 230V, 460V and 575V, 3-PH.These tables are popular with small to medium shops to incorporate (2) operators side by side or for use on longer products.

DISA CS-4 MAXI Dust collector with Rotary Air Lock. Approx. 16,000 CFM at 8.7:1 air-to-cloth ratio; 1,725 sq. ft. of filter area, with (128) filter bags filtering to 3-micron. -- General Info: CS-4-M consists of (3) filter modules & one entrance module. -- Comes with: DISA, S56-500 Material Handling fan powered by 50 HP TEFC motor. Fan nominal rating: 16,000 CFM @ 9" SP. Fan is currently mounted on elevated support but can be installed on the ground as well. -- (3) Reverse air bag cleaning modules with motorized fans that clean the bags every (4) hours of operation automatically, each with 2 HP fan motor. A damper at inlet closes during cleaning cycle to prevent blowback. -- Complete with: Hopper bottom as collected dust is conveyed to one end where a NRS-20 Rotary Air Lock where dust is discharged into Transfer fan. Filtered air return unit, 8' support structure to allow for dumpster under Dust Collector. -- Includes: Control panel, motor starters and switches, and Explosion Panels. Material handling main fan w/motor mounted to side of base module. -- 26" diameter inlet pipe, 97" clearance under collector for dump hopper, free standing steel bolt-together structure, -- Features: Dust transfer from bottom of Rotary Air Lock to enclosed container by separate floor mounted material handling fan, approx 7.5 HP. -- Note: Pictured storage bins are not included.

DISA - NFK 9, ...2BL Modular Dust CollectorUp to 45,000 CFM @ 6.25 to 1 air-to-cloth ratio and @ 11.6" w.g. external static pressure; modular, expandable Heavy-Duty Baghouse. -- 7,200 Sq/ft of filter area, made up of (450) filter bags. -- Filter consists of: (9) Filter module sections with: Access door in each section; (2) blank inlet module sections (9) 2 HP Regeneration fans for cleaning of filter media and (2) blank entry modules. -- Includes: (1) 60 HP Belt drive COMBIFAB blower package with: Drive guards; motor & fan are a common steel base/frame with ground level installation; fan delivers about 20,000 CFM. There is sufficient filter capacity for at least 75 - 100 HP second fan/motor. -- Complete with: Outside separate electric disconnects for each cleaning fan. -- "NRS-10" Rotary Air Lock for bottom discharge with: 2 HP TEFC Motor; steel support members dismantled. -- Includes: Some outside pipe (and main headers explosion/access doors). -- NOTE: (2) Cleaning fans are missing and will be supplied at cost. -- Actual model is: NFK2000 9+2 BL HJLR.
