Equipment For Sale

HOLYTEK - YRT 100, ...Round End Tenoner -- Twin positioning tables with: Traversing single cutterhead design; fully automatic work cycle; tables alternate into the cutting cycle for continuous operation; rotational movement of cutterhead is externally adjusted. Capacity: -- Width of tenon: 0" - 3.9" Plus both radii; thickness of tenon: 1/8" - 1-3/16"; depth of tenon: 3/8" - 1-3/4"; 1/4" - 3-1/2" with special tooling. Specifications: -- Belt driven cutterhead, 3 HP - 6,000 RPM spindle; 1 HP motor with variable rotational movement of cutterhead; straight, simple or compound angles are easily adjusted with tables. -- (2) 14" x 9" Tilting tables: 0° - 15° up, 0° - 30° down, and 0° - 20° to the side; each table with: Pivoting fences & miter gauges, vertical height adjustment . -- Overhead pneumatic holddowns. -- Production rate approx.: (13) Pieces per Min.

Holytek 37DA Wide Belt Sander (2) Heads37" Width cap Drum, Combination Head1st Head: 7" Dia. spiral grooved rubber covered contact roller, 20 HP motor;2nd Head: Combination sanding head with 5" dia. spiral grooved rubber covered contact roll & 2" wide polishing platen, 15 HP motor.Specifications -- Abrasive belt size of 37" x 60" -- Pneumatic belt tensioning and electronic abrasive belt tracking -- 12" min. working length. -- 2 HP Conveyor belt motor, -- Variable feed speed from 13 - 52 FPM,Equipped with & Features -- Infeed & outfeed rubber covered holddown rolls; -- 0" - 4" motorized thickness adjustment by 0.5 HP motor. -- Safety stop bar, emergency rail stop across the front of conveyor -- Motor load meters.

HOLZ-HER 1270 Automatic Panel Saw w/Supercut Scoring75" x 169" Cap., 4 HP motor, 2" depth of cut, 220 mm (8-5/8") dia. saw blade at 6,640 RPM.Features: -- Saw head traverses automatically when rip or crosscutting and returns to starting position; (2) cycle lengths for long or short panels. -- 36 & 72 FPM saw carriage travel speed, 0.75 HP feed drive; -- Automatically moving back grid w/interlocks. Complete with: -- Rip gauge with (3) cam settings. -- (2) Gauging bars throughout frame length with (2) flip stops. -- Bottom rollers for easy movement of larger panels.Includes: -- Spare Blades.

HOLZ-HER 1310 Edgebander PLC controlled machine with 0.4 - 15 mm Edge thickness; 12.5 m/Min Feed Speed; 60 mm min. width, 180 mm min. length; 6 - 45 mm panel thicknessEquipped with: -- "1903" Edge strip magazine for solid wood strips, & coiled PVC up to 3 mm.; "1906" Glue cartridge glue station with adjustable nozzle, 2-1/2 minutes glue heat up time, fast glue color change & can process with PUR glue cartridges. -- "1913-MOT1" Pressure station (3) pressure rollers, (1) large driven and (2) conical smaller rollers with Servo control for adjustment.Workstations: -- "1918" (2) motor end trimming unit (18,000 RPM Motors) with carbide tipped saw blades, auto pneumatic tilt -- "1823" Top & Bottom rough trim motors (18,000 RPM Motors) with insert tooling for flush trim. -- "1942-MOT" Servo controlled Top & Bottom combination flush/chamfer & radius unit (0.6 kW - 18,000 RPM each motor). -- "1964" Top & Bottom surface scraper. -- "1940" Top & bottom tilting buffing unit (1,400 RPM Motors) - -- Variable feed speed 8 - 18 MPM (26 - 62 FPM). -- "PCS" (Pneumatic Changeover System) on End trim station, second Top & bottom trimmer (1942M). -- Includes: Used tooling on all workstations.NOTE: Less than 1,200 hours of operation.

Holzher 1265S Vertical Panel Saw

HOLZ-HER 1516 CASE CLAMP (SINGLE-BAY: -- Specifications:1-Bay Clamp, 100" x 50" x 24" clamping cap.; (1) movable, vertically positioned clamping beam with (3) horizontal clamps, (4) adjustable vertical clamps. -- Total of (14) pressure cylinders with 3-7/8" stroke & (4) adjustable counter-pressure bars; 700 Lbs/cylinder pressure at 100 PSI compressed air; built-in controls with pressure gauge.

Holz-her Cut 85 Panel Saw; under power until 8/21 model 6210

Holz-her edgebander This machine is still under power and available for inspection.

HOLZ-HER 1402 HF Compact EdgebanderFeatures: -- Cartridge glue system, 3 mm edge thickness cap., -- Semi-automatic feed magazine, coil stock feeds automatically with guillotine cutoff, all strip stock is fed manually with pusher bar to advance the edging.Digital glue height indicator.Workstations: -- Double motor end trim (1 HP - 10,500 RPM motor ea.) -- Universal top & bottom fine trim (1942M) for bevels from 0° - 15³; allows simultaneous bevel & profile trimming (1 HP - 18,000 RPM motor ea.; trim motors are 0.6 kW HF - 300 Cy). -- Top & bottom PVC scraper unit (1929) for 0.8 - 3 mm radius. -- Top & bottom buffing (1940), 0.3 HP - 1,620 RPM motor ea. -- Single feed speed of 35 FPM.Complete with: -- Fixed outboard panel support, frequency converter, sound enclosure, and used tooling.

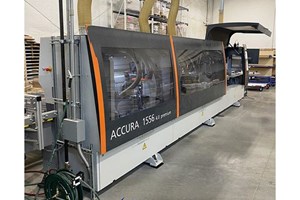

HOLZ-HER ACCURA 1556 4.0 PREMIUM EDGEBANDER (W/PRE-MILL & CORNER ROUNDING) + GluJet EVA / PUR Gluing Systems:Specifications: -- Working Capacity: Edge thickness min./max. 0.4 - 3 mm (0.02 - 0.12") for coiled material, 15 mm (0.59") 1/2"+ max for strips.Panel thickness 8 - 60 mm (0.315" - 2.36"); workpiece width min. 60 mm (2.36"); workpiece length min. 140 mm (5.5"); Feed speed 10 - 20 MPM (33 - 66 FPM).Machine In-Feed Configuration: -- Pre-Milling Station "1802": 2 x 1.2 KW (1.6 HP) - 12,000 RPM motors; Diamond cutter-heads with ProLock quick clamping system. Quick-Lock adjustable in-feed fence with digital indicator. -- Edge Magazine "1901": for coil and strip processing, utilizing motion detector to ensure accurate, trouble-free positioning of edge material; exclusive "Tractor-Belt feed System", edge guide equipped with automatic guillotine lock-out for safety, 3° approach angle allows easy feeding of solid wood edges. -- Pressure Section "DW 701": with (1) large driven (synchronized with feed-speed) roller and (2) cantered idle rollers, adjustable by hand wheel and scale. -- GLUING SYSTEM "GJ 301" (Glue Jet)... Processes "EVA" or "PUR" Glue in Cartridge or Granulate Form, granulate requires an "optional" hopper. Upper glue line height positioning is set automatically with hold-down beam setting. Heat-up time to ready stage takes only 2 - 3 minutes!Additionally equipped with "iTRONIC" Adaptive pressure and glue quantity control for intelligent automation. Adaptive trimming blade. Automatic glue quantity control. Adaptive pressure unit control. Automatic cleaning routine. Remaining glue quantity indicator.Workstations: -- End Trimming Unit "KA 702": Front & rear 2 x 0.45 KW (0.6 HP) - 9,000 RPM motor each, uni-point swivel-axis for no re-indexing when changing from flush to bevel end trim (0° - 10° bevel),"PCS" programmable pneumatic change-over from flush to bevel. -- Flush Trimming Unit: Top & bottom Flush 15 mm unit; 2 x 0.65 KW (0.88 HP) - 12,000 RPM, each motor. -- Fine/Bevel/Radius Combination Trimming Unit "FR 701": Radius 2 mm trimming, servo controlled, 2 @ servo motors (1) for horizontal copy wheel & (1) for tool spindle position) programmable top & bottom unit 2 x 0.65 KW (0.88 HP) - 12,000 RPM each motor.Uni-Point design with no second adjustment, pneumatic, programmable tilt action for changing the degree of bevel, digital counters for vertical copy wheel position and pneumatic air cylinder for in/out pre-positioning of trimming motor. -- Corner Rounding Unit "FF 701": (4) Motors 0.22 KW (0.30 HP) - 9000 RPM for up to 3 mm edge thickness and work-piece thickness min./max. 12 - 60 mm (0.473 - 2.362"), max. feed speed 10 MPM (33 FMP). -- Profile Scraping Unit "ZK 501": Top/Bottom, servo motor controlled/programmable knife position, vertical copy wheel adjustment with quick setting spindle.For PVC edges, reversible insert carbide knives, equipped with air-jet blowers and chip collector box. -- Glue Scraping Unit " FK": Flat surface,

HOLZ-HER 1270 Automatic Panel Saw w/Supercut Scoring75" x 169" Cap., 4 HP motor, 2" depth of cut, 220 mm (8-5/8") dia. saw blade at 6,640 RPM.Features: -- Saw head traverses automatically when rip or crosscutting and returns to starting position; (2) cycle lengths for long or short panels. -- 36 & 72 FPM saw carriage travel speed, 0.75 HP feed drive; -- Automatically moving back grid w/interlocks. Complete with: -- Rip gauge with (3) cam settings. -- (2) Gauging bars throughout frame length with (2) flip stops. -- Bottom rollers for easy movement of larger panels.

2019 Holz-her Sprint 1327 Call for more information

HOLZ-HER CONTRIGA 1366 EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): -- Specifications: NC Controlled Edgebander has the ability to program all functions including: Panel thickness, edge feed, glue application, end trimming, radius/fine trimming, corner rounding, scraping, and buffing. - Virtually eliminates setup time by selecting & loading program that automatically activates these functions simultaneously.Coil edgebanding up to 3 mm PVC cap.; 2-3/8" max. panel thickness; 7" min. panel length; powered pressure beam opening adjustments. Equipped with:"1961" Premilling Station: PC Controlled with up to 45 mm (1-3/4") milling height; (2) motors @ 2 kW (2.6 HP) - 9,000 RPM each. -- Features: Granulate glue system with: Hopper System with "floating" applicator nozzle & "quick melt" feature. -- Automatic magazine for coil, strip & solid edgebanding model "1901" with: TRACTOR-BELT Feed System, Heavy-Duty guillotine for 3 mm PVC. -- "1914" Pressure Section for 12 mm thick edgebanding with: (3) Rollers, each w/individual pressure control, powered 1st roller with electronic speed control synchronized with chain feed speed; Servo motor adjustment for edgebanding thickness from PLC. Workstations:"1819-1" Double motor (1 HP - 6,000 RPM motor ea.) end trim units with: "Uni-Point" Swivel system; "quick change" from flush to 0° - 15° bevel from operator panel. -- "1962" Top & Bottom flush trim unit: 2.6 HP - 200 Cy HF motors; 12,000 RPM cutter speed; NC Servo control, non-tilt. -- "1966" Top & Bottom fine trim unit with: Motorized 5-axis positioning; 1.5 HP - 200 Cy HF motors;, 12,000 RPM cutterhead speed; bevels 0° - 45°, Servo control; all adjustments programmable through the PLC. -- "1933 & 1934" 4-Motor corner rounding unit for top & bottom of leading & trailing corner when edgebanding all (4) sides; 0.7 HP - 200 Cy ea.; both motors with Servo positioning from control panel; Servo adjustment of entire unit (base). -- "1927" Scraper Unit: Finishing up to 5 mm thick PVC banding for radius range from 2 - 5 mm; vertical & horizontal tracing wheels, Servo positioning enabled through "PC"; Servo controlled in/out of base. -- "1964" Top & Bottom Glue scraper. -- "1851" Oscillating buffing unit: Cleaning & polishing of panel; (2) 0.25 HP - 1,440 RPM motors; tilts 0° - 45° vertically and 0° - 20° swivel on horizontal plane.Other Specifications & Features:Variable feed speeds up to 25 MPM (81 FPM); panel overhang beyond chain 35 mm (1.38"); features automatic track pad lubrication. Operator Interface:PPC-231 Controller for line control, glue temperature & flow, feed speed setting, and motorized holddown pressure beam adjustment. -- Frequency inverter, outboard panel support, and sound enclosure w/interior lights over all milling units. -- Actual Mode is HOLZ-HER CONTRIGA 1366

HOLZ-HER - 1488 TRIATHLON: Edgebander (w/Premilling & Corner Rounding) + LIGMATECH -ZR01 Return Conveyor -- SpecificationsWorking Capacity: Max. 1" (25 mm) solid wood banding; thin PVC, Veneer, HPL & 3 mm PVC cap.; 60 mm (2.37") max. panel thickness; 140 mm (5-1/2") min. panel length.Frontend equipped with: -- Premilling Unit: (2) 2.2 kW (3.0 HP) - 12,000 RPM; (1) jump spindle with digital indicators for positioning. -- "ULTRA-GRANUPRESS" Gluing System with: Flat glue nozzle only 3° angle of approach ideal for solid wood edgebanding & "quick melt" feature. -- Automatic Edge Magazine: Coil, strip & solid wood edgebanding with TRACTOR-BELT feed system; Heavy-Duty guillotine for 4 mm PVC. -- Pressure Section: (3) Large dia. rollers, each w/individual pneumatic plunge and pressure control; programmable with Servo motor positioning; powered 1st roller with electronic speed control synchronized with chain feed speed.Edgebanding Workstations -- End Trimming Unit: (2) 0.75 HP - 6,800 RPM ea. "HF" Motors with: "Uni-Point Swivel", quick change from flush 0° - 15° bevel programmable from operator panel; Servo controls. -- Flush Trimming Unit: (2) 2.6 HP - 12,000 RPM - 200 Cy HF motors; Servo controls. -- Fine/Bevel/Radius Trimming Unit: (2) 1-1/2 HP- 12,000 RPM - 200 Cy HF motors; bevels 0° - 45°, Servo controls + SIKO digital readouts. -- Corner Rounding Unit: (2) "HF" Top motors & (2) "HF" bottom motors for trimming leading & trailing upper & lower edge/corners; trailing edge (4 x 3/4 HP - 12,000 RPM - 300 Cy HF motors; 2 mm or 3 mm radius cap. -- Profile Scraper Unit: "Super Duty" for positively smooth finishing thick PVC for radius range from 2 - 5 mm; vertical & horizontal tracing wheels, positioning enabled through (1) Servo motor function from Control Panel; SIKO readouts for easy setup. -- Buffing Unit: (2) Lateral buffing wheel positioning motors with Oscillating & Programmable Jump Action for cleaning & polishing of edges (two 0.25 HP - 3,600 RPM motors); tilts 0° - 5°, Servo controls.Equipped with and Includes: -- "PPC 231" Controller with 15" LCD color screen: 90% of all setups can be adjusted from the Control Panel; programmable for a large variety of edges like solid lumber, veneer strips or coils, HPL, thin & thick PVC; line control so there are no mechanical limit switches along the chain track. -- Variable feed speed from 8 - 20 MPM (26 - 65 FPM); panel overhang beyond chain 35 mm (1.38"); features automatic track pad lubrication. -- Factory Documentation: Operating & Spare Parts Manuals. -- Actual Model is: HOLZ-HER 1488 TRIATHLON + LIGMATECH ZR01

1402HF Edgebander 600V /3 Ph / 60 Hz with included transformer Double motor end trim

HOLZ-HER 1327 SPRINT CLASSIC EDGEBANDER (W/PER-MILL & CORNER ROUNDING) + Glu-Jet EVA & PUR Gluing Systems: -- Specifications: Servo Machine with Pre-mill, Corner Rounding and Reipe Spray Cleaners. -- Edgebanding Capacity: Edge thickness min./max. 0.4 - 8 mm (0.016 - 0.315"), coiled material 0.4 - 3 mm (0.016 - 0.157").Panel thickness 6 - 60 mm (0.236 - 2.362"), workpiece width min. of 65 mm (2.559").Workpiece length min. 160 mm (6.299"); Feed speed 10 - 18 MPM (33 - 59 FPM). Operator Interface:&#9679 15" Flat "Touch Screen" control. Programs can be easily created and recalled at will.The graphic interface makes programming easy; icons of each unit may be brought up on the screen to show the operator the status of the unit and the parameters that can be programmed.Edgebander can be operated manually when required, without the necessity to write a program.Machine In-Feed Configuration:&#9679 Pre-Milling Station "1802": (2) 2.0 kW (2.68 HP) - 12,000 RPM motors. -- Edge Magazine "1901": For coil and strip processing, utilizing motion detector to ensure accurate, trouble-free positioning of edge material.Exclusive "Tractor-Belt feed System", edge guide equipped with automatic guillotine lock-out for safety,3° Approach angle allows easy feeding of solid wood edges. -- Pressure Section "1913": Pneumatic Plunge controlled pressure section with (1) large driven roller and (2) cantered idle rollers. -- Gluing System "JG301" Glu Jet Hybrid Technology; Processes "EVA" or "PUR" Glue in Cartridge or Granulate form.Motorized programmable glue nozzle (upper glue line) height positioning. Approx. 3-Minute Heat Up TimeWorkstations: &#9679 End Trimming Unit "1918P": Front & rear 2 x 0.35 kW (0.5 HP) - 9,000 RPM motor each,For Straight or Chamfer trimming with pneumatic change-over/swiveling up to 10° bevel. -- Flush/Bevel/Radius Combination Trimming Unit "1827-Mot 4": Top & bottom, 2 x 0.65 kW (0.87 HP) - 9,000 RPM each motor.Manual Edge Radius adjustment up to 3 mm & chamfer adjustment up to 15°. -- Corner Rounding Unit "1832": (1) Motor 0.22 kW (0.30 HP) - 9000 RPM Up to 3 mm edge thickness, min./max. work-piece thickness 12 - 45 mm (0.473 - 1.772"),When CR unit is activated, the max. feed speed allowed is 10 MPM (33 FMP). -- Profile Scraping Unit "1929P": Top/Bottom pneumatic controlled knife position for PVC edges,Reversible insert carbide knives, equipped with air-jet blowers and chip collector box. -- Buffing Station "1940": Top & bottom buffing motors with 150 mm (6.0") cloth buffing wheel diameter,Adjusts in any direction (vertical tilt is 0° - 5°, horizontal swivel is 0° - 20°); 1,440 RPM wheel rotation.Complete with:&#9679 Motorized Top Pressure Beam. Outboard panel support &#9679 Manual Central Lubrication of the Transport Chain &#9679 Sound enclosure w/interior lights over enclosed workstations of the machine &#9679 Used tooling on the stations &#9679 Machine documentation. -- Actual Model is HOLZ-HER 1327 SPRINT CLASSIC

HOLZ-HER - 1411-3, EDGEBANDER Cartridge Glue System, 5 mm edge thickness cap. (up to 13 mm w/optional tooling), 1-3/4" max. panel thickness, and 7" min. panel length.Equipped with: -- Automatic magazine coil & strips, 3 mm PVC cap. pneumatic guillotine for coil cutoff. -- Pressure section with (1) large dia. drive roller & (1) idle. Workstations: -- Double-motor end trim model "1918" (tilting 0° - 10°), 0.5 HP - 18,000 RPM motor each. -- Top & bottom radius trim model "1942", 0.8 HP - 18,000 RPM motor each (trim motors are 0.6 kW HF). -- Top & bottom glue scraper unit "1964", with air jets for blow-off. -- Top & bottom buffing unit "1940" (tilting cap. 0 - 5°), 0.2 HP - 1,400 RPM Motors each. -- Variable feed speed from 36 - 52 FPM. - Fixed outboard panel support. Complete with: -- PLC (Programmable Logic Control) for easy setup and program storage. -- Frequency converter, sound enclosure, and used tooling..

HOLZ-HER - 1435-SE EDGEBANDER"1906" Cartridge Glue System; 5 mm edge thickness cap. (up to 8 mm w/optional tooling); automatic magazine coil & strips; 3 mm PVC cap. pneumatic guillotine for coil cutoff. Workstations: -- Double-motor end trim, (2) 0.3 HP - 9,000 RPM motor ea.; chamfers 0° - 10°. -- Universal top & bottom fine trim (for bevels from 0° - 15°); allows simultaneous bevel & profile trimming; (2) 0.8 HP - 18,000 RPM motor ea.; all trim motors are 0.6 kW HF - 300 Cy. -- Top & Bottom PVC scraper unit for 0.8 - 5 mm radius; air jets for blowoff. -- Top & Bottom "jump" buffing (0.3 HP - 1,620 RPM ea.). -- Single feed speed: 35 FPM.Complete with: Built-in Operator Control Panel; outboard panel support; frequency converter; used tooling; and sound enclosure.

HOLZ-HER CUT 85 FRONT LOAD, AUTOMATIC PANEL SAW: -- Specifications:4,250 mm (167") Max. rip cut cap., 3,800 mm (149") pull back pusher stroke; 97 mm (3.8") saw blade projection.15 HP (11 kW) Main saw motor, 3 HP (2.2 kW) scoring motor. -- Saw Carriage:Variable feed speed from 3 - 328 FPM (1 - 100 MPM ), return speed of 328 FPM (100 MPM).Automatic cutting length limiter adjusts the cutting length at the end of the workpiece, automatic saw carriage lubrication. -- Pusher Fence:(7) Material gripper clamps; 259 FPM (80 MPM) forward positioning speed, 259 FPM (80 MPM) return speed.Rack & pinion movement on both sides to assure the pusher remains parallel. -- Operator & Machine Control:PC Front-End with CUTCONTROL "Direct Cut" + "OPTIPRO" + Windows 2000 operating system,15" TFT Display with unlimited program storage via floppy disk, keypad for data entry, USB & RS-232 serial port, CD ROM & 1.44 MB disk drive for additional storage of programs.CUTCONTROL offers Real-Time Graphics, diagnostic for errors or machine malfunction by means of an error signal code, incremental or absolute programming in mm or inches."Direct Cut" allows the operator to easily input information for absolute, serial, format, grooves, perforations, & position cutting which allows the machine to easily adapt to various situations & materials."OPTIPRO" is a very user friendly on-board Optimizing System for all types of various cutting patterns, including angled cutting. -- Complete with: Rear roller support rails; automatic crosscut side aligner; automatic saw blade height adjustment.(3) Air support tables, ea. 78" x 24" (1,981 x 509 mm). -- Actual Model is HOLZ-HER CUT 85 4300.

Holzher Ergebender
