Equipment For Sale

(2) Webster 18’ x 30’ Vibration Conveyor

Webster Vibrating Conveyor 18” Bottom, 57’ Length

Webster vibrating conveyor, 18" wide pan x 20' long, electric drive, good working condition

Webster vibrating conveyor, 18" wide pan x 25' long, electric drive, includes chipper feed spout, good working condition

Webster Vibrating Conveyor 50' long x 18" wide Includes Chipper Transition

Please see full specification in documents section. Number of vertical drilling spindles 25 Vertical drilling spindle power 2.7 kW/3.5 HP Vertical drilling spindle speed 1,500 to 7,500 rpm Number of horizontal drilling spindles 6 Horizontal drilling spindle power 2.7 kW/3.5 HP Horizontal drilling spindle speed 1,500 to 7,500 rpm X-axis grooving saw power 2.7 kW/3.5 HP X-axis saw rotation speed 2,000 to 7,500 rpm Saw blade diameter required 100 mm/4” ATC router spindle power (power constant from 9000 rpm to 18000 rpm) 9.0/12.0 kW; 12.0/16.0 HP ATC router spindle speed 1,200 to 24,000 rpm Tool magazine capacity 2 x 8 tools HSK63 tool holders supplied 4 Collets for HSK63 tool holders 4 Number of panel support benches 8 Number of vacuum pods per bench/total 3/24 Number of panel feeding rails 6 Vacuum pump capacity 100 M3/hr Length of machine 7580 mm/24’ 10” Width of machine 4650 mm/15’ 3” Height of machine 2820 mm/111” Working length 4250 mm/167” Working width - support bench width 1500 mm/59” Max. panel thickness 125 mm/4.9” Machine weight 6200 kg/13,700 lbs. Max. drilling depth for through holes 55 mm Axis stroke/positioning speed X-axis 5050 mm/80 M/min Y-axis 2150 mm/60 M/min Z-axis 370 mm/20 M/min C-axis 0-360°

X-Axis Travel: 100? Y-Axis Travel: 68? Z-Axis Travel: 9? Max Workpiece Thickness: 4? Spindle Speed: 1,250 – 24,000 rpm Equipped With: Powerful HSK Router Spindle- Up to 9 kW 6 Pneumatically Fixed Work Piece Supports Safety Positioning of Work Piece Consoles and Vacuum Cups

Weeke BHX 055 CNC Center

Weeke Vantech 480 CNC Router 4x8 Table

Weeke BHX 500 CNC

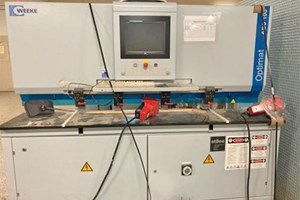

Weeke Model Optimal BHX055 Vertical CNC Machine 8 Vertical Drilling Spindels 2 Horizontal Spindle in X-Direction 1 Horizontal Spindle in Y-Direction Grooving Saw in X-Direction 1 Powerful 5kW ETP 25 Routing Spindle Vector Speed: X-30M/Min Y-30M/Min Z-15M/Min 4 position tool changer

Weeke Vantech 480 CNC Router Infeed Table Push off table 4'x8' Table

Homag Optimat NBP084/ Vantech 480 4x8 Bed 12 HP Spindle 7-Position Boring (3) Vacuum Pumps It has 4 Becker pumps (with extra set of vains + maintenance kit) OEM extra new spindle OEM extra computer for cabinet

--MAKE OFFER!---VERY GOOD CONDITION-- WEEKE BHP 100/VANTAGE 480 FLAT TABLE MACHINE, with ATC, Boring, Infeed Roller & Outfeed & 4,771 Hrs. (As of 10/31/23) Specifications: 4' x 8' Bridge style gantry machine with User-Friendly "S/C Tech" "MATRIX" grooved phenolic vacuum table. Working Area: 'X" axis 99.21" (2,520 mm), "Y" axis 49.21" (1,250 mm), Max. material thickness of 3.94" (100 mm). Travels: “X” axis 146.06” (3,710 mm), “Y” axis 81.30” (2,065 mm), “Z” axis 13.70” (348 mm) Routing, 8.46” (215 mm) Boring. Positioning Speed: "X" & "Y" axis Vector speed is 314 FPM (96 MPM), "Z" axis 65 FPM (20 MPM); The head travels via AC brushless drives & THK linear motion guides on all axes. Worktable: User-Friendly "S/C Tech "MATRIX" grooved phenolic vacuum table for easy vacuum pod placement. (2) Fixed LH side & (2) Fixed RH side pneumatic pop-up positioning stops. Boring Unit: (1) 3 HP (2.3 kW) Motor, variable speed for 1,500 - 7,500 RPM; (21) Independent vertical spindles with (8) in "X" axis, (9) in "Y" axis (1st Row), & (4) in "Y" axis (2nd Row). Machining: (1) 12 HP (9 kW) Air Cooled High speed constant duty Router with HSK F63 adaptor, 1,250 - 24,000 RPM, constant torque achieved at 9,000 RPM, RH or LH rotation (1) 14-Position tool changer Carousel located at the back side of the spindle carriage. Machine & Operator Control: PC Front-End with WEEKE "Power Control + Windows + WoodWOP operating system. 17" TFT Color graphic monitor, Hand-held control pendant, Foot pedal control; "BECKHOFF" Programmable logic control for (3/4) axes, linear, circular & helical interpolation; The controller is contained in a separate free-standing, dust-free control cabinet that can be placed at either the LH or RH side of the machine. Complete with: 488” W x 96” L Infeed electric/hydraulic Scissor Lift platform, with 3” x 3” Support beams on 7” Centers; 4’ L Roller track intermediate table; vacuum arm with (2) 10” dia. vacuum pads; rake off-feed System; 49” W x 10’ L x 36” H Outfeed motorized belt conveyor; BUSCH "MM 1322 A VM3" 10 HP (7.6 kW) 300 mbar Vacuum Pump; 6’ H Safety fencing. Actual model is WEEKE BHP 100/VANTAGE 480 Machine Dimensions: 292” x 202” x 96” H. Machine with Scissor Lift Dimensions: 389” x 202” x 96” H. CURRENCY NOTE: Negotiable Price is listed in U.S. Dollars.

WEEKE ABD 050 CNC BORE, GLUE & DOWEL INSERTER: -- Specifications:(1) Horizontal drilling aggregate with (1) individual spindle; with servo control of the "X" Axis; (1) glue & dowel injector with glue flow control; (1) vibrating hopper dowel feeder. -- Working Capacity:Part size: Length 20 mm - 1,250 mm (.75" - 49") Width 20 mm - 800 mm (.75" - 31.5") Thickness 10 mm - 60 mm (.4" - 2.4") thick.Machine is set up for 8 mm Dia. x 30 or 35 mm long dowels -- Work Area(2) Separate working fields with (4) pneumatic top clamps can process up to (2) parts independently on the left-hand, right-hand or center stops; work pieces can be loaded in (1) field while being machined in the other to allow fast production of varying parts. -- Operator Interface:PC Front-end with Homag Power Control PC 85T, WoodWOP 5.0 operating system with graphic programming & error messaging.17" TFT flat screen monitor, CD-RW drive, 1.44 MB floppy drive, standard keyboard & mouse; Software allows program design with automatic mirror-image by use of an active center stop located 600 mm (23.6") from zero. -- Complete with:Bar code reader. All manuals, documentation & program disk provided with machine. -- Actual Model is WEEKE ABD 050/12/NA.

WEEKE ABD 260 CNC BORE GLUE & INSERTER -- Specifications:Designed for small or large capacity horizontal drilling, gluing and dowel insertion; built on a Heavy Duty welded steel base; main horizontal beams hold the carriage for the boring head and glue/water injector.Support Table with a left and right side stop as well as a rear stop bar, center stop pneumatically activated. Eight (8) clamping cylinders, manually adjustable, automatic central lubrication. -- Working Capacity: Material size from 20 mm - 2,800 mm (.75" - 110.25") long, 100 mm - 800 mm (3.9" - 31.5") wide, 10 mm - 80 mm (.4" - 3.5") thick. Machine is set up for 8 mm Dia. x 30 mm or 35 mm long dowels (additional dowel sizes are optional). -- Horizontal Drilling and Dowelling Aggregate: with (3) individual spindle on 32 mm centers; (1) glue & dowel injector with glue flow control; (1) vibrating hopper dowel feeder. -- Vertical Three Spindle Drilling Unit: with (3) individual selectable spindles at 32 mm spacing, adjustable in "Y"- direction from 0 to 50 mm, minimum workpiece width 100 mm. -- (2) Separate stations process: (2) parts independently on the left-hand or right-hand stops or (1) large piece as required with no additional setup; work can be loaded in (1) field while it is being machined in the other to allow fast production of varying parts. -- Operator Interface: Power Control PC Front-end with Microsoft Windows based control + Weeke "PC85T" + "WoodWOP" operating system with graphic programming & error messaging.17" TFT flat screen monitor, CD-RW drive, 1.44MB floppy drive, standard keyboard & mouse. Software allows program design with automatic mirror-image by use of an active center stop located 1,380 mm (54.3") from zero. -- Includes: All manuals, documentation and program disk provided with machine.

WEEKE ABD 100 CNC BORE, GLUE & DOWEL INSERTER: -- Specifications:(1) Horizontal drilling aggregate with (1) individual spindle; (1) glue & dowel injector with glue flow control; (1) 23" Dia. x 4" D vibrating hopper dowel feeder. -- Working Capacity: Material size from 20 mm - 1,250 mm (.75" - 49") long, 50 mm - 800 mm (1.9" - 31.5") wide, 10 mm - 60 mm (.4" - 2.4") thick. Machine is set up for 8 mm dia. x 30 or 35 mm long dowels (additional dowel sizes are optional). -- (2) Separate working fields with (4) 2-3/4"; LR x 3"; FB pneumatic top clamps can process up to (4) parts independently on the left-hand, right-hand or center-stops; work can be loaded in (1) field while it is being machined in the other to allow fast production of varying parts. -- Operator Interface:PC Front-end with Windows XP + Weeke "WoodWOP 5.0" operating system with graphic programming & error messaging; USB front side bus, 17" TFT flat screen monitor, CD-RW drive, Modem, standard keyboard & mouse.Software allows program design with automatic mirror-image by use of an active center stop located 600 mm (23.6") from zero. -- WEEKE "ABD 100" is designed for small or large capacity horizontal drilling, gluing and dowel insertion; built on a Heavy Duty welded steel base; main horizontal beams hold the carriage for the boring head and glue/water injector.

Weeke ABD 050

Weeke ABD 050
