Equipment For Sale

Manufacturer’s Specification Single belt max. passage height : 150 mm max. working width : 1100 mm combination unit design roller/electronic shoe electronic single links segment width 50 mm Dedusting brush Sanding belt length 1900 mm Sanding belt width 1120 mm Motor. KW 10 Feed speed 4 and 8 m/min Unvfu3R3Ap Weight approx. : 1900 kg Dimension : 2000 x 2000 x 2600 mm

BÜTFERING SWT 335-RLL 3-Head Wide Belt Sander,53" Width cap. Drum, Drum, Combination HeadHead Configuration1st Head: Steel Profiled Contact Roller 21.5 KW (28.83 HP)2nd Head: Rubber Profiled Contact Roller 17.4 KW (23.37 HP)3rd Head: Combination Head: Contact Roller & Air Cushion Sanding Pad/Platen Head 17.4 KW (23.37 HP)4th station: Panel Cleaning BrushSpecifications -- 1st Head: Steel contact roll, 240 mm (9-1/2") dia., abrasive belt speed 18 m/sec (59 FPS), driven by 22 kW (30 HP) motor. -- 2nd Head: Rubber covered contact roll, 65 Shore hardness, 240 mm (9-1/2") dia., abrasive belt speed 18 m/sec (59 FPS), driven by 15 kW (20 HP) motor. -- 3rd Head: Combination head consisting of Contact roller 55 Shore hardness, 140 mm (5,5") dia. and Air cushioned polishing platen with jump control for leading & trailing edges. Abrasive belt speed 12 MPS (39 FPM), driven by 15 kW (20 HP) motor. -- Outfeed rotary panel cleaning brush. -- All heads use 1,400 x 2,620 mm (54" x 103") abrasive belts. Electronic abrasive belt tracking. Air jet abrasive belt cleaner on head # 2.Feed system: -- Conveyor belt feed with variable feed speed from 2,5 - 13 m/min (8 - 42 FPM). -- Vacuum table with internal suction fan and motor 5,5 kW (7,5 HP). -- Part thickness 3 - 160 mm (1.2" - 6.3").Equipped with & Features -- Motorized thickness adjustment with LED readout. -- Constant pass line of conveyor bed 900 mm (35"). -- Automatic electronic conveyor belt tracking, in & outfeed spring loaded rubberized hold-down rolls. -- Automatic part thickness setting. Complete with: -- Infeed panel "over-thickness" sensor, in & outfeed emergency stops, safety interlocks on all doors. --Telescopic infeed roller conveyor extension, fold away outfeed table 900 mm (35"). -- Motor load meters, and main motor electronic brakes. -- Operator panel with joystick and multi-function readout for thickness, feed speed etc.Full Load Amps: 150 FLA at 460 VoltsCompressed Air: 55 cfm @ 90 PSI RequiredTotal CFM Required 5,365Actual model is BÜTFERING SWT 335-RLL 3-Head Wide Belt Sander

BÜTFERING SWT134/RRC 1100 mm (43.31") 3-Head Wide Belt Sander, with Combination HeadSpecifications: -- Suitable for sanding of veneered parts in 1 or 2 passes with segmented pad only & Thickness tolerance compensation up to 1 mm (0.04";), Suitable for sanding of solid wood & wood based materials in single pass with 3 grit sequence. -- Thickness cap. 3 mm - 160 mm (0.19"; - 6.30"). -- Variable feed speeds 2.5 - 13 MPM (8.5 - 42 FPM).Equipped with: -- 1st Head: 160 mm (6.30";) Dia. Grooved steel contact roll, with Grit size compensation, Automatic positioning for calibrating, & 15 kW (20 HP) - 2,930 RPM Motor with Electric braking. -- 2nd Head: 160 mm (6.30";) Dia. 85° Shore Grooved rubber-covered contact roll, with Grit size compensation, Automatic positioning for calibrating, & 15 kW (20 HP) - 2,930 RPM Motor with Electric braking. -- 3rd Head: Combination head, with 60 mm (6.30";) Dia. 65° Shore Grooved rubber-covered contact roll, 3-3/4" Dia. Smooth steel contact roll, 3-1/8"; W Electronically-controlled segmented pad finishing platen with 35 mm (1.38";) W Segments, & 18 kW (15 HP) Motor with Electric braking. -- 1-7/8"; Dia. Rubber-covered roller & spring-loaded segmented nylon rollers on infeed & 1-7/8"; Dia. Rubber-covered spring-loaded hold-down rollers between heads & after 3rd head. -- 1,120 mm x 1,900 mm (44.09" x 74.80") Abrasive belts, with Electronic oscillation. -- 43-1/4"; W x 5’ L Feed belt, with 1.3 kW (1-3/4 HP) Feed motor with Frequency inverter, 44"; W x 8"; L 2-Roll Infeed Extension, & Automatic conveyor belt tracking. -- Power raising of conveyor bed, with Automatic thickness adjustment & Over thickness Protection. -- LCD Touchscreen control, with 5-1/2"; Display, & Motor load meters.Complete with: -- Original Production Instructions.

Homag Sander Butfering W300 SWT345/QCUH (4) Heads wide belt sander53" Width cap. Cross belt , Combi head Electronic platen, Universal oscillating brushing cups, Chevron super-finish head Electronic platen, Cleaning brushHead Configuration1st Head: processing unit Cross belt Electronic platen2nd Head: Processing unit Combi head Electronic platen3rd Head: Processing unit Universal oscillating brushing cups (includes additional brass wire 300mm drum and 300mm Tynex Drum in carts never used4th Head: Processing unit Chevron super-finish head Electronic platen5th Station Head cleaning brushSpecifications -- Air jet blowers -- Integrated vacuum -- Bed width 53"; -- Includes AC unit -- Digital calliper -- About 30 belts different grit sizes -- All heads are program controlled5’ out feed table with interoll rubber rollersEquipped with & Features -- Custom metal fencing -- 6 custom metal belt racks -- Voltage 460 -- Machine commissioned June 2021 -- Sellerwill include preparing the machine for shipping and loading NOTE Reason for sale. Changes in manufacturing process.

BÜTFERING SGO 211 RK Wide Belt Sander, 2-Head,(43") Working width, equipped with (1) Contact Roller and (1) Combination Head consisting of Contact Roller & Finishing Platen.Head Configuration;1st Head: Rubber contact roller 160 mm (6.3") with 15 kW (20 HP) motor.2nd Head: Combination head with rubber covered contact roller and finishing platen, not segmented, 11 kW (15 HP) motor.Specifications: -- Both heads use 1,120 x 1,900 mm (43" x 75") abrasive belts with electronic abrasive belt tracking. -- Feed system: Conveyor belt feed with variable feed speed 2,6 - 13 m/min (8,5 - 42 FPM), 1,1 kW (1.5 HP) feed drive, auto belt tracking. Part thickness 3 - 160 mm (0.1 - 6.3"). Automatic motorized part thickness adjustment with 0,1 mm LED readout.Equipped with and Features -- Electronic emergency brakes on sanding head motors. -- Infeed emergency stop. -- Motor load meters for supervision of stock removal. -- Roller table extension at infeed. -- Emergency stops at in & outfeed end—automatic star/delta starters.

Bütfering SWT 124 RC Wide Belt Sander (2) Heads43" Width cap. Drum, Combination HeadBütfering SWT 124 RL Features: --Touch Screen display and control. -- Capacity of (125) programs. -- Conveyor speed is controlled within the program. -- Controls the number of sanding heads activated. -- Controls use of sanding pad or contact roller on combination heads. -- Controls thickness of work piece. -- Controls air jet belt cleaning on or off ( only on models with this feature). -- Error message display including safety functions. -- Displays in mm or decimal inches. -- Hour meter display. -- Conveyor table mounted on four heavy duty jack screws. -- Automatic conveyor belt tracking. -- Electronic belt oscillation system. -- Electronic motor braking system. -- Over thickness protection system. -- Safety interlocks on all access doors. -- In feed roller table. -- Emergency stops at in feed and out-feed locations.Head Configuration:1st Head: Contact roller head located in position #1 includes:160 mm diameter steel profile contact roller. -- Automatic height positioning -- Grit compensation -- 20 HP motor -- Cutting speed is 60 FPS.2nd Head: Combination head located in position #2 includes: -- 65 shore profiled rubber contact drum --Automatic height positioning -- Air cushion sanding pad with rise and fall timing -- 18 HP motor -- Cutting speed is 60 FPSSpecifications: -- Working width 1,100 mm (43";) -- Abrasive Belt width 1120 mm (44";) -- Abrasive Belt length 1,900 mm (75";) -- Work piece thickness min. 3 mm ( 1/8"; ) -- Work piece thickness max. 160 mm (6-3/8";) -- Variable conveyor speed 8 - 42 FPM; Feed motor 1 HP -- Contact Roller - Head #1 20 HP, 60 FPS belt speed. -- Combination- Head #2 18 HP, 60 FPS belt speed.Utilities: -- Total power required 28 kW. -- Dust collection requirements 1500 CFM; -- Dust outlet – head #1 160 mm ( 6.25 "; ) -- Dust outlet – head #2 160 mm ( 6.25 "; ). -- Compressed air requirements 90 PSI; Air consumption per cycle 4 CFM; Machine net weight 3960 Lbs.

2002 BWS 4 AXLE LOG PUP AIR RIDE 24' DECK

C-Aire Air Compressor #C720

C-Form 4" Band Sawmill with Operator Cab

C-Form Double Arbor Gang Rip Saw

C-Form 4-Head 8" Resaw with Return

C-Form 2-Head 16" Resaw

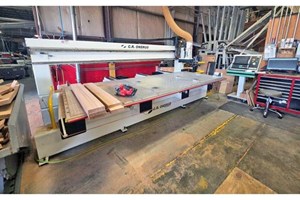

C.R. ONSRUD 46C18 SUPER DUTY CNC ROUTER (ATC): -- Specifications:Moving table CNC Router with a split 5' x 12' (146" x 60") aluminum worktable in a left to right configuration with multiple vacuum zones.(1) Table is 5' x 4'; (1) table is 5' x 8'. Both tables can be locked together to from (1) 5' x 12' table, or they can be operated independently. -- Equipped with:(1) 18 HP "HSK-63F" electro-spindle, infinitely programmable spindle speeds up to 24,000 RPM. -- Includes: 12-position ATC rotary tool changer. -- All axes:Ride on extra large precision contour linear guideways, axis travels provide full table coverage for all spindles with 2,000 IPM max. machining speed . -- Control:Industrial OSAI "WIN_NBI" machine control system is compatible with virtually all CAD/CAM packages that generate standard M & G code. -- Featuring:Simultaneous 3-axis motion, 32-bit RISC processor; 4-port Ethernet connection, inch/metric operation and feed rate & spindle speed override. -- Complete with:Assorted tool holders, some of the pictured tools & manuals.Note: there is no vacuum pump included.

C.R ONSRUD MODEL 615DG24H8 "Dual Gantry Series" CNC router with ATC Multi spindles:5' X 51' working table with Multi spindles and Dual Gantry aluminum non-vacuum table. -- Features:Dual Gantry each with (4) spindles, each gantry has its own 12 position hide away tool changer. -- Thermal Heat Treated:Stress Relieved, & Normalized One-Piece, Steel Frame Base, & Thermal Heat Treated, Stress Relieved, & Normalized Steel Bridge; Dual Support, Dual Drive, Moving Gantry, Fixed Table Design with standard 2,500"; per minute machining speed, full 3-D capability, precision ball screw drives for Z & Y axis, case-hardened, precision ground, helical rack & pinion drives for X axis with forced-air continuous rack cleansing system & anti-contamination shielding, precision linear profile guide ways, centralized manual lubrication system, 11-inches of Z stroke - 14"; under bridge clearance & 11"; Z axis stroke.. -- Spindles:Total of (8), (4) per gantry, 18kW, 24HP "QTC" – 24,000 RPM Liquid cooled Long Nose Spindle w/ HSK-63F Spindle Taper, fully programmable & reversible, variable speed, liquid-cooled, quick-change spindle, capable of routing, drilling and ridged tapping, programmable feed rates w/override capability supported with a 12 hideaway tool changer on each gantry total of 24, Automatic Oil Mist Lubricator for each spindle. -- Spindle adjustments:Servo Adjustment of Spindle Center Distance. -- Controls:(2) FANUC 31i-B5 Machine Controller With Integrated PC Interface one for each gantry Fanuc 31i-B5 is Industrial CNC Machine Controller with Fanuc Panel-i HMI w/High Res touch screen. Includes: Network capability, adds Larger FANUC Digital Drives & Servos. Includes Full remote diagnostic troubleshooting capabilities. -- Complete with:Assorted tool holders, centralized grease lubrication on Multi-Head, 63kVA Isolation Transformer, FANUC MPG Handheld Remote Jog Pendant, and manuals. -- Machine floor space required 64' by 14' 5"

CAE Newnes 26 Bay Bin Sorter Moore Multisaw Trimmer Floor Chains Unscrambler Stacker

CABLE MANAGEMENT - CMSHSS-100, ...Single Shaft ShredderSpecifications: --Rotor Speed: 60 - 80 RPM --Rotor diameter: 15-3/4″ --Rotor blades: 45 + 4 --Static blades: 2 + 2 --Ram travel: 32″ --Discharge height: 52″ --Screen diameter (holes): 1-1/2″ --Motor power: 100 HP --Hydraulic Power: 5 HP --Chamber size: 42″ x 39″ --Overall dimension: 110″ x 78″ x 82″ --Approx. weight: 9,500 LbsIncludes: Spare Parts

CALPE TH5-1600 Heavy-Duty High-Production, Fully Automatic CNC Lathe: General Description: -- Multi-Spindle cutting simultaneously, (5) spindles using V-type gouge knives. -- 63" (1,600 mm) Max. distance between centers; 5-1/2" (140 mm) max. swing diameter between spindles. -- CNC Controlled with 2.95" (75 mm) travel for depth of cut. Motors/Speeds: -- Servo controlled CNC drives: -- CNC controlled electronic variable speed head drives the movement of the (5) gouge tools. -- CNC controlled feed speed carriage, variable up to 50 FPM (15 MPM). -- (1) Head stock variable speed drive for the (5) spindles, up to 6,000 RPM, approx 10 HP. -- Fast return travel of up to 590 IPM (15,000 mm/Min). 2 HP approx hydraulic drive -- Loading device & tail stock powered by hydraulic pump with 2 HP - 1,750 RPM motor; No. 5 Morse taper on main spindle shaft. Features: -- Automatic loading & unloading device; carriage mounted with linear guides providing high precision movement. -- Full CNC controller with on-screen CAD programming for all products.Matching CALPE L6-1600, record number LC-010996 spindle sander is available at additional cost at same facility.

CALPE L6-1600 Spindle Sander with Hopper Feed. -- (6) Spindles, semi-automatic sanding machine; distance between centers 63", 6-3/16" max sanding diameter, capable of sanding 1800 spindles per hour. -- 4 HP - 1,800 RPM head motor, (5) sandpaper holders, each for different grits, 4000-3200-2200-850 RPM head spindle speeds. Copier unit that follows all contours. -- Oscillating sanding units & stationary pick up of part. -- NOTE: This sander was running with lathe on our record number LC-010811 and owner prefers to sell at the same time.

CAM-WOOD SFJ-460L FINGER JOINT ASSEMBLY PRESS SYSTEM With Optional GluingDescription: -- The SFJ-460L is an automatic Assembly System, Cutoff Saw, and Press. The system performs three functions; pre-assembles finger jointed blocks with glue previously applied in the FSG 150 manual Glue Applicator (not included), cuts the assembled boards to length, and performs the final assembly when pressed by a powerful hydraulic system. When pressing is complete, boards are fed out of the Press. -- Power feed for feeding boards, stops automatically at the desired board length using the included cut-off saw as standard equipment for cutting boards to length. -- The maximum assembled board length is 15'. Specifications: -- Max. length capacity, 188"; max. width, 6"; max. thickness, 3". -- Feed speeds from 0 - 26 FPM; -- Cutoff Saw runs at 3,500 RPM and is powered by a 5 HP motor; Blade diameter is 355 mm (14") with a 1" arbor; -- With 1/2 HP feed motor and 5 HP hydraulic pump motor. Option: -- Manual Gluing unit FSG 150 Additional $ 8,990Note: Same press with 6,000 mm (19.7') capacity additional price is $6,900

CAM-WOOD IAT 620-150H INVERTER DRIVEN FINGER JOINT SYSTEM 3" X 6":Lay-Up and Block-Staging Infeed Conveyor: -- 24" Wide x 31.5" long belt conveyor powered with 1/2 HP motors. Conveyor is controlled by the operating and system. Feeds at a constant rate of 180 FPM. Block delivery is controlled by the operator and machine system criteria to feed the Shaper. The conveyor facilitates keeping the system full and productive. FSR-62I Right Hand Inverter Type Finger Joint Shaper: -- Feed table is 24" wide and accepts blocks from 6" wide x up to 31.5" long x 5/8" to 6" wide. Shaper spindle is driven by a 20 HP motor and is equipped with provisions for vertical adjustment of 20 mm up and 20 mm down. Spindle diameter is 50 mm and runs at 6,600 RPM. 8-1/4"; maximum shaper cutterhead diameter - without knives. 10 HP - 4,800 RPM Cutoff and trim saw; accepts 10" dia. x 100 tooth x 5 mm blades. 2 HP - 2,850 RPM Scoring saw, accepts 7" dia. x 50 tooth x 5 mm blades. Table movement is Inverter driven; powered by a 3 HP + 3 HP inverter motor with cycle speeds from 1 to 4 cycles/Min. Motor senses load and varies travel speed as needed. Speed is also controlled by system criteria STC-62A Single Table Transfer Conveyor to the 2nd (Left Hand) Shaper: -- 24" Wide x 31.5" long belt conveyor. Powered with (1) 1/2 HP motor. Controlled by system criteria. Feeds at a constant rate of 180 FPM. FSL-62I Left Hand Inverter Type Finger Joint Shaper with Glue Extruder: -- Feed table is 24" wide and accepts blocks from 6" up to 31.5" long x 5/8" to 6" wide. Shaper spindle is driven by a 20 HP motor. Spindle diameter is 50 mm and runs at 6,600 RPM. 8-1/4" maximum shaper cutterhead diameter - without knives. 10 HP - 4,800 RPM Cutoff and trim saw; accepts 10" dia. x 100 tooth x 5 mm blades. 2 HP motor powers a top and a 2nd 2 HP motor powers a bottom scoring saw, both running at 2,850 RPM; accepts 7" dia. x 50 tooth x 5 mm blades. Conveyer powered by 1/2 HP motor. Table movement is Inverter driven; powered by a 3 HP + 3 HP inverter motor with cycle speeds from 1 to 4 cycles/Min. Motor senses load and varies travel speed as needed. Speed is also controlled by system criteria Injection Type Glue Applicator: -- Extrudes adhesive into the fingers without the messy runoff associated with glue rollers. 6" Comb height is standard. Finger pitch 4 mm, 10 - 12 mm finger length is standard equipment (special sizes available as optional equipment) STC-62A Single Table Conveyor Belt to the Assembly Section: -- 24" Wide x 31.5" long belt conveyor. Powered with (1) 1/2 HP motor. Controlled by system criteria. Feeding at a constant rate of 180 FPM. FJ-500A (198") Assembly Press with Cut-Off Saw: -- Capacity from 1" to 6"; wide x 1/2" to 3" high x and from 6' to 16-1/2' long. A 2 HP motor powers the upper and a 2nd 2 HP motor powers lower pre-assembly/crowder rolls. With 5 HP infeed inverter drive. In-feed speed from 30 to 230 FPM. Speed is controlled by system criteria. 5 HP - 2,85
