CAM-WOOD BR 25 + 1 Horizontal and Vertical DrillFeatures & Specifications: The model BR-25+ 1 has the same features as the BR-25, except it's fitted with an additionaluniversal boring head, making it ideal for drilling holes on K/D furniture. -- The boring head can be swiveled 360 degrees for angular drilling, as desired -- Vercical Single Spindle, 2 HP - 3450 RPM 3-phase motor, adjustable vertically and front to back., spindle node threaded 7/16-14" -- Horizontal spindle 2 HP, 3450 RPM-3 phases motor, adjustable 360 degree, spindle nose threaded 7/16-14" -- 5" Horizontal spindle travel (drilling depth) w/foot pedal control. -- 3-1/2" Vertical table adjustment. -- Pneumatic holddown clamp for up to 3" thickness. -- 12" x 10" Table size.

CAM-WOOD CC-388PA Clamp Carrier (8 Sections)8-Section Pneumatic Clamp Carrier with 98" length capacity.Equipped with: -- (6) Heavy Duty zinc plated clamps per section (48 clamps total). -- 40" Opening on clamps. -- Jaw sizes of clamps are 3-1/2" with inward draft. -- Pneumatic overhead panel flattener. -- Pneumatic clamp tightener and 1/2 HP electric motor rotation.Standard features: -- Large I-beam frame & legs for max. rigidity and durability. -- Heavy-duty zinc-plated clamp with huge 3/4" diameter jack bolt for super strength. -- Powerful caterpillar chain drive for clamp rotation. -- Select switch control for auto or manual mode.Includes: -- Clamp tightener with pneumatic wrench for rapid tightening and loosening of clamp. -- Pneumatic panel flattener to hold panels flat while clamps are tightened.Versatile and reliable Edge Gluing Machine for Solid Wood gluing, including laminate board, parquet, flat stock, table top, core block, truck flooring, turnings, chair seat, legs, spindle blanks, stair tread, and many others.

CAM-WOOD CC-4108PA Clamp Carrier (8 Sections)8-Section Pneumatic Clamp Carrier with 125" length capacity.Equipped with: -- (8) Heavy Duty zinc plated clamps per section (64 clamps total). -- 50" Opening on clamps. -- Jaw sizes of clamps are 3-1/2" with inward draft. -- Pneumatic overhead panel flattener. -- Pneumatic clamp tightener and 1/2 HP electric motor rotation.Standard features: -- Large I-beam frame & legs for max. rigidity and durability. -- Heavy-duty zinc-plated clamp with huge 3/4" diameter jack bolt for super strength. -- Powerful caterpillar chain drive for clamp rotation. -- Select switch control for auto or manual mode.Versatile and reliable Edge Gluing Machine for Solid Wood gluing, including laminate board, parquet, flat stock, tabletop, core block, truck flooring, turnings, chair seat, legs, spindle blanks, stair tread, and many others.

CAM-WOOD EB-L5PM EDGEBANDER (W/PRE-MILLING): -- Specifications:0.4 mm - 3 mm Max. edge thickness cap., 10 mm - 50 mm (0.75" - 2") panel thickness cap. (when edgebanding 3 mm PVC max. thickness is 40 mm). -- Minimum panel dimensions 63.5 mm wide x 160 mm long (2.5" x 6.3"). -- Automatic feed of coil banding and semi-automatic strip fed magazine (strips 1- 3 mm max.) with 3 mm PVC cap. guillotine.Infeed Section: -- Pre-Mill Unit with: (2) 3 HP (2.25 kW) -12,000 RPM High Frequency motors. -- Feeding of edging by strip or coil is automatic and synchronous with panel feed. -- Gluing Unit: Roller driven by a 1 HP (0.75 KW) motor; Tank heating 2.3 kW. -- Guillotine to cut edgebanding in coils up to 3 mm thick. -- Pneumatically controlled side pressure section with (3) pressure rollers; 1st synchronously driven, (2) idlers; Independent adjustment for straight edge banding.Workstations: -- Double Motor end trimming saw unit with (2) 1 HP (0.75 kW) - 12,000 RPM High-Frequency motors. -- Cutting group moves on ways made of hardened steel, to guarantee high precision and reliability. -- Rough Top & Bottom Trim station with (2) 0.75 HP (0.56 kW) - 12,000 RPM Independent High Frequency motors; unit features adjustable copying on vertical & horizontal floating movements, adjustable cutter-head position by mechanical digital readouts, quick release (electrical & mechanical). -- Fine Top & Bottom Trim station with (2) 0.75 HP (0.56 kW) - 12,000 RPM Motors. -- Top & Bottom Scraper station with quick working or exclusion setting of both top & bottom units, micrometer adjustment; features thick chrome plated copying shoes. -- Top & Bottom Buffing/Polishing unit with (2) 0.25 HP (0.18 kW) - 1,400 RPM motors.Feed System & Features: -- 25 - 60 FPM feed speed powered by 2 HP (1.5 kW) gear motor. -- Feed chain pads with precision ground round guides to ensure precise linear tracking of the workpiece. Replaceable rubberized surface inserts. -- Rubberized hold-down rollers with ball bearings for low friction and long life. -- Complete with: Sound / Safety covers for all work units with all required dust extraction outlets. Heavy, robust construction to eliminate vibration and ensures accuracy and stability.Includes: Outrigger support for wider work pieces. -- Owner’s Manual with mechanical & electrical schematics and parts breakdown; covered by a 1-Year Factory Warranty on parts. -- Total machine power is 11 kW. Transformers are available at an added cost to convert to desired alternate voltage requirement.

CAM-WOOD EB-K7PMX EDGEBANDER (W/PRE-MILLING): -- Specifications:0.4 mm - 3 mm Max. edge thickness cap., 10 mm - 60 mm (0.75" - 2.36") panel thickness cap. -- Minimum panel dimensions 160 mm long x 88.9 mm wide (6.3" x 3.5"). -- Automatic feed of coil banding and semi-automatic strip fed magazine (strips 1- 3 mm max.) with 3 mm PVC cap. guillotine.Infeed Section: -- Pre-Mill Unit with: (2) 3 HP (2.25 kW) -12,000 RPM High Frequency motors. -- Feeding of edging by strip or coil is automatic and synchronous with panel feed. -- Gluing Unit: Roller driven by a 1 HP (0.75 KW) motor; Tank heating 2.3 kW. -- Guillotine to cut edgebanding in coils up to 3 mm thick. -- Pneumatically controlled side pressure section with (3) pressure rollers; 1st synchronously driven, (2) idlers; Independent adjustment for straight edge banding.Workstations: -- Double Motor end trimming saw unit with (2) 1 HP (0.75 kW) - 12,000 RPM High-Frequency motors. -- Cutting group moves on ways made of hardened steel, to guarantee high precision and reliability. -- Rough Top & Bottom Trim station with (2) 0.75 HP (0.56 kW) - 12,000 RPM Independent High Frequency motors; unit features adjustable copying on vertical & horizontal floating movements, adjustable cutter-head position by mechanical digital readouts, quick release (electrical & mechanical). -- Fine Top & Bottom Trim station with (2) 0.75 HP (0.56 kW) - 12,000 RPM. -- Top & Bottom Profile Scraper station with quick working or exclusion setting of both top & bottom units, micrometer adjustment; features thick chrome plated copying shoes. -- Top & Bottom Buffing/Polishing unit with (2) 0.25 HP (0.18 kW) - 1,400 RPM motors.Feed System & Features: -- 25 - 60 FPM feed speed powered by 2 HP (1.5 kW) gear motor. -- Feed chain pads with precision ground round guides to ensure precise linear tracking of the workpiece. Replaceable rubberized surface inserts. -- Rubberized hold-down rollers with ball bearings for low friction and long life. -- Complete with: Sound / Safety covers for all work units with all required dust extraction outlets. Heavy, robust construction to eliminate vibration and ensure accuracy and stability.Includes: Outrigger support for wider work pieces. -- Owner’s Manual with mechanical & electrical schematics and parts breakdown; covered by a 1-Year Factory Warranty on parts. -- Total machine power is 11 kW. Transformers are available at additional cost to convert to desired alternate voltage requirements.

CAM-WOOD SFJ-300A End Matcher, 12" Performs tongue and groove, tenoning, mortising, and shaping at both ends of the boards; -- Includes 10'-6" Powered Infeed and 7' Non-Powered Outfeed Conveyors. -- Air-operated hold-downs keep material firmly in place during the machining process. -- Cutter heads move in and out while cutting a tongue on the trailing end of one part and a groove on the leading end of the following part.FEATURES: -- PLC controls combined with a touch-sensing screen for maximum convenience of operation. -- Each cutter head is driven by a separate motor driving the spindle at 7,500 RPM spindle speed. -- Accepts unlimited wood lengths via an automated conveyor for infeed and outfeed processing. -- Cutterheads feed thru the wood is controlled by a frequency inverter that permits speed changes to suit various cutting conditions. -- Pressure plates are actuated by air cylinders. -- Hard chrome-plated table features maximum wear resistance. -- Table rollers increase feed smoothness. -- Powered in feed roller conveyor is driven by a 1 HP motor. -- 3,400 mm in feed roller conveyor and 2,200 mm out feed conveyor table are standard equipment. -- Fully enclosed chip guards. -- Air-operated clamp holds stock firmly in place. After the workpiece is clamped, the cutter head moves in and performs the shaping operation. -- The spindle is precision constructed to cut accurately -- The spindle height adjustment is displayed on a dial gauge. -- CAM-WOOD’S 2-spindle design accommodates cutterhead dia. up to 6"; -- When end matching, one spindle cuts the tongue, and the second cutterhead machines the groove. SPECIFICATIONS: -- 1-1/2" To 12" width cap. -- 10-1/2"; min. length cap. -- Thickness 3/8" to 1 3/8" -- Unlimited length, no restriction. -- Material feed speeds up to 297 FPM; cutterhead travel speed of 79 FPM -- Cutting cycle time 1.5 second.and up to 20 cycle per minute -- (2) 5-1/2 HP Spindle motors and a 2 HP feed drive -- 1/2 HP motor for in/out cutterhead travel. -- 40 mm Dia. spindle -- Requires 1300 CFM dust collection.

CAM-WOOD 16' Pusher Type Cutoff Saw with Crayon Marking connected to a CAM-WOOD 12" wide End Matcher; System width capacity is 12" with a maximum inbound board length of 16' (as priced here). 8' and 12' Saws are also available. Call Jeff for price deduction.General Data: -- Cut-Off Saw is arranged to remove defects from Clear. Will chop for random length clear material OR optimize clear wood according to your cutlist, delivering either to the End Matcher. -- The line requires (1) man to mark and feed the Cutoff Saw and (1) man to offbear and stack finished work coming from the End Matcher. Price includes the following equipment and specifications: Defect Saw Features: -- 18" CAM-WOOD Model CS-18AAT-16' Automatic Cut Off Saw equipped with Automatic Pusher for increased automation and efficiency -- 16' Infeed table -- Works as an automatic pusher for defect removal and fixed length cutting when crayon marking -- PLC controlled automatic pusher device is driven by servo motor at feed speeds up to 200 FPMAutomatic Pusher Operation: -- Operator places crayon marks at the leading and trailing ends of a defect or waste zone (Optional) -- Pusher moves the board to the first crayon marked defect, automatically completes the cutting cycle, and continues to position and chop the board at each crayon mark, thereby removing all waste zones. When the board is finished, the pusher returns to its starting position at top speed and starts on the next board -- Super Pusher travels up to 200 FPM -- Sealed, long-life ball bearings -- Precision ground cast iron table with heavy metal stand -- Easy to operate in all operations -- Saw blade comes up from beneath the table and returns after cutting for safe operation -- Totally enclosed blade guard prevents danger during cutting cycle -- Includes magnetic starters with overload protectionCutting & Other Specifications: -- (45) Strokes/Min -- 18"; Saw Blade Diameter with 1"; Saw Arbor -- 10 HP Arbor Motor -- 3,200 RPM Blade Speed -- 90 PSI Compressed Air requirement with 1" Inlet -- (1) 4"; Dust Hood -- Machine Size (W x L), 30" X 28-1/2'Automatic Transfer between Defect Saw and End MatcherCAM-WOOD SFJ -300 End Matcher with the following Specifications: -- Machines tongue and groove at ends of random or fixed length boards as provided by the Defect Saw -- Includes powered conveyor for infeed and steel landing table at the outfeed -- Air operated hold downs keep material firmly in place during the machining process -- Cutter heads move in and out while cutting a tongue on the trailing end of one part and a groove on the leading end of the following pieceFeatures: -- PLC controls combined with touch-screen for maximum convenience of operation -- Each cutter head is powered by a separate motor driving the spindles at 7,500 RPM -- Accepts unlimited wood lengths via an automated conveyor for infeed and outfeed -- Cutterhead travel thru the wood is controlled by a VFD which permits automatic speed changes to suit various

CAM-WOOD TRS 0012, Straight Line Rip-SawSpecifications: -- Max. cutting depth 3-3/4". -- Arbor Diameter 1". -- Saw Blade Size 8½" - 12". -- Throat to Blade Depth 15". -- Table Dimensions 33" x 59". -- 10 HP Main Motor. -- Spindle Speed 4,500 RPM. -- Feed Motor 1 HP. -- Feed Chain Width 6". -- Feeding Speed 30 - 85 RPM. -- Automatic Lubrication. -- Chip & Dust Collection Hood Diameter 4".Features: -- Cast iron and hard chrome plated table for durability & extended wear. -- Precision machined saw trunnion & fence assure optimal accuracy. -- Measuring ruler gauge for easy & accurate fence adjustments. -- Double anti-kickback fingers mounted at the infeed provide safety protection for the operator. -- Heavy-duty industrial motor for powerful cutting capacity. -- Rugged fabricated durable steel construction for years of use.Feed System: -- Variable speed settings enable the machine to meet different application needs. -- V-way track and chain block surfaces are heat-treated for longer, lasting usage. -- Automatic lubrication to V-Way track allows the chain to operate smoothly. -- (4) Pressure Rollers for accurate cutting of both large and small workpieces.Special Features: -- Saw arbor is manufactured from NI-Cr-MO alloy steel to provide the best durable and anti-fatigue, heat treated, and balanced for a more accurate cut. -- (4) Bearing spindle mount for prolonged life usage.

CAM-WOOD TRS-3018 Single Blade Bottom Cut Straight Line Rip SawEquipped with & Features: -- Precision fence ensures absolute accuracy between blade & fence, equipped with measuring ruler gauge. -- Double anti-kickback fingers mounted at the infeed end provides maximum safety protection. -- Heavy-duty industrial motor for powerful cutting capacity. -- Ruggedly constructed cast iron frames for durability usage. -- The variable feed speed enables the machine to meet different requirements of work. -- V-way track and chain block surface are heat-treated for long wear resistance. Automatic lubrication to the V-Way track facilitates the chain running smoothly. -- Precision-built saw head ensures accuracy for straight line rip saw operations. -- Four bearing spindle mount ensures rigidity & long life. -- Anti-kickback finger, two long rollers, in front of the saw blade, 4 x 2 = 8 short rollers at the side of the saw blade, two long rollers at outfeed. -- The auto lubrication device is equipped with an alarm that sends signals upon a lack of lubrication oil to increase the durability of the machines.Specifications: -- Maximum Cutting Depth: 4-3/4", Arbor Diameter 2". -- Saw Blade Size: 14" - 18" in diameter. -- Table Dimensions: 58" x 78". -- Spindle Speed: 3,600 RPM. -- Feeding Speed: 30 - 85 FPM. -- Throat to Blade 26". -- Main Motor: 20 HP, Feed 3 HP motor. -- Feed Chain Width: 8-3/4". -- Minimum Workpiece Length: 8" . -- Exhaust Hood Diameter 4". -- NW: 3,800 Lbs. Note: LA-6000 Laser Beam Light Available @ $980.00

CAM-WOOD TRS-1112 12" Single Blade Top Cut Straight Line Rip Saw;Precision machining and attention to operator safety and production needs, makes this saw one of the most cost effective Rip Saws available in the world today.Features: -- Hard chrome-plated table for maximum wear resistance. -- Precision fence ensures absolute accuracy between blade & fence, equipped with measuring ruler gauge. -- Double anti-kickback fingers mounted at the infeed end provides maximum safety protection. -- Heavy-duty industrial motor for powerful cutting performance. -- Ruggedly constructed sheet metal frame for durability usage. Feed & Saw Head: -- The variable feed speed enables the machine to meet different requirements of work. -- V-way track and chain block surface are heat-treated for long wear resistance; automatic lubrication to the V-Way track facilitates chain running smoothly. -- Precision-built saw head ensures accuracy for straight-line rip saw operations. -- The saw arbor is manufactured from NI-Cr-MO alloy steel for durability and anti-fatigue, heat treated, precision ground, and balanced providing precise cutting performance. -- Four-bearing spindle mount ensures rigidity & long life. Four pressure rollers for precise cutting of large and small workpieces. -- Heavy-duty cast iron table.Specifications: -- Max. cutting depth: 3-3/8". -- Arbor dia.: 1". -- Saw blade size: 12" diameter. -- Table dimensions: 28" X 61". -- Spindle speed: 3,300 RPM. -- Feed speed: 30 - 72 FPM; -- Throat to blade depth: 15". -- Main motor: 11.75 KW (15.75 HP) -- Feed motor: 1 HP. -- Feed chain width: 6". -- Automatic lubrication. -- Min. work piece length: 12". -- Exhaust Hood Dia. 4". -- Net weight: 1,960 Lbs.Options: -- AF-RT EXTENSION ROLLERS SIDE TABLE ...$390.00 • LA-6000 LASER BEAM LIGHT ...$980.00

CAM-WOOD TRS-2216 -- 16" Single Blade Bottom Cut Straight Line Rip Saw;Precision fence ensures absolute accuracy between blade & fence, with a precision gauge.Equipped with and Features: -- Double anti-kickback fingers mounted at the infeed end provides maximum safety protection. -- Heavy-duty industrial motor for powerful cutting capacity. -- Ruggedly constructed cast iron frames for durability usage. -- The variable feed speed enables the machine to suit different wood species and work applications. -- V-way track and chain block surface are heat-treated for long wear resistance. -- Automatic lubrication to V-Way track facilitates chain running smoothly. -- Precision built saw head ensures accuracy for straight line rip saw operations. -- Four bearing spindle mount ensures rigidity & long life. -- Anti-kick finger, two long rollers, in front of saw blade, 4 x 2 = 8 short rollers at side of saw blade, two long roller at out feed. -- The auto lubrication device is equipped with an alarm that sends signals upon a lack of lubrication oil. Specifications: -- Max. cutting depth: 3-1/8". -- Arbor dia.: 2". -- Saw blade size: 16". -- Spindle speed: 3,300 RPM. -- Feed speed 21 - 85 FPM. -- Throat to blade depth 16". -- Main motor: 10 HP. -- Feed motor 2 HP. -- Min. work piece length: 8". -- Dust Collection Hood dia. 4".Options- LA-6000 LASER BEAM LIGHT ...$980.00

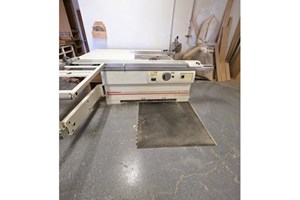

CAM-WOOD TX-P3200SAX Sliding Table Panel Saw w/Motorized Raise & Lower.Heavy-duty construction, vibration-free operation. Easy to set up and quickly adjusts. High accuracy, free movement sliding table without wear resistance.Specially designed double rollers carriage made by aluminum profile. Stable, torsion-free cross slides with easy running swinging arm.Features: -- 126" Cutting length w/scoring; 126" x 17" Anodized sliding table that locks in any position for easy loading. -- Motorized Saw blade up or down movement by 1/4 HP electric servo motor; tilting by manual handle wheel. -- Scoring unit for clean, accurate chip-free cutting, ready for edge banding. Specifications: -- 7.5 HP Main saw motor; 45° tilting (30 mm) main saw arbor; 14" Main blade dia.; 3,000/4,000 & 5,600 RPM arbor speed. -- 5.3" Max. material thickness at 90°; 3.1" at 45°. -- 1 HP Scoring saw motor, 5" dia. scoring blade; 8,000 RPM. -- Equipped with: 49" Max. ripping cap.; micro-adjustable rip fence and extendable crosscut fence to 10' with (2) flip stops. -- Articulating overarm protection guard; outboard and rear extension tables. -- Includes: Saw Blade(s), Maintenance Tools, Operators' & Parts Manual and covered by (1) Year Warranty.

CAM-WOOD TX-P3200PL Sliding Table Saw w/Motorized Raise/Lower/Tilt & Programmable Rip FenceHeavy-duty construction, vibration-free operation. Easy to set up and quickly adjusts. High accuracy, free movement sliding table without wear resistance.Specially designed double rollers carriage made by aluminum profile. Stable, torsion-free cross slides with easy running swinging arm.Specifications & Features: -- 122" Cutting length w/scoring; 126" x 16" Anodized sliding table that locks in any position for easy loading. -- Saw blade moves up or down, tilting and fence movement driven by 1/4 HP electric servo motor. -- Scoring unit for clean, accurate chip-free cutting, ready for edge banding. Equipped with: -- 9 HP Main saw motor; 45° tilting (34 mm) main saw arbor; 15-3/4" Main blade dia.; 4,000/5,600 RPM; -- 5.3" Max. material thickness at 90°; 3.1" at 45°. -- 1 HP Scoring saw motor, 5" scoring blade; 8,000 RPM. -- 49" Max. ripping cap.; (200) memory program control for the rip fence, saw blade height and tilting angle via touch control screen for convenient operations; -- Extendable crosscut fence to 10' with (2) flip stops. -- Articulating overarm protection guard; outboard and rear extension tables.

CAM-WOOD - VPS Twin, ...Automatic Vertical Panel Saw, for Cutting & Grooving Aluminum Composites (78-3/4" x 157-1/2").The VPS TWIN is engineered with specific features for cutting or grooving Aluminum Composite or similar materials. Top to Bottom cutting height is 2,000 mm (78-3/4"). Saw head w/motor rotates 90° for rip or crosscutting grooving.Automatic Cutting Cycle: Cutting or grooving length "rip cut: Left/right" is 4,000 mm (157-1/2"); cuts or grooves panels up to 20 mm (3/4") in thickness; Digital LED readout scales for both X- & Y-axis measurement. Unique saw head design: (1) Standard Saw blade and (1) V-grooving blade all in (1) housing. An operator can select a standard or V-grooving cut automatically by a flip of a switch. Automatic “Flip of the Switch"; changeover from a cut-to-size blade cutting operation to channel grooving cutting; includes precision depth control required for ACM (Aluminum Composite Material) panel grooving and bending.4.0 HP Motor (5.5 HP Option): Spring-loaded floating shoe guide enhances dust collection and safety by enclosing the blades & cutterhead, automatically shifting material back support grid; shifts away from the saw blade cut line, preventing cuts into the grid support strips, while rip cutting horizontally; grid senses the blade/cutter position and automatically shifts away, built-in Dust Collection with collection bag mounted on the rear of the Saw frame. Alternatively, remove & bypass the bag for easy connection to your existing Dust Collection System.Equipped with: Precision ground bottom edge support rollers to facilitate easy loading & positioning of the larger or heavy panels.Vertical cutting stations are spaced at 40" increments to lock in the Saw beam for vertical crosscuts. Cross- or rip cutting: Material always rests firmly against the "slightly angled" back grid support; repeat rip gauge for duplicating multiple horizontal cuts; a foldout shelf that runs the entire length of the frame for small parts cutting and (2) standard flip-stops for dimension setting.Includes WARRANTY: 12-Month Factory Warranty covering defective parts and workmanship (not including wear parts); 6-Month Factory Warranty on electrical; manuals; (1) 62T x 230 mm dia. Main Saw Blade; (1) 10T x 200 dia. V-grooving blade (90°); 5,800 RPM.

CAM-WOOD - VPS IS Compact, ...Vertical Panel Saw (76" x 122" w/Scoring)Short 10' Frame Compact Model with Scoring offers many features in a compact space-saving design. -- Top to Bottom cutting height is 2,030 mm (78-3/4") without scoring and 1,930 mm (76") with scoring; saw head w/motor rotates 90° for rip or crosscutting. -- Cutting length "rip cut from left/right" is 3,100 mm (122"); cuts single or stacked panels up to 42 mm (1-5/8") in thickness.Features: -- Separate 5" dia. scoring blade belt driven at 7,800 RPM to insure clean cuts on everything from Plywood to Melamine & Hardwood, especially preventing surface chipping when cutting laminated materials. -- Includes: -- 4 HP Motor and true scoring with a 125 mm (5") dia. 24-teeth blade, 250 mm (10") dia. 80-tooth main blade; spring loaded floating saw blade enclosure - shoe glides over panel surface applying a holddown force while it enhances dust collection & safety by enclosing the saw blades. -- Auto-shifting material back support grid shifting away from the saw blade cutline prevents cutting into the grid support strips while rip cutting horizontally; it senses the blade/cutter position and automatically shifts away.Equipped with: -- Precision ground bottom edge support rollers to facilitate easy loading & positioning of the larger or heavy panels; both standard inch & metric preset "beam lock" stations. -- Vertical cutting stations are spaced at 40" or 1,000 mm (in inch or metric) increments to lock in the saw beam for vertical crosscuts. -- (2) Adjustable flip-stops on inch (metric available) measuring scales, one located on the lower rail and the other on the foldout shelf at the middle of the frame. -- Retractable Material Support Shelves throughout the entire length of the machine frame allows for ergonomic cutting of smaller parts, at any cutting station without the need for the operator to bend down. -- Includes: -- Pneumatic lock System; Repeat Cutting Device; (1) 250 mm (10") dia. 80-tooth, 30 mm bore main blade; (1) 80 mm (3.14") dia. 24-tooth, 20 mm bore scoring blade.Optional: -- Add ACCURATE TECHNOLOGY Proscale Digital Readouts on X & Y axis ($ 2,000 upgrade).

CAM-WOOD - IN-408-R, ...4' x 8' CNC Router with Automatic Rotary Tool Changer:4' x 8' Flat Table CNC Router, Perfect for your 3-axis routing applications including "Nested Base Manufacturing".Machine Bed/Base: -- The Welded & Structurally Engineered machine base provides a solid foundation for superior cut quality; the entire frame is stress relieved and heat treated. -- The Moving Gantry Bridge travels in the X- & Y-axis via inclined toothed Helical rack & pinion on "HIWIN" 1" (25 mm) thick hardened & precision ground rectangle linear guide ways providing extra smooth movement, high-speed traverse and accurate cutting. -- The Tool Gantry Movement for the vertical Z-axis travels on a 1" (25.4 mm) dia. precision ball screw for smooth & consistent movement.CNC Control & Operator Interface: -- Industrial Grade "SYNTEC" controller with network-compatible WINDOWS PC-based front-end, color monitor, keyboard, mouse. Absolute & incremental programming, cutter & tool length compensation, feed rate & spindle speed override, inch/metric operation, and linear/circular & helical interpolation.. -- Compatible with virtually all CAD/CAM programming software on the market. - You choose the software that best suits your needs.Working Table/Envelope: -- 51" (1,295 mm), 98" (2,489 mm), 7.75" (197 mm). -- (6) Independent vacuum zones.Axes Travel Range & Feed Speed: -- Max Traverse Speeds: 2,350 IPM -- Max Working Speed: 1,100 IPM. -- Yaskawa "AC" Servo drives & SHIMPO Gear Boxes power all axes movements.Routing & Machining: -- (1) 12 HP HSD Air cooled Router Spindle with: ISO 30 Adaptor ER-32, variable programming speeds from 6,000 to 24,000 RPM, -- (1) 12-Position ATC (automatic rotary tool changer)Complete With: -- 10 HP Vacuum Pump. -- (3) ISO 30 tool holders -- two pop up pins at X, axis & three pop up pins at Y,. -- Automatic tool offset device. -- Automatic lubrication device with filter. -- Standard MPG hand wheel -- safety light curtain and Estop -- 1-Year manufacture warrantyUtilities and Dims: -- Machine power supply is wired for 220 Volts, 60 Cy, 3-Phase, 53 Amps. -- Machine weighs approx. 3 960 Lbs. -- Machine air consumption at 90 PSI is approx. 15 CFM;Extra options not included in machine price: HSD 9-spindle vertical Drill-bank ...$7,675

CAM-WOOD - IN-510-R, ...5' x 10' CNC Router with Automatic Rotary Tool Changer:5' x 10' Flat Table CNC Router, Perfect for your 3-axis routing applications including "Nested Base Manufacturing".Machine Bed/Base: -- The Welded & Structurally Engineered machine base provides a solid foundation for superior cut quality; the entire frame is stress relieved and heat treated. -- The Moving Gantry Bridge travels in the X- & Y-axis via inclined toothed Helical rack & pinion on "HIWIN" 1" (25 mm) thick hardened & precision ground rectangle linear guide ways providing extra smooth movement, high-speed traverse and accurate cutting. -- The Tool Gantry Movement for the vertical Z-axis travels on a 1" (25.4 mm) dia. precision ball screw for smooth & consistent movement.CNC Control & Operator Interface: -- Industrial Grade "SYNTEC" controller with network-compatible WINDOWS PC-based front-end, color monitor, keyboard, mouse. Absolute & incremental programming, cutter & tool length compensation, feed rate & spindle speed override, inch/metric operation, and linear/circular & helical interpolation. -- Compatible with virtually all CAD/CAM programming software on the market. - You choose the software that best suits your needs.Working Table/Envelope: -- X 63" (1,600 mm), Y 126" (3,200 mm), X 7.75" (197 mm). -- (6) Independent vacuum zones.Axes Travel Range & Feed Speed: -- Max Traverse Speeds: 2,350 IPM -- Max Working Speed: 1,100 IPM. -- Yaskawa "AC" Servo drives & SHIMPO Gear Boxes power all axes movements.Routing & Machining: -- (1) 12 HP HSD Air cooled Router Spindle with: ISO 30 Adaptor ER-32, variable programming speeds from 6,000 to 24,000 RPM, -- (1) 12-Position ATC (automatic rotary tool changer)Complete With: -- 10 HP Vacuum Pump. -- (3) ISO 30 tool holders -- two pop up pins at X, axis & three pop up pins at Y. -- Automatic tool offset device. -- Automatic lubrication device with filter. -- Standard MPG hand wheel -- safety light curtain and Estop -- 1-Year manufacture warrantyUtilities and Dims: -- Machine power supply is wired for 220 Volts, 60 Cy, 3-Phase, 53 Amps. -- Machine weighs approx. 4,480 Lbs. -- Machine air consumption at 90 PSI is approx. 15 CFM;Extra options not included in machine price: HSD 9-spindle vertical Drill-bank ...$7,675 Add second 10 HP Vacuum Pump with stand ...$6,000

CAM-WOOD SM-3006 Push Feed Moulder4" x 6" 3-Side Planer, Moulder; Our most cost effective small to medium shop size Push-Feed Moulder.Equipped with & Features: -- If you try to run your short runs of special moulding at lower prices, this machine could be your answer. -- Solidly built with cast and steel plate construction, this is one moulder that will give you a foot up on the competition at an affordable price. -- Precision cast and steel plate construction to ensure a smooth finished product. Two vertical and one 1-1/4" horizontal spindle driven by individual industrial motor allowing smooth cutting on three surfaces simultaneously. -- Alloy steel spindle for durability usage. -- Two power infeed rollers feed the material to push previous pieces through moulding process then comes out from the end. -- (2) Belts driving at each spindle for maximum cutting power. -- Top and side pressure hold down to ensure smooth finish. -- Industrial full power motor for maximum cutting capacity. -- Precision sealed long-life bearings. -- Heavy cast iron frames and table for durability usage.Specifications: -- Table Size 47" L x 10" W. -- Moulding Capacity (Max.) 6" W x 5" H, Capacity (Min.) ¼" W x ½" H. -- Top Spindle Size 35 mm x 6" long. -- Side Spindle Size 1¼" x 3½" long. -- Spindle Travel 3", Spindle Speed 7000 RPM. -- Max. Cutter dia. 5". -- Spindle Motor (Top) 5 HP, (side) spindle motors 3 HP each. -- Feed Motor ½ HP and Feed Speed 10 ~ 56 FPM. -- Dust Hood 4" x 4". -- (2) Top Pressure Rollers and (3) Side Pressure Rollers.Overall Dimensions & Weight: -- 51" L x 43" W x 41" H. -- N.W. 1210 Lbs, G.W. 1550 Lbs.

CAM-WOOD - VPS I, ...Vertical Panel Saw (82.677" x 161.417" w/Scoring)Top to Bottom cutting height is 2,100 mm with or without scoring; saw head w/motor rotates 90° for rip or crosscutting; cutting length 4,100 mm; cuts single or stacked panels up to 60 mm (2.36") in thickness. Standard features: -- 4 HP Motor with a 250 mm (10") dia. 80-tooth main saw blade. -- Separate 3.15" Dia. scoring blade, belt driven at 7,800 RPM; single-screw adjustment for side-to-side and depth. -- Auto-shifting material back support grid; shifting away from the saw blade cut line prevents cutting into the grid support strips while rip cutting horizontally; it senses the blade/cutter position and automatically shifts away. Equipped with: -- Precision ground bottom edge steel support rollers to facilitate easy loading and positioning of the larger or heavy panels; both standard inch and metric preset "beam lock" stations. -- Vertical cutting stations are spaced at 40" or 1,000 mm increments to lock-in the saw beam for vertical crosscuts. -- (2) Adjustable flip stops on inch (metric available) measuring scales, one located on the lower rail and the other on the foldout shelf at the middle of the frame. -- Retractable Material Support Shelves throughout the entire length of the machine frame allows for ergonomic cutting of smaller parts, at any cutting station without the need for the operator to bend down.Includes: -- (1) 250 mm (10") dia. 80-tooth, 30 mm bore main blade; (1) 80 mm (3.14") dia. 24-tooth, 20 mm bore scoring blade; Repeat Cutting Device.Optional Equipment available: Built-in Dust Collector, please add ...$ 1.250.

CAM-WOOD - VPS I +, ...Vertical Panel Saw (82.67" x 161.41" w/Scoring), Vertical-Horizontal Digital Readouts & Auto Lock System. Top to Bottom cutting height is 2,100 mm with or without scoring; saw head w/motor rotates 90° for rip or crosscutting; cutting length 4,100 mm; cuts single or stacked panels up to 60 mm (2.36") in thickness.Standard features: -- 4.0 HP Motor (5.5 HP Option) with a 250 mm (10") dia. 80-tooth main saw blade. -- Separate 80 mm (3.15") Dia. scoring blade, belt driven at 7,800 RPM; single-screw adjustment for side-to-side and depth. -- Auto-shifting material back support grid; shifting away from the saw blade cut line, prevents cutting into the grid support strips while rip cutting horizontally; it senses the blade/cutter position and automatically shifts away. Equipped with: -- Precision ground bottom edge steel support rollers to facilitate easy loading and positioning of the larger or heavy panels; both standard inch and metric preset "beam lock" stations. -- Vertical cutting stations are spaced at 40" or 1,000 mm increments to lock in the saw beam for vertical crosscuts. -- (2) Adjustable flip-stops on inch (metric available) measuring scales, one located on the lower rail and the other on the foldout shelf at the middle of the frame. -- Repeat Rip Gauge for duplicating multiple horizontal cuts. -- Retractable Material Support Shelves throughout the entire length of the machine frame allows for ergonomic cutting of smaller parts, at any cutting station without the need for the operator to bend down.Includes: Vertical-Horizontal Digital Readouts; Pneumatic lock System; Repeat Cutting Device; (1) 250 mm (10") dia. 80-teeth, 30 mm bore main blade; (1) 80 mm (3.14") dia. 24-tooth, 20 mm bore scoring blade.Optional Equipment available: Built-in Dust Collector, please add ... $ 1,250.
