BIESSE ROVER B EDGE 1667 CNC MACHINING CENTER (W/EDGEBANDING) -- Specifications:This "Bridge Gantry" machine is "IDEAL" for window, stair, door & component parts manufacturing:Working Field considering "all" units when Routing, "X" Axis is 265" (6,735 mm), "Y" axis is 62.9" (1,600 mm), "Z" axis stroke 13.6" (345 mm), max. material thickness when machining 9.6" (245 mm)When "Edge Banding" "X" Axis is 227" (5,780 mm), "Y" axis is 62.9" (1,600 mm), the max. material thickness is 2.3" (60 mm); the minimum internal radius is 30 mm & minimum external radius is 8 mm (depending on flexibility of the banding material). -- Positioning Speed: "X" & "Y" axis is 279 FPM (85 MPM), "Z" axis is 98 FPM (30 MPM); AC Brushless Servo motors with digital drive and linear guides ensure high speeds with a smooth acceleration-and-deceleration. -- Worktable: (8) Vacuum bar support rails with pneumatic lifting blades, (4) "ATS" vacuum pods per rail; set up assistance according to the program to process.(8) Pneumatic pop-up back stops, (8) pneumatic pop-up front stops, (4) pop-up side stops, (2) pop-up central stops create (2) independent work zones.Edge Banding unit:The edgebanding is automatically applied to square or irregularly shaped parts as the CNC head rotates along the "X" "Y" & "Z" axis and simultaneously rotates the tooling up to 360° on a high precision "C" axis.Floating "hot melt" glue pot & application roller with separate thermostats apply glue on the panel edge.Pneumatically controlled pressure roller with manually adjustable guides for coil & strip feeding; numerically controlled with encoder that measures strip feeding process.(1) 4-Coil tape magazine with warning sensor when the end of the spool is near; edge banding unit precisely applies 0.4 - 3 mm ABS & PVC with 60 mm (2.3") max. edge height.Pneumatically activated saw blade performs the end trimming at a 35° angle for precise fitting of overlapping joints on adjoining edges. -- Boring Unit: BH17 Boring Head with 4 HP (3 kW) motor, variable speed from 1,500 - 7,500 RPM; (10) Independent "Quick Change" vertical spindles with (6) spindles in "X" axis & (4) spindles in "Y" axis.(6) Horizontal boring spindles with (2+2) in "X" axis & (1+1) in "Y" axis; (1) "X" axis grooving for up to 120 mm dia blade. -- Machining: (2) 18 HP (13.2 kW) liquid cooled electro-spindle router with HSK F63 adaptor; 1,500 - 24,000 RPM.(1) NC controlled "C" axis for 360° horizontal processing; (1) 22-position ATC tool Plate mounted at the back of the machine. -- Operator & Machine Control: PC Front End with Biesse "BH 660" + "BiesseWORKS Advanced" + "bSOLID" + "bEDGE" + WINDOWS "XP" operating system.15" CRT monitor, full keyboard, mouse, 1.44MB & CD ROM disk drives, RS 232 & USB ports, Ethernet connection.Multitask operating system with specific function controls & and internet trouble shooting capabilities; input/output modules, axes override, 4-axes interpolation, diagnostic graphics aid for programming, machine data & to

BIESSE ROVER B EDGE 1667 CNC MACHINING CENTER (W/EDGEBANDING) -- Specifications:This "Bridge Gantry" machine is "IDEAL" for window, stair, door & component parts manufacturing. -- Working Field considering "all" units when Routing, "X" Axis is 265" (6,735 mm), "Y" axis is 75.9" (1,930 mm), "Z" axis stroke 13.6" (345 mm), max. material thickness when machining 9.6" (245 mm)When "Edge Banding" "X" Axis is 227" (5,780 mm), "Y" axis is 75.9" (1,930 mm), the max. banding material thickness is 2.55" (65 mm); the minimum internal radius is 30 mm & minimum external radius is 8 mm (depending on flexibility of the banding material). -- Positioning Speed: "X" & "Y" axis is 279 FPM (85 MPM), "Z" axis is 98 FPM (30 MPM); AC Brushless Servo motors with digital drive and linear guides ensure high speeds with a smooth acceleration-and-deceleration. -- Worktable: (10) "EPS" (Electronic Positioning System)Vacuum bar support rails with pneumatic lifting blades, (4) "ATS" (auto Table Setting) vacuum pods per rail; set up assistance according to the program to process.(10) Pneumatic pop-up back stops, (10) pneumatic pop-up front stops, (4) pop-up side stops, (4) pop-up/removable central stops create (2) independent work zones.Edge Banding unit:The edgebanding unit GU60C with glue pot automatically applied EVA glue to square or irregularly shaped parts as the CNC head rotates along the "X" "Y" & "Z" axis and simultaneously rotates the tooling up to 360° on a high precision "C" axis.Floating "hot melt" glue pot & application roller with separate thermostats apply glue on the panel edge.Pneumatically controlled pressure roller with manually adjustable guides for coil & strip feeding; numerically controlled with encoder that measures strip feeding process.(1) 4-Coil tape magazine with warning sensor when the end of the spool is near; edge banding unit precisely applies 0.4 - 3 mm ABS & PVC with 60 mm (2.3") max. edge height.Pneumatically activated saw blade performs the end trimming at a 35° angle for precise fitting of overlapping joints on adjoining edges. -- Boring Unit: BH17 Boring Head with 4 HP (3 kW) motor, variable speed from 1,500 - 6,000 RPM; (10) Independent "Quick Change" vertical spindles with (5) spindles in "X" axis & (5) spindles in "Y" axis.(6) Horizontal boring spindles with (2+2) in "X" axis & (1+1) in "Y" axis; (1) "X" axis grooving for up to 120 mm dia blade. -- Machining: (2) 18 HP (13.2 kW) Air cooled electro-spindle router with HSK F63 adaptor; 1,000 - 24,000 RPM. (1) NC controlled "C" axis for 360° horizontal processing.(21) Total ATC slots, with(1) 6-position ATC Tool Plate mounted on the "Y" carriage at the back of the machine & (1) 16-position ATC Changer on the "X" carriage. -- Operator Interface: PC Front End with Biesse "BH 660" +"bTouch" +"bSolid" + "bEdge" + Windows "WRT" (Windows Real Time) operating system.21" LCD monitor, CPU Intel(R) Core I5 or superior, 8 GB RAM memory, 128 SSD GB hard disk or superior. graphic card, LCD disp

BIESSE ROXYL 5.5 EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): -- Specifications: Edgebanding Capacity: Edge thickness for strips min./max. 0.4 - 22 mm (0.02" - 0.87"), coiled material from 0.4 - 3 mm (0.02 - 0.12"); panel thickness from 10 - 60 mm (0.39 - 2.36"), workpiece width min. of 85 mm (3.34"); workpiece length min. 140 mm (5.51"); feed speeds 10 - 14 - 18 - 20 MPM (33 - 46 - 59 - 65 FPM). --Machine Interface:"Roxyl-Matic" Automated machine setup, MS/Windows XP Operating System, floppy drive, and 4 GB HD; USB port, keyboard, and mouse interface. -- Flat Screen (17") with color graphics interface: Programs can be easily created and recalled at will; Graphic interface makes programming easy, icon of each unit may be brought up on the screen to show the operator the status of the unit and the parameters, which can be programmed; Edgebander may be operated manually when required, without necessity to write a program.Machine In-Feed Configuration:Pre-Milling Station "FL-502": (2) LH & RH Rotating NC controlled spindles with automatic center positioning. -- Anti-Adhesive "ADZ-700" Automatic Spray Unit with: Glue release agent preventing glue to adhere to work piece surfaces. -- Infrared Heating Lamp: Preheating workpiece edge to ensure best possible surface adhesion quality of edgebanding material. -- Edge Magazine: Automatic for processing coiled and strip edgebanding material. -- Pressure Section: Servo controlled programmable pressure section with (1) large driven roller and (4) idle rollers.Gluing System:EVA (Hot Melt) "QM-705": Quick premelting granulate with glue roller applicator to cover conventional edgebanding material. -- AirForce "VC-710": High pressure, hot air system to reactivate special pre coated edge material (commonly referred to as laser edge).Workstations:End Trimming Unit "IN-801": Front & rear trimming motors, uni-point swivel 0° - 15° bevel, programmable pneumatic change-over from flush to bevel. -- Rough/Flush Trimming Unit "RS-701": Top/Bottom pre- or flush trimming motors. -- Flush/Bevel/Radius Combination Trimming Unit "RF-400": Servo controlled, (2) Servo motors (one for horizontal tool position, one for tool up/down position); using combination bevel/radius/flush insert knives; pre-positioning of motors by pneumatic air cylinders. -- Corner Rounding Unit "CR-202": (2) Motors for front/back corner and upper & lower edge profiling. -- Profile Scraping Unit "RBK-503": Top/Bottom 2-axis NC programmable knife positioning (i.e. 2 - 3 mm radius) for PVC edges. -- Glue Scraping Unit "RCC-701": Flat, top/bottom, digital positioning indicators, pneumatic controlled for in/out position. -- Buffing Station "SP-501": Top & Bottom buffing motors with 150 mm ( 6") cloth buffing wheel diameter; adjusts in multiple directions. -- Edge Reactivation Unit "PH-700": Top/Bottom hot air blowers to restore original color to profile scraped PVC edge material.Complete with: -- Top Pressure Beam with driven flat belt and program

BIESSE KLEVER 1530 G FT FLAT TABLE MACHINE (W/ATC/BORING): -- Specifications: 5' x 10' "Bridge Gantry" machine with: "Aluminum "T"-Slot" table allows for Clamp Fixtures, or Vacuum Locking (requires a vacuum pump). -- Working Capacity: "X" Axis 120" (3,050 mm); "Y" axis 60" (1,550 mm); "Z" axis stroke is 10.2" (260 mm); max. material thickness 5.9" (150 mm). -- Positioning Speed:"X" & "Y" Axis 74 FPM (23 MPM); "Z" axis 41 FPM (13 MPM); "X" & "Y" Axes use a precision rack & pinion system; "Z" axis uses precision ball screws.All axes movement is on precision linear guides & ways and controlled by digital, brushless AC Servo motors; all motion components are maintained by an automatic lubrication system. -- Work Area:Flat table design with: "Aluminum" worktable that allows for automatic locking using T slots or possible vacuum locking (requires a vacuum pump)NOTE: Optional Vacuum Pump is included. -- (3 + 3) Manual flip reference stops in "Y" axis & (2) reference stops in "X" axis. -- Boring Unit:"BH 5" Boring head; (1) 2.5 HP (1.7 kW) - 4,000 RPM motor; (5) independent vertical spindles in "X" axis. -- Machining:(1) 12 HP (8.9 kW) Air-cooled HSD Electro-spindle with ISO 30 adaptor; variable speed from 1,000 - 24,000 RPM.(1) 7-Position tool rack; NC controlled digital presetting device for the measurement of the tool length. -- Operator Interface:PC Front-End with: BIESSE "BH 660" + "BiesseWorks" + Windows "WRT" Operating System;19" TFT flat screen monitor; Server, full keyboard & mouse all mounted on a mobile cart; Ethernet connection capabilities.BiesseWorks Graphic interface with: Assisted graphic editor used to program machining operations, parametric programming and guided creation of parametric macros.Import of CAD and other external software files in DXF and CID3 format; 3D simulation of the tool path, calculation of machining time & the ability to create rotate virtual faces. -- Complete with:(1) 10 HP (7.5 kW), 250 m³/Hr BECKER Vacuum Pump, automatic program update according to the tool length; Automatic Lubrication system for linear guides, pads and recirculating ball screw.; Handheld Pendant control: Universal Autotransformer for voltages between 200 - 600 V, 50 / 60 Hz. -- Actual Model is BIESSE KLEVER 1530 G FT

BIESSE ROVER A 1432 ATS CNC MACHINING CENTER (W/ATC/BORING): Specifications: -- Working Capacity:"X axis 125.9" (3,200 mm), "Y" axis 52" (1,320 mm), "Z" axis stroke 13.7" (350 mm), max material thickness 9.6" (245 mm). -- Positioning speed:"X" 262 FPM (80 MPM), "Y" Axis 196 FPM (60 MPM), "Z" axis 98 FPM (30 MPM);AC Brushless Servo motors with digital drive and linear guides ensure high speeds with a smooth acceleration-and-deceleration. -- Work Table:(6) Tube-less panel supports with (4) lifting bars for heavy panels & (3) ATS vacuum pods per panel support;(6) Pneumatic back stops, (6) pneumatic front stops, (2) pneumatic side stops & (2) pneumatic central stops. -- Boring Unit:4 HP (3 kW) motor with variable speed from 1,500 - 7,500 RPM; (20) "Quick Change" independent vertical spindles with (10) spindles in "X" axis & (10) spindles in "Y" axis;(8) horizontal boring spindles with (2+2) in "X" axis & (2+2) in "Y" axis;(1) "X" Axis grooving saw for max 120 mm dia saw blade. (1) "Y" Axis grooving saw for max 120 mm dia saw blade. -- Machining:(1) 17 HP (13 kW) Liquid Cooled "HSD" electro-spindle router with HSK F63 adaptor, variable speed from 1,500 - 24,000 RPM;(1) 8-Position ATC tool plate located on the machine head for "on the fly" ATC. -- Operator & Machine Control:PC Front End: Biesse "BH 600" + bSOLID + WINDOWS "7" operating system,15" TFT monitor, full standard keyboard & mouse, CD ROM disk drives,RS 232 & USB ports, Ethernet connection, specific function controls & and internet trouble shooting capabilities;Control cabinet with air conditioning & dust free environment."bSOLID" is a multitask operating system, input/output modules, axes override, 4-axes interpolation, diagnostic graphics aid for programming, machine data & tool management. -- Complete with:(1) 100 m³/Hr vacuum pump; automatic lubrication system; original documentation; hand held pendant; safety fences & mats; scrap conveyor; CE mark. -- Actual Model is BIESSE ROVER A 1432 ATS

BIESSE ROXYL 5.5 EDGEBANDER (W/PRE-MILL & CORNER ROUNDING) + "AIR FORCE" PUR/EVA GLUING TECHNOLOGY: -- Features: Latest Technology combines productivity, efficiency, and flexibility for all types of edgebanding material. "AirForce" emits high temperature compressed air through a slot nozzle directly onto the reactive layer of laser banding. That layer is activated and bonds the banding to the panel fibers. This technology allows changes based on banding colors without any setup. Environmentally friendly providing a “clean - green"; technology that eliminates glue and fumes, which becomes timely & important now that "AirForce" can use PVC. -- In addition, it features a conventional EVA (Hot Melt) Gluing System to cover the full range of edgebanding processes in use today!Specifications: -- Edgebanding Capacity: Edge thickness for strips min./max. 0.4 - 22 mm (0.02" - 0.87"), coiled material from 0.4 - 3 mm (0.02 - 0.12"); panel thickness from 10 - 60 mm (0.39 - 2.36"), workpiece width min. of 85 mm (3.34"); workpiece length min. 140 mm (5.51"); feed speeds 10 - 14 - 18 - 20 MPM (33 - 46 - 59 - 65 FPM). -- Machine Controls: "Roxyl-Matic" Automated machine setup, MS/Windows XP Operating System, floppy drive, and 4 GB HD; USB port, keyboard, and mouse interface. -- Flat Screen (17") with color graphics interface: Programs can be easily created and recalled at will; Graphic interface makes programming easy, icon of each unit may be brought up on the screen to show the operator the status of the unit and the parameters, which can be programmed; Edgebander may be operated manually when required, without necessity to write a program.Machine In-Feed Configuration: -- Pre-Milling Station "FL-502": (2) LH & RH Rotating NC controlled spindles with automatic center positioning. -- Anti-Adhesive "ADZ-700" Automatic Spray Unit with: Glue release agent preventing glue to adhere to work piece's surfaces. -- Infrared Heating Lamp: Preheating workpiece edge to ensure best possible surface adhesion quality of edgebanding material. -- Edge Magazine: Automatic for processing coiled and strip edgebanding material. -- Pressure Section: Servo controlled programmable pressure section with (1) large driven roller and (4) idle rollers.Gluing System: -- EVA (Hot Melt) "QM-705": Quick premelting granulate with glue roller applicator to cover conventional edgebanding material. -- AirForce "VC-710": High pressure, hot air system to reactivate special pre-coated edge-material (commonly referred to as laser edge).Workstations: -- End Trimming Unit "IN-801": Front & rear trimming motors, uni-point swivel 0° - 15° bevel, programmable pneumatic change-over from flush to bevel. -- Rough/Flush Trimming Unit "RS-701": Top/Bottom pre- or flush trimming motors -- Flush/Bevel/Radius Combination Trimming Unit "RF-400": Servo controlled, (2) Servo motors (one for horizontal tool position, one for tool up/down position); using combination bevel/radius/flush insert knives; pre-posit

BIESSE AKRON 1440A SINGLE SIDE EDGEBANDER (W/PRE-MILL & CORNER ROUNDING) + with "AIR FORCE" PUR & EVA (Hot Melt) Gluing Systems: -- Specifications: Latest Technology combines productivity, efficiency, and flexibility for all types of edgebanding material."AirForce" emits high temperature compressed air through a slot nozzle directly onto the reactive layer of laser banding. That layer is activated and bonds the banding to the panel fibers. This technology allows changes based on banding colors without any setup.Environmentally friendly providing a “clean - green"; technology that eliminates glue and fumes, which becomes timely & important. In addition, it features a conventional EVA (Hot Melt) Gluing System to cover the full range of edgebanding processes in use today!Working Capacity: -- Min. panel height: 10 mm; Max. panel height: 60 mm; Height of edgebanding material: 14 - 64 mm; Thickness of edgebanding material in rolls: 0.4 - 3 mm; Thickness of edgebanding in strips: 0.4 - 10 mm.Min. panel protrusion from the track: 25 mm; Panel length: 140 - 3200 mm; Min. panel width (with length 140 mm): 85 mm; Min. panel width (with length 250 mm): 50 mm.Multi-Feed speed 8-12-15 &18 MPM.Glue & Pressure Section: -- Infrared lamp IRL 700; Gluing unit Quickmelt QM 703 EVA melting glue. Special glue container for PU glue; Additional glue container for EVA gluing unit with melting device.Additionally equipped with the AirForce "VC-710", High pressure, hot air system to reactivate special pre-coated edge material (commonly referred to as laser edge.Automatic edge feed; Cutter knife; Pressure zone with 1-Drive & 2 pressure rollers.Working Units: -- Pre-milling unit with 2 x 0,8 kW, 12000 RPM motors, front/rear inclination 0° -15°. -- RT 02; Gluing, edge feeding, and pressing unit VC-511. -- End trimming unit with 2 x 0,8 kW, 12000 RPM, front/rear, inclination 0° -15°. -- Fine trimming unit 2 × 0,6 kW, 12000 RPM top/bottom. -- (2) Multifunction Corner Rounding unit, 0,65 kW each, for Corner Rounding, Straight Work pieces, Post and Soft-Forming 90° -180° degrees. -- Edge scraper unit; -- Glue scraper unit; -- Buffing unit 2 × 0,37 kW motors. Machine Features: -- Belt pressure beam. The top presser comprises a rubber belt with a stain-proof coating. The thrust exercised on the panel is provided by springs housed on techno polymer connecting rods. -- Auto adjustment of in feed fence. -- Automatic track lubrication system with dynamic track absorption. -- Manual infeed system for narrow pieces. -- One coil automatic edge feeding. -- Hybrid gluing head for granulated EVA and Polyurethane glue. -- Pre-Melter TM10 for Polyurethane glue in cartridges. On-demand top-loading pre-melter for PUR glues. -- Adaptive infra-red lamp to heat up the panel side before the glue application, in order to optimize the adhesion process. -- Independent pneumatic exclusion of the top/bottom fine trimming unit. Operator & Machine Control: -- Biesse,

BIESSE AKRON 245 Edgebander with Corner Rounding: Left-hand material infeed for strips & coiled edge material like PVC, ABS, veneer, and solid wood.Specifications: -- 0.4 - 8 mm (5/16") Cap. Edgebanding thickness, min. panel width 85 mm & min. length 140 mm, panel thickness 10 - 50 mm.Equipped with: -- Adjustable top pressure beam positioning. -- Automatic strip & coil feed magazine with robust shear type 3 mm PVC guillotine. -- Hot-Melt glue system (12 min. heat up time) with Teflon coated gluepot, digital thermostats with automatic kick-down when machine is in idle mode; 1" dia. glue applicator roller. -- Pressure section with (1) large dia. "non-stick" coated drive roller & (2) chrome plated idle rollers with pneumatic positioning.Workstations: -- Front & Rear End Trims (0.33 HP - 12,000 RPM motors), motors travel on (2) straight slides and pneumatic tilt 0° - 25° on horizontal plane. -- Top & Bottom Flush Trims with "Quick Change" motors (1.0 HP - 12,000 RPM motors), digital readouts for easy setup. -- 2-Motor (0.3 HP - 12,000 RPM motors) Corner rounding unit for trimming leading & trailing upper & lower edge/corners with "Fast Position" and can be used as a second Top & Bottom fine trimmer as well. -- Top & bottom Scrapers for 3 mm thick PVC banding, digitals for horizontal adjustments. -- Top & bottom Buffing (0.5 HP - 2,800 RPM motors), units tilt 0° - 30°. -- Top & bottom (2,000 Watt) Hot Air Blowers with temperature adjustment. -- Feed Speed 39 FPM, 3 HP feed drive.Complete with: -- Microprocessor for workstations & feed speed. -- Insulated sound enclosure over all trim stations with triple split dust hood, industrial lights and viewing windows. -- Extendable side panel support rail, 12 KVA - 240 Hz digital frequency inverters. - Includes: Used tooling on all workstations.

BIESSE - ARTECH LEVIA 330, ...3-Head Wide Belt Sander43" Width cap. Drum, Drum, and Combination Head.Head Configuration: -- 1st Head: Rubber covered Contact Roll, 6" dia., 25 HP motor. -- 2nd Head: Steel Contact Roll, 6" dia., 25 HP motor. -- 3rd Head: Combination head with a rubber-covered Contact Roll and Finishing Platen.NOTE: There are (2) 25 HP motors; one drives the 1st head and the 2nd drives the other (2) heads.Specifications: -- 44" x 85" Abrasive belts, electronic abrasive belt tracking; all contact rolls with pneumatic seclusion; Head #3 with air belt cleaner. -- EASY PRO "2000 C" Processor with (200) programs, touchscreen for control of Sander functions, thickness opening, feed speed, sequential startup, contact roll seclusion, and abrasive belt cleaner. -- Conveyor belt feed, 11 - 66 FPM variable feed speed, 2 HP feed drive with inverter control. -- 1/8" - 7-7/8" Motorized thickness adjustment with LED readout; automatic part thickness setup.Equipped with & Features; -- Automatic conveyor belt tracking. -- Infeed & outfeed shoes or rubber-covered holddown rolls, infeed panel "over thickness" sensor. -- Electronic brakes on both sanding head motors. -- Infeed emergency stop, 3-roll infeed extension, and motor load meter.

C.R ONSRUD MODEL 615DG24H8 "Dual Gantry Series" CNC router with ATC Multi spindles:5' X 51' working table with Multi spindles and Dual Gantry aluminum non-vacuum table. -- Features:Dual Gantry each with (4) spindles, each gantry has its own 12 position hide away tool changer. -- Thermal Heat Treated:Stress Relieved, & Normalized One-Piece, Steel Frame Base, & Thermal Heat Treated, Stress Relieved, & Normalized Steel Bridge; Dual Support, Dual Drive, Moving Gantry, Fixed Table Design with standard 2,500"; per minute machining speed, full 3-D capability, precision ball screw drives for Z & Y axis, case-hardened, precision ground, helical rack & pinion drives for X axis with forced-air continuous rack cleansing system & anti-contamination shielding, precision linear profile guide ways, centralized manual lubrication system, 11-inches of Z stroke - 14"; under bridge clearance & 11"; Z axis stroke.. -- Spindles:Total of (8), (4) per gantry, 18kW, 24HP "QTC" – 24,000 RPM Liquid cooled Long Nose Spindle w/ HSK-63F Spindle Taper, fully programmable & reversible, variable speed, liquid-cooled, quick-change spindle, capable of routing, drilling and ridged tapping, programmable feed rates w/override capability supported with a 12 hideaway tool changer on each gantry total of 24, Automatic Oil Mist Lubricator for each spindle. -- Spindle adjustments:Servo Adjustment of Spindle Center Distance. -- Controls:(2) FANUC 31i-B5 Machine Controller With Integrated PC Interface one for each gantry Fanuc 31i-B5 is Industrial CNC Machine Controller with Fanuc Panel-i HMI w/High Res touch screen. Includes: Network capability, adds Larger FANUC Digital Drives & Servos. Includes Full remote diagnostic troubleshooting capabilities. -- Complete with:Assorted tool holders, centralized grease lubrication on Multi-Head, 63kVA Isolation Transformer, FANUC MPG Handheld Remote Jog Pendant, and manuals. -- Machine floor space required 64' by 14' 5"

CALPE TH5-1600 Heavy-Duty High-Production, Fully Automatic CNC Lathe: General Description: -- Multi-Spindle cutting simultaneously, (5) spindles using V-type gouge knives. -- 63" (1,600 mm) Max. distance between centers; 5-1/2" (140 mm) max. swing diameter between spindles. -- CNC Controlled with 2.95" (75 mm) travel for depth of cut. Motors/Speeds: -- Servo controlled CNC drives: -- CNC controlled electronic variable speed head drives the movement of the (5) gouge tools. -- CNC controlled feed speed carriage, variable up to 50 FPM (15 MPM). -- (1) Head stock variable speed drive for the (5) spindles, up to 6,000 RPM, approx 10 HP. -- Fast return travel of up to 590 IPM (15,000 mm/Min). 2 HP approx hydraulic drive -- Loading device & tail stock powered by hydraulic pump with 2 HP - 1,750 RPM motor; No. 5 Morse taper on main spindle shaft. Features: -- Automatic loading & unloading device; carriage mounted with linear guides providing high precision movement. -- Full CNC controller with on-screen CAD programming for all products.Matching CALPE L6-1600, record number LC-010996 spindle sander is available at additional cost at same facility.

CALPE L6-1600 Spindle Sander with Hopper Feed. -- (6) Spindles, semi-automatic sanding machine; distance between centers 63", 6-3/16" max sanding diameter, capable of sanding 1800 spindles per hour. -- 4 HP - 1,800 RPM head motor, (5) sandpaper holders, each for different grits, 4000-3200-2200-850 RPM head spindle speeds. Copier unit that follows all contours. -- Oscillating sanding units & stationary pick up of part. -- NOTE: This sander was running with lathe on our record number LC-010811 and owner prefers to sell at the same time.

CAM-WOOD IAT 620-150H INVERTER DRIVEN FINGER JOINT SYSTEM 3" X 6":Lay-Up and Block-Staging Infeed Conveyor: -- 24" Wide x 31.5" long belt conveyor powered with 1/2 HP motors. Conveyor is controlled by the operating and system. Feeds at a constant rate of 180 FPM. Block delivery is controlled by the operator and machine system criteria to feed the Shaper. The conveyor facilitates keeping the system full and productive. FSR-62I Right Hand Inverter Type Finger Joint Shaper: -- Feed table is 24" wide and accepts blocks from 6" wide x up to 31.5" long x 5/8" to 6" wide. Shaper spindle is driven by a 20 HP motor and is equipped with provisions for vertical adjustment of 20 mm up and 20 mm down. Spindle diameter is 50 mm and runs at 6,600 RPM. 8-1/4"; maximum shaper cutterhead diameter - without knives. 10 HP - 4,800 RPM Cutoff and trim saw; accepts 10" dia. x 100 tooth x 5 mm blades. 2 HP - 2,850 RPM Scoring saw, accepts 7" dia. x 50 tooth x 5 mm blades. Table movement is Inverter driven; powered by a 3 HP + 3 HP inverter motor with cycle speeds from 1 to 4 cycles/Min. Motor senses load and varies travel speed as needed. Speed is also controlled by system criteria STC-62A Single Table Transfer Conveyor to the 2nd (Left Hand) Shaper: -- 24" Wide x 31.5" long belt conveyor. Powered with (1) 1/2 HP motor. Controlled by system criteria. Feeds at a constant rate of 180 FPM. FSL-62I Left Hand Inverter Type Finger Joint Shaper with Glue Extruder: -- Feed table is 24" wide and accepts blocks from 6" up to 31.5" long x 5/8" to 6" wide. Shaper spindle is driven by a 20 HP motor. Spindle diameter is 50 mm and runs at 6,600 RPM. 8-1/4" maximum shaper cutterhead diameter - without knives. 10 HP - 4,800 RPM Cutoff and trim saw; accepts 10" dia. x 100 tooth x 5 mm blades. 2 HP motor powers a top and a 2nd 2 HP motor powers a bottom scoring saw, both running at 2,850 RPM; accepts 7" dia. x 50 tooth x 5 mm blades. Conveyer powered by 1/2 HP motor. Table movement is Inverter driven; powered by a 3 HP + 3 HP inverter motor with cycle speeds from 1 to 4 cycles/Min. Motor senses load and varies travel speed as needed. Speed is also controlled by system criteria Injection Type Glue Applicator: -- Extrudes adhesive into the fingers without the messy runoff associated with glue rollers. 6" Comb height is standard. Finger pitch 4 mm, 10 - 12 mm finger length is standard equipment (special sizes available as optional equipment) STC-62A Single Table Conveyor Belt to the Assembly Section: -- 24" Wide x 31.5" long belt conveyor. Powered with (1) 1/2 HP motor. Controlled by system criteria. Feeding at a constant rate of 180 FPM. FJ-500A (198") Assembly Press with Cut-Off Saw: -- Capacity from 1" to 6"; wide x 1/2" to 3" high x and from 6' to 16-1/2' long. A 2 HP motor powers the upper and a 2nd 2 HP motor powers lower pre-assembly/crowder rolls. With 5 HP infeed inverter drive. In-feed speed from 30 to 230 FPM. Speed is controlled by system criteria. 5 HP - 2,85

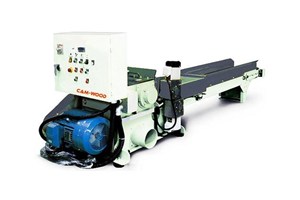

CAM-WOOD FSM-460AX Finger Joint ShaperSingle Finger joint Shaper with 8" min. and unlimited max. block length; 4" max. block thickness, maximum timber height to feed into assembly press is 3"; 18" max. block width (horizontal joint only); 18" table working width.Equipped with: -- Shaper spindle powered by 10 HP belt drive motor with 50 mm dia. spindle turning at 5,500 RPM; 160 mm (6.3") max. dia. cutter. -- Trim-saw powered by 5 HP direct drive motor at 2,850 RPM and a 1" dia. saw spindle; swings 180 mm (7") max. blade dia. -- Table cycles 2 to 4 per Min via the hydraulic system with a 2 HP hydraulic power unit. Includes 5" dia. dust outlet.Features: -- Manual Fingerjointer performs end trimming and shaping functions on right and left end of blocks. -- Air-operated clamp holding blocks firmly in place. After the workpiece is clamped, the table feeds past the saw and shaper spindles to perform trimming and finger-joint operations; trim saw cuts blocks exactly 90° ends. -- Shaper spindle is precision-constructed for cutting fingers accurately; swings up to 6" dia. tooling. -- Spindle height adjustment is displayed on the dial readout for easy adjustment. -- Table travels on a precision linear guide for stability; table traverse driven by hydraulic power system smooth and accurate block feeding. -- Variable feed speed permits proper feed for hard or soft wood. -- Cast iron frame and table for durability.

CAM-WOOD MODEL FSG-150X Manual FINGER JOINT GLUE APPLICATOR -- Manual operation of sliding table ; Specification: -- Glue roller type -- Working width 24" maximum -- Working thickness 6" -- Glue roller drive 1/2 HP with reducer -- Standard clus height 4"

CAM-WOOD TYPE F1, MODEL FAH 8" X 30’ HORIZONTAL FULLY AUTOMATIC FINGER JOINT SYSTEM - SINGLE CHAIN TYPEMECHANICAL SPECIFICATIONS FOR THE FEED SYSTEM: -- Operating speed: 120 to 150 lugs/Min -- Intermittent feed motor: 2 HP + 1:25 -- Feed chain motor: 30 HP (20 kW) Servo Drive (C2) MECHANICAL SPECIFICATIONS: RIGHT-SIDE SHAPER: -- Cutterhead Motor: 25 HP -- Spindle size: 2-3/4"; (70 mm) -- Maximum cutter head body diameter: 10"; -- Cutterhead speed: 5,500 RPM at 60 Hz -- Trim Saw Motor: 15 HP -- Trim Saw blade size: 12"; (305mm) x 80 Tooth x 5mm kerf -- Cut-off saw Speed: 4,300 RPM -- Scoring saw motor: 3 HP -- Scoring saw blade: 7"; (180mm) x 50 Tooth x 5mm -- Scoring saw spindle speed: 4,200 RPM -- Holddown rise and lower motor: 1/2 HP (C3) MECHANICAL SPECIFICATIONS: LEFT-SIDE SHAPER: -- Cutterhead Motor: 25 HP -- Spindle size: 2-3/4"; (70 mm) -- Maximum cutter head body diameter: 10"; -- Cutterhead speed: 5,500 RPM at 60Hz -- Trim Saw Motor: 15 HP -- Trim Saw blade size: 12"; (305 mm) x 80 Tooth x 5 mm kerf -- Cut-off saw Speed: 4,300 RPM -- Scoring saw motor: 3HP -- Scoring saw blade: 7"; (180 mm) x 50 Tooth x 5 mm -- Scoring saw spindle speed: 4,200 RPM -- Holddown rise and lower motor: 1/2 HP -- Glue Application by GLUE COMB -- Standard glue height: 6"; High, 3.8 mm pitch 3.8 mm. Finger lengths from 10 to 12 mm (Other lengths available) (K) MECHANICAL SPECIFICATIONS: SHAPER OUT-FEED: -- Speed: 230 FPM -- Feed Motor: (1) 3 HP -- Vacuum device blower with 3"; Vacuum port: 5 HP (G) MECHANICAL SPECIFICATIONS: PRE-JOINT ASSEMBLY: --Feed chain drive: (2) 3 HP motors --In-feed Inverter: (1) 7-1/2 HP --Chain type: Flat top double chain --Feeding speeds from 30 to 300 FPM (H) MECHANICAL SPECIFICATIONS: 30’ (9.3M) ASSEMBLY PRESS: --Working dimension: 1"; to 8"; wide x 0.60"; to 2 3/8"; high x up to 30’ long --Upper & lower roll power: (2) 2 HP motors --In-feed Inverter: 7-1/2 HP --In-feed speed: 30 to 300 FPM --PROGRAMMABLE Cut-off saw power: 5 HP --Cut-off Blade dimensions: 14"; Dia. x 120 Tooth x 1"; bore --Cut-off saw speed: 2,850 RPM --Hydraulic power: 5 HP (With high speed oil tank) --Cycle Speed: 1 to 8 Cy/MinPRODUCTION CAPACITY - PARAMETERS: -- Based on a 480-minute shift -- Finger length to customer’s specifications -- Average infeed length at the shaper section is 20"; --A verage block cross section is 2"; x 4"; -- Chain speed at the Shaper sections is 150 lugs/Min -- Press capacity is (8) 30’ loads per minute (maximum) CAPACITY OF THE SHAPERS WHEN FINGER JOINTING 2"; X 4"; x 20" BLOCKS -- (120) Blocks per minute -- x 20"; Average infeed length -- x 480 Minutes per shift -- x 0.8 Rate of utilization = 76,800 lineal feet per shift CAPACITY OF THE PRESS ASSEMBLING 30’ LENGTHS: -- (8) Assembled lengths per minute -- x 20’ Per minute -- x 480 Minutes per shift -- x 0.8 Rate of utilization = 66,440 lineal feet per shift -- NOTE: If using the cutoff saw for multi-section pressin

CAM-WOOD TYPE F1, MODEL FAH 8" X 40’ AUTOMATIC HORIZONTAL FINGER JOINT SYSTEM - SINGLE CHAIN TYPE (including Feeding System from Optimizing Saw)Technical Specifications: -- Working thickness: 17 mm to 60 mm (.66" to 2 3/8") -- Working width: 25 mm to 205 mm ( 1" to 8") -- Maximum finish length: 12 Meters ( 40') -- Glue type: PVAC -- Timber moisture: 8% to 12% -- Infeed quality must be S4S with tolerance +/- 02 mm, wood need 90° right angle and straight MECHANICAL SPECIFICATIONS FOR THE FEED SYSTEM: -- Operating speed: 120 to 180 lugs/Min -- Intermittent feed motor: 2 HP + 1:25 -- Feed chain motor: 30 HP (20 kW) Servo Drive (C2) MECHANICAL SPECIFICATIONS: RIGHT-SIDE SHAPER: -- Cutterhead Motor: 25 HP -- Spindle size: 2-3/4"; (70 mm) -- Maximum cutter head body diameter: 10"; -- Cutterhead speed: 5,500 RPM at 60 Hz -- Trim Saw Motor: 15 HP -- Trim Saw blade size: 12"; (305 mm) x 80 Tooth x 5 mm kerf -- Cut-off saw Speed: 4,300 RPM -- Scoring saw motor: 3 HP -- Scoring saw blade: 7"; (180 mm) x 50 Tooth x 5 mm -- Scoring saw spindle speed: 4,200 RPM -- Holddown rise and lower motor: 1/2 HP (C3) MECHANICAL SPECIFICATIONS: LEFT-SIDE SHAPER: -- Cutterhead Motor: 25 HP -- Spindle size: 2-3/4"; (70 mm) -- Maximum cutter head body diameter: 10"; -- Cutterhead speed: 5,500 RPM at 60 Hz -- Trim Saw Motor: 15 HP -- Trim Saw blade size: 12"; (305 mm) x 80 Tooth x 5 mm kerf -- Cut-off saw Speed: 4,300 RPM -- Scoring saw motor: 3 HP -- Scoring saw blade: 7"; (180 mm) x 50 Tooth x 5 mm -- Scoring saw spindle speed: 4,200 RPM -- Holddown rise and lower motor: 1/2 HP -- Glue Application by GLUE COMB -- Standard glue height: 6"; High, 3.8 mm pitch 3.8 mm. Finger lengths from 10 to 12 mm (Other lengths available) (K) MECHANICAL SPECIFICATIONS: SHAPER OUT-FEED: -- Working size: Length 150 mm to 900 mm ( 6" to 35-7/16"); Width 25 to 205 mm (1" to 8") -- Speed: 70 m/Min ( 230 FPM) -- Infeed inverter : (1) 3 HP -- Vacuum device blower with 3"; Vacuum port: 5 HP (G) MECHANICAL SPECIFICATIONS: PRE-JOINT ASSEMBLY: -- Working size: Thickness 17 mm to 60 mm (5/8" to 2,3/8"); Width 25 mm to 205 mm (1" to 8") --Feed chain drive: (2) 3 HP motors --In-feed Inverter: (1) 7-1/2 HP --Chain type: Flat top double chain --Feeding speeds from 10 to 90 m/Min (32 to 292 FPM) (H) MECHANICAL SPECIFICATIONS: 40’ (12 M) ASSEMBLY PRESS: --Working dimension: 3/4"; to 8"; wide x 0.60"; to 2-3/8"; high x up to 40’ long --Upper & lower roll power: (2) 2 HP motors --In-feed Inverter: 7-1/2 HP --In-feed speed: 10 m to 70 m/Min (32 to 227 FPM) --PROGRAMMABLE Cut-off saw power: 5 HP --Cut-off Blade dimensions: 14"; Dia. x 120 Tooth x 1"; bore --Cut-off saw speed: 2,850 RPM --Hydraulic power: 5 HP (With high-speed oil tank) --Cycle Speed: 1 to 6 Cy/MinPRODUCTION CAPACITY - PARAMETERS: -- Based on a 480-minute shift -- Finger length to customer’s specifications -- Average infeed length at the shaper section is 500 mm (20";) --Average block cross-

CAM-WOOD TYPE F1, MODEL FAH 8" X 20’ AUTOMATIC HORIZONTAL FINGER JOINT SYSTEM - SINGLE CHAIN TYPE (including Feeding System from Optimizing saw)Technical Specifications: -- Working thickness: 17 mm to 60 mm (0.66" to 2-3/8") -- Working width: 25 mm to 205 mm ( 1" to 8") -- Maximum finish length: 6.2 Meters ( 20') -- Glue type: PVAC -- Timber moisture: 8% to 12% -- Infeed quality must be S4S with tolerance +/- 02 mm, wood need 90° right angle and straight MECHANICAL SPECIFICATIONS FOR THE FEED SYSTEM: -- Operating speed: 120 to 180 lugs/Min -- Intermittent feed motor: 2 HP + 1:25 -- Feed chain motor: 30 HP (20 kW) Servo Drive (C2) MECHANICAL SPECIFICATIONS: RIGHT-SIDE SHAPER: -- Cutterhead Motor: 25 HP -- Spindle size: 2-3/4"; (70 mm) -- Maximum cutter head body diameter: 10"; -- Cutterhead speed: 5,500 RPM at 60 Hz -- Trim Saw Motor: 15 HP -- Trim Saw blade size: 12"; (305 mm) x 80 Tooth x 5 mm kerf -- Cut-off saw Speed: 4,300 RPM -- Scoring saw motor: 3 HP -- Scoring saw blade: 7"; (180 mm) x 50 Tooth x 5 mm -- Scoring saw spindle speed: 4,200 RPM -- Holddown rise and lower motor: 1/2 HP (C3) MECHANICAL SPECIFICATIONS: LEFT-SIDE SHAPER: -- Cutterhead Motor: 25 HP -- Spindle size: 2-3/4"; (70 mm) -- Maximum cutter head body diameter: 10"; -- Cutterhead speed: 5,500 RPM at 60 Hz -- Trim Saw Motor: 15 HP -- Trim Saw blade size: 12"; (305 mm) x 80 Tooth x 5 mm kerf -- Cut-off saw Speed: 4,300 RPM -- Scoring saw motor: 3 HP -- Scoring saw blade: 7"; (180 mm) x 50 Tooth x 5 mm -- Scoring saw spindle speed: 4,200 RPM -- Holddown rise and lower motor: 1/2 HP -- Glue Application by GLUE COMB -- Standard glue height: 6"; High, 3.8 mm pitch 3.8 mm. Finger lengths from 10 to 12 mm (Other lengths available) (K) MECHANICAL SPECIFICATIONS: SHAPER OUT-FEED: -- Working size: Length 150 mm to 900 mm ( 6" to 35-7/16"); Width 25 to 205 mm (1" to 8") -- Speed: 70 m/Min ( 230 FPM) -- Infeed inverter : (1) 3 HP -- Vacuum device blower with 3"; Vacuum port: 5 HP (G) MECHANICAL SPECIFICATIONS: PRE-JOINT ASSEMBLY: -- Working size: Thickness 17 mm to 60 mm (5/8" to 2,3/8"); Width 25 mm to 205 mm (1" to 8") --Feed chain drive: (2) 3 HP motors --In-feed Inverter: (1) 7-1/2 HP --Chain type: Flat top double chain --Feeding speeds from 10 to 90 m/Min (32 to 292 FPM) (H) MECHANICAL SPECIFICATIONS: 20’ (6.2 M) ASSEMBLY PRESS: --Working dimension: 3/4"; to 8"; wide x 0.60"; to 2-3/8"; high x up to 20’ long --Upper & lower roll power: (2) 2 HP motors --In-feed Inverter: 7-1/2 HP --In-feed speed: 10 m to 70 m/Min (32 to 227 FPM) --PROGRAMMABLE Cut-off saw power: 5 HP --Cut-off Blade dimensions: 14"; Dia. x 120 Tooth x 1"; bore --Cut-off saw speed: 2,850 RPM --Hydraulic power: 5 HP (With high-speed oil tank) --Cycle Speed: 1 to 6 Cy/MinPRODUCTION CAPACITY - PARAMETERS: -- Based on a 480-minute shift -- Finger length to customer’s specifications -- Average infeed length at the shaper section is 500 mm (20";) --Average block cros

CAM-WOOD Continuous in-line Long Board Vertical Finger Joint System, Model "UCT-305"Up to 12"; Wide x 4-1/4" Thick x Unlimited Assembled Length System Specifications: -- Incoming board lengths from 39"; to 236" (1,000 mm - 6,0000 mm). -- Board widths from 2"; to 12"; (50 mm - 305 mm). -- Board thickness from 1" to 4.3"; (25 mm - 110 MM). -- Board out-feed length 40’. (could be increase with outfeed conveyor) -- Glue type to be used: PVAC. (Glue pump and applicator not included) -- Board species: SOFTWOOD and HARDWOOD. -- Board moisture content: 8% to 12%. -- Infeed board qualities: Lumber runs best on Finger Jointers when surfaced on (4) sides (S4S) (Tolerance +/- .2 mm (.008"). System prefers straight boards with 90-degree corners. UCT-305 Mechanical Specifications: -- Top infeed feed rolls powered with (2) 2HP motors. -- Bottom infeed feed rolls powered with (2) 2 HP motors. -- In-feed Inverter with (2) 7.5 HP motors. -- Auxiliary conveyor wheel with 2.6 HP servo motor. -- Top Shaper Spindle powered with a 30 HP motor. -- Bottom Shaper Spindle powered with a 30 HP motor. -- Maximum Cutterhead length, 12“(305 mm). -- Maximum Cutterhead diameter, 6.3“(160 mm). -- Typical cutter pitch, 4.0 mm. Length, 10 mm - 12 mm (Other sizes available). -- Shaper spindle moving power by 2.6 HP Servo Motor. -- In-feed speed from 32 to 295 FPM (10 ~90 m/Min). -- Outfeed cut-off saw motor, 10 HP. -- Cut-off sawblade, 24“ dia x 120 teeth (included). -- Cut-off sawblade speed, 2,850 RPM. -- Hydraulic pump power, 30 HP. -- Outfeed conveyor, (2) 2 HP drives. -- Top outfeed feed rolls powered with (2) 2 HP motors. -- Lower outfeed feed rolls powered with (2) 2HP motors. -- Out-feed Inverter with (2) 7.5 HP motors. -- Glue injection Glue Applicator for Standard PVAC glue. (glue pump not included) -- Hydraulic oil tank with 150-gal capacity (oil not included)Outfeed options: -- Outfeed roller conveyor 20'' X 8' long Additional: $ 4,890 per sectionNot included with the machine: -- Cutter heads for finger jointer (we can provide quote) -- Gluing system with pump and nozzle Optional Cross Infeed Conveyor System:Optional Automatic 20 ft Cross InfeedPower Conveyor System Working size L = 1000 MM ~ 6000 MM, W= 50 ~ 305 MM, T=25 ~ 110 MM ( Lenght 39" - 236" X Width 2" -12", Thickness: 1" to 43.3")Infeed roller Conveyor 3 HP1Cross feeding system 3 HP1Feeding speed of 15 M/min (48'/min.)Storage area width 2500 mmAdditional cost: $61,990Glue pump Option: -- Graco 1K PUR Glue SystemAdditional cost: $ 48,990NOTE: Training, installation & tooling not included TO BE PROVIDED LOCALLY -- Electric power supply to Motor Control Center -- Constant voltage (voltage deviations max.: 5%) -- Temperature range for computer control should not exceed 95°F. -- 65% Maximum relative air humidity for computer control system --Dust exhaust system: (V=30M/S at a low pressure of 12M BAR) --Compressed air connection to machinery: 7~8 KG/cm² – 8 BAR --Electrical cabli

CAM-WOOD IAT 620-100HX INVERTER DRIVEN FINGER JOINT SYSTEM 3" X 6" X 16.5 feet long medium capacity Finger Jointing SystemIncoming Block Specifications: -- Incoming block lengths from 6"; to 31.5"; -- Blocks must be at least 50% longer than their width. -- Block thickness from 1/2"; to 3" -- Block width from 1"; to 6" -- Assembled lengths from 10’ to 16’ (Options 20’ or 24’) -- For use with PVAC adhesives (glue pump and nozzle not included) -- Works equally well with soft and hardwoods. -- Moisture content from 8 to 12% -- Blocks to be surfaced on (4) sides through a Moulder or 4-sided Planer to ± 0.2 mm with 90° right angle corners.Lay-Up and Block-Staging Infeed Conveyor: -- 24" Wide x 31.5" long belt conveyor powered with 1/2 HP motors. The conveyor is controlled by the operating system. Feeds at a constant rate of 180 FPM. Block delivery is controlled by the operator and machine system criteria to feed the Shaper. The conveyor facilitates keeping the system full and productive. FSR-62I Right Hand Inverter Type Finger Joint Shaper: -- Feed table is 24" wide and accepts blocks from 6" to 31.5" long -- 5/8" to 6" width -- 1/2" to 3" thickness -- Shaper spindle is driven by a 20 HP motor and is equipped with provisions for vertical adjustment of 20 mm up and 20 mm down. Spindle diameter is 50 mm and runs at 6,600 RPM. 6.3"; (160 mm) maximum shaper cutterhead diameter (cutter head not included) -- 5 HP - 4,800 RPM Cutoff and trim saw; accepts 10" dia. x 100 tooth x 5 mm blades. -- 2 HP - 2,850 RPM Scoring saw, accepts 7" dia. x 50 tooth x 5 mm blades. -- Conveyor powered by 1/2 HP motor. -- Table movement is inverter driven; powered by a 3 HP inverter motor with cycle speeds from 1 to 4 cycles per minute. Motor senses load and varies travel as needed. TC-62 Single Table Transfer Conveyor to the 2nd (Left Hand) Shaper: -- 24" Wide x 31.5" long belt conveyor. Powered with (1) 1/2 HP motor. Controlled by system criteria. Feeds at a constant rate of 180 FPM. FSL-62I Left Hand Inverter Type Finger Joint Shaper with Glue Extruder: -- Feed table is 24" wide and accepts blocks from 6" to 31.5" long -- 5/8" to 6" width. -- 1/2" to 4" thickness -- A 20 HP motor drives shaper spindle. Spindle diameter is 50 mm and runs at 6,600 RPM. 6.3" (160 mm) Maximum shaper cutterhead diameter (cutter head not included). -- 10 HP - 4,800 RPM Cutoff and trim saw; accepts 10" dia. x 100 tooth x 5 mm blades. -- 2 HP motor scoring saw, running at 2,850 RPM; accepts 7" dia. x 50 tooth x 5 mm blades. -- Conveyer powered by 1/2 HP motor. -- Table movement is Inverter driven; powered by a 3 HP inverter motor with cycle speeds from 1 to 4 cycles/Min. Motor senses the load and varies travel as needed. Speed is controlled by system criteria. Included Injection Type Glue Applicator: -- Extrudes adhesive into the fingers without a messy runoff. 4" Comb height is standard. -- Finger pitch 4 mm, 10 - 12 mm finger length is standard equipm
