Equipment For Sale

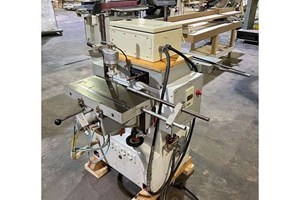

This item is in an Auction on exfactoryauctions.com. Go here to view item: http://exf.ac/i6o BACCI MOD Double-Sided Oscillating Slot Mortiser Specifications: Max. slot depth 80 mm (3.15"), Max. slot length 4-3/8". Chuck size 16 mm (0.63"). Max tool dia. 50 mm (1.97"). Vertical table adjustment 100 mm (3.94"). Oscillation range 120 mm (4.72"). Oscillation speed 224 OPM. Equipped with: (2) 8” x 19-1/2” Tables, Each with Tilt 20° Left & Right. 3 HP - 9,500 RPM Spindle motor, 3 HP Oscillation motor. Hydraulic table feed. (2) Pneumatic hold-downs.

BACCI MOD Slot MortiserAutomatic double table round end mortiser. Mortises or bores holes on chair, furniture or case goods.Technical Specifications: -- (2) Tables & spindles, (1) table on each side to eliminate dead cycle time. -- 3 HP - 9,400 RPM Motor, spindles belt driven, 3 HP oscillation motor with (224) oscillations/Min, spindle movement with ball bushings sliding on hardened ground guides. -- Table assemblies hydraulically feed into spindles, in-and-out table adjustment between table & spindle to reduce spindle engagement time; tilting tables +/- 20° (side-to-side), overhead pneumatic clamp cylinders. -- 3" Max. slot depth, 4-3/8" max. slot length with mechanical digital readout, adjustable without wrenches, 1-15/16" max. dia. tooling, Heavy Duty spindles with 16 mm chucks.

Bader BIII Knife Grinder Includes Many Extra Drive Wheels Extra Attachments For Contact Wheels Tool Rest Very Well Maintained

Has Cyclone DC2100C Dust Collector 3hp 220V Single Phase Table Style T-Slot with Vacuum Option 4x8' Table w/ Perfect for solid wood processing, making closet doors, furniture, signs, and much more. 7.4 hp spindle has the power to cut hardwoods quickly and precisely. Handheld digital controller to move the spindle, adjust the speed, and go through your design. Comes standard with software that allows you to set up almost any kind of design. Rack and pinion mechanism holds up over long periods of heavy use and allows for more fluid and precise movement

Baileigh WR-84V, 220V 1 Ph, 7.5HP CNC ROUTING TABLE with Cyclone DC2100C Dust Collector 3hp Shipping Weight 3000lbs Actual Working Area 97" x 48" Spindle 7.4hp Z Axis Stroke 5.375" Maximum Moving Speed (Inches Per Minute) 590 Maximum Engraving Speed (Inches Per Minute) 590 Reposition Accuracy 0.0019 Tool Diameters ER32 Power 220V Single Phase Length 118" Width 78" Height 65" Weight (lbs) 2500 Table Style T-Slot with Vacuum Option 4x8' Table w/ Perfect for solid wood processing, making closet doors, furniture, signs, and much more. 0 to 18,000 rpm variable spindle speed range. 7.4 hp spindle has the power to cut hardwoods quickly and precisely. Spindle is air-cooled to prevent overheating, prolong the machine’s lifespan, keep it producing high-quality cuts. 15,000 mm per minute maximum engraving or travel speed. Solid steel gantry can tackle hardwoods at high speeds without flinching. Stepper motors with square rails ensure smooth movement along the X, Y, and Z axes. Use the handheld digital controller to move the spindle, adjust the speed, and go through your design. Comes standard with software that allows you to set up almost any kind of design. (Details below.) Upload your cut pattern to the table with a USB drive. Rack and pinion mechanism holds up over long periods of heavy use and allows for more fluid and precise movement than a ball and screw mechanism. 4 collets accept any standard tooling profiles with ?”, ¼”, 3/8", and ½” bit sizes. Includes 10 different tooling profiles. Steel T-clamps hold the material down on the table to reduce vibrations and prevent errors. Table is pre-plummed 4 vacuum zones, each with a separate valve and handle, ready to accept optional 7hp vacuum pump. Extremely rigid steel structure reduces vibrations and helps the table stay accurate for years. Dust shroud covers the spindle and vacuums out sawdust and wood chips while you’re cutting.

Baker Mill Like NEW

Baker board deduster, up to 8" wide capacity, electric drive, price includes all new brushes, feed belt and gone through completely, very good condition

Baker single head resaw, 12" wide capacity, 25hp electric drive on head, includes 2 end-around tables to make complete run-around system, price includes going through shop and is ready for production

2 strand transfer deck, 28" wide x 14' long, #80 roller chain, no drive, good condition

480V | Model # BDD-O | Serial # 19-552

Model 3650E with Baker (3) Strand Infeed Deck Excellent condition Hydraulic over electric general factory networks. Hooked up to power and ready to be demonstrated.

Accepts material up to 12" x 12" and uses a 12"-wide conveyor Main Drive Motor: 30 HP TEFC Variable feed speed from 0-95 feet (0-29 m) per minute 28" Dynamically balanced solid metal band wheels 4" diameter dust outlet requires 500 CFM REDUCED LOW HOUR MILLWORK MACHINE

1993 Baker 4 Head Resaw Approx. 50 blades Size: 13' 2" x 1" x .035" x 1/2" Tooth Carbon Resaw Blade Saw 1 needs a new spindle. Hydraulic drive. New Main Breaker New Fuses A couple of Starters have been replaced. Approximately 6,240 Hours Baker 4 Head Resaw Specifications Guide System: Baker Low-Profile Flat Guide System with steel guide plates for enhanced precision. Saw Dust Outlet: Dimensions: 6"x6" (15.24 cm x 15.24 cm) square. Outlet Adapter: 90° adapter chute to a 4” (10.2 cm) diameter outlet. Rotation: Can be rotated for discharge in four directions. Recommended Airflow: 600 CFM (17 m³/min). Motors: Main Motors: 20 HP, 3-phase motor on each head. Inline Hydraulic Pump Motor: Cutting Capacity: 6" x 12" (15.24 cm x 30.48 cm). Feed System (3-Sided Feed Works): Rough-top belting for traction. Powered side feed rollers for smooth material handling. Non-powered hold-over wheels. Feed Speed: Fully variable, adjustable from 20 to 120 feet per minute (6 to 36 meters per minute). Delivery is available at the buyer’s expense

480V | Model # BBR-0 "A" | Serial # 09-4089

New Fuses | New Main Breaker | Hydraulic Drive | Comes with 50 Blades

2 - Baker Stacking Racks available

1992 Baker 6 Head Resaw Six-Head "C" Saw 1 needs a spindle and wheel replacement. Approximately 8,320 Hours Serial Number 92-379 6 Motors (30) HP (37) Amps Mechanical Drive

BBR-0 | Electric Drives | No Hydraulics | 30 HP Motors | 1992

Baker 2-Head Resaw 20 HP Motors Return Conveyor

2018 Baker Model C 4 Head Resaw Well maintained Work ready Only selling to go to a smaller unit SN 18-4895
